ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine: ES9A
Tighten the nut (23)of the tensioner roller (24), tighten to 1 ± 0,1 m.daN.
Check that the exhaust camshaft pulley screws are not at the end of slots (by loosening one screw).
WARNING: Otherwise, restart the operation for positioning the timing belt.
Tighten at least 2 screwsper exhaust camshaft pulley to 1 ± 0,1 m.daN.
Remove the tools [1], [2]and [4].
Rotate the crankshaft 2 turnsin a clockwise direction.
IMPERATIVE: Never turn it back.
Peg the crankshaft, using tool [2].
Peg the camshaft pulleys, using tool [1].
Slacken the nut (23)of the tensioner roller (24).
B1EP15WCB1EP15XC
Angl-C6-page022-82-2005 4/02/05 17:19 Page 56
Page 63 of 223

Downloaded from www.Manualslib.com manuals search engine 57
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine: ES9A
Tensioning the timing belt.
Act on the tensioner roller (24)so as to align the marks «c»and «d», without detensioning the timing belt
(failing this, restart the operation of adjusting the belt tension).
Hold the tensioner roller (24).
Tighten the nut (23), tighten to 1 ± 0,1 m.daN.
Check the position of the tensioner roller (the alignment of the marks «c»and «d»should be correct).
Remove the tools [1], [2]and [4].
Turn the crankshaft 2 rotationsclockwise.
IMPERATIVE: Never turn it back.
Peg the crankshaft, using tool [2].
Check the position of the tensioner roller (the alignment of the marks «c»and «d»should be correct).
Peg the camshaft pulleys, using tool [1].
If the peg [1]goes in: Loosen the exhaust camshaft pulley screws by 45°.
If the peg [1]does not go in: Slacken the exhaust camshaft pulley screws by 45°.
Bring the exhaust camshaft hub to the pegging position (5), using tool [5].
WARNING: Check that the exhaust camshaft pulleys are not at the end of slots. Otherwise, restart
the operation to position the timing belt.
Tighten the exhaust camshaft pulley screws to 1 ± 0,1 m.daN.
Remove tools[1] and [2].
Complete the refitting.
Initialise the injection ECU (see corresponding operation).
B1EP15XC
Angl-C6-page022-82-2005 4/02/05 17:19 Page 57
Page 64 of 223
![CITROEN C6 2005 Owners Manual Downloaded from www.Manualslib.com manuals search engine 58
ENGINE
CHECKING THE VALVE TIMING
Engine: DT17BTED4
Tools.
[1]Set of plugs: (-).0188-T
[2]Flywheel setting peg (double flywheel): (-).0195.K CITROEN C6 2005 Owners Manual Downloaded from www.Manualslib.com manuals search engine 58
ENGINE
CHECKING THE VALVE TIMING
Engine: DT17BTED4
Tools.
[1]Set of plugs: (-).0188-T
[2]Flywheel setting peg (double flywheel): (-).0195.K](/manual-img/9/57744/w960_57744-63.png)
Downloaded from www.Manualslib.com manuals search engine 58
ENGINE
CHECKING THE VALVE TIMING
Engine: DT17BTED4
Tools.
[1]Set of plugs: (-).0188-T
[2]Flywheel setting peg (double flywheel): (-).0195.K Toolkit 0188-T
[3]Camshaft setting pegs: (-).0195.H Toolkit 0188-T
Checks.
IMPERATIVE: Respect the safety and cleanliness requirements specific to High pressure
Diesel injection (HDi) engines.
Remove the engine cover.
Disconnect the battery negative terminal.
Raise and support the front of the vehicle.
Remove:
- The under-engine sound-deadening.
- The front RH wheel.
- The front RH splash-shield (see corresponding operation).
Remove:
- The air duct between the air/air exchanger and the air inlet housing (4).
- The air inlet housing (4).
Uncouple, plug and move aside the pipes (2)and (3), using tools [1].
Unclip and move aside the electrical harness.
Remove the venting chamber fixing (1).
Move aside the venting chamber (1).
B1BP3BXD
Angl-C6-page022-82-2005 4/02/05 17:19 Page 58
Page 65 of 223
Downloaded from www.Manualslib.com manuals search engine 59
ENGINE
CHECKING THE VALVE TIMING
Engine: DT17BTED4
Remove:
- The auxiliary drive belt (5)(see corresponding operation).
- The upper timing covers (6).
Position the camshaft pegging holes "a"and "b"at "c"and "d", 30° ± 5°forward of their pegging
holes "e"and "f".
NOTE:Turn the crankshaft in the normal direction of rotation, by means of the crankshaft pinion
screw.
B1EP1J9DB1EP1JAD
Angl-C6-page022-82-2005 4/02/05 17:19 Page 59
Page 66 of 223

Downloaded from www.Manualslib.com manuals search engine 60
ENGINE
CHECKING THE VALVE TIMING
Engine: DT17BTED4

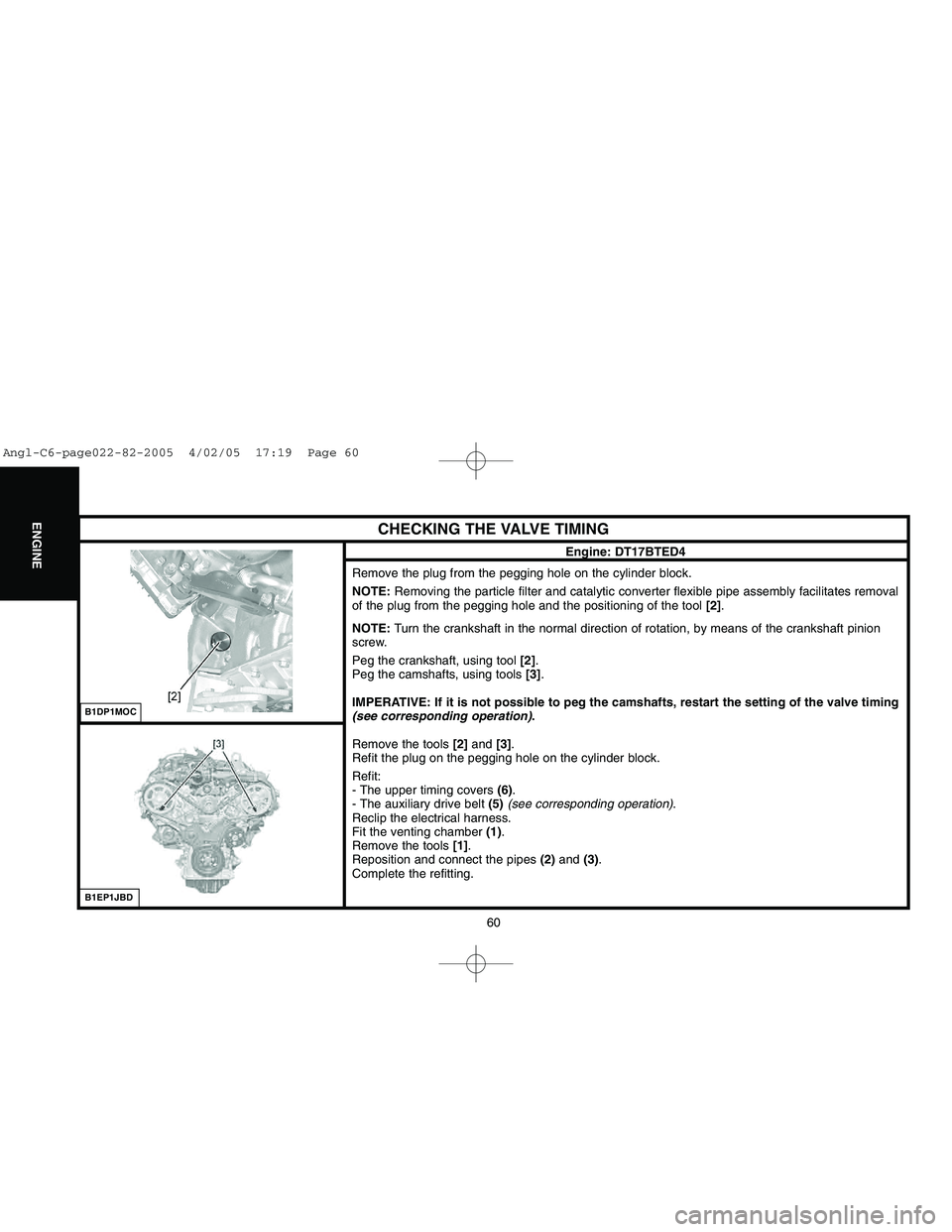

Remove the plug from the pegging hole on the cylinder block.
NOTE:Removing the particle filter and catalytic converter flexible pipe assembly facilitates removal
of the plug from the pegging hole and the positioning of the tool [2].
NOTE:Turn the crankshaft in the normal direction of rotation, by means of the crankshaft pinion
screw.
Peg the crankshaft, using tool [2].
Peg the camshafts, using tools [3].
IMPERATIVE: If it is not possible to peg the camshafts, restart the setting of the valve timing
(see corresponding operation).
Remove the tools [2]and [3].
Refit the plug on the pegging hole on the cylinder block.
Refit:
- The upper timing covers (6).
- The auxiliary drive belt (5)(see corresponding operation).
Reclip the electrical harness.
Fit the venting chamber (1).
Remove the tools [1].
Reposition and connect the pipes (2)and (3).
Complete the refitting.
B1DP1MOCB1EP1JBD
Angl-C6-page022-82-2005 4/02/05 17:19 Page 60
Page 67 of 223
Downloaded from www.Manualslib.com manuals search engine 61
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine: DT17BTED4
Tools.
[1] Kit of plugs: (-).0188-T
[2]Flywheel setting peg (double damping flywheel): (-).0195.K Toolkit 0188-T
[3]Camshaft setting pegs: (-).0195.H Toolkit 0188-T
[4]Belt compressure spring: (-).0188.K
[5]Coolant pump pulley peg: (-).0195.C
[6]Lifting bracket: (-).0195.N
IMPERATIVE: Respect the safety and cleanliness requirements.
WARNING: Before disconnectng the battery, partially open the door windows.
Removing.
IMPERATIVE: Respect the safety and cleanliness requirements specific to High pressure Diesel injection (HDi) engines.
Remove the engine cover.
Disconnect the negative terminal of the battery.
Raise and support the front of the vehicle.
Remove:
- The under-engine sound-deadening.
- The front RH wheel.
- The front RH splash-shield (see corresponding operation).
Angl-C6-page022-82-2005 4/02/05 17:19 Page 61
Page 68 of 223

Downloaded from www.Manualslib.com manuals search engine 62
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine: DT17BTED4
Remove:
- The air duct between the air/air exchanger and the air inlet housing (6).
- The air inlet housing (6).
Uncouple, plug and move aside the pipes (2)and (3)using tool [1].
Detach and move aside the electrical harness.
Remove:
- The header tank fixing (1).
- The "Swirl"electrovalve fixings (7).
Move aside:
- The "Swirl"electrovalve (7)with its support.
- The header tank (1).
Position the lifting bracket [6]at "a".
Support the engine by means of a workshop hoist.
Remove:
- The upper RH engine support tie bar, and the upper RH engine support (5).
- The engine support (4)on the chassis member.
- The accessories drive belt (8)(see corresponding operation).
- The engine support (12), the crankshaft pulley (9), the upper timing covers (11).
- The lower timing cover (10).
Line up one of the three holes "b"on the pulley with the hole on the body of the coolant pump.
Immobilise the coolant pump pulley, using tool [6].
Remove the coolant pump pulley (13).
B1BP3C2DB1EP1JDD
Angl-C6-page022-82-2005 4/02/05 17:19 Page 62
Page 69 of 223
Downloaded from www.Manualslib.com manuals search engine 63
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine: DT17BTED4
Position the camshaft pegging holes "c"and "e"at "d"and "f", 30° ± 5°in front of the pegging
holes "h"and "g".
NOTE:Turn the crankshaft in the normal direction of rotation, by means of the crankshaft pinion
screw.
Remove the plug from the pegging hole on the cylinder block.
NOTE:Turn the engine by means of the crankshaft pinion screw to bring it to the pegging position
(following the arrow).
Peg the crankshaft using the tool [2].
NOTE: Removing the particle filter and catalytic converter flexible pipe assembly facilitates the
removal of the plug from the pegging hole and the positioning of tool [2].
B1EP1JEDB1DP1MOC
Angl-C6-page022-82-2005 4/02/05 17:19 Page 63
