2005 BUICK CENTURY Owner's Manual

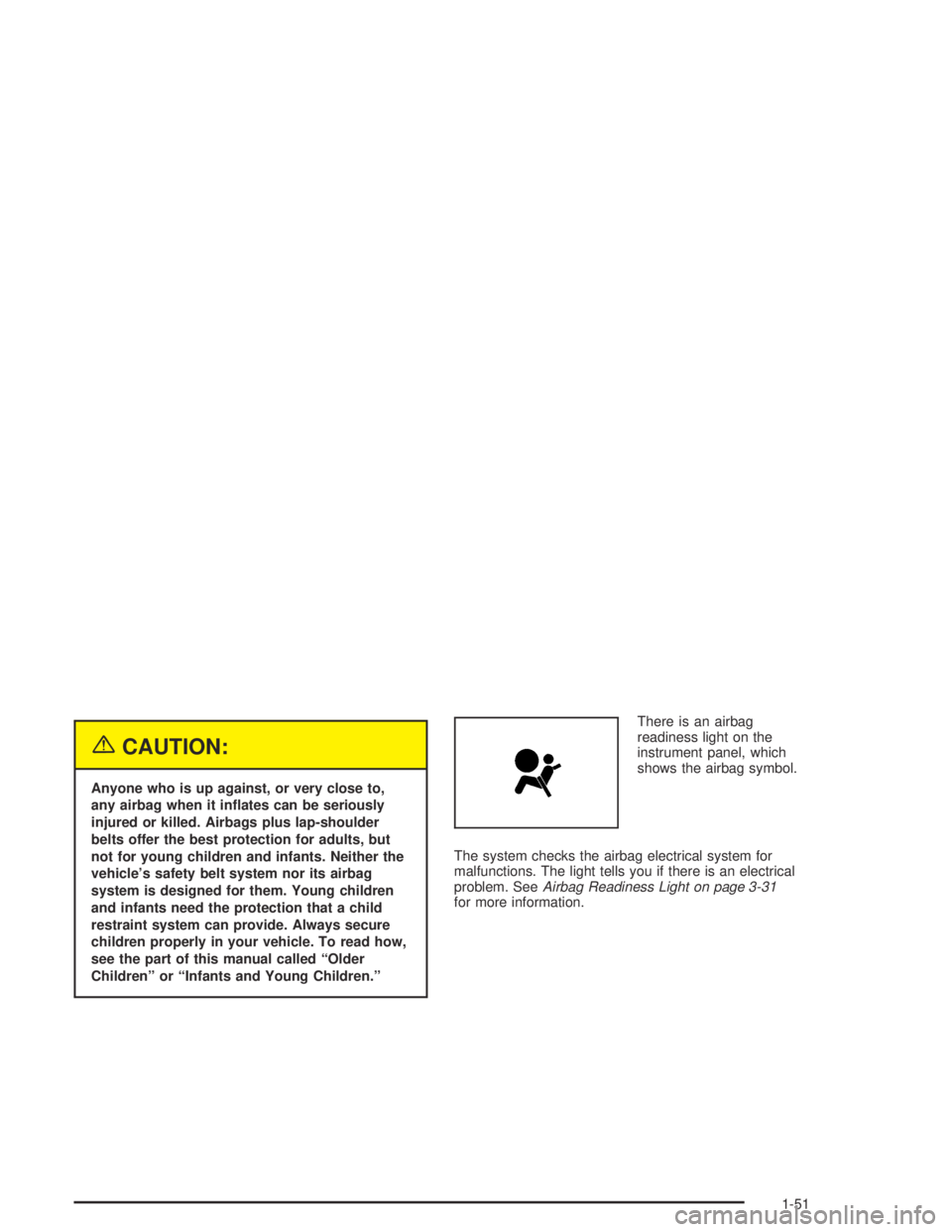

{CAUTION:
Anyone who is up against, or very close to,
any airbag when it inates can be seriously
injured or killed. Airbags plus lap-shoulder
belts offer the best protection for adults, but
not for young children and infants. Neither the
vehicle’s safety belt system nor its airbag
system is designed for them. Young children
and infants need the protection that a child
restraint system can provide. Always secure
children properly in your vehicle. To read how,
see the part of this manual called “Older
Children” or “Infants and Young Children.”There is an airbag
readiness light on the
instrument panel, which
shows the airbag symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAirbag Readiness Light on page 3-31
for more information.
1-51

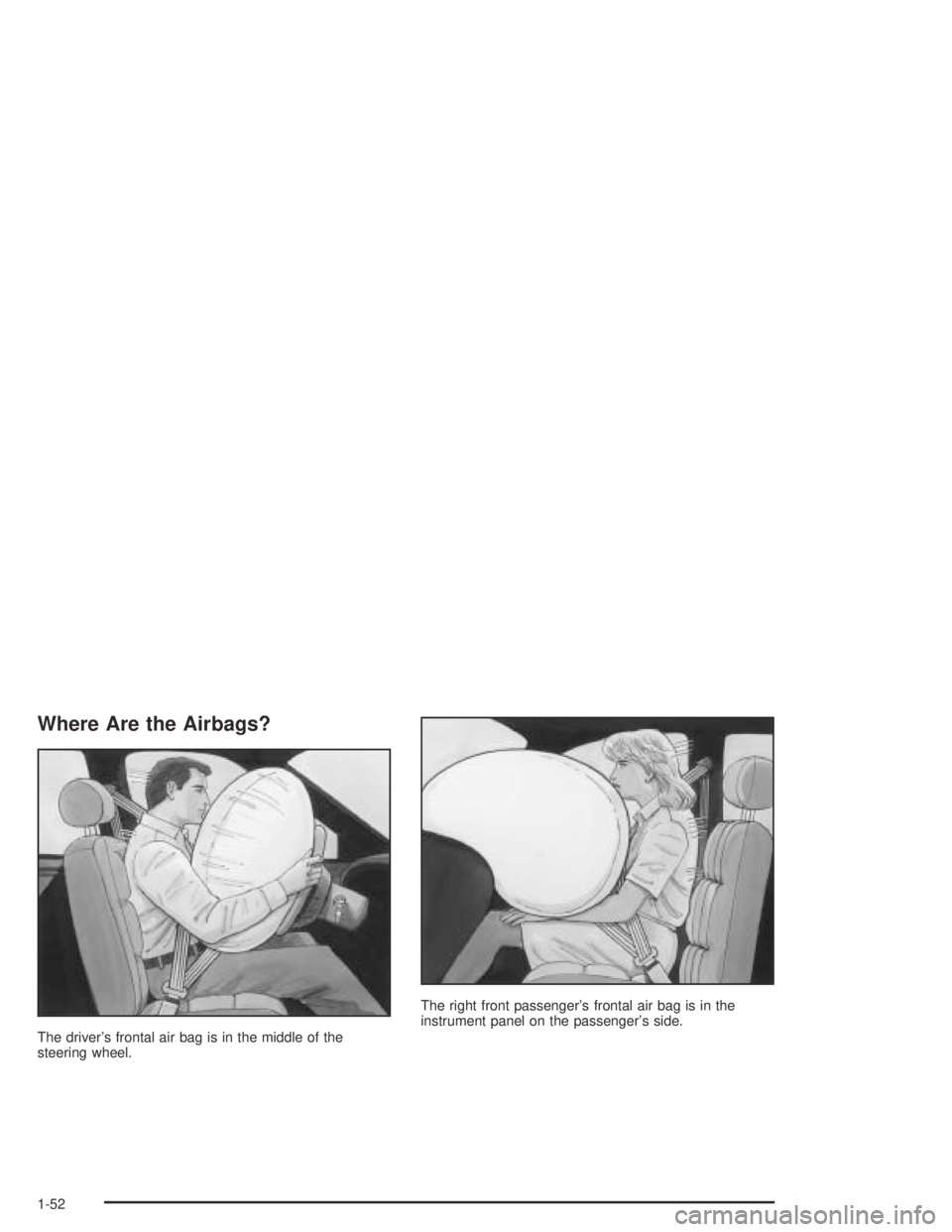

Where Are the Airbags?
The driver’s frontal air bag is in the middle of the
steering wheel.The right front passenger’s frontal air bag is in the
instrument panel on the passenger’s side.
1-52

If your vehicle has one, the driver’s side impact air bag is
in the side of the driver’s seatback closest to the door.
{CAUTION:
If something is between an occupant and an
airbag, the bag might not inate properly or it
might force the object into that person causing
severe injury or even death. The path of an
inating airbag must be kept clear. Do not put
anything between an occupant and an airbag,
and do not attach or put anything on the
steering wheel hub or on or near any other
airbag covering. Do not let seat covers block
the ination path of a side impact airbag.
1-53

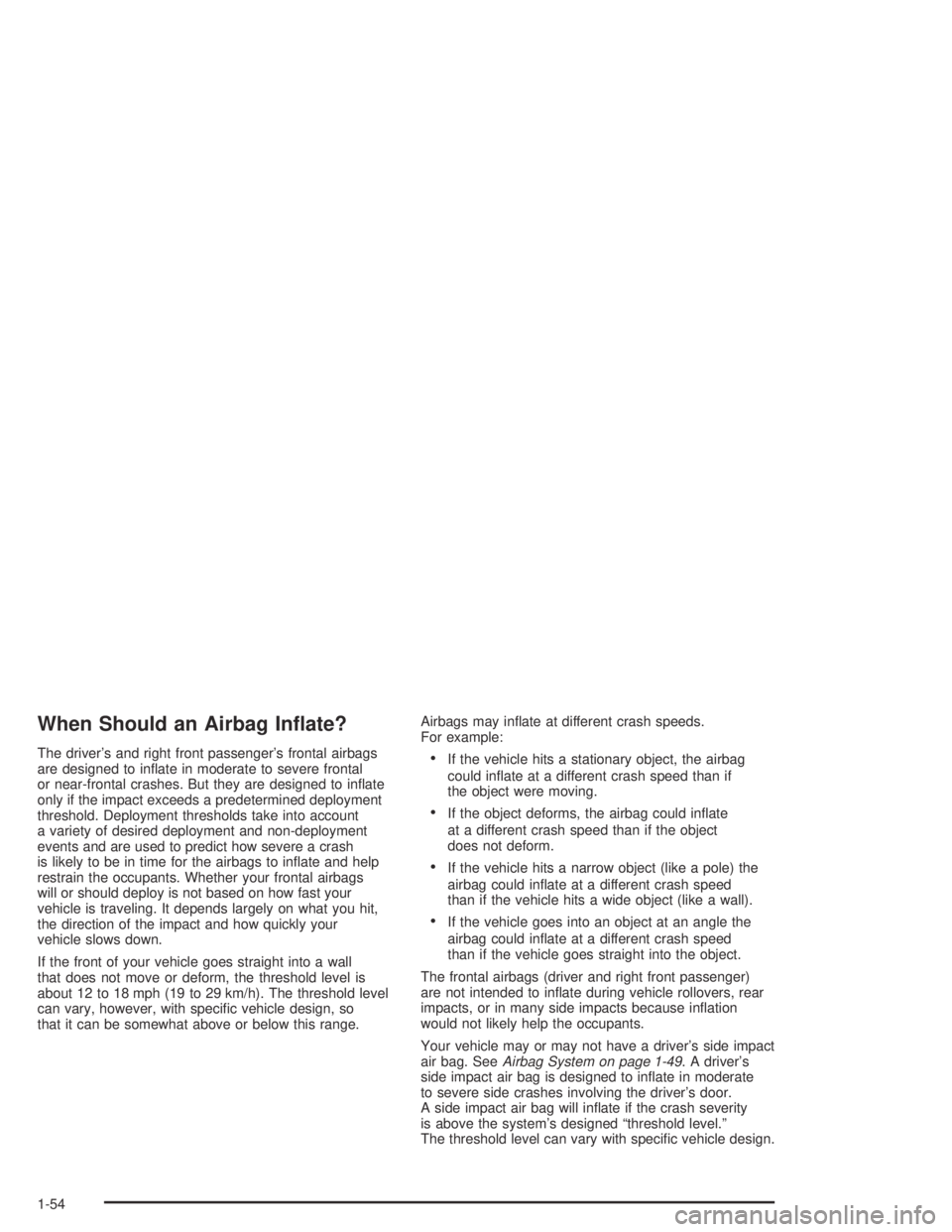

When Should an Airbag Inate?
The driver’s and right front passenger’s frontal airbags
are designed to inate in moderate to severe frontal
or near-frontal crashes. But they are designed to inate
only if the impact exceeds a predetermined deployment
threshold. Deployment thresholds take into account
a variety of desired deployment and non-deployment
events and are used to predict how severe a crash
is likely to be in time for the airbags to inate and help
restrain the occupants. Whether your frontal airbags
will or should deploy is not based on how fast your
vehicle is traveling. It depends largely on what you hit,
the direction of the impact and how quickly your
vehicle slows down.
If the front of your vehicle goes straight into a wall
that does not move or deform, the threshold level is
about 12 to 18 mph (19 to 29 km/h). The threshold level
can vary, however, with specic vehicle design, so
that it can be somewhat above or below this range.Airbags may inate at different crash speeds.
For example:If the vehicle hits a stationary object, the airbag
could inate at a different crash speed than if
the object were moving.
If the object deforms, the airbag could inate
at a different crash speed than if the object
does not deform.
If the vehicle hits a narrow object (like a pole) the
airbag could inate at a different crash speed
than if the vehicle hits a wide object (like a wall).
If the vehicle goes into an object at an angle the
airbag could inate at a different crash speed
than if the vehicle goes straight into the object.
The frontal airbags (driver and right front passenger)
are not intended to inate during vehicle rollovers, rear
impacts, or in many side impacts because ination
would not likely help the occupants.
Your vehicle may or may not have a driver’s side impact
air bag. SeeAirbag System on page 1-49. A driver’s
side impact air bag is designed to inate in moderate
to severe side crashes involving the driver’s door.
A side impact air bag will inate if the crash severity
is above the system’s designed “threshold level.”
The threshold level can vary with specic vehicle design.
1-54

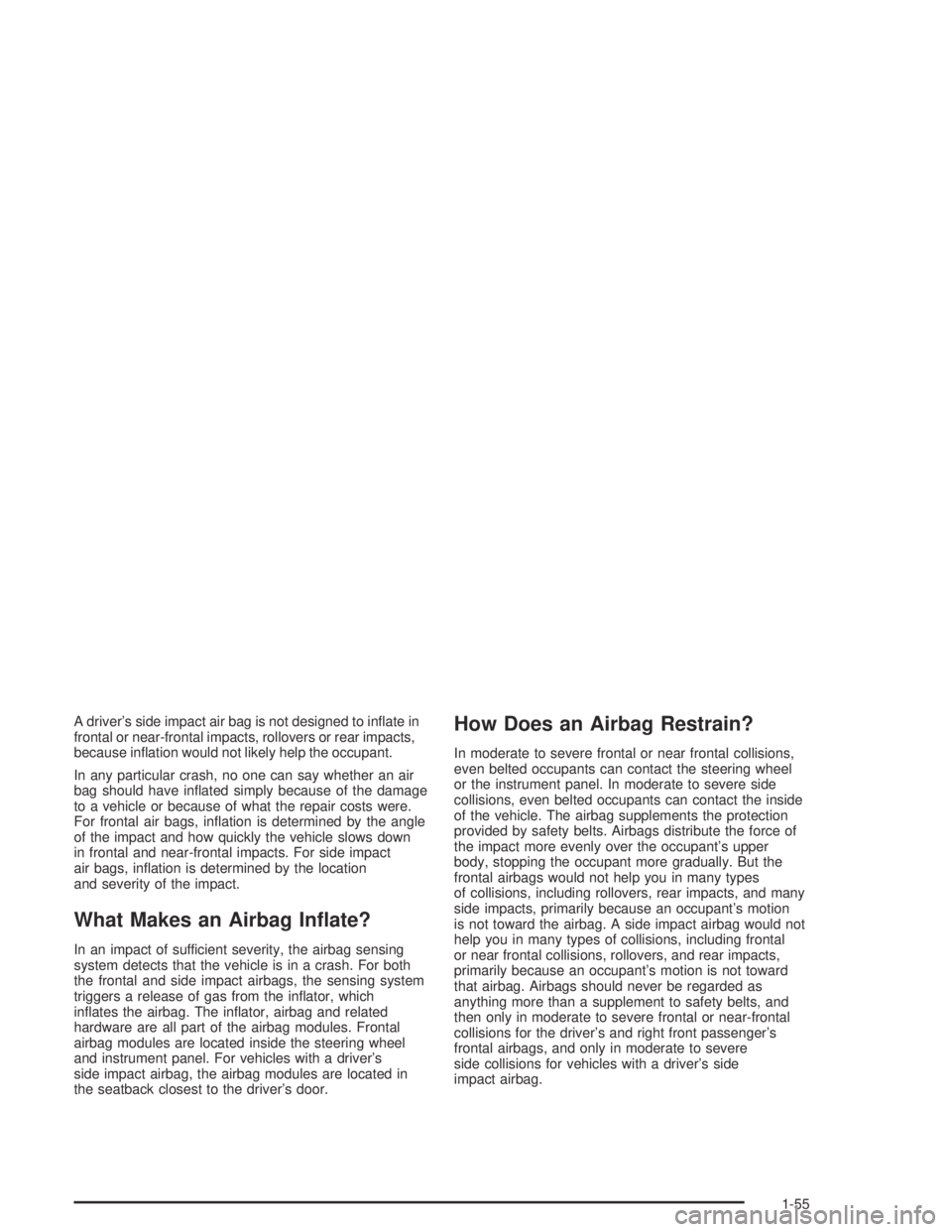

A driver’s side impact air bag is not designed to inate in
frontal or near-frontal impacts, rollovers or rear impacts,
because ination would not likely help the occupant.
In any particular crash, no one can say whether an air
bag should have inated simply because of the damage
to a vehicle or because of what the repair costs were.
For frontal air bags, ination is determined by the angle
of the impact and how quickly the vehicle slows down
in frontal and near-frontal impacts. For side impact
air bags, ination is determined by the location
and severity of the impact.
What Makes an Airbag Inate?
In an impact of sufficient severity, the airbag sensing
system detects that the vehicle is in a crash. For both
the frontal and side impact airbags, the sensing system
triggers a release of gas from the inator, which
inates the airbag. The inator, airbag and related
hardware are all part of the airbag modules. Frontal
airbag modules are located inside the steering wheel
and instrument panel. For vehicles with a driver’s
side impact airbag, the airbag modules are located in
the seatback closest to the driver’s door.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel
or the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle. The airbag supplements the protection
provided by safety belts. Airbags distribute the force of
the impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But the
frontal airbags would not help you in many types
of collisions, including rollovers, rear impacts, and many
side impacts, primarily because an occupant’s motion
is not toward the airbag. A side impact airbag would not
help you in many types of collisions, including frontal
or near frontal collisions, rollovers, and rear impacts,
primarily because an occupant’s motion is not toward
that airbag. Airbags should never be regarded as
anything more than a supplement to safety belts, and
then only in moderate to severe frontal or near-frontal
collisions for the driver’s and right front passenger’s
frontal airbags, and only in moderate to severe
side collisions for vehicles with a driver’s side
impact airbag.
1-55

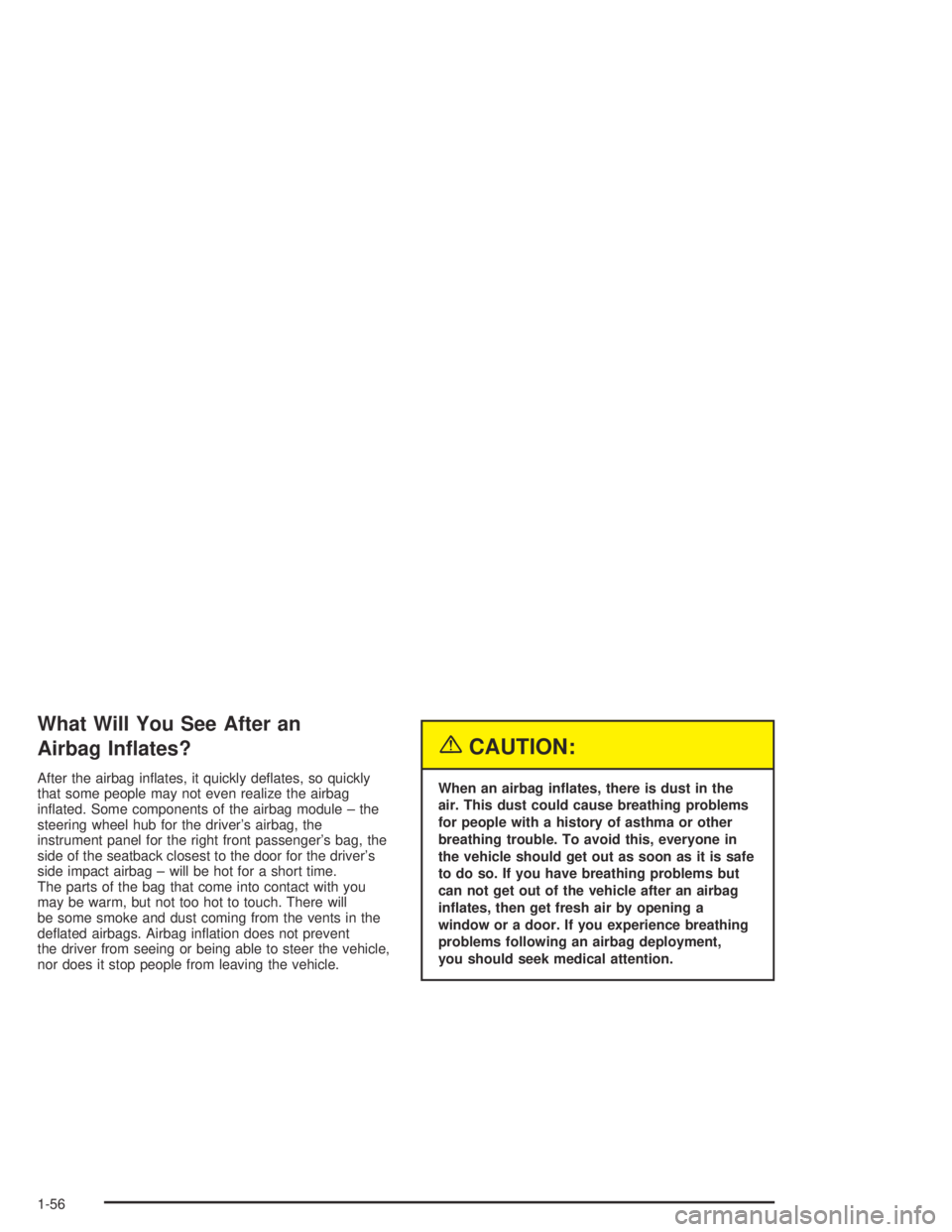

What Will You See After an
Airbag Inates?
After the airbag inates, it quickly deates, so quickly
that some people may not even realize the airbag
inated. Some components of the airbag module – the
steering wheel hub for the driver’s airbag, the
instrument panel for the right front passenger’s bag, the
side of the seatback closest to the door for the driver’s
side impact airbag – will be hot for a short time.
The parts of the bag that come into contact with you
may be warm, but not too hot to touch. There will
be some smoke and dust coming from the vents in the
deated airbags. Airbag ination does not prevent
the driver from seeing or being able to steer the vehicle,
nor does it stop people from leaving the vehicle.
{CAUTION:
When an airbag inates, there is dust in the
air. This dust could cause breathing problems
for people with a history of asthma or other
breathing trouble. To avoid this, everyone in
the vehicle should get out as soon as it is safe
to do so. If you have breathing problems but
can not get out of the vehicle after an airbag
inates, then get fresh air by opening a
window or a door. If you experience breathing
problems following an airbag deployment,
you should seek medical attention.
1-56

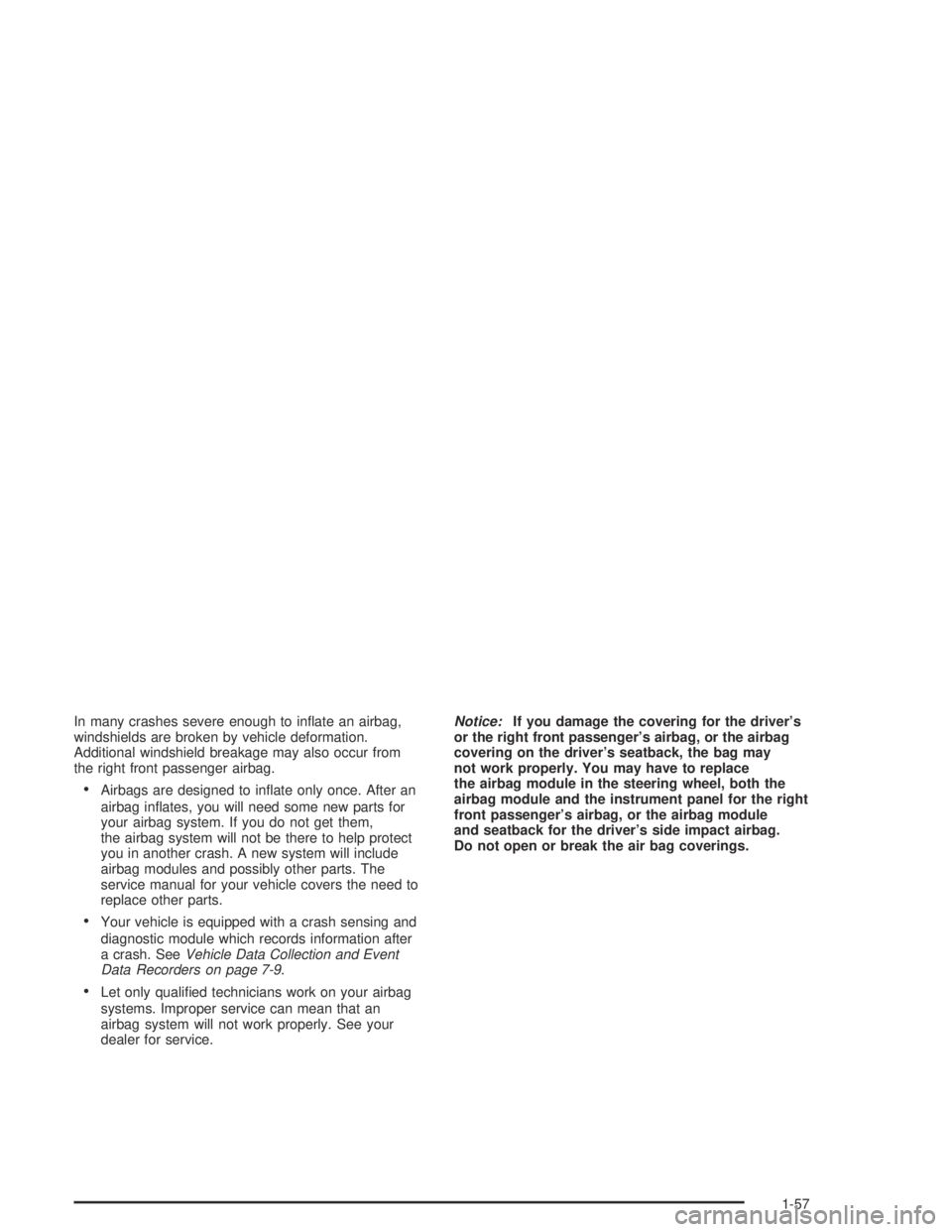

In many crashes severe enough to inate an airbag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur from
the right front passenger airbag.
Airbags are designed to inate only once. After an
airbag inates, you will need some new parts for
your airbag system. If you do not get them,
the airbag system will not be there to help protect
you in another crash. A new system will include
airbag modules and possibly other parts. The
service manual for your vehicle covers the need to
replace other parts.
Your vehicle is equipped with a crash sensing and
diagnostic module which records information after
a crash. SeeVehicle Data Collection and Event
Data Recorders on page 7-9.
Let only qualied technicians work on your airbag
systems. Improper service can mean that an
airbag system will not work properly. See your
dealer for service.Notice:If you damage the covering for the driver’s
or the right front passenger’s airbag, or the airbag
covering on the driver’s seatback, the bag may
not work properly. You may have to replace
the airbag module in the steering wheel, both the
airbag module and the instrument panel for the right
front passenger’s airbag, or the airbag module
and seatback for the driver’s side impact airbag.
Do not open or break the air bag coverings.
1-57

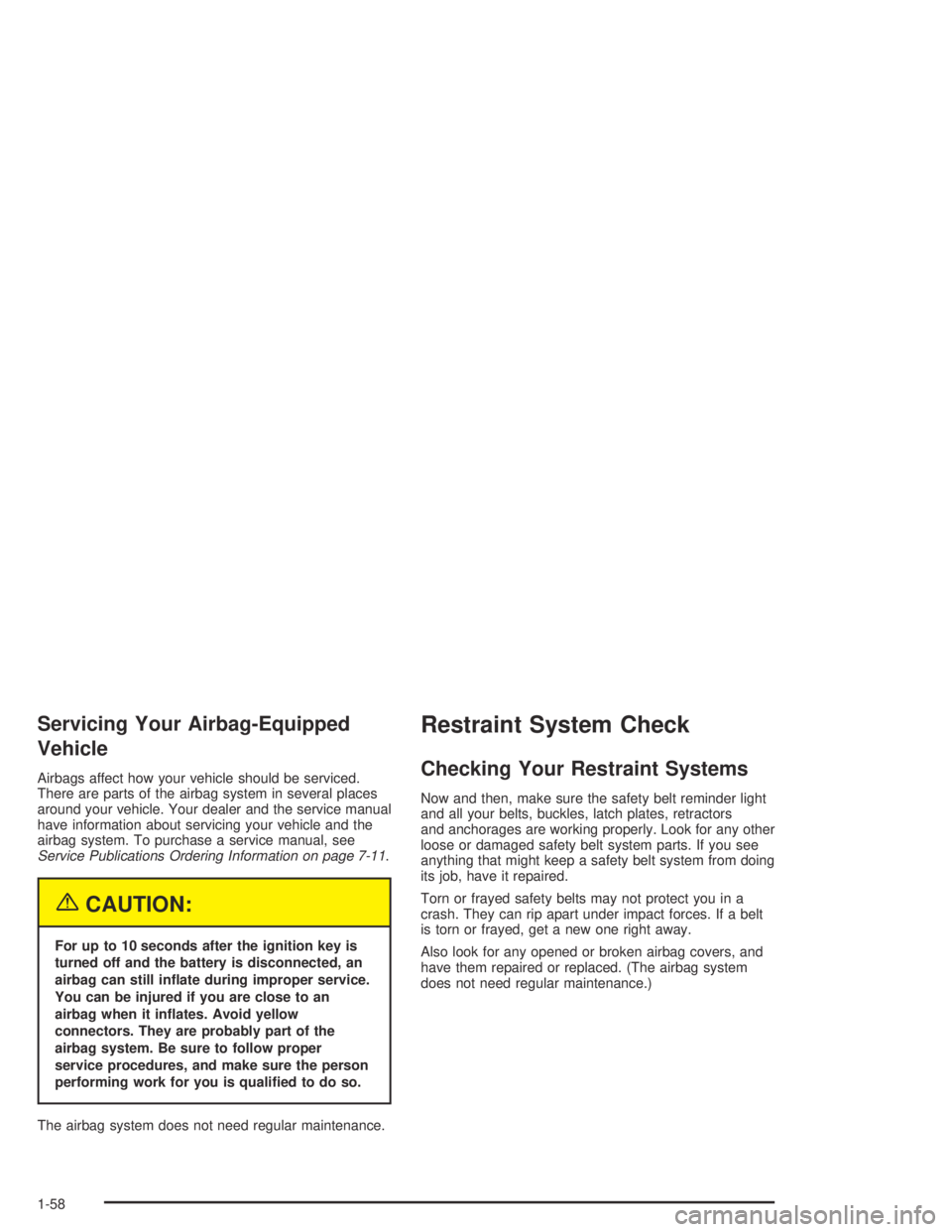

Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be serviced.
There are parts of the airbag system in several places
around your vehicle. Your dealer and the service manual
have information about servicing your vehicle and the
airbag system. To purchase a service manual, see
Service Publications Ordering Information on page 7-11.
{CAUTION:
For up to 10 seconds after the ignition key is
turned off and the battery is disconnected, an
airbag can still inate during improper service.
You can be injured if you are close to an
airbag when it inates. Avoid yellow
connectors. They are probably part of the
airbag system. Be sure to follow proper
service procedures, and make sure the person
performing work for you is qualied to do so.
The airbag system does not need regular maintenance.
Restraint System Check
Checking Your Restraint Systems
Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors
and anchorages are working properly. Look for any other
loose or damaged safety belt system parts. If you see
anything that might keep a safety belt system from doing
its job, have it repaired.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces. If a belt
is torn or frayed, get a new one right away.
Also look for any opened or broken airbag covers, and
have them repaired or replaced. (The airbag system
does not need regular maintenance.)
1-58
