2005.5 Citroen XSARA PICASSO DAG Owner's Manual

Picasso 2004-1C:\Documentum\Checkout\N68_04_01_T065-ENG.win 23/4/2
004 13:12
III IIII N T E R I O R L I G H T I N G
Boot lighting
Operates automatically on opening
the tailgate.
Timed extinction.Glovebox.
To open, pull the handle and open
the cover.
The glovebox cover incorporates a
glasses-
holder and pen- holder.
The lid also has a holder for stow-
ing cards such as telephone cards,
as well as a cup- holder.
As a matter of safety, the glovebox should remain closed while the vehicle is moving.Ventilated glovebox
This has a ventilation duct which can be opened or closed manually. It uses the same conditioned air as the air vents.
Glovebox lighting
This comes on automatically when the lid is opened. Does not work if the ignition has been switched off.
78

Picasso 2004-1C:\Documentum\Checkout\N68_04_01_T065-ENG.win 23/4/2
004 13:12

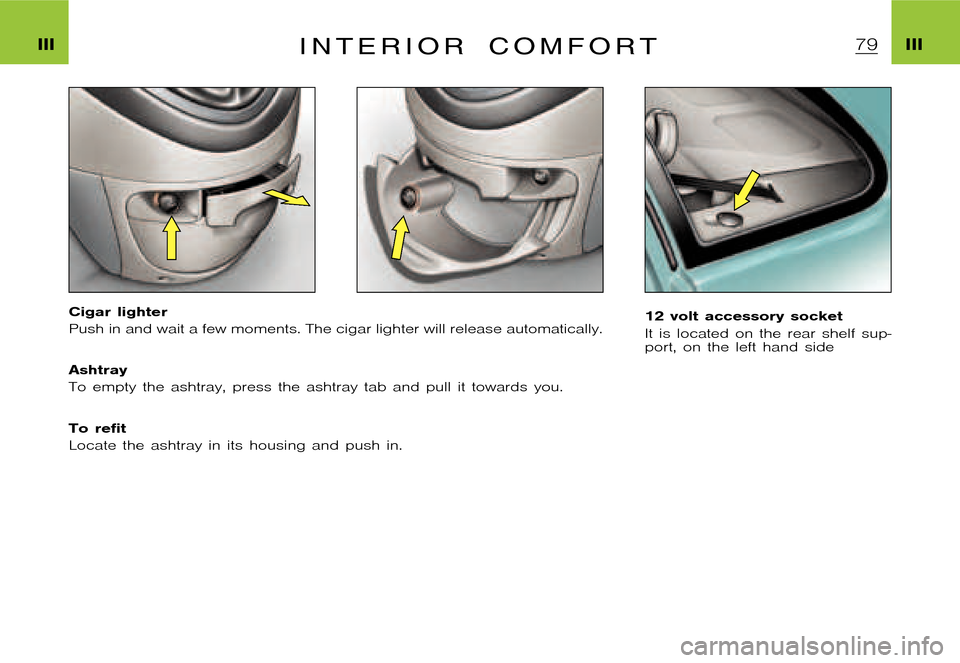

III IIII n t e r i o r c o m f o r t
Cigar lighter
Push in and wait a few moments. The cigar lighter will releaseautomatically.
Ashtray
To empty the ashtray, press the ashtray tab and pull it toward s you.
To refit
Locate the ashtray in its housing and push in. 12 volt accessory socket
It is located on the rear shelf sup-
port, on the left hand side
79

Picasso 2004-1C:\Documentum\Checkout\N68_04_01_T065-ENG.win 23/4/2
004 13:12

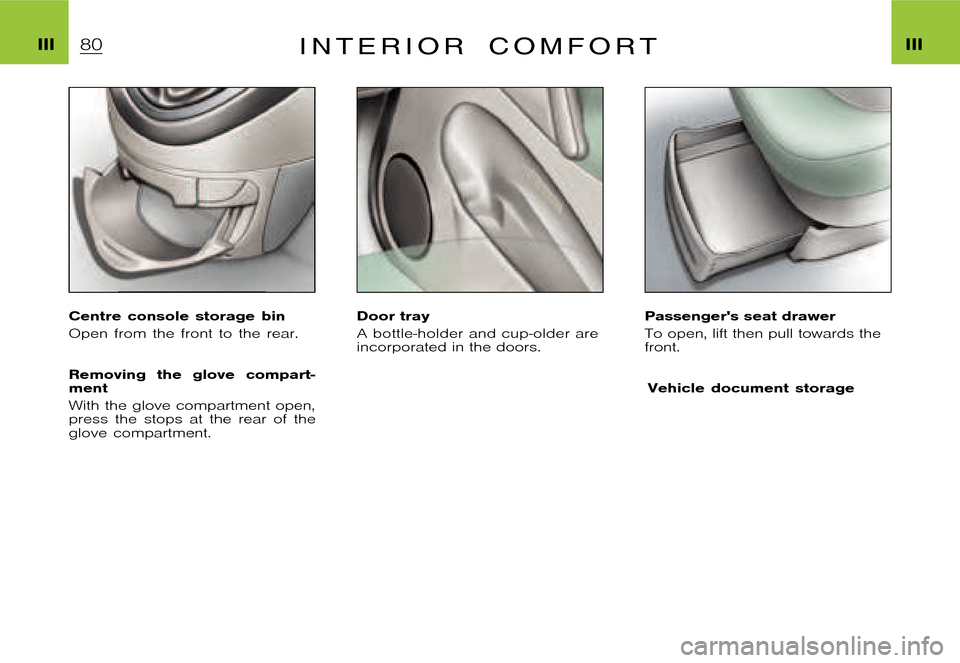

III IIII n t e r i o r c o m f o r t
Centre console storage bin
Open from the front to the rear.
Removing the glove compart-
ment
With the glove compartment open,
press the stops at the rear of the
glove compartment.Door tray A bottle-holder and cup-older are
incorporated in the doors.
Passenger's seat drawer
To open, lift then pull towards the
front.
Vehicle document storage
80

Picasso 2004-1C:\Documentum\Checkout\N68_04_01_T065-ENG.win 23/4/2
004 13:12

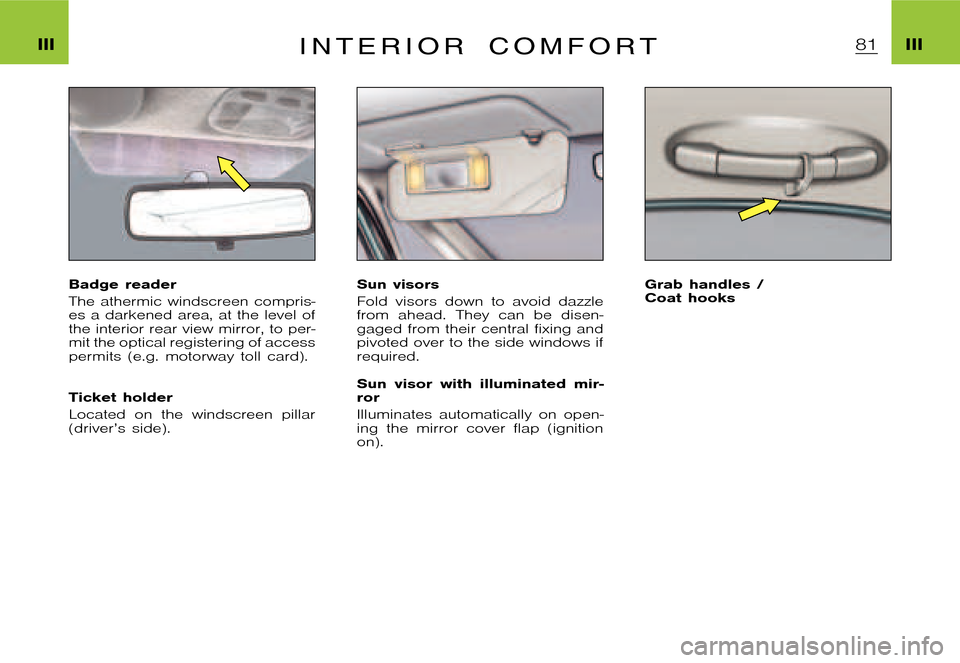

III IIII n t e r i o r c o m f o r t
Badge reader
The athermic windscreen compris-
es a darkened area, at the level of
the interior rear view mirror, to per-
mit the optical registering of access
permits (e.g. motorway toll card).
Ticket holder
Located on the windscreen pillar
(driver’s side).Sun visors
Fold visors down to avoid dazzle
from ahead. They can be disen-
gaged from their central fixing and
pivoted over to the side windows if
required.
Sun visor with illuminated mir-
ror
Illuminates automatically on open-
ing the mirror cover flap (ignition
on).Grab handles /
Coat hooks
81

82IIIIII
Do not place heavy or hard objects on the rear shelf.
They could become dangerous projectiles under sudden braking or in the event of a collision.
I N T E R I O R C O M F O R T
Aircraft-style tray
To deploy it, pull upwards and fold.
Note : For safety, if any force is exerted the tray is designed to detach itself.
To reposition it, with the tray vertical, engage one side then the other, forcing slightly.
Storage compartments
Concealed under a ap, these are to be found in the false oor behind the front seats.
Dashboard storageNote : The wheelbrace is clipped on the inside of the ap for the storage compartment in the false oor behind the front right hand seat.

B
12
Picasso 2004-1C:\Documentum\Checkout\N68_04_01_T065-ENG.win 23/4/2
004 13:12

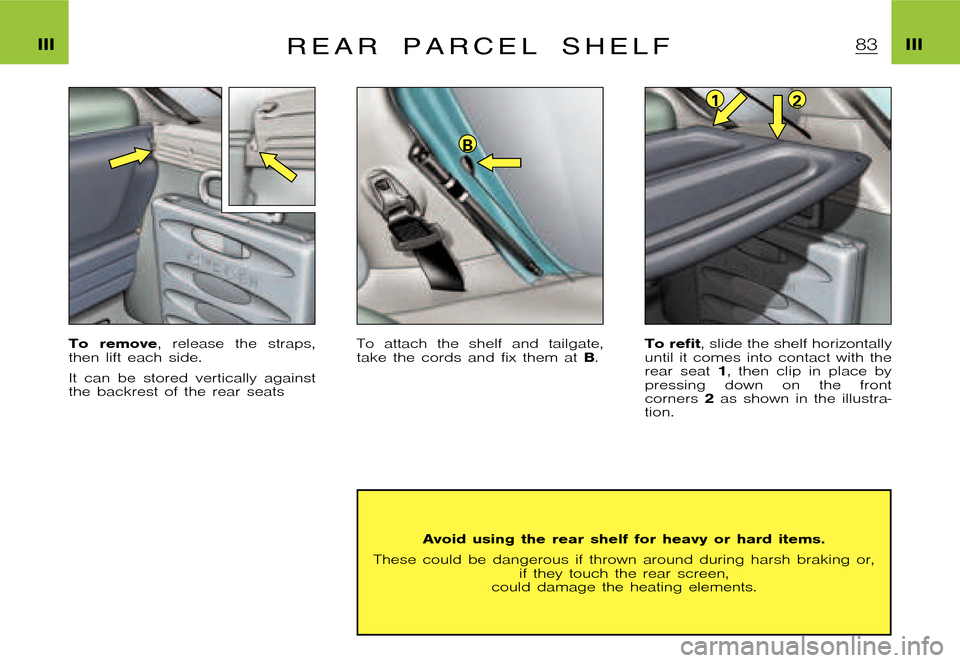

III IIIR E A R P A R C E L S H E L F
To remove, release the straps,
then lift each side.
It can be stored vertically against
the backrest of the rear seats To attach the shelf and tailgate,
take the cords and fix them at
B. To refit
, slide the shelf horizontally
until it comes into contact with the
rear seat 1, then clip in place by
pressing down on the front
corners 2as shown in the illustra-
tion.
Avoid using the rear shelf for heavy or hard items.
These could be dangerous if thrown around during harsh braki ng or,
if they touch the rear screen,
could damage the heating elements.
83

Picasso 2004-1C:\Documentum\Checkout\N68_04_01_T081-ENG.win 23/4/2
004 13:12
III IIIR e a r b l i n d
Hold the blind by the tab and unroll
it.Attach the hooks in their housings
located on the cover for the third
stoplamp.The tailgate can be opened even
when the blind is in use.
84

Picasso 2004-1C:\Documentum\Checkout\N68_04_01_T081-ENG.win 23/4/2
004 13:12
III IIIB O O T
Luggage securing rings
Use the four securing rings provid-
ed on the boot floor to secure all
loads.
For safety reasons, in case of hard
braking, heavy objects should be
placed as far forward as possible.
Protective net
This helps to secure objects
stowed in the boot.Storage
Two storage bins are provided in
the side walls of the boot: -
On the left hand side , storage
for various items, with a cover
which is opened and closed by
turning the buttons by 1/4 turn.
- On the right hand side , storage
for various items. Folding trolley
To use it, release the strap then un-
fold it by unclipping both sides.
Storage
Before folding it, lift the base of the
trolley.
85
