2005.5 Citroen XSARA PICASSO DAG Owner's Manual

Picasso 2004-1C:\Documentum\Checkout\N68_04_01_T001-ENG.win 23/4/2
004 13:11- page 15
15I
I N B R I E F

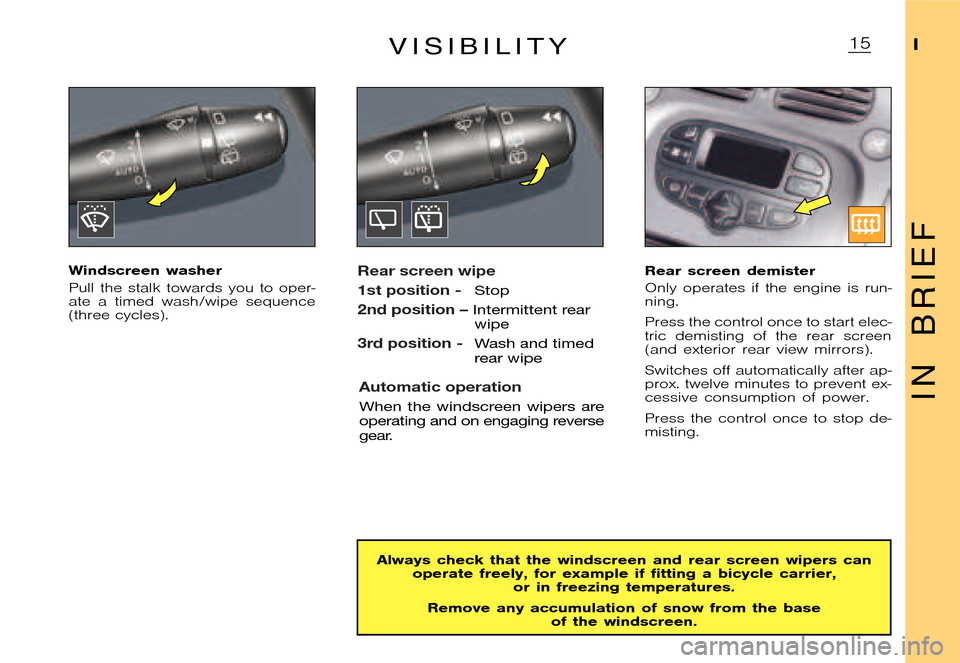

V I S I B I L I T Y
Windscreen washer
Pull the stalk towards you to oper-
ate a timed wash/wipe sequence
(three cycles).

Rear screen demister
Only operates if the engine is run-
ning.
Press the control once to start elec-
tric demisting of the rear screen
(and exterior rear view mirrors).
Switches off automatically after ap-
prox. twelve minutes to prevent ex-
cessive consumption of power.
Press the control once to stop de-
misting.
Always check that the windscreen and rear screen wipers can operate freely, for example if fitting a bicycle carrier, or in freezing temperatures.
Remove any accumulation of snow from the base of the windscreen.Rear screen wipe
1st position - Stop
2nd position – Intermittent rear wipe
3rd position - Wash and timed rear wipe
Automatic operation
When the windscreen wipers are operating and on engaging reverse gear.

Picasso 2004-1C:\Documentum\Checkout\N68_04_01_T001-ENG.win 23/4/2
004 13:11- page 16
16I
I N B R I E F

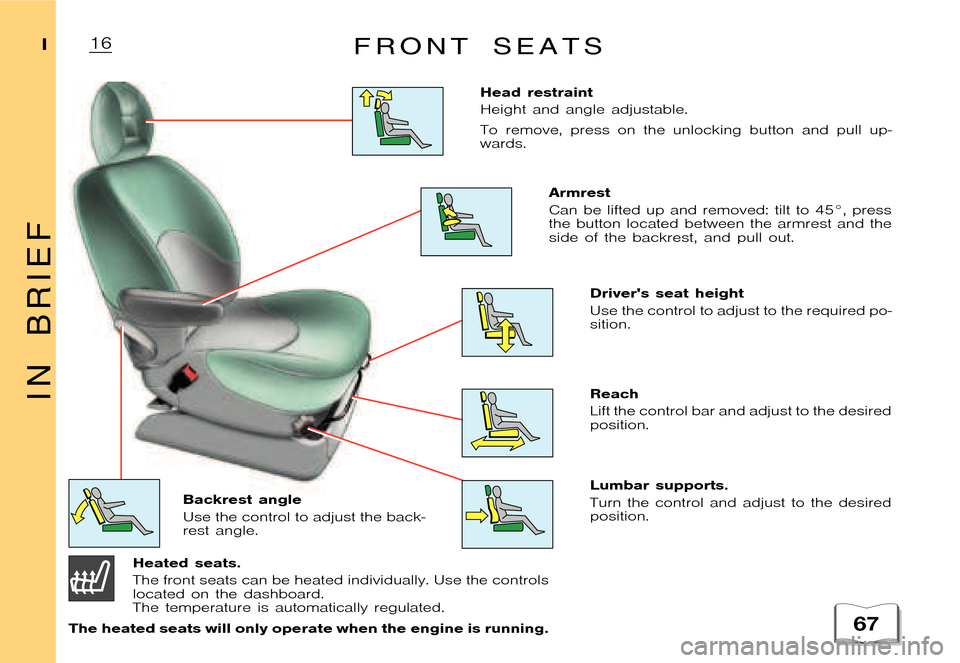

F R O N T S E A T S
Head restraint
Height and angle adjustable.
To remove, press on the unlocking button and pull up-
wards.
Armrest
Can be lifted up and removed: tilt to 45°, press
the button located between the armrest and the
side of the backrest, and pull out.
Driver's seat height
Use the control to adjust to the required po-
sition.
Reach
Lift the control bar and adjust to the desired
position.
Lumbar supports.
Turn the control and adjust to the desired
position.
Backrest angle
Use the control to adjust the back-
rest angle.
Heated seats.
The front seats can be heated individually. Use the controls
located on the dashboard.
The temperature is automatically regulated.
The heated seats will only operate when the engine is running .
67

Picasso 2004-1C:\Documentum\Checkout\N68_04_01_T017-ENG.win 23/4/2
004 13:11
I
I N B R I E F
S T E E R I N G C O L U M N A D J U S T M E N T
The height of the steering wheel
can be adjusted to suit the driver.
With the vehicle at restfirst ad-
just the seat to the most suitable
position (see “Driving position”). Unlock the steering wheel by push-
ing the control forwards.
Adjust the steering wheel then lock
by pulling the control downwards
and towards you.
As a matter of safety, these actions should not be attempted when the vehicle is moving.
17

A
Picasso 2004-1C:\Documentum\Checkout\N68_04_01_T017-ENG.win 23/4/2
004 13:11

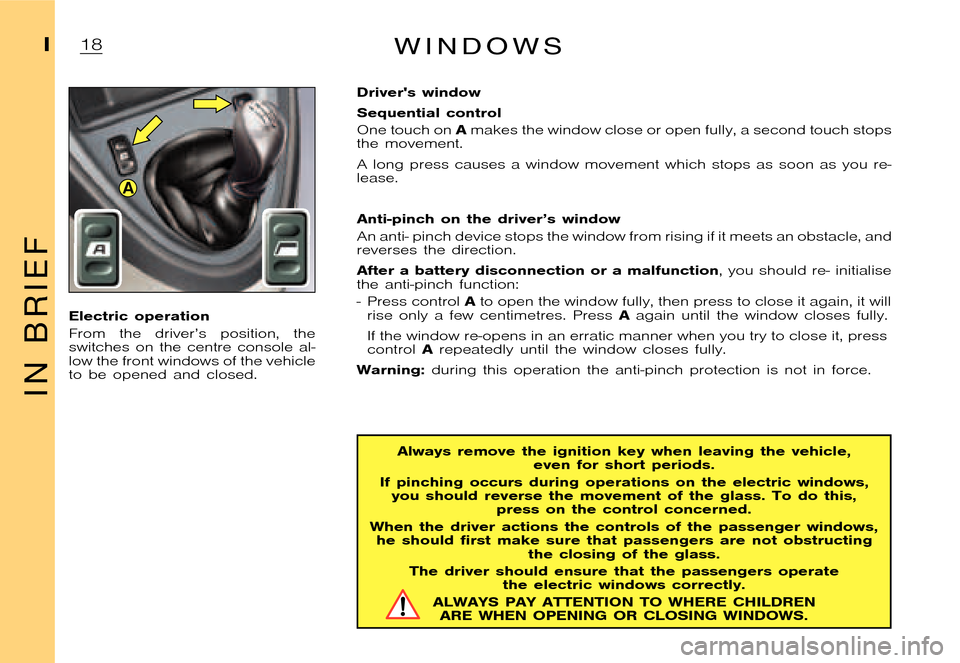

W I N D O W S
Electric operation
From the driver’s position, the
switches on the centre console al-
low the front windows of the vehicle
to be opened and closed.Driver's window
Sequential control
One touch on
Amakes the window close or open fully, a second touch stops
the movement.
A long press causes a window movement which stops as soon as yo u re-
lease.
Anti-pinch on the driver’s window
An anti- pinch device stops the window from rising if it meets an obstacle, and
reverses the direction.
After a battery disconnection or a malfunction , you should re- initialise
the anti- pinch function:
- Press control Ato open the window fully, then press to close it again, it will
rise only a few centimetres. Press Aagain until the window closes fully.
If the window re- opens in an erratic manner when you try to close it, press
control Arepeatedly until the window closes fully.
Warning: during this operation the anti- pinch protection is not in force.
Always remove the ignition key when leaving the vehicle, even for short periods.
If pinching occurs during operations on the electric window s,
you should reverse the movement of the glass. To do this, press on the control concerned.
When the driver actions the controls of the passenger window s,
he should first make sure that passengers are not obstructin g
the closing of the glass.
The driver should ensure that the passengers operate the electric windows correctly.
ALWAYS PAY ATTENTION TO WHERE CHILDREN ARE WHEN OPENING OR CLOSING WINDOWS.
I N B R I E F
I18

Picasso 2004-1C:\Documentum\Checkout\N68_04_01_T017-ENG.win 23/4/2
004 13:11

W I N D O W S
Rear electric control
The electric rear windows can be actioned using the switches located on the
dashboard and those on the vehicle’s rear doors.
Child safety precaution
One switch can deactivate the rear window controls.
Always remove the ignition key when leaving the vehicle, eve n for short peri-
ods.
I N B R I E F
I19

1
2
3
4
5
I N B R I E F
I20
62
V E N T I L A T I O N – H E A T I N G
1 - Air distributionAir fl ow to the face level vents.
Air fl ow to the footwells and rear
seat positions.
Air fl ow to the footwells and winds-
creen and side windows.
Air fl ow to the windscreen and side
windows. Deicing - demisting
The air distribution from the blower can be adjusted at will by placing the control 1 in any intermediate position. Whatever the position chosen, it is always possible to obtain air from the air vents.
2 - Entry of exterior air / Air recirculation
3 - Adjustment of the air blower speed
4 - Adjustment of the blown air temperature
5 - Demisting of rear screen

2
3
I N B R I E F
I21
63
V E N T I L A T I O N – H E A T I N G
M A N U A L A I R C O N D I T I O N I N G
Air conditioning
The air conditioning only operates when the engine is running.
Press the switch on the dashboard.
Warning lamp on = in operation
Entry of exterior air
Air recirculation
This position prevents the entry of unpleasant odours into the vehicle.
It should be cancelled as soon as possible to renew the air in the passenger compartment as well as to allow demisting.
To enhance the effi ciency and rapidity of the air conditioning in very hot weather, use the air recirculation position.
Move the control 2 fully to the right and pla-ce the air blower control 3 in an intermediate position.
This function should be cancelled when it is no longer needed, to allow renewal of the air in the cabin.
Deicing – demisting of the windscreen and front side windows
- Place the controls for temperature and air flow on maximum,
- close the central air vents,
- operate the air conditioning.
Note : you should not be in Air Recirculation.

341
2
I
I N B R I E F
I22
For ...


All cold
to start with, MAX. to start with,
COLD
then personal then personal ON
adjustments adjustments

To start with
All hot

to start with, MAX. to start with,
HOT
then personal then personal –
adjustments adjustments
To start with
DEICING
All hot MAX. ON DEMISTING
V E N T I L A T I O N – H E A T I N G
M A N U A L A I R C O N D I T I O N I N G
To obtain the best results from the system, we recommend :
Note : with automatic air conditioning, we recommend you to select AUTO operation.
