For covers on the trunk wall:
1) Brake/tail light bulb
2) Rear turn signal light bulb
Unlatch the cover by moving the knob upward and
open the cover.
3. Remove the bulb socket from the light assembly by
turning it counterclockwise.
4. Remove the bulb from the socket.
Rear turn signal light: Remove the bulb from the
socket by pushing it and turning it counterclockwise.
Others: Pull the bulb out of the socket.
5. Install a new bulb in the socket.
6. Set the bulb socket into the rear combination light assembly and turn it clockwise until it locks.
7. Close the cover and latch the clock. T
Station wagon
V Brake/tail and rear turn signal light bulbs
It may be difficult to replace the bulbs. It is recom-
mended that you have the bulbs replaced by yourSUBARU dealer.
1) Service holes
1. Remove the light bulb replacement service hole
covers at two places by prying the edge of the cover
with a regular screwdriver.
1
2
UBB035BB1
UBB021BB

11 -7 3
2Maintenance and service
– CONTINUED –
1) Nuts
2. Remove the upper and lower nuts. Then, slide the
rear combination lamp assembly to the rear and re-
move it from the vehicle.
3. Using a Phillips screwdriver, remove the upper and
lower screws that secure the side cover of the rear
combination light assembly. 1) Rear turn signal light bulb
2) Brake/tail light bulb
4. Remove the bulb socket from the rear combination
light assembly by turning it counterclockwise.
1
UBB022BB
1
2
UBB070BB

11 - 7 4
2Maintenance and service
Turn signal light bulb
Brake/tail light bulb
5. Remove the bulb from the socket.
Turn signal light: Pull the bulb out of the socket.
Brake/tail light: Remove the bulb from the socket by
pushing it and turning it counterclockwise.
6. Install a new bulb in the socket.
7. Set the bulb holder into the rear combination light
assembly and turn it clockwise until it locks.
8. Using a Phillips screwdriver, install the side cover
to the rear combination light assembly.
9. Fit the rear combination light assembly into the ve-
hicle body and tighten the nuts from the interior of thevehicle.
UBB048BAUBB025BA

11 -7 5
2Maintenance and service
– CONTINUED –

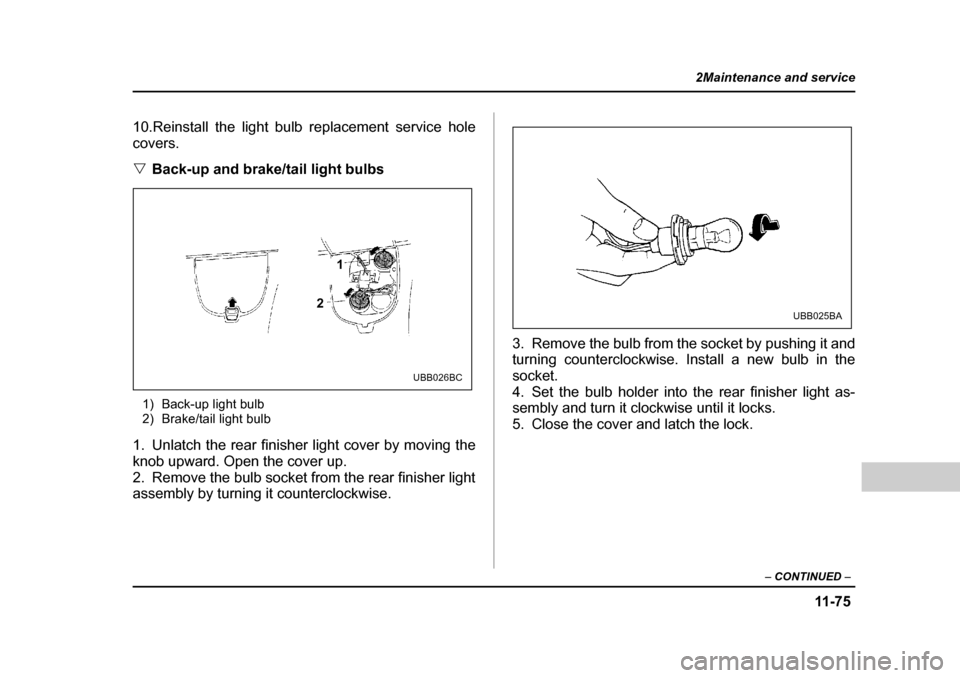

10.Reinstall the light bulb replacement service hole covers. VBack-up and brake/tail light bulbs
1) Back-up light bulb
2) Brake/tail light bulb
1. Unlatch the rear finisher light cover by moving the
knob upward. Open the cover up.
2. Remove the bulb socket from the rear finisher light
assembly by turning it counterclockwise. 3. Remove the bulb from the socket by pushing it and
turning counterclockwise. Install a new bulb in the socket.
4. Set the bulb holder into the rear finisher light as-
sembly and turn it clockwise until it locks.
5. Close the cover and latch the lock.
1
2
UBB026BC
UBB025BA

11 - 7 6
2Maintenance and service
„
License plate light01. Remove the mounting screws using a phillips
screwdriver.
2. Remove the cover and lens.
3. Pull the bulb out of the socket. Install a new bulb.
4. Reinstall the lens and cover.
5. Tighten the mounting screws. „Map light, dome light, luggage com-
partment light and door step light
Map light (without moonroof model)
UBF013EA
UBB027BA
UBB029BA

11 -7 7
2Maintenance and service
– CONTINUED –
Map light (with moonroof model) Dome light
UBB068BAHSB088BA

11 - 7 8
2Maintenance and service
Luggage compartment light
1) Bulb
Door step light
1. Remove the lens by prying the edge of the lens with
a regular screwdriver.
2. Pull the bulb out of the socket. Install a new bulb.
3. Reinstall the lens.
1UBB067BBUBS037AA

11 -7 9
2Maintenance and service
– CONTINUED –
„Trunk light
1. Remove the cover by squeezing its sides and pull-
ing it.
2. Pull the bulb out of the socket. Install a new bulb.
3. Reinstall the cover. „
High mount stop light
T Sedan
1. Remove the high mount stop light cover by prying
on the edge with a screwdriver.
2. Pull the bulb out of the socket. Install a new bulb.
3. Reinstall the cover.
UBF014FA
