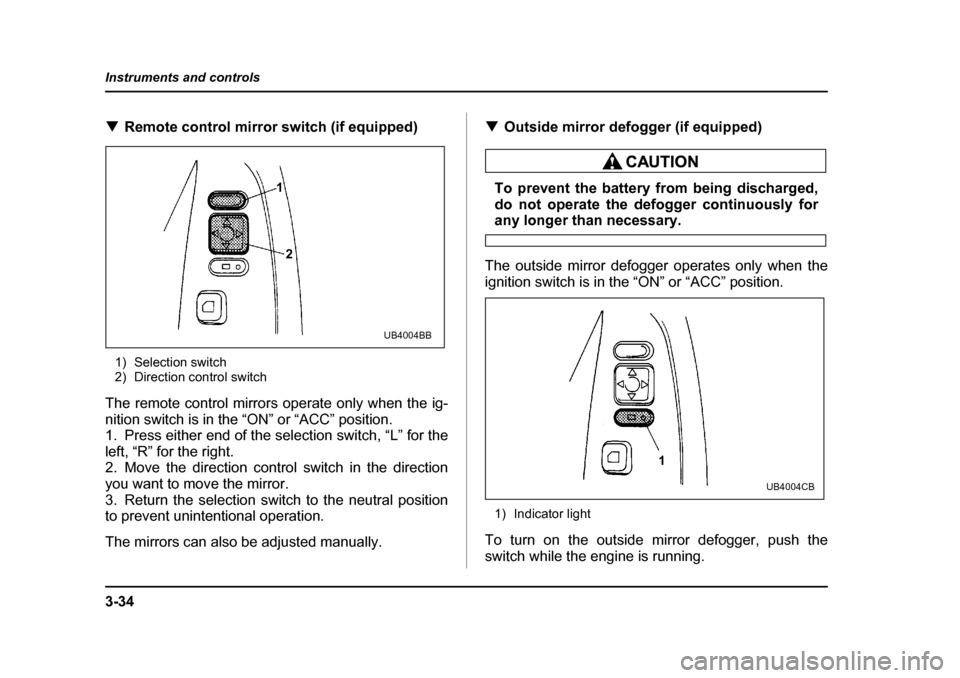

Remote control mirror switch (if equipped)
1) Selection switch
2) Direction control switch
The remote control mirrors operate only when the ig-
nition switch is in the “ON” or “ACC” position.
1. Press either end of the selection switch, “L” for the
left, “R” for the right.
2. Move the direction control switch in the direction
you want to move the mirror.
3. Return the selection switch to the neutral position
to prevent unintentional operation.
The mirrors can also be adjusted manually. T
Outside mirror defogger (if equipped)
To prevent the battery from being discharged,
do not operate the defogger continuously for
any longer than necessary.
The outside mirror defogger operates only when the
ignition switch is in the “ON” or “ACC” position.
1) Indicator light
To turn on the outside mirror defogger, push the
switch while the engine is running.
1
2
UB4004BB
1
UB4004CB

3-35
Instruments and controls
– CONTINUED –
The indicator light located on the switch will come on
when the outside mirror defogger heater in operation.
To turn it off, push the switch again.Tilt steering wheel
Do not adjust the steering wheel tilt position
while driving. This may cause loss of vehicle
control and result in personal injury.
1. Adjust the seat position. Refer to the “Front seats”
section (chapter 1).
2. Pull the tilt lock lever down.
3. Move the steering wheel to the desired level.
4. Push the lever up to lock the steering wheel in
HS3043BA

3-36
Instruments and controls
place.
5. Make sure that the steering wheel is securely
locked by moving it up and down.Horn
To sound the horn, push the horn pad.
HS3044BA

4-1
4
Climate control
Ve ntilat or .. ... ... .. ... ... ... ... .. ... ... ... ... .. ... ... ... ... .. ... 4-2
Driver’s si de ventilat ors .......... .................... ..... 4-2
Center ventilat ors .................... .................... ..... 4-2
Fro nt p assen ger’s si de ventilat ors ............ ..... 4-3
Air fl ow s electi on ..................... .................... ..... 4-4
M an u al heati ng and air co nditio nin g
sys te m ... ... ... .. ... ... ... ... .. ... ... ... ... .. ... ... ... ... .. ... 4-5
Co ntrol pan el ....... ..................... .................... ..... 4-5
Heat er o peration .. .................... .................... ..... 4-7
Air co nditio ner operation ........ .................... ..... 4-10
Aut omatic clim ate co ntr o l sy stem
( if eq uip ped) .. ... ... ... ... .. ... ... ... ... .. ... ... ... ... .. ... 4-11
Co ntrol pan el ....... ..................... .................... ..... 4-12
Te mperature se nsors .............. .................... ..... 4-18
O per atin g ti ps for heater a n d a ir
c o nd iti oner .. .. ... ... ... ... .. ... ... ... ... .. ... ... ... ... .. ... 4-19
Clea ning ventilator g rille ......... .................... ..... 4-19
Effic ient cool ing a fter parking in dir e ct
su nlig ht ............. ..................... .................... ..... 4-20
L u bricati on oil circul ation in the refrigerant
circuit ................ ..................... .................... ..... 4-20
Che cking air co nditi oni ng sy stem before
su mmer sea son ..................... .................... ..... 4-20
Co oling and de hum idif ying in high hum idi ty
and low te mperature weat her co ndition .. .... 4-20
Air co ndit io ner co mpressor s hut-o ff
w hen e ngi ne is heavily l oaded ................. ..... 4-20
Refrigerant for your climate control system .. 4-20
Air filtration system (if equipped) ................ 4-21

4-2
Climate control
Climate controlVentilator „
Driver’s side ventilators
1) Open
2) Close
Move the thumb-wheel up and down or right and left to
adjust the flow direction. „
Center ventilators
Move the thumb-wheel up and down or right and left to
adjust the flow direction.
12UB4038BB
UB4039BA

4-3
Climate control
– CONTINUED –
„Front passenger’s side ventilators
1) Open
2) Close
Move the thumb-wheel up and down or right and left to
adjust the flow direction.
1
2
UB4040BB

4-4
Climate control „
Air flow selection
UB4036BA

4-5
Climate control
– CONTINUED –
Manual heating and air conditioning
system „Control panel
1) Temperature control dial
2) Fan speed control dial
3) Air flow control dial
4) Air conditioner button
5) Air inlet selection button
6) Rear window defogger button (Refer to “Rear window defogger switch” in chapter 3.)
T Temperature control dial
This dial regulates the temperature of air flow from the air outlets over a range from the blue area (cool) to red
area (warm). T
Fan speed control dial
The fan operates only when the ignition switch is
turned to the “ON” position. The fan speed control dial
is used to select four fan speeds. T Air flow control dial
This dial has the following five positions:
: Air flows through the instrument panel outlets.: Air flows through the instrument panel outlets
and the foot outlets.
: Air flows through the foot outlets and some
through the windshield defroster outlets.
: Air flows through the windshield defroster outlets
and foot outlets.
: Air flows through the windshield defroster out-
lets.
1
65 42
3
UB5004BC
