CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Symptom
D: CHECK CRUISE INDICATOR LIGHT
TROUBLE SYMPTOM:
Cruise control can be set normally, but indicator light does not come on. (When main switch is pressed.)

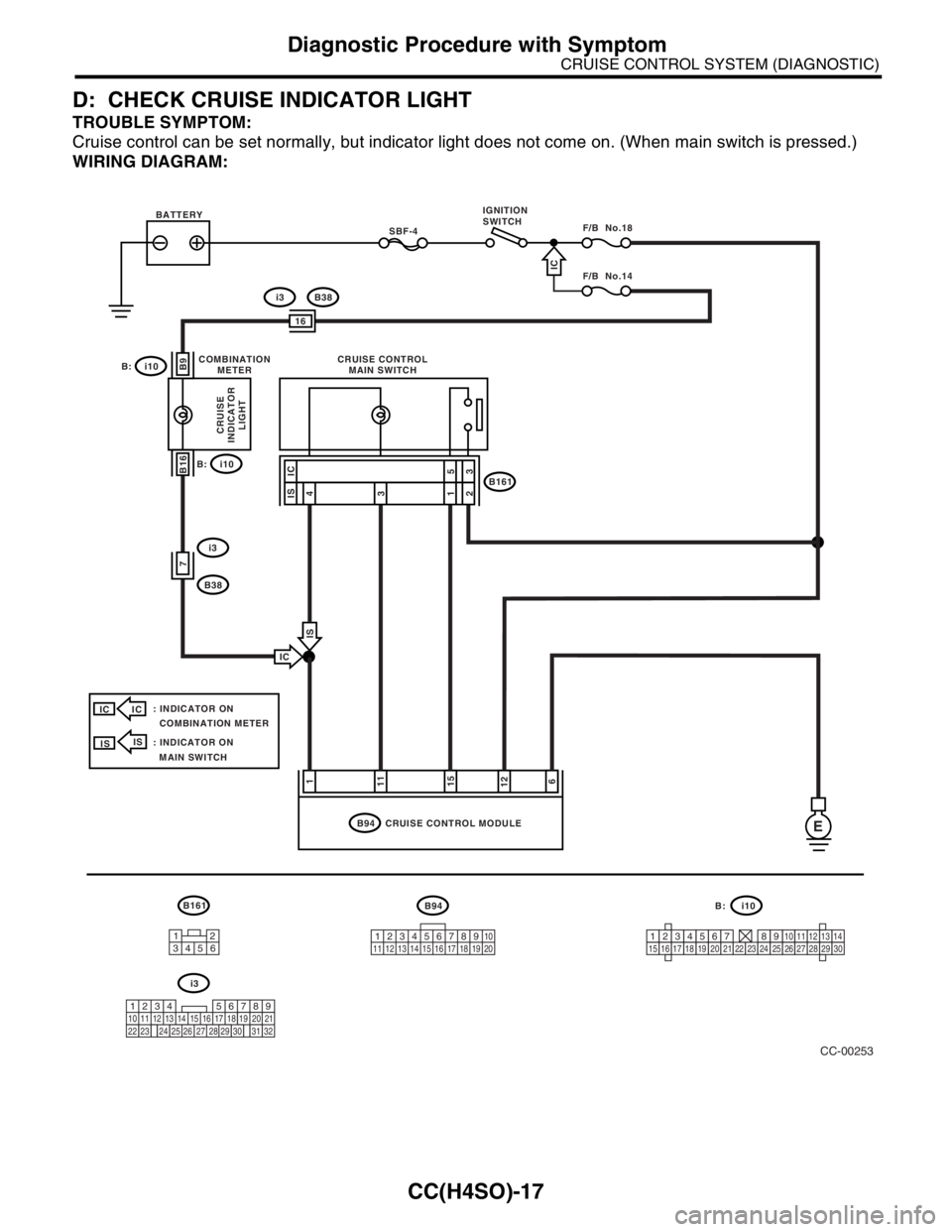

WIRING DIAGRAM:
CC-00253
B161
i3
i10 B:B94
12345678910
11 12 13 14 15 16 17 18 19 20
E
11115126
5
3
7
B16
B9
BATTERY
CRUISE CONTROL MODULE CRUISE CONTROL
MAIN SWITCH
CRUISE
INDICATOR
LIGHT
COMBINATION
METER
SBF-4F/B No.18
B94
B161
F/B No.14
IGNITION
SWITCH
i10
i3
B38
i3B38
B:
i10
B:
123456789101112131415161718192021222324252627282930
219
32
1234 5610 11 12 13 14 15716
23 3019 20
22 26 27 28 29817
24 3118
25
: INDICATOR ON
COMBINATION METER
4
3
1
2
IC
IS
ISIS
IC
IC
IC
IS
IC
: INDICATOR ON
MAIN SWITCH IS
16
12
3456

CC(H4SO)-18
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Symptom
Step Check Yes No
1 CHECK CRUISE INDICATOR LIGHT CIR-
CUIT.
1) Turn the ignition switch to OFF.
2) With indicator built in combination meter:
Disconnect the combination meter harness
connector.
With indicator built in main switch:
Disconnect the cruise control main switch har-
ness connector.
3) Turn the ignition switch to ON.
4) Measure the voltage between harness con-
nector terminal and chassis ground.
Connector & terminal
With indicator built in combination
meter:
(i10) No. 9 (+) — Chassis ground (
−):
With indicator built in main switch:
(B161) No. 3 (+) — Chassis ground (
−):Is the voltage more than 10 V? Go to step 2. Check the fuse
No. 13 (in fuse &
relay box).
 Check the har-
ness for open or
short between
combination meter
and fuse & relay
box.
2 CHECK CRUISE INDICATOR LIGHT CIR-
CUIT.
1) Turn the ignition switch to OFF.
2) Disconnect the cruise control module har-
ness connector.
3) Measure the resistance between cruise
control module harness connector terminal
and combination meter harness connector ter-
minal.
Connector & terminal
With indicator built in combination
meter:
(B94) No. 1 (+) — (i10) No. 16:
With indicator built in main switch:
(B94) No. 1 (+) — (B161) No. 4:Is the resistance less than 10
Ω?Go to step 3.Repair the har-
ness.
3 CHECK CRUISE INDICATOR LIGHT CIR-
CUIT.
Ground the cruise control module harness
connector terminal with a suitable wire.
Connector & terminal
(B94) No. 1 — Chassis ground:Does the cruise indicator light
illuminate?Replace the cruise
control module. With indicator
built in combina-
tion meter: Check
the cruise indicator
light bulb in combi-
nation meter, and
replace it if mal-
function
occurred.No mal-
function found,
replace the printed
circuit of combina-
tion meter.
 With indicator
built in main
switch: Replace
the cruise control
main switch.

CC(H4SO)-20
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Symptom
Step Check Yes No
1 CHECK SET/COAST SWITCH CIRCUIT.
1) Turn the ignition switch to OFF.
2) Disconnect the cruise control module har-
ness connector.
3) Measure the voltage between harness con-
nector terminal and chassis ground when SET/
COAST switch is pressed and not pressed.
Connector & terminal
(B94) No. 10 (+) — Chassis ground (
−):Is the voltage 0 V when the
SET/COAST switch is not
pressed? Is the voltage more
than 10 V when the SET/
COAST switch is pressed?Go to step 2.Go to step 4.
2 CHECK RESUME/ACCEL SWITCH CIRCUIT.
Measure the voltage between harness connec-
tor terminal and chassis ground when
RESUME/ACCEL switch is pressed and not
pressed.
Connector & terminal
(B94) No. 9 (+) — Chassis ground (
−):Is the voltage 0 V when the
RESUME/ACCEL switch is not
pressed? Is the voltage more
than 10 V when the RESUME/
ACCEL switch is pressed?Go to step 3.Go to step 4.
3 CHECK CANCEL SWITCH CIRCUIT.
Measure the voltage between harness connec-
tor terminal and chassis ground when CAN-
CEL switch is pressed and not pressed.
Connector & terminal
(B94) No. 9 (+) — Chassis ground (
−):
(B94) No. 10 (+) — Chassis ground (
−): Is the voltage 0 V when the
CANCEL switch is not
pressed? Is the voltage more
than 10 V when the CANCEL
switch is pressed?Cruise control
command switch
circuit is OK.Go to step 4.
4 CHECK POWER SUPPLY FOR COMMAND
SWITCH.
Check the horn operation.Does the horn sound? Go to step 5. Check the fuse
No. 6 (in main fuse
box).
 Check the horn
relay. COM-3, INSPEC-
TION, Horn Sys-
tem.>
 Check the har-
ness for open or
short between
cruise control
command switch
and fuse & relay
box.
5 CHECK CRUISE CONTROL COMMAND
SWITCH.
Remove and check the cruise control com-
mand switch. Command Switch.>Is the cruise control command
switch OK?Check the harness
between cruise
control command
switch and cruise
control module.Replace the cruise
control command
switch.

CC(H4SO)-22
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Symptom
Step Check Yes No
1 CHECK STOP LIGHT SWITCH AND BRAKE
SWITCH CIRCUIT.
1) Turn the ignition switch to OFF.
2) Disconnect the stop light switch and brake
switch harness connector.
3) Turn the ignition switch to ON.
4) Turn the cruise control main switch to ON.
5) Measure the voltage between harness con-
nector terminal and chassis ground.
Connector & terminal
(B65) No. 2 (+) — Chassis ground (
−): Is the voltage more than 10 V? Go to step 2. Check the fuse
No. 16 (in fuse &
relay box).
 Check the har-
ness for open or
short between
stop light/brake
switch and fuse &
relay box.
2 CHECK STOP LIGHT SWITCH AND BRAKE
SWITCH CIRCUIT.
Measure the voltage between harness connec-
tor terminal and chassis ground.
Connector & terminal
(B65) No. 4 (+) — Chassis ground (
−): Is the voltage more than 10 V? Go to step 3. Check the har-
ness for open or
short between
stop light/brake
switch and cruise
control module (AT
model).
 Check the clutch
switch and circuit
(MT model).
3 CHECK STOP LIGHT SWITCH AND BRAKE
SWITCH CIRCUIT.
1) Turn the cruise control main switch and
ignition switch to OFF.
2) Disconnect the cruise control module har-
ness connector.
3) Measure the resistance between cruise
control module harness connector terminal
and stop light switch and brake switch harness
connector terminal.
Connector & terminal
(B94) No. 20 — (B65) No. 3:
(B94) No. 16 — (B65) No. 1: Is the resistance less than 10
Ω?Go to step 4.Repair the har-
ness.
4 CHECK STOP LIGHT SWITCH AND BRAKE
SWITCH.
Remove and check the stop light switch and
brake switch. Switch.>Are the stop light switch and
brake switch are OK?Stop light switch
and brake switch
circuit are OK.Replace the stop
light switch and
brake switch.

CC(H4SO)-24
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Symptom
Step Check Yes No
1 CHECK CLUTCH SWITCH CIRCUIT.
1) Turn the ignition switch to OFF.
2) Disconnect the clutch switch harness con-
nector.
3) Turn the ignition switch to ON.
4) Turn the cruise control main switch to ON.
5) Measure the voltage between harness con-
nector terminal and chassis ground.
Connector & terminal
(B107) No. 2 (+) — Chassis ground (
−):Is the voltage more than 10 V? Go to step 2.Check the harness
for open or short
between clutch
switch and cruise
control module.
2 CHECK CLUTCH SWITCH CIRCUIT.
1) Turn the cruise control main switch and
ignition switch OFF.
2) Disconnect the stop light switch and brake
switch harness connector.
3) Measure the resistance between clutch
switch harness connector terminal and stop
light switch and brake switch harness connec-
tor terminal.
Connector & terminal
(B107) No. 1 — (B65) No. 4:Is the resistance less than 10
Ω?Go to step 3.Repair the har-
ness.
3 CHECK CLUTCH SWITCH.
Remove and check the clutch switch. CC-11, Clutch Switch.>Is the clutch switch OK? Clutch switch cir-
cuit is OK.Replace the clutch
switch.

CC(H4SO)-26
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Symptom
Step Check Yes No
1 CHECK INHIBITOR SWITCH CIRCUIT.
1) Turn the ignition switch to OFF.
2) Disconnect the inhibitor switch harness
connector.
3) Turn the ignition switch to ON.
4) Turn the cruise control main switch to ON.
5) Measure the voltage between harness con-
nector terminal and chassis ground.
Connector & terminal
(T7) No. 12 (+) — Chassis ground (
−): Is the voltage more than 10 V? Go to step 2.Check the harness
for open or short
between inhibitor
switch and cruise
control module.
2 CHECK INHIBITOR SWITCH CIRCUIT.
1) Turn the cruise control main switch and
ignition switch to OFF.
2) Disconnect the starter motor harness con-
nector.
3) Measure the resistance between inhibitor
switch harness connector terminal and starter
motor harness connector terminal.
Connector & terminal
(T7) No. 7 — (B14) No. 1: Is the resistance less than 10
Ω?Go to step 3.Repair the har-
ness.
3 CHECK INHIBITOR SWITCH.
Remove and check the inhibitor switch. to CC-12, Inhibitor Switch (AT model).>Is the inhibitor switch OK? Inhibitor switch cir-
cuit is OK.Replace the inhibi-
tor switch.

CC(H4SO)-29
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
8. Diagnostic Procedure with
Diagnostic Trouble Code
(DTC)
A: DTC 21, 24, 25 AND 2A CRUISE
CONTROL MODULE BUILT-IN RE-
LAY, CPU RAM
DIAGNOSIS:
 Poor welding of built-in relay of cruise control mod-
ule.
 Failure of built-in CPU RAM of cruise control mod-
ule.
TROUBLE SYMPTOM:
 Cruise control is canceled and memorized cruise
speed is also canceled.
 Once cruise control is canceled, cruise control
cannot be set until the ignition switch and cruise
control main switch turns OFF, and then turns ON
again.
NOTE:
Check input/output signal and vehicle speed signal
with select monitor. When signals are in good con-
dition, failure is in cruise control module. (Check
the power supply and ground conditions of cruise
control module.)

CC(H4SO)-30
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
B: DTC 22 VEHICLE SPEED SENSOR
DIAGNOSIS:
Disconnection or short circuit of vehicle speed sensor system.
TROUBLE SYMPTOM:
Cruise control cannot be set. (Cancelled immediately.)
WIRING DIAGRAM:
CC-00042
BATTERY
CRUISE
CONTROL
MODULE
M/B No.5IGNITION
RELAY
B17 TCM
E
C17
B17
B21
B94E2
B56
B56 C:
GEVEHICLE SPEED
SENSOR
(MT MODEL) 1
2
3
619
B94
E
16
MT
AT : AT MODEL C:
MT : MT MODELAT
12312345678910
11 12 13 14 15 16 17 18 19 20
123
4
56
78
9
1011 12
1314 15 16
12
789 56 3410 11 12
19 20 2113 14 15 16 17 18
22
23
24
F60
E216
B100
F29
LT
LT
XLXL
LT : LHD TURBO
MODEL
XL : EXCEPT LHD
TURBO MODEL
: TURBO MODEL
: NON-TURBO
MODELXL
LT
TB
NA
B17
3412
F2
1234 5678910 11 12 13 14 15 16 17 18 19 20
NA
TB :
:
F60LT :
B21XL :
