2004 PONTIAC BONNEVILLE Owners Manual

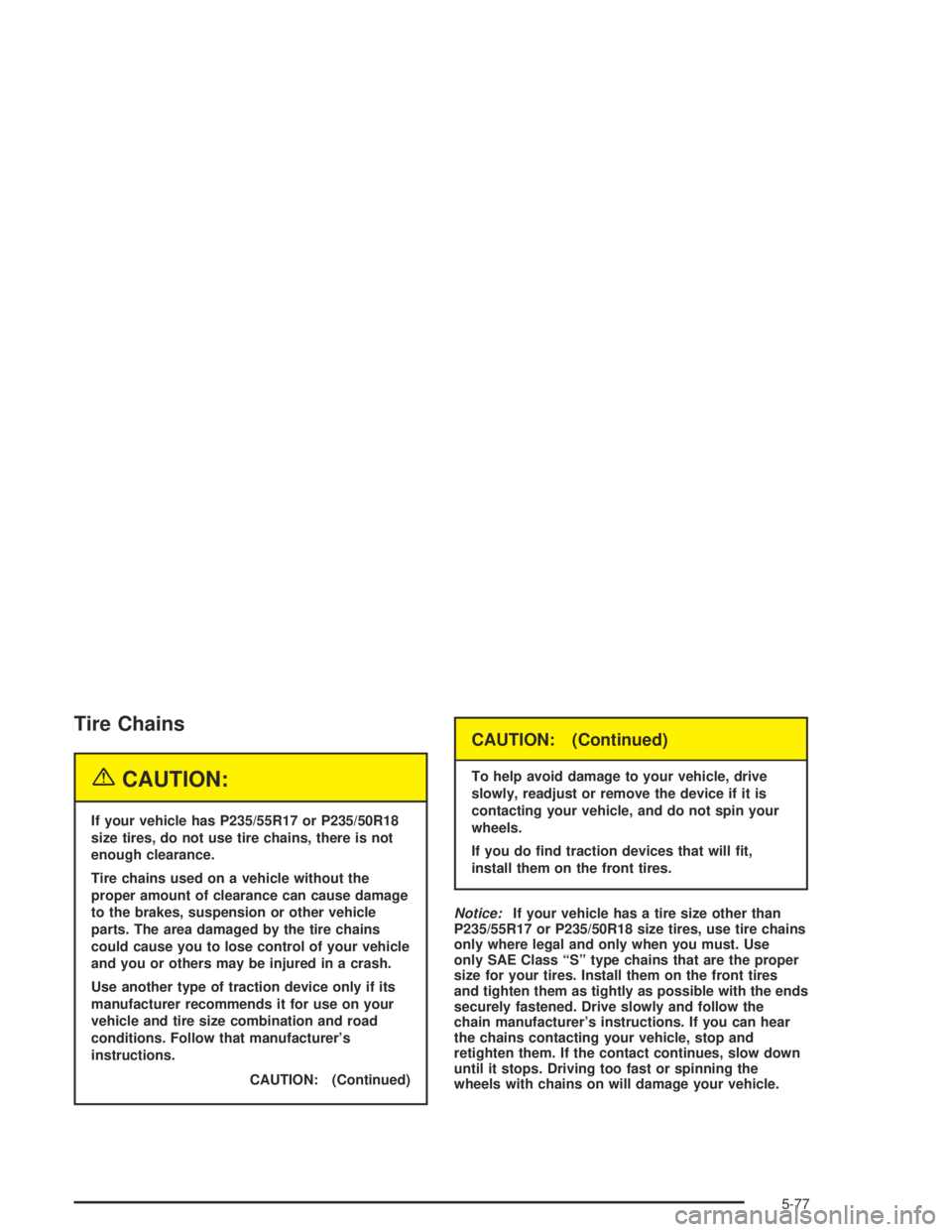

Tire Chains
{CAUTION:
If your vehicle has P235/55R17 or P235/50R18
size tires, do not use tire chains, there is not
enough clearance.
Tire chains used on a vehicle without the
proper amount of clearance can cause damage
to the brakes, suspension or other vehicle
parts. The area damaged by the tire chains
could cause you to lose control of your vehicle
and you or others may be injured in a crash.
Use another type of traction device only if its
manufacturer recommends it for use on your
vehicle and tire size combination and road
conditions. Follow that manufacturer’s
instructions.
CAUTION: (Continued)
CAUTION: (Continued)
To help avoid damage to your vehicle, drive
slowly, readjust or remove the device if it is
contacting your vehicle, and do not spin your
wheels.
If you do nd traction devices that will t,
install them on the front tires.
Notice:If your vehicle has a tire size other than
P235/55R17 or P235/50R18 size tires, use tire chains
only where legal and only when you must. Use
only SAE Class “S” type chains that are the proper
size for your tires. Install them on the front tires
and tighten them as tightly as possible with the ends
securely fastened. Drive slowly and follow the
chain manufacturer’s instructions. If you can hear
the chains contacting your vehicle, stop and
retighten them. If the contact continues, slow down
until it stops. Driving too fast or spinning the
wheels with chains on will damage your vehicle.
5-77

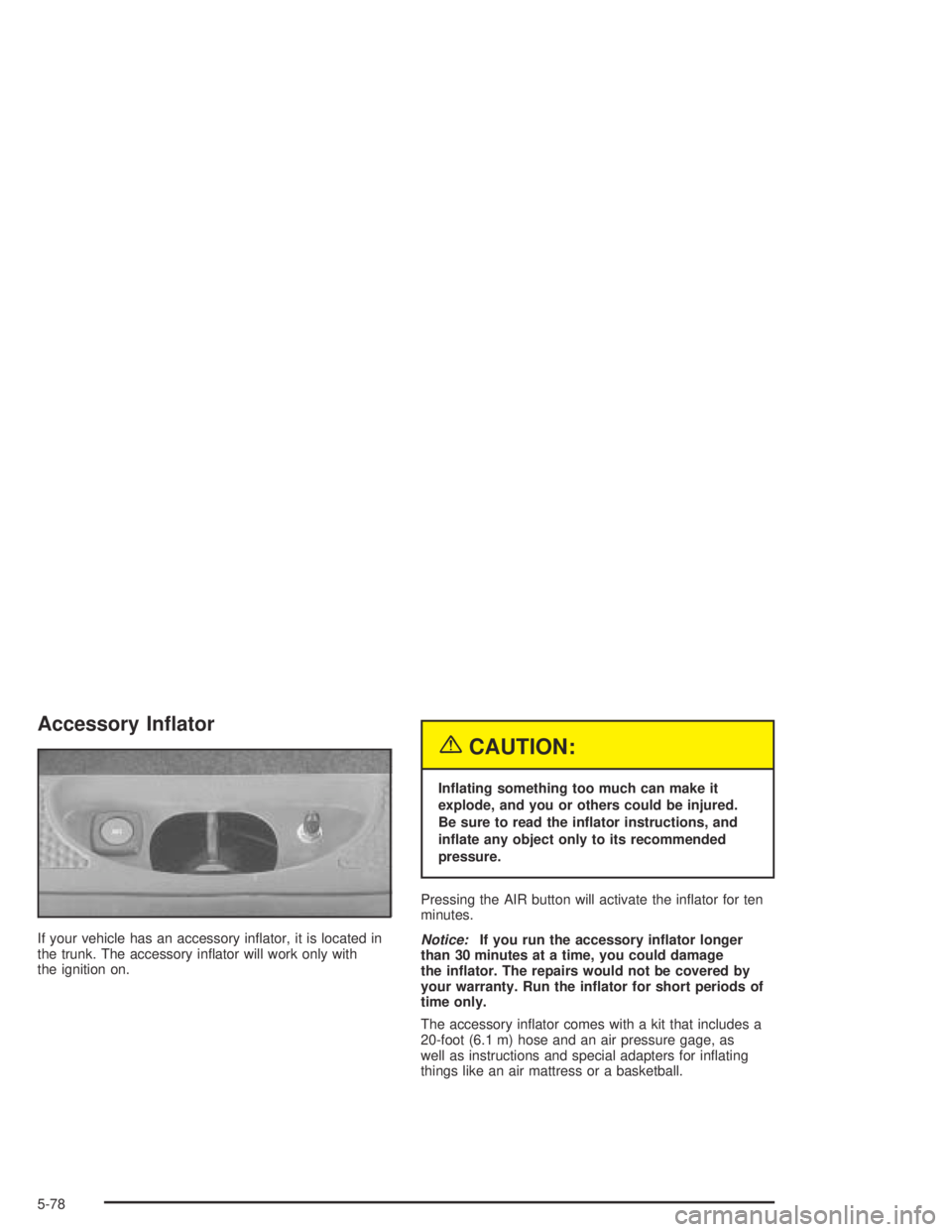

Accessory Inator
If your vehicle has an accessory inator, it is located in
the trunk. The accessory inator will work only with
the ignition on.
{CAUTION:
Inating something too much can make it
explode, and you or others could be injured.
Be sure to read the inator instructions, and
inate any object only to its recommended
pressure.
Pressing the AIR button will activate the inator for ten
minutes.
Notice:If you run the accessory inator longer
than 30 minutes at a time, you could damage
the inator. The repairs would not be covered by
your warranty. Run the inator for short periods of
time only.
The accessory inator comes with a kit that includes a
20-foot (6.1 m) hose and an air pressure gage, as
well as instructions and special adapters for inating
things like an air mattress or a basketball.
5-78

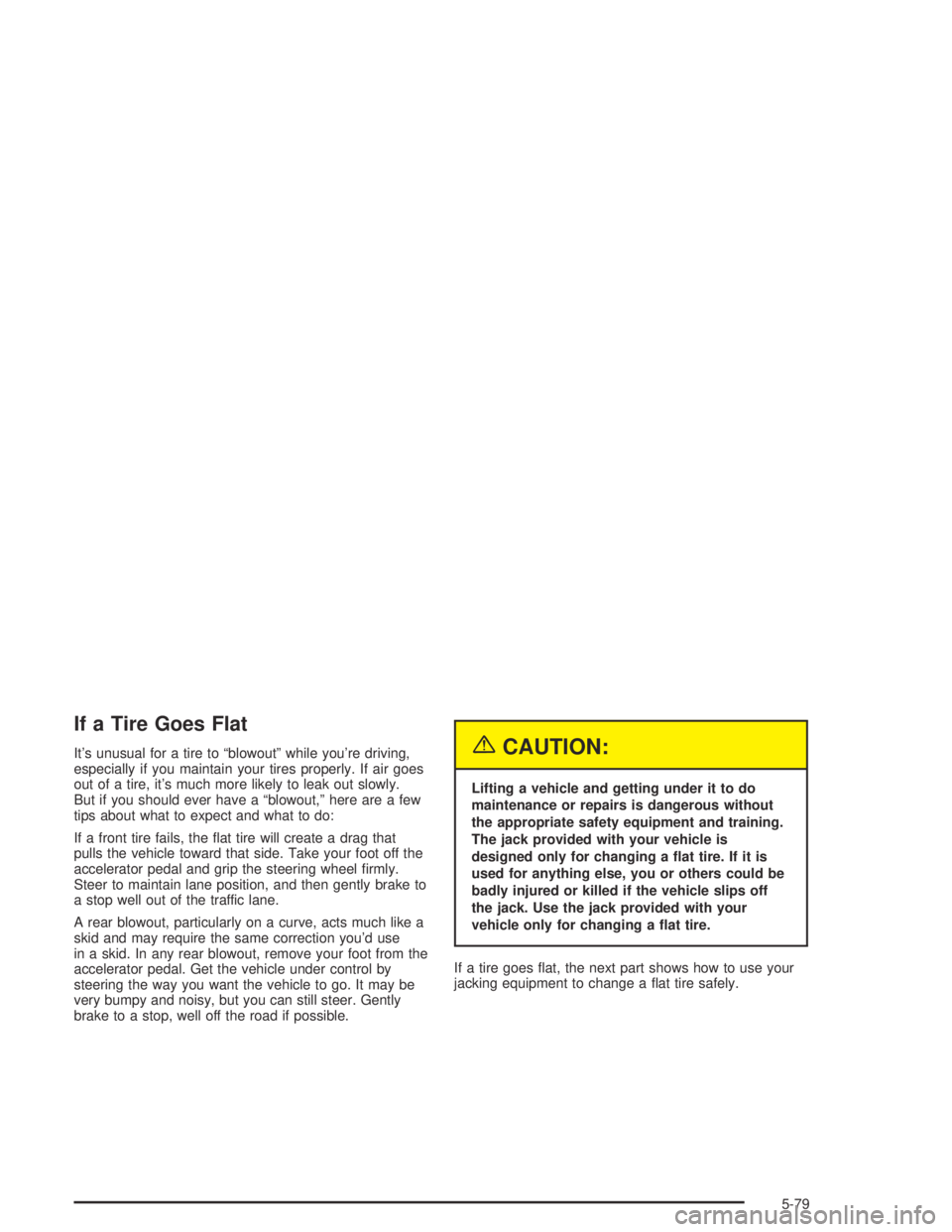

If a Tire Goes Flat
It’s unusual for a tire to “blowout” while you’re driving,
especially if you maintain your tires properly. If air goes
out of a tire, it’s much more likely to leak out slowly.
But if you should ever have a “blowout,” here are a few
tips about what to expect and what to do:
If a front tire fails, the at tire will create a drag that
pulls the vehicle toward that side. Take your foot off the
accelerator pedal and grip the steering wheel rmly.
Steer to maintain lane position, and then gently brake to
a stop well out of the traffic lane.
A rear blowout, particularly on a curve, acts much like a
skid and may require the same correction you’d use
in a skid. In any rear blowout, remove your foot from the
accelerator pedal. Get the vehicle under control by
steering the way you want the vehicle to go. It may be
very bumpy and noisy, but you can still steer. Gently
brake to a stop, well off the road if possible.{CAUTION:
Lifting a vehicle and getting under it to do
maintenance or repairs is dangerous without
the appropriate safety equipment and training.
The jack provided with your vehicle is
designed only for changing a at tire. If it is
used for anything else, you or others could be
badly injured or killed if the vehicle slips off
the jack. Use the jack provided with your
vehicle only for changing a at tire.
If a tire goes at, the next part shows how to use your
jacking equipment to change a at tire safely.
5-79

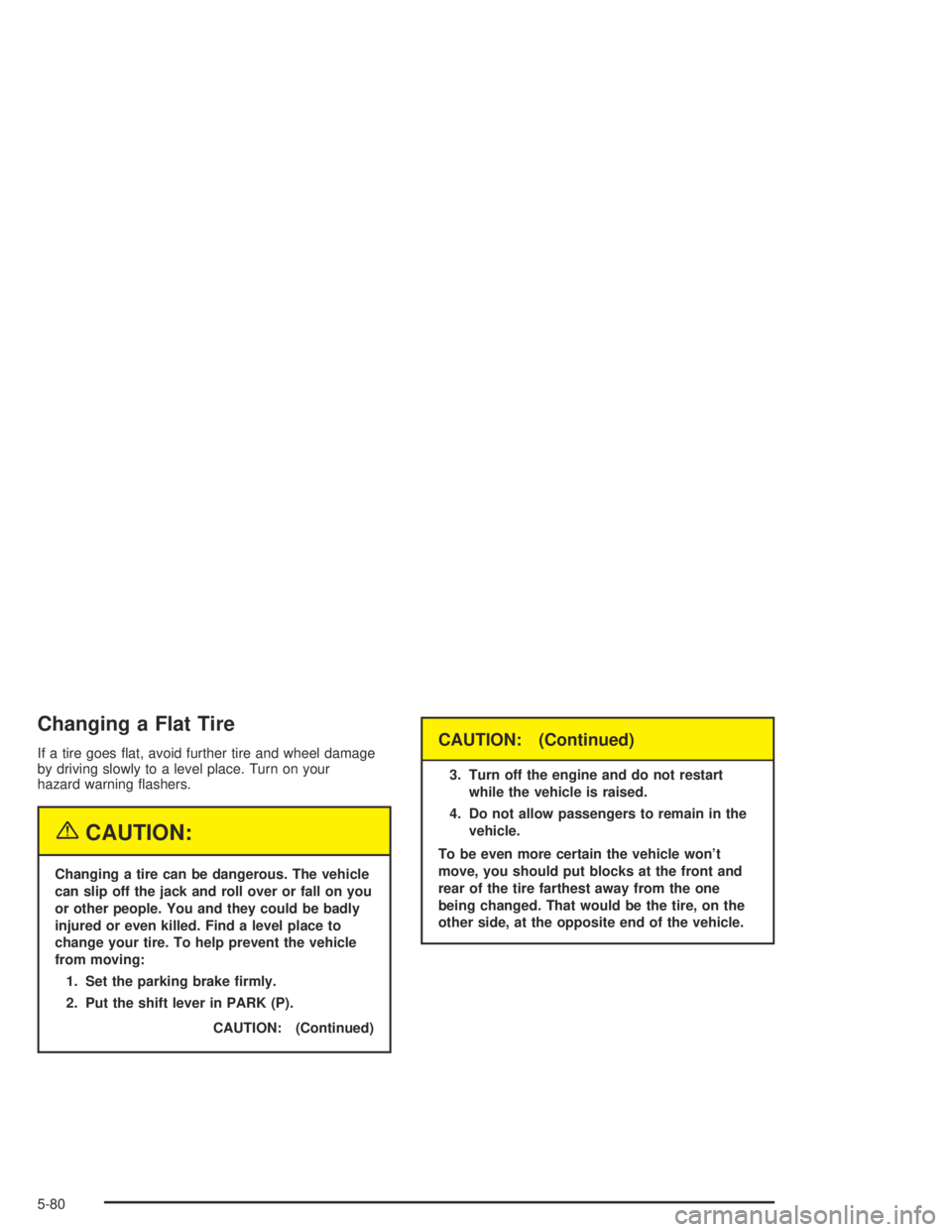

Changing a Flat Tire
If a tire goes at, avoid further tire and wheel damage
by driving slowly to a level place. Turn on your
hazard warning ashers.
{CAUTION:
Changing a tire can be dangerous. The vehicle
can slip off the jack and roll over or fall on you
or other people. You and they could be badly
injured or even killed. Find a level place to
change your tire. To help prevent the vehicle
from moving:
1. Set the parking brake rmly.
2. Put the shift lever in PARK (P).
CAUTION: (Continued)
CAUTION: (Continued)
3. Turn off the engine and do not restart
while the vehicle is raised.
4. Do not allow passengers to remain in the
vehicle.
To be even more certain the vehicle won’t
move, you should put blocks at the front and
rear of the tire farthest away from the one
being changed. That would be the tire, on the
other side, at the opposite end of the vehicle.
5-80

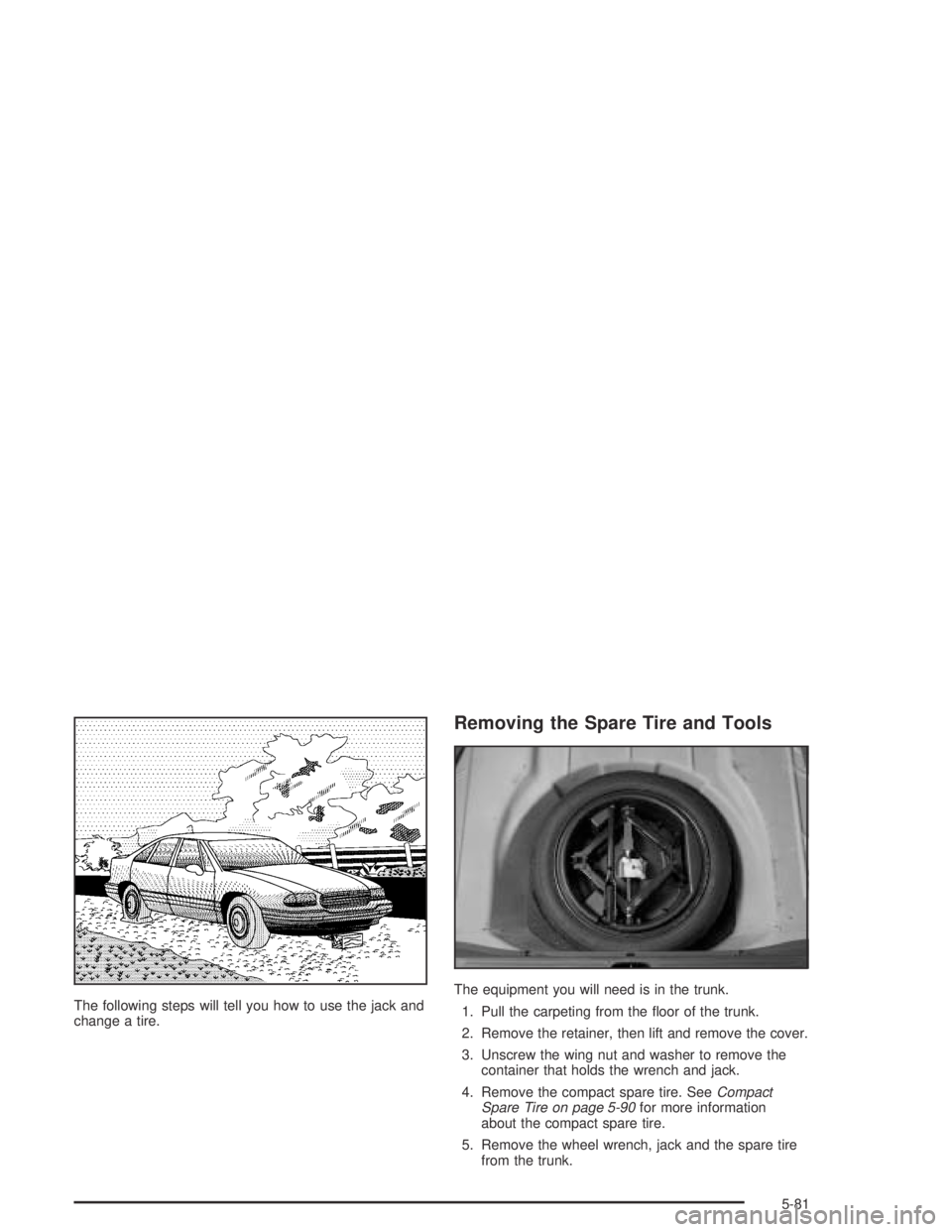

The following steps will tell you how to use the jack and
change a tire.
Removing the Spare Tire and Tools
The equipment you will need is in the trunk.
1. Pull the carpeting from the oor of the trunk.
2. Remove the retainer, then lift and remove the cover.
3. Unscrew the wing nut and washer to remove the
container that holds the wrench and jack.
4. Remove the compact spare tire. SeeCompact
Spare Tire on page 5-90for more information
about the compact spare tire.
5. Remove the wheel wrench, jack and the spare tire
from the trunk.
5-81

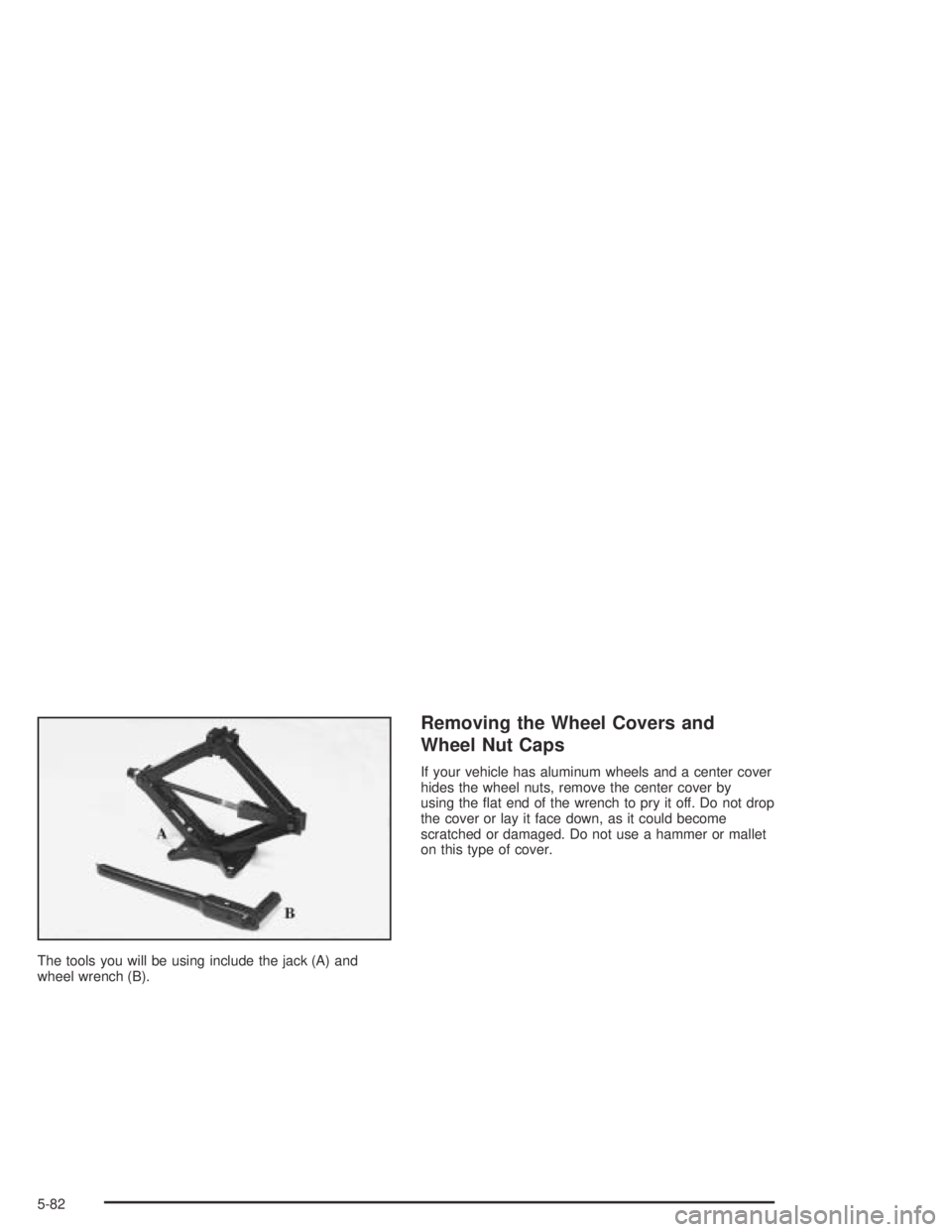

The tools you will be using include the jack (A) and
wheel wrench (B).
Removing the Wheel Covers and
Wheel Nut Caps
If your vehicle has aluminum wheels and a center cover
hides the wheel nuts, remove the center cover by
using the at end of the wrench to pry it off. Do not drop
the cover or lay it face down, as it could become
scratched or damaged. Do not use a hammer or mallet
on this type of cover.
5-82

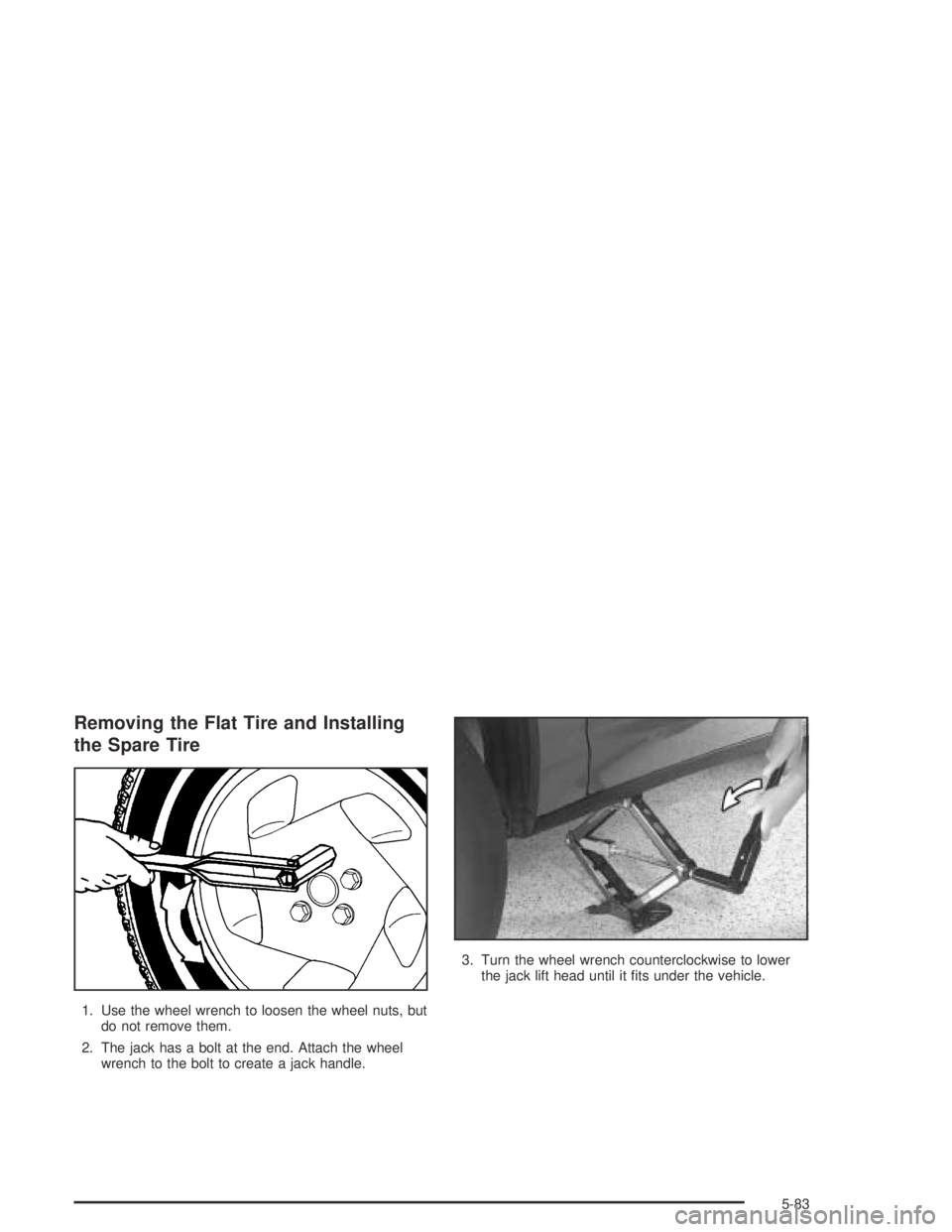

Removing the Flat Tire and Installing
the Spare Tire
1. Use the wheel wrench to loosen the wheel nuts, but
do not remove them.
2. The jack has a bolt at the end. Attach the wheel
wrench to the bolt to create a jack handle.3. Turn the wheel wrench counterclockwise to lower
the jack lift head until it ts under the vehicle.
5-83

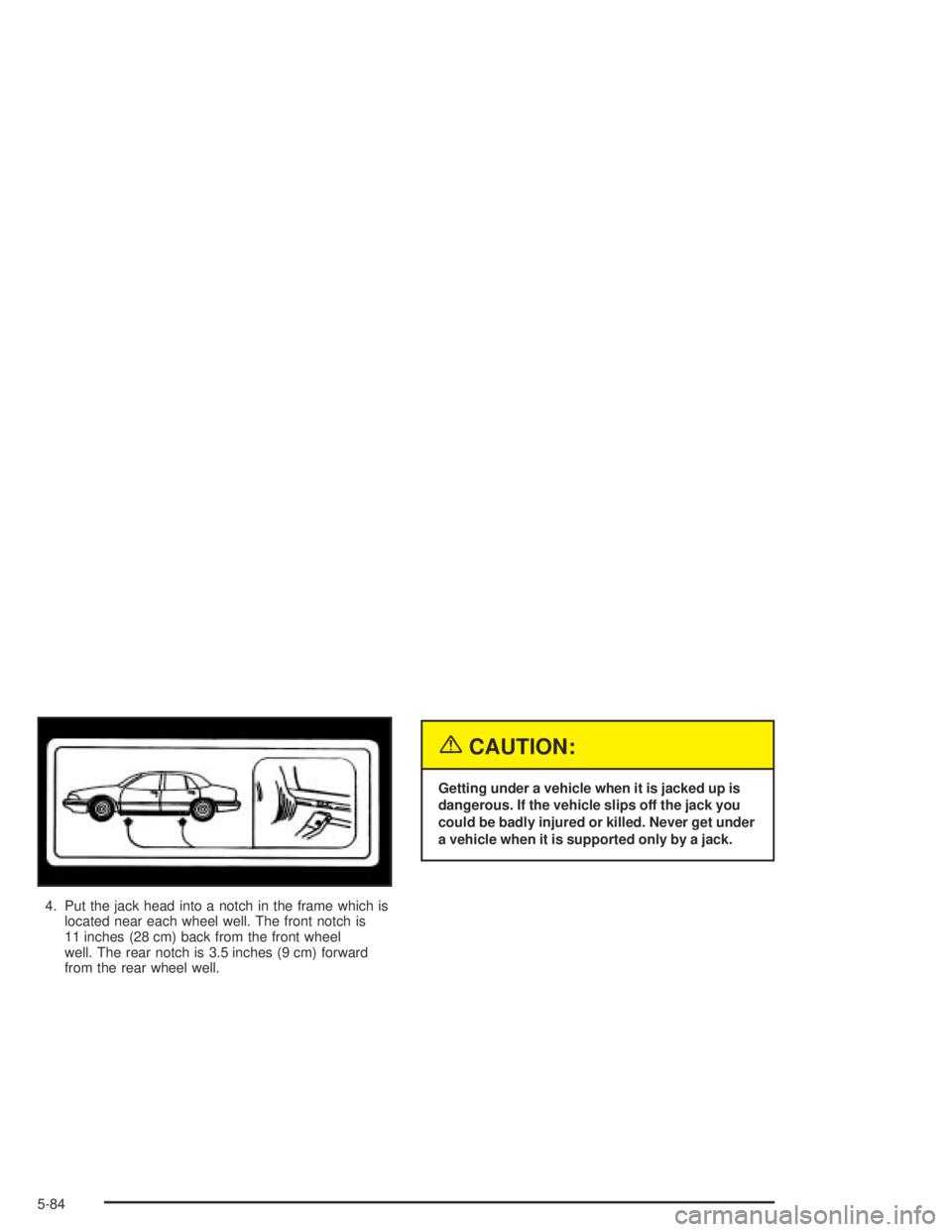

4. Put the jack head into a notch in the frame which is
located near each wheel well. The front notch is
11 inches (28 cm) back from the front wheel
well. The rear notch is 3.5 inches (9 cm) forward
from the rear wheel well.
{CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack you
could be badly injured or killed. Never get under
a vehicle when it is supported only by a jack.
5-84
