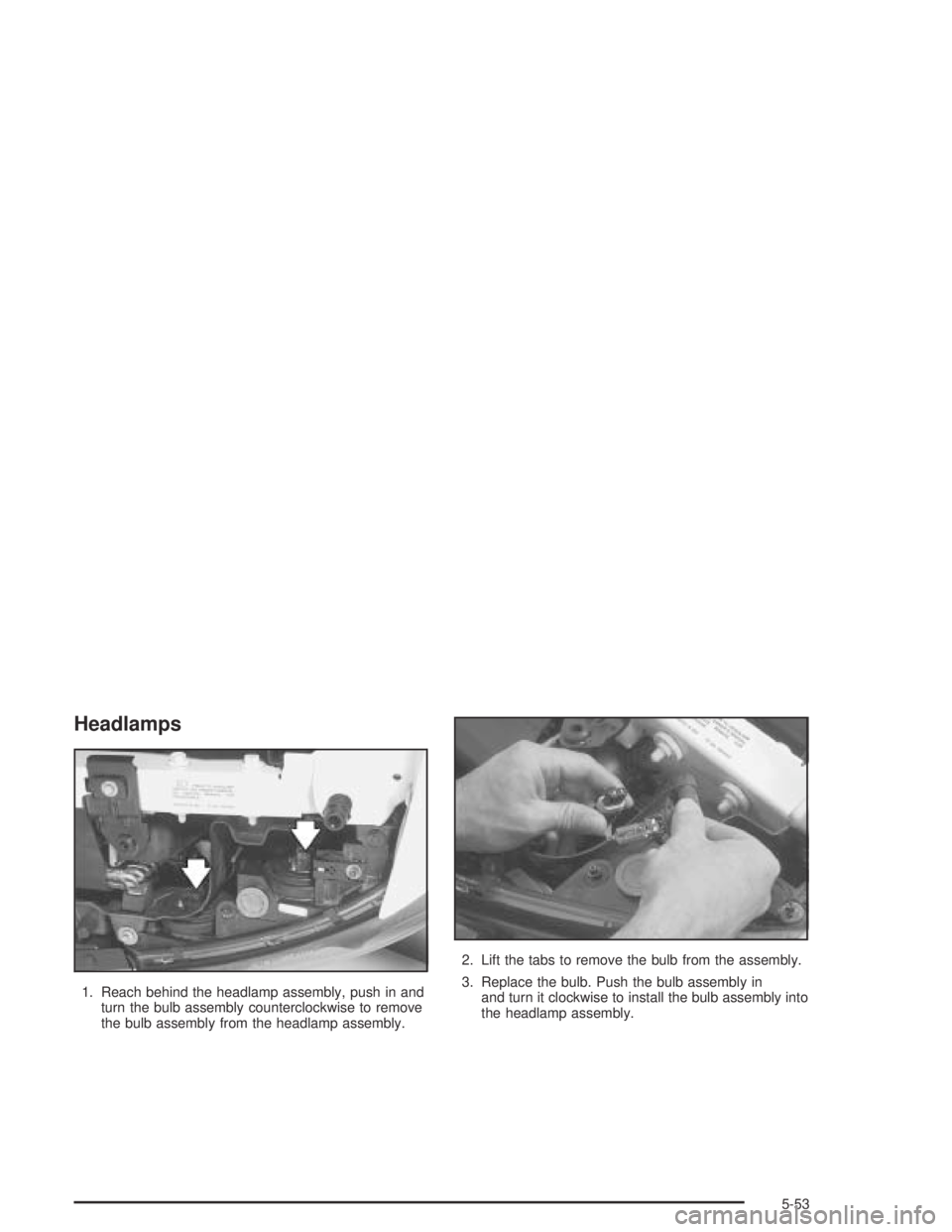

Headlamps
1. Reach behind the headlamp assembly, push in and
turn the bulb assembly counterclockwise to remove
the bulb assembly from the headlamp assembly.2. Lift the tabs to remove the bulb from the assembly.
3. Replace the bulb. Push the bulb assembly in
and turn it clockwise to install the bulb assembly into
the headlamp assembly.
5-53

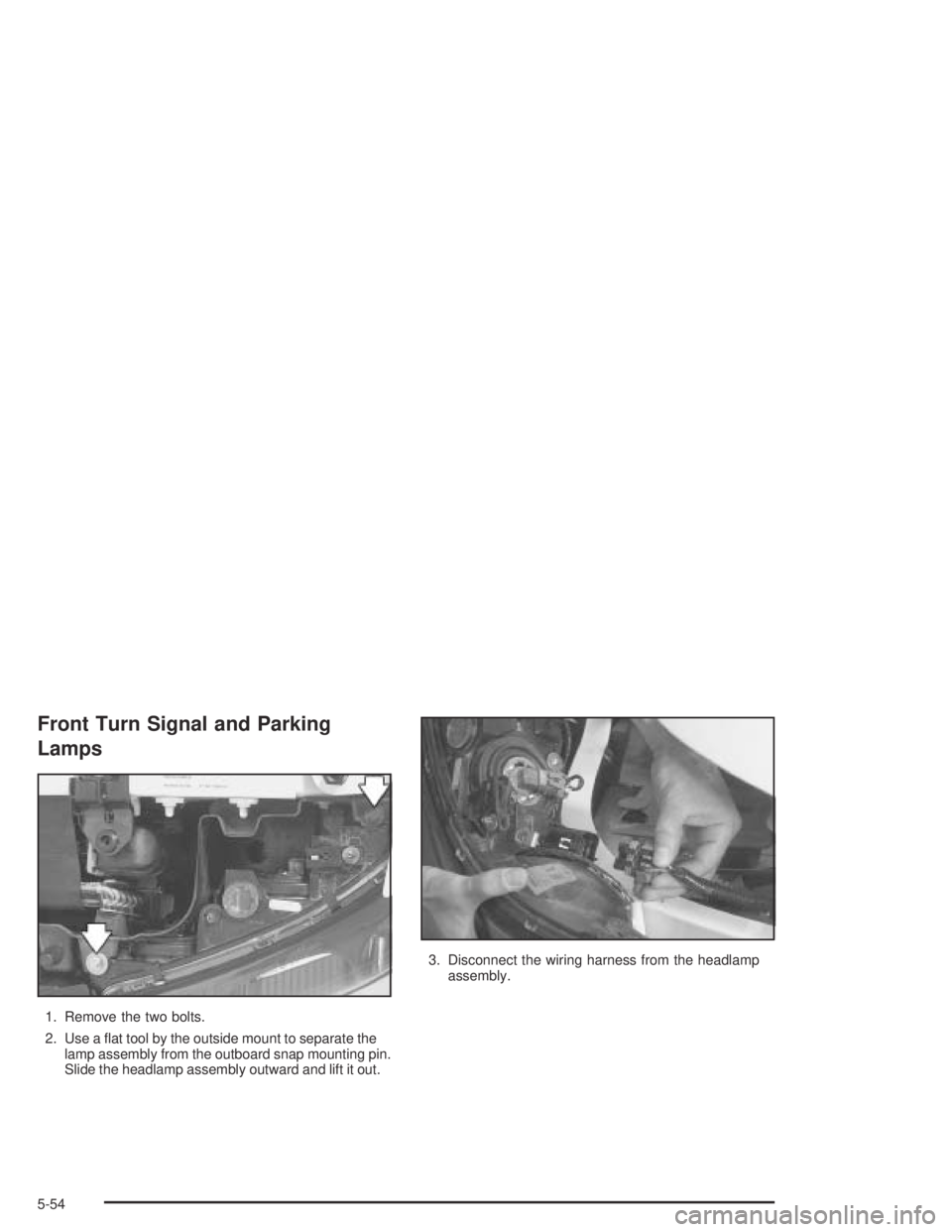

Front Turn Signal and Parking
Lamps
1. Remove the two bolts.
2. Use a at tool by the outside mount to separate the
lamp assembly from the outboard snap mounting pin.
Slide the headlamp assembly outward and lift it out.3. Disconnect the wiring harness from the headlamp
assembly.
5-54

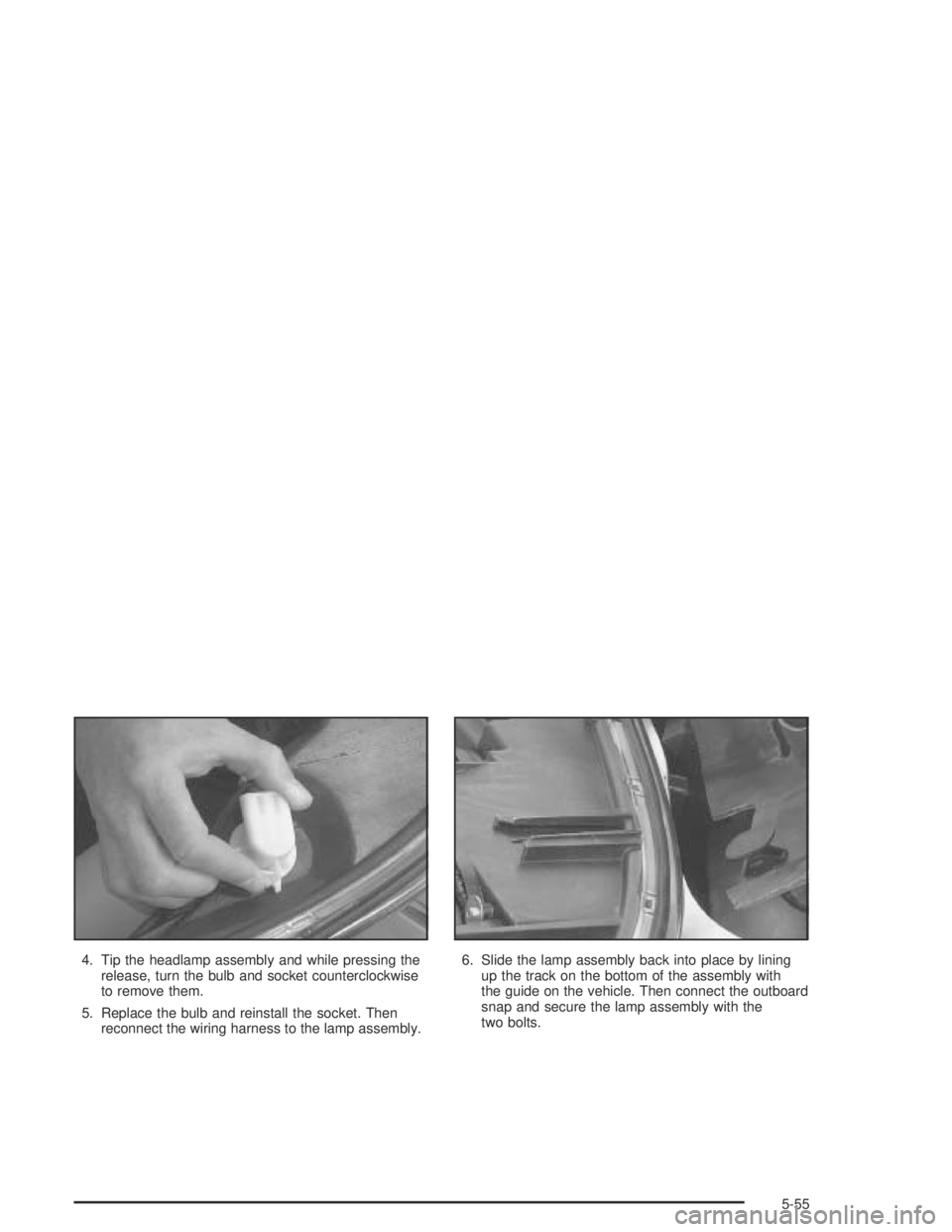

4. Tip the headlamp assembly and while pressing the
release, turn the bulb and socket counterclockwise
to remove them.
5. Replace the bulb and reinstall the socket. Then
reconnect the wiring harness to the lamp assembly.6. Slide the lamp assembly back into place by lining
up the track on the bottom of the assembly with
the guide on the vehicle. Then connect the outboard
snap and secure the lamp assembly with the
two bolts.
5-55

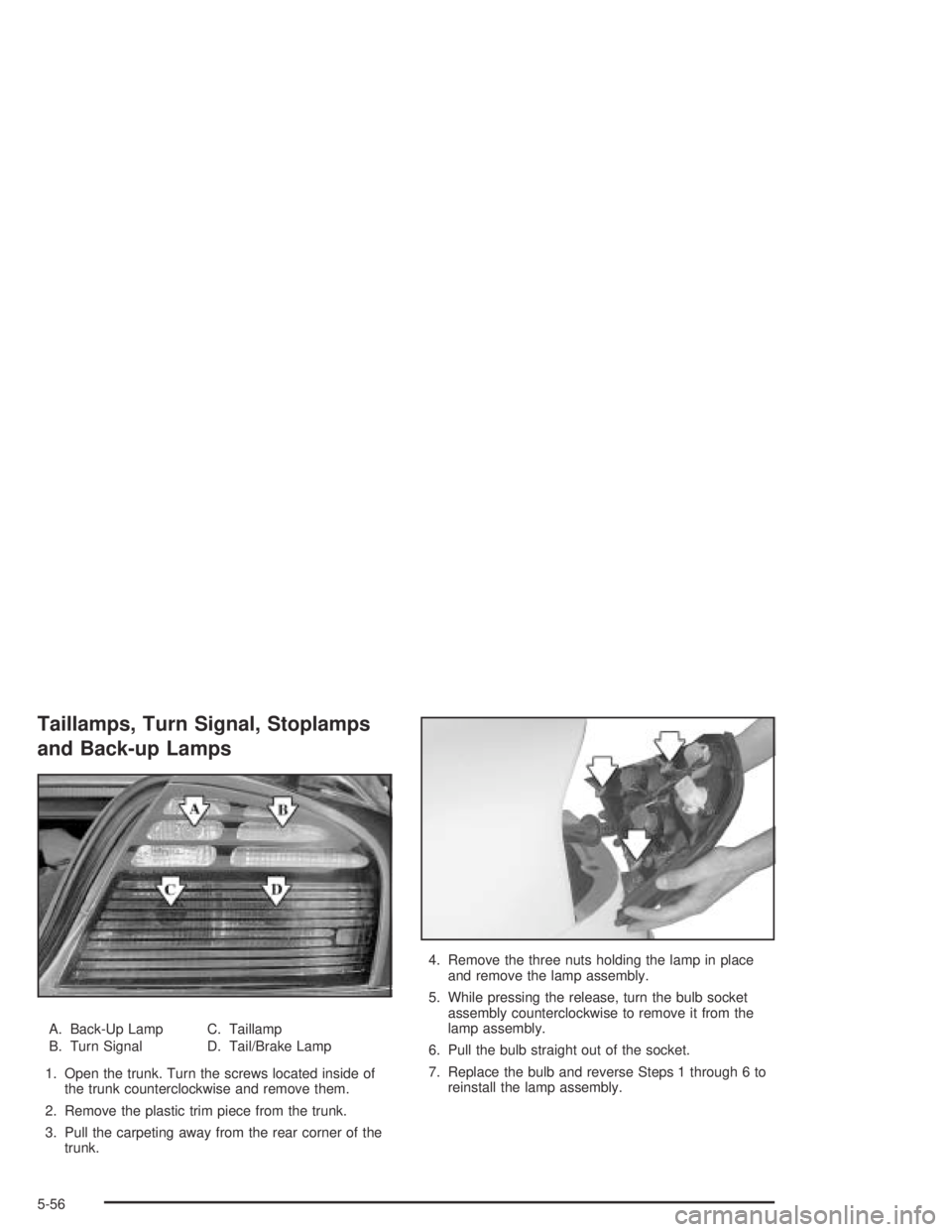

Taillamps, Turn Signal, Stoplamps
and Back-up Lamps
A. Back-Up Lamp
B. Turn SignalC. Taillamp
D. Tail/Brake Lamp
1. Open the trunk. Turn the screws located inside of
the trunk counterclockwise and remove them.
2. Remove the plastic trim piece from the trunk.
3. Pull the carpeting away from the rear corner of the
trunk.4. Remove the three nuts holding the lamp in place
and remove the lamp assembly.
5. While pressing the release, turn the bulb socket
assembly counterclockwise to remove it from the
lamp assembly.
6. Pull the bulb straight out of the socket.
7. Replace the bulb and reverse Steps 1 through 6 to
reinstall the lamp assembly.
5-56

Replacement Bulbs
For any bulb not listed here contact your dealer.
Exterior Lamp Bulb Number
Back-Up Lamps 3057
High-Beam Headlamp 9005
Low-Beam Headlamp 9006
Parking/Turn Lamps 3157
Stoplamps 3057
Taillamps 3057
Turn 3157
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected at least
twice a year for wear or cracking. SeePart B:
Owner Checks and Services on page 6-19for more
information.
For the proper windshield wiper blade replacement
length and type, seeNormal Maintenance Replacement
Parts on page 5-110.
5-57

To replace the wiper blade assembly:
1. Lift the wiper up from the windshield and set into
the vertically-locked position.
2. Press the tab that holds the wiper blade to the arm.
3. Slide the blade down and off the arm.
4. Slide in the new blade and snap into place.Tires
Your new vehicle comes with high-quality tires made by
a leading tire manufacturer. If you ever have questions
about your tire warranty and where to obtain service,
see your GM Warranty booklet for details. For additional
information refer to the tire manufacturer’s booklet
included with your vehicle’s Owner’s Manual.
{CAUTION:
Poorly maintained and improperly used
tires are dangerous.
Overloading your tires can cause
overheating as a result of too much
friction. You could have an air-out and a
serious accident. SeeLoading Your
Vehicle on page 4-33.
CAUTION: (Continued)
5-58

CAUTION: (Continued)

Underinated tires pose the same danger
as overloaded tires. The resulting accident
could cause serious injury. Check all tires
frequently to maintain the recommended
pressure. Tire pressure should be checked
when your tires are cold.
Overinated tires are more likely to be
cut, punctured or broken by a sudden
impact— such as when you hit a pothole.
Keep tires at the recommended pressure.
Worn, old tires can cause accidents. If
your tread is badly worn, or if your tires
have been damaged, replace them.
SeeInflation - Tire Pressure on page 5-67, for
ination pressure adjustment for higher speed
driving.
Tire Sidewall Labeling
Useful information about a tire is molded into its
sidewall. The examples below show a typical passenger
car tire and a compact spare tire sidewall.
5-59

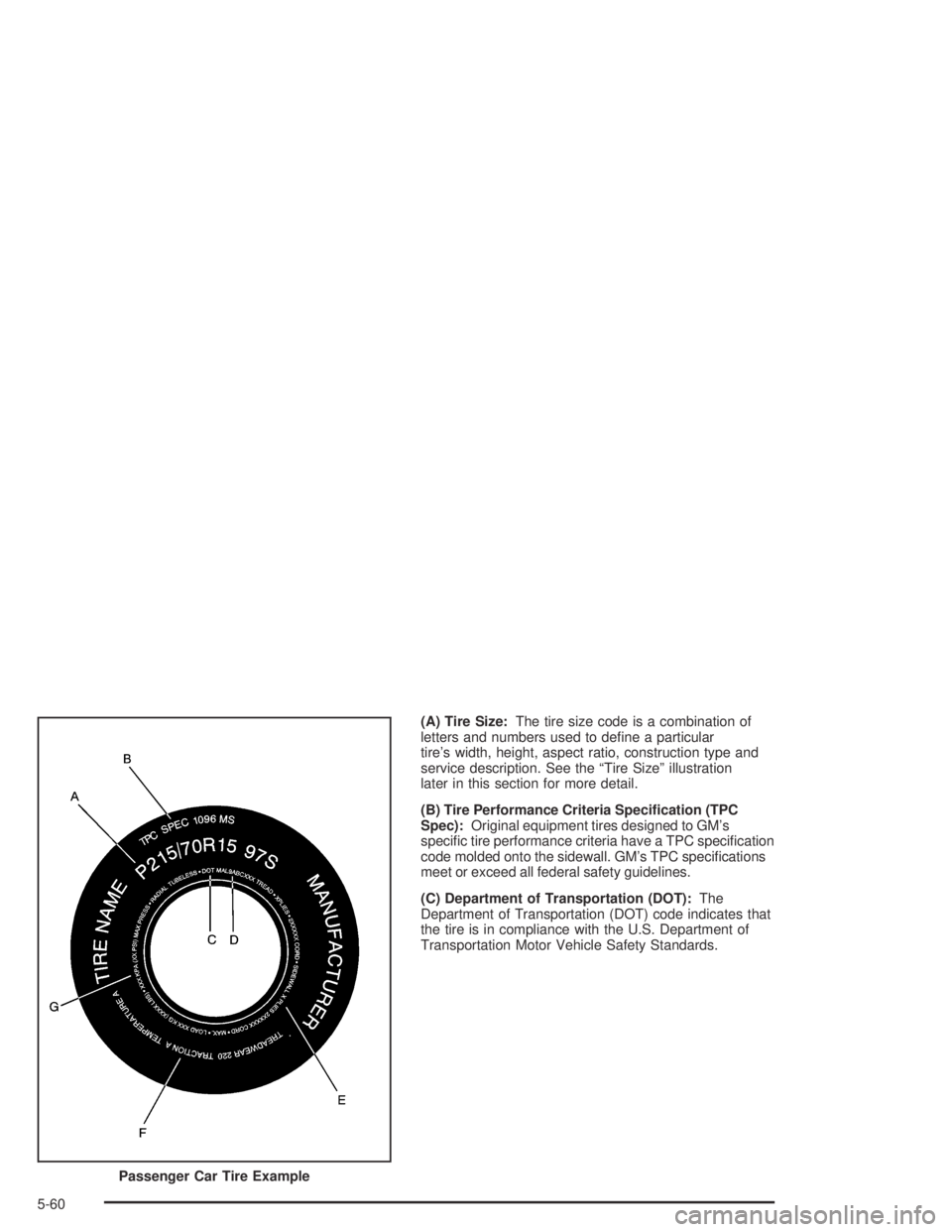

(A) Tire Size:The tire size code is a combination of
letters and numbers used to dene a particular
tire’s width, height, aspect ratio, construction type and
service description. See the “Tire Size” illustration
later in this section for more detail.
(B) Tire Performance Criteria Specication (TPC
Spec):Original equipment tires designed to GM’s
specic tire performance criteria have a TPC specication
code molded onto the sidewall. GM’s TPC specications
meet or exceed all federal safety guidelines.
(C) Department of Transportation (DOT):The
Department of Transportation (DOT) code indicates that
the tire is in compliance with the U.S. Department of
Transportation Motor Vehicle Safety Standards.
Passenger Car Tire Example
