3YOUR AT A GLANCE
1-Lights and direction indicators stalk.
2- Steering wheel adjustment.
3 - Driver's front air bag.
- Horn.
4- Instrument dials.
5- Windscreen wash/wipe stalk.
- Trip computer stalk.
6- Audio remote control stalk.
7- Hazard warning lightsswitch.
8- Central adjustable air conditioning/ ventilationvents and air flow regulation.
9- Sunshine / brightness
sensor.
10 - Windscreen demisting vents.
11 - Passenger air bag.
12 - Glove compartment.
13 - Side adjustable air conditioning/ ventilationvents and air flow regulation. 14 -
Door window demisting vent.
15 - Passenger air bag disarming switch.
16 - Front seats heating switches.
17 - Rear ashtray.
- Rear lighter.
- Rear seats heating switches.
18 - Rear footwell air conditioningvent.
19 - Two-position armrest with compartments.
20 - Handbrake.
21 - Electronically controlled suspension switch.
- Doors and boot lockingswitch.
- Sunroof switch.
- Rear blind switch.
22 - Front ashtray.
- Front lighter.
23 - Gear lever.
24 - RM2 audio system or RT2audio/telephone system with
PEUGEOT call button. 25 -
Air conditioning controls.
26 - Multi-function display.
27 - Steering lock and ignition.
28 - Fuse box.
29 - Speakers location.
30 - Electric mirror controls.
- Window controls.
- Rear window locking control.
31 - Headlamp height adjustment.
32 - ESP disarming switch.
33 - Alarm button.
34 - Cruise control.
35 - Memory buttons for:
- Front seat settings
- Electric mirror settings

02-02-2004
YOUR AT A GLANCE5
STARTING
STOP position:
The ignition is switched off.
1st notch, Accessories position:
The ignition is switched off but theaccessories still function. 2nd notch, Running position: The ignition is on. Starting position:
Operates the starter. Starting a diesel engine If the temperature is high enough, the pre-heat indi-cator light does not comeon and you can start imme-
diately.
If the indicator light comes on, waitfor it to go out before operating the
starter. If the engine stalls, it is necessary to return the key to the 'Stop' posi-
tion before re-starting. CHECK
(vehicle autotest)
Automatic check
With the ignition on (2nd notch)If no malfunction has been detected: In the
absence of vehicle func-tion status indicator lights,the OK light is displayed
after two seconds on the instru-ment panel screen. Otherwise, itwill be displayed after these indi-cator lights come on. If a 'minor' malfunction has been detected: the warning light for the
faulty function is displayed on theinstrument panel screen. Certainindicator lights showing the status ofvehicle functions may also come on,followed by the OKindicator light.
If a 'major' malfunction has beendetected: the corresponding warning
light is displayed on the instrumentpanel screen. Certain indicator lightsshowing the status of vehicle func-
tions may also come on. The OK
indicator light does not come on. Do
not start your vehicle. Contact a
PEUGEOT dealer. Afterwards, if the passenger air bag is disarmed, the correspon-ding warning light will come on.
With the engine running or if the vehicle is moving , the instrument
panel screen temporarily displays:
- lights indicating warnings, when
these occur,
- vehicle function status indicator lights, when a changeoccurs. The display of certain indicatorlights is accompanied by anaudible signal and a message
on the multi-function display. Manual check
 Press the "CHECK" button on
the instrument panel.
With the ignition key in the accessories position, with the ignition switched on,with the engine running or the vehiclemoving, this function informs you at alltimes of the following:
- any current warnings,
- the status of functions which it is possible to switch on or switch off (windscreen wipers, automaticswitching on of lights, cruisecontrol, disarming of passenger airbag, etc.).
The corresponding warning lightsare displayed in succession onthe instrument panel screen. If a warning or a change of status occurs during the CHECKmode, the
corresponding indicator light(s) will bedisplayed at the end of this mode.
21
Never run the engine in a confined space. Do not make any modi-
fications to the steering lock.

02-02-2004
YOUR AT A GLANCE7
ELECTRIC WINDOWS
1 - Driver's electric window.
2 - Passenger's electric window.
3 - Rear right electric window.
4 - Rear left electric window.
5 - Disarming the rear window controls and the rear lighter (child
safety).
Manual mode:  Press or pull the switch lightly. The window stops as soon as the switch is released.
Automatic mode:  Press or pull the switch firmly.
One touch completely opens or closes the window. Safety auto-reverse: when the glass rises and meets an
obstacle, it stops and lowers again. ELECTRIC EXTERIOR MIRRORS
 Turn knob 6to the right or to the left to select the corresponding mirror.
 Move the knob in all four directions to adjust.
When parked, the mirrors can be folded back manually, electrically by means of button 6or automatically on locking
the vehicle. STEERING WHEEL
HEIGHT AND DEPTHADJUSTMENT
 Push handle Ato unlock the
steering wheel.
 Adjust the height and depth of the steering wheel.
 Lock by pulling handle Afully.
11 9
120122

02-02-2004
INSTRUMENTS AND CONTROLS
20
INDICATOR LIGHTS
With the key in the accessories position (1st notch): the battery charge warning light illuminates on the instrument panel disp lay.
With the ignition on (2nd notch): the following three warning lights illuminate on the sides of the instrument panel:
Brake fluid level and brake force distribution fault warning light. This light should go out after 3 seconds.If the warning light remains on, or if it comes on when the engine is running and the vehicle is moving, it indicates an excessive drop in the brake fluid level or a malfunction of the brake force distribution. Stop immediately. Contact a PEUGEOT dealer.
Anti-lock braking system (ABS) warning light This should go out after 3 seconds.
If the warning light remains on or comes on above 8 mph (12 km/h), this indicates a malfunction of the ABS.
However, the vehicle retains conventional servo-assisted braking.
Contact a PEUGEOT dealer.
Engine diagnostics warning lightThis should go out 3 seconds after the engine starts.
If it flashes with the engine running, this indicates a malfunction in the injection or the ignition system. There is a
risk of damage to the catalytic converter.
If it is on continuously, this indicates a fault in the emission control system.
Contact a PEUGEOT dealer as soon as possible.
At the same time, on the instrument panel display:
If no malfunction has been detected: the OK light comes on after two seconds (following a black screen), in the
absence of indicator lights showing the status of vehicle functions. If these indicator lights are present, the OK
button will come on after these. You may start your vehicle.
If a 'minor' malfunction has been detected: the warning light for the faulty function comes on. Certain indicator
lights showing the status of vehicle functions may also come on, followed by the OKindicator light. You can start
your vehicle ; however, contact a PEUGEOT dealer as soon as possible.
If a 'major' malfunction has been detected: the corresponding warning light comes on. Certain indicator lights showing
the status of vehicle functions may also come on. The OKindicator light does not come on. Do not start your vehicle.
Contact a PEUGEOT dealer. Afterwards, if the passenger air bag is disarmed, the corresponding indicator light will come on.

02-02-2004
INSTRUMENTS AND CONTROLS21
Coolant temperature warning light This symbol is accompanied by an audible signal and the message 'Engine temperature too high' on the multi-function display.
It is linked to the STOPwarning light. Stop immediately.
Warning: wait for the engine to cool.
If necessary, top up the level.
With the engine running and the vehicle moving The instrument panel display temporarily shows:
- lights indicating warnings, when these occur,- vehicle function status indicator lights, when a change occurs.Certain warning lights may be accompanied by an audible signal and a
message on the multi-function display. List of warning symbols MANUAL CHECK (vehicle autotest)
 Press the "CHECK" button on the
instrument panel.
With the ignition key in the accesso- ries position, with the ignition swit-ched on, with the engine running orwhen the vehicle is moving, thisfunction informs you at all times ofthe following: - any current warnings,
- the status of functions which it is possible to switch on or off (wind- screen wipers, automatic switchingon of lights, cruise control, disarmingof passenger air bag, etc.).
The corresponding warning lightsare displayed in succession on theinstrument panel screen. If a warning or a change of status occurs during the CHECKmode, the
corresponding indicator lights will bedisplayed at the end of this mode.
CHECK mode entry indicator light (vehicleautotest) This comes on when you press the 'CHECK'button.
CHECK mode exit indica-tor light (vehicle autotest) This comes on at the end of the CHECK mode.
Engine oil pressure warning light This symbol is accompanied by an audible signal and the message 'Oil
pressure insufficient' or 'Engine oil level low' on the multi-function
display.It is linked to the STOPwarning light.
Stop immediately if this comes on when the engine is running.
If there is a lack of oil in the lubrication circuit, top up the level.
Contact a PEUGEOT dealer as soon as possible.
Puncture warning light This symbol comes on accompanied by an audible signal and the mes- sage 'Punctured tyre(s) detected' on the multi-function display.
It is linked to the STOPwarning light. Stop immediately.
Change the damaged wheel.
Have it repaired by a PEUGEOT dealer.

02-02-2004
INSTRUMENTS AND CONTROLS
22
STOP warning light This comes on after the engine oil pressure, coolant temperature orpuncture warning lights, to which it is
linked.
Stop immediately. Contact a PEUGEOT dealer.
Brake fluid level and brake force distribution fault warning light This is linked to the light on the instrument panel.Display of this warning light accompaned by an audible signal and the message 'Brake fluid level low' indicates
an excessive drop in the brake fluid level.
Display of this warning light, accompanied by an audible signal and the message 'Braking system fault' on the
multi-function display indicates a malfunction of the brake force distribution system.Stop immediately in both cases. Contact a PEUGEOT dealer.
Dynamic stability control (ESP/ASR) warning light Display of this warning light, accompanied by an audible signal and the message 'ESP/ASR system fault' on the
multi-function display indicates a system malfunction.
Contact a PEUGEOT dealer.
Handbrake warning light Display of this warning light, accompanied by an audible signal (vehicle moving) and the message 'Handbrake on'
on the multi-function display, indicates that the handbrake is applied or has not been released correctly. Battery charge warning light This comes on each time the ignition key is in the accessories position (1st notch).Display of this warning light when the engine is running is accompanied by an audible signal and the message ' Battery charge fault' on the multi-function display.
This can indicate:
- faulty operation of the charging circuit,- loose battery or starter terminals,- a cut or slack alternator belt,- an alternator fault.
Contact a PEUGEOT dealer.

INSTRUMENTS AND CONTROLS27
List of status indicator lights SPORT suspension indicator light Display of this indicator light is accompanied by an audible signal. The indicator light comes on when the SPORTfunction is switched on.
Dynamic stability control (ESP/ASR) system disarming indicator lightDisplay of this indicator light when the system is disarmed is accompanied by an audible signal and the message
'ASR/ESP systems de-activated' on the multi-function display.
Dynamic stability control (ESP) system operation indicator light This comes on when the system starts to function. Diesel engine pre-heat indicator light
If the temperature is high enough, the indicator light does not come on and you can start the engine immediately.
If the indicator light does come on, wait for it to go out before operating the starter.
Air bag disarming indicator light* Display of this light is accompanied by an audible signal and the message 'Passenger air bag deactivated' on the
multi-function display.If the passenger air bag is disarmed, the indicator light comes on when the ignition is switched on (2nd notch).
In all cases, if the indicator light flashes, contact a PEUGEOT dealer. *According to country
02-02-2004

02-02-2004
INSTRUMENTS AND CONTROLS29

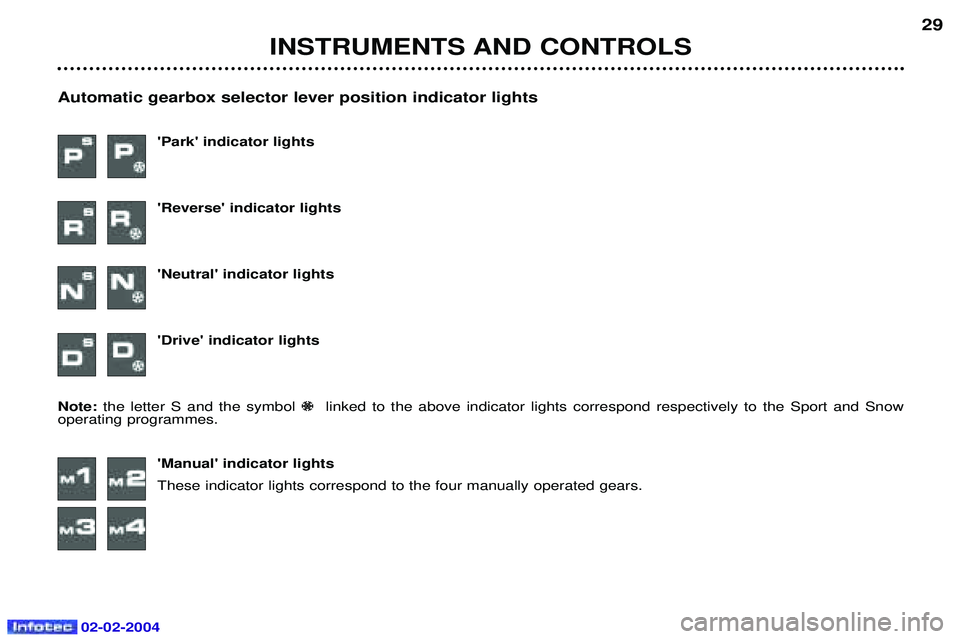

Automatic gearbox selector lever position indicator lights 'Park' indicator lights 'Reverse' indicator lights'Neutral' indicator lights'Drive' indicator lights
Note: the letter S and the symbol linked to the above indicator lights correspond respectively to the Sport and Snow
operating programmes.
'Manual' indicator lights These indicator lights correspond to the four manually operated gears.
