2004 PEUGEOT 607 ESP

02-02-2004

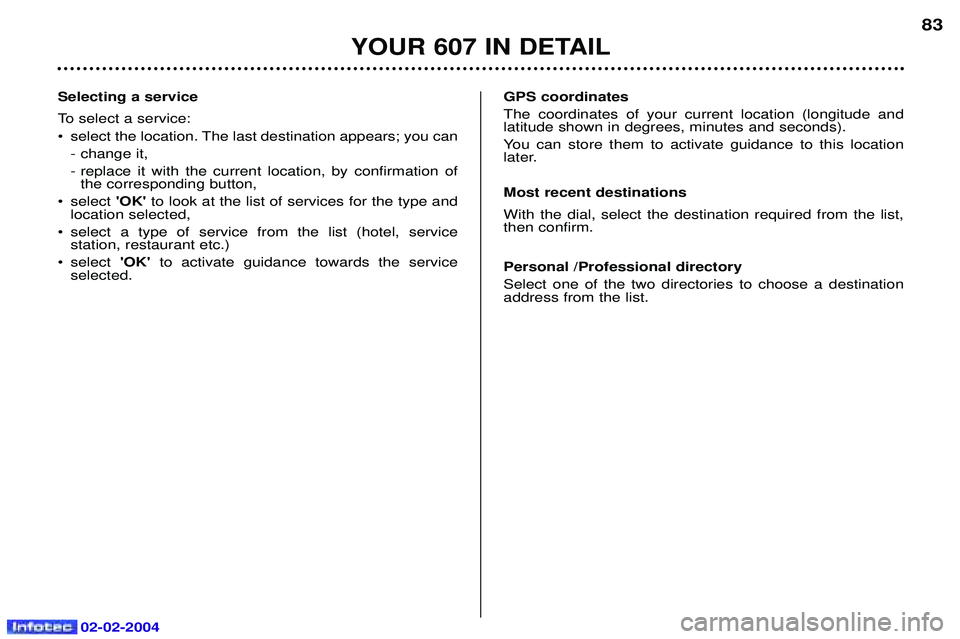

YOUR 607 IN DETAIL
83
Selecting a service
To select a service:
¥ select the location. The last destination appears; you can - change it,
- replace it with the current location, by confirmation ofthe corresponding button,
¥ select 'OK'to look at the list of services for the type and
location selected,
¥ select a type of service from the list (hotel, service station, restaurant etc.)
¥ select 'OK'to activate guidance towards the service
selected. GPS coordinatesThe coordinates of your current location (longitude and latitude shown in degrees, minutes and seconds).
You can store them to activate guidance to this location
later. Most recent destinations With the dial, select the destination required from the list, then confirm. Personal /Professional directory Select one of the two directories to choose a destination address from the list.

02-02-2004
1 - Driver's sideadjustment
2 - Passenger's side adjustment
The required value is displayed (from 15 to
30: comfort value = 22).
 Press the corresponding top andbottom arrows to adjust.
YOUR 607 IN DETAIL
90
AUTOMATIC AIR CONDITIONING Located on the centre console, the control panel is between the multi-function display and the audio system. The driver and front passenger can each adjust the temperature and the air dis- tribution, to suit their requirements. Do not cover the sunshine / brightness sensor located in the centre of the fascia. It helps to regulate the air conditioning, automatic switching on ofthe lights and the automatic adjustment of the instrument panel bright-ness. 3 - Driver comfort
programme
4 - Passenger comfort programme
 Press the 'AUTO'button(s).
The system adjusts automatically tothe required value .
It also controls the air distribution,
flow and intake so that there is suffi-cient air circulation in the passengercompartment. The air flow (fan) symbol and the
'AUTO' symbols are displayed.
Note: when programme 5or function
11 (following pages) are being used,
the 'AUTO' passenger button does
not operate; it causes temporaryflashing of button 5or 11 indicator
light.

02-02-2004
5 - Visibility programme
In certain cases, the comfort programmemay prove inadequateto demist or de-ice the
windows (humidity,
many passengers, ice).
 In this situation, select the visibili-ty programme for rapid clearing ofthe windows.
It manages the air conditioning and
the air flow and intake and distrib-utes the ventilation towards the wind-screen and the side windows. The symbols 'A/C', 'AUTO' and air
flow (fan) are displayed. Note: for your comfort, between two
starting operations the settings are retained if the temperature of thepassenger compartment has not var-ied a great deal. If it has, automaticmode is used. Manual adjustment
You may, if you wish, make a differ-
ent selection from the one offered bythe system, by manually modifying asetting.
 Pressing the 'AUTO'driver or
passenger button enables you to return to the corresponding auto-matic operation.
6 - Adjustment ofthe driver's airdistribution
7 - Adjustment of the passenger'sair distribution
 Pressing the dri-ver's or passen-ger's button severaltimes in succession
allows you to position the air flow onthe driver's or passenger's side,towards:
Ð the windscreen and the feet,
Ð the feet,
Ð the centre vent, the side ventand the feet,
Ð the centre vent and the side vent,
Ð the windscreen. Note:
when programme 5(following
page) is being used, button 7does
not operate; it causes temporary flashing of the button 5indicator
light.
8 - Air conditioning (A/C) on/off
 Press this button once to stop the airconditioning.
The symbol 'A/C'goes out.
 Press this button again to return toautomatic air conditioning.
The symbol 'A/C' comes on.
YOUR 607 IN DETAIL 91

02-02-2004
Flashing of the points in the temperature settingvalues indicates thatthere is a malfunction of
the air conditioning. Contact your
PEUGEOT dealer
9 - Switching off the system
 Press the 'OFF'
button.
This action switches
off the display and the
indicator lights and disarms all thesystem functions, with the exceptionof demisting of the rear screen.
 Press this button, button 5or one
of the two 'AUTO' buttons again to
reactivate the system with the val- ues which were present before it
was switched off.
10 - Air flow Press buttons '+'
and '-'respectively
to increase ordecrease the air
flow.
As the air flow is adjusted, the innersections of the air flow symbol (fan)are filled in accordingly on the dis-
play. 11 - Air intake/
Recirculation
 Press this button torecirculate the inte-
rior air.
Recirculation insulatesthe passenger com-
partment from outside smells andsmoke.
Avoid prolonged operation of inte- rior air recirculation (risk of con-densation and deterioration of airquality).
 Press this button again to returnair intake to automatic control. 12 - Demisting the
rear screen
 Press this button,with the enginerunning, to demistthe rear screen andthe mirrors.
Demisting stops automatically afterfifteen minutes.  Press again to resume demisting.
If the engine is switched off beforethe end of the fifteen minutes,demisting will resume when theengine is switched on again.
Note: it is possible to stop demisting
before it goes off automatically, bypressing the button again. Note: the condensation created by
the air conditioning system causes a flow of water under the vehicle when
stationary, which is perfectly normal.
YOUR 607 IN DETAIL
92

02-02-2004
YOUR 607 IN DETAIL95
Memorising using the buttons
To memorise:
 Place the ignition key in the 'run- ning' position (2nd notch),
 Adjust your seat and mirrors,
 Press button M,then button 1
(first driving position) or button 2
(second driving position) withinfour seconds.
An audible signal confirms that aposition has been memorised. Memorising a new position cancels the previous one. Recalling a memorised position Engine off  Briefly press button 1 or 2to recall
the corresponding memorised
position. The end of the setting isindicated by a bleep.
Note: after recalling a memorised
position five times in succession, thefunction will be cancelled until theengine is started. Engine running
 Keep button 1 or 2pressed down
until the bleep indicates the end of setting of the corresponding mem-orised position.
Memorising seat and mirror positions Four driving positions can be memo- rised:
Ð two, using two remote control
keys (two users) ,
Ð two, using buttons M/1 and M/2.
Driving positions memorised bythe remote control key When locking the doors, the remote control key memorises the positionof the driver's seat and the exteriormirrors. When unlocking the doors, the dri- ver's seat and the exterior mirrorsresume the position memorised bythe remote control key if this haschanged in the meantime. Each remote control key can memorise a specific setting. Front and rear heated seats controls
 Press the switch. The tempera-
ture is regulated automatically.
 Press it again to stop operation.
Note: the command to activate heat-
ing of the seat(s) remains in thememory for two minutes after the
ignition is switched off.

02-02-2004
YOUR 607 IN DETAIL95
Memorising using the buttons
To memorise:
 Place the ignition key in the 'run- ning' position (2nd notch),
 Adjust your seat and mirrors,
 Press button M,then button 1
(first driving position) or button 2
(second driving position) withinfour seconds.
An audible signal confirms that aposition has been memorised. Memorising a new position cancels the previous one. Recalling a memorised position Engine off  Briefly press button 1 or 2to recall
the corresponding memorised
position. The end of the setting isindicated by a bleep.
Note: after recalling a memorised
position five times in succession, thefunction will be cancelled until theengine is started. Engine running
 Keep button 1 or 2pressed down
until the bleep indicates the end of setting of the corresponding mem-orised position.
Memorising seat and mirror positions Four driving positions can be memo- rised:
Ð two, using two remote control
keys (two users) ,
Ð two, using buttons M/1 and M/2.
Driving positions memorised bythe remote control key When locking the doors, the remote control key memorises the positionof the driver's seat and the exteriormirrors. When unlocking the doors, the dri- ver's seat and the exterior mirrorsresume the position memorised bythe remote control key if this haschanged in the meantime. Each remote control key can memorise a specific setting. Front and rear heated seats controls
 Press the switch. The tempera-
ture is regulated automatically.
 Press it again to stop operation.
Note: the command to activate heat-
ing of the seat(s) remains in thememory for two minutes after the
ignition is switched off.

02-02-2004
YOUR 607 IN DETAIL
96
REAR SEATS Rear seatThe seat back in the rear is folded down in two parts. Before folding down the seat back:
 lock the side seat belts.
Note: Before folding down the
2/3 part of the seat back, release the lap belt strap by pressing the blackbutton of the lock.
Front armrest
To obtain a resting or driving posi- tion:
 Lift the centre handle 1and pull
the armrest forwards. To return tothe initial position, push the arm-rest backwards.
To open the lower compartment:  Raise the left handle 2. CDs and
coins can be stored here.
To open the top compartment:  Raise the right handle 3. To fold down the seat back The unlocking controls are located in the boot.
 pull the control corresponding tothe part of the seat back that youwish to fold down.
It is also possible to unlock from insi-de the vehicle:  lower the armrest and open theski flap,
 pull the button located on theunlocking housing correspondingto the part of the seat back thatyou wish to fold down.
When putting the seat back to its ori-ginal position, for your safety makesure that it is correctly locked.

02-02-2004
YOUR 607 IN DETAIL119
To keep your children safe, press switch
5to prevent operation of the
rear windows irrespective of theirposition. One press activates the switch and a second press deactivates it.
You have two options:Manual operation:
 press or pull switch 1gently. The
window stops as soon as the swit- ch is released.
Automatic operation:  press or pull switch 1fully. The win-
dow opens or closes completelywhen the switch is released. Pres-sing the switch again stops the
movement of the window.
Note: when a door is opened or
approximately 45 seconds following
removal of the ignition key, none of the
windows can be opened or closed. Youmust switch the ignition on again toopen or close the windows. Safety auto-reverse When the window rises and meets an obstacle, it stops and lowers again. Note : In the case of unwanted ope-
ning of the window on closing (for example, in the case of ice), if the win-dow will not rise, pull the switch until the
window closes completely. Continue topress the switch for one second afterclosing. Following reconnection of the batte-
ry, in the event of a malfunction, youmust reinitialise the safety auto-reverse function:
- open the window completely, then
close it, it will rise in stages of a few centimetres with each press,repeat the operation until the win-dow is completely closed,
- continue to press the switch for at least one second after reachingthis position.
The safety auto-reverse functionis not operational during theseoperations.
ELECTRIC WINDOWS
1 - Driver's electric window switch.
2 - Passenger's electric window switch.
3 - Rear right electric window switch.
4 - Rear left electric window switch.
5 - Neutralisation of the rear lighter and the rear electric windows (child safety).
Always remove the key from the ignition whenleaving the vehicle, evenfor a short time.
In the event of contact when ope-rating the windows, you mustreverse the movement of the win-
dow. To do this, press the switchconcerned. When the driver operates the pas- senger window switches, he mustensure that no one is preventing
correct closing of the window. The driver must ensure that pas- sengers use the electric windows
correctly. Be aware of children when opera- ting the windows.
