2004 PEUGEOT 607 display

02-02-2004
YOUR 607 IN DETAIL
114
Do not cover the rain sensor located on thewindscreen behind the
interior mirror.
When using an automatic carwash, switch off the ignition orcheck that the wiper stalk is not inthe automatic position.
In winter, it is advisable to wait until the windscreen is completelyfree of ice before operating theautomatic wipe.
WINDSCREEN
WIPER STALK
Windscreen wipers 3 Fast wipe
2 Normal wipe
1 Automatic wipe
0 Off
When the ignition has been switched off for more than aminute with the control in a wipeposition (1, 2 or 3), it is necessaryto reactivate this function. To d o
this, move the stalk to any position,then move it back to the requiredposition. Maintenance position This position enables the wiper blades to be removed.
In the minute following switching off of the ignition, any action on the stalkpositions the wipers in the centre ofthe windscreen so that they may becleaned or replaced.
To park the wipers after this has been done, switch on the ignitionand operate the stalk.
Windscreen and headlamp wash Pull the windscreen wiper stalk towards you. The windscreen wash then the wind- screen wipers operate for a fixedperiod. The windscreen wash and headlamp wash operate simultaneously for twoseconds,
only if the headlamps are
on .
Screenwash/headlamp wash low
When the minimum level of the reservoir is reached, thiswarning light comes on,accompanied by an audiblesignal and the message
'Screenwash low' on the multi-func-
tion display. Next time you stop, fill the screen-
wash / headlamp wash reservoir.
If the reservoir is empty, the warning light comes on when the ignition isswitched on, or every time the stalkis operated, until the reservoir isfilled.

02-02-2004
YOUR 607 IN DETAIL115
Automatic windscreen wiper In position
1, the wiper operates
automatically and adjusts its speed
to the intensity of the rainfall. Operating check Activation
The indicator light comes on, accompanied by an audiblesignal, as soon as the driversets the windscreen wiperstalk to position 1.
Neutralisation When the function is neu-tralised, going from position 1
to another position, the indi-cator light comes on, accom-panied by an audible signal.
In cases of malfunction , the driver
is informed by the message 'Rain
sensor fault' on the multi-function
display.In position 1, the windscreen wiper
will operate on intermittent wipe.
Contact a PEUGEOT dealer to havethe system checked.

02-02-2004
Monochrome screenC
Ð the 'vehicle' tab with:
¥ current range and consumption,
Ð tab '1' (route 1) with:
¥ the average consumption, the distance driven and the average speed calcu- lated over route ' 1',
Ð tab '2' (route 2) with the same features.
Zero re-set When the required route is displayed, press the button for more than four seconds.
116
YOUR 607 IN DETAIL
THE TRIP COMPUTER
Pressing the button located at the end of the windscreen wiper controldisplays
in turn: Colour screen
Ð
'Route 1' with:
¥ the route number, ¥ the time which has elapsed since the last zero re-set of the route,
¥ the average speed, ¥ the average consumption,¥ the distance travelled
Ð 'Route 2' with the same features.
The following information is displayed simultaneously at the bottom of thescreen:
Ð the distance that remains to be travelled,
Ð the current range,Ð the current consumption. Zero re-set When the required route is displayed, press the button for more than twoseconds.

02-02-2004
117

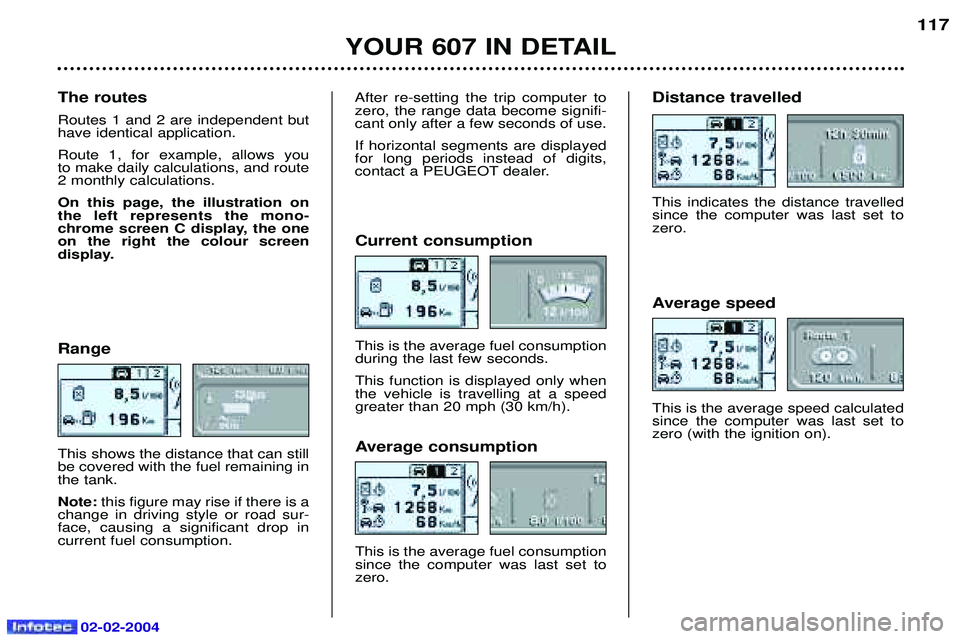

Range This shows the distance that can still be covered with the fuel remaining inthe tank. Note: this figure may rise if there is a
change in driving style or road sur- face, causing a significant drop incurrent fuel consumption. Average consumption This is the average fuel consumption since the computer was last set tozero.Distance travelled This indicates the distance travelled since the computer was last set tozero.
YOUR 607 IN DETAIL
Current consumption This is the average fuel consumption during the last few seconds. This function is displayed only when the vehicle is travelling at a speedgreater than 20 mph (30 km/h).
Average speed This is the average speed calculated since the computer was last set tozero (with the ignition on).
The routes Routes 1 and 2 are independent but have identical application. Route 1, for example, allows you to make daily calculations, and route2 monthly calculations. On this page, the illustration on the left represents the mono-
chrome screen C display, the oneon the right the colour screen
display.
After re-setting the trip computer to zero, the range data become signifi-cant only after a few seconds of use. If horizontal segments are displayed for long periods instead of digits,
contact a PEUGEOT dealer.

02-02-2004
Monochrome screenC
Ð the 'vehicle' tab with:
¥ current range and consumption,
Ð tab '1' (route 1) with:
¥ the average consumption, the distance driven and the average speed calcu- lated over route ' 1',
Ð tab '2' (route 2) with the same features.
Zero re-set When the required route is displayed, press the button for more than four seconds.
116
YOUR 607 IN DETAIL
THE TRIP COMPUTER
Pressing the button located at the end of the windscreen wiper controldisplays
in turn: Colour screen
Ð
'Route 1' with:
¥ the route number, ¥ the time which has elapsed since the last zero re-set of the route,
¥ the average speed, ¥ the average consumption,¥ the distance travelled
Ð 'Route 2' with the same features.
The following information is displayed simultaneously at the bottom of thescreen:
Ð the distance that remains to be travelled,
Ð the current range,Ð the current consumption. Zero re-set When the required route is displayed, press the button for more than twoseconds.

02-02-2004
117
Range This shows the distance that can still be covered with the fuel remaining inthe tank. Note: this figure may rise if there is a
change in driving style or road sur- face, causing a significant drop incurrent fuel consumption. Average consumption This is the average fuel consumption since the computer was last set tozero.Distance travelled This indicates the distance travelled since the computer was last set tozero.
YOUR 607 IN DETAIL
Current consumption This is the average fuel consumption during the last few seconds. This function is displayed only when the vehicle is travelling at a speedgreater than 20 mph (30 km/h).
Average speed This is the average speed calculated since the computer was last set tozero (with the ignition on).
The routes Routes 1 and 2 are independent but have identical application. Route 1, for example, allows you to make daily calculations, and route2 monthly calculations. On this page, the illustration on the left represents the mono-
chrome screen C display, the oneon the right the colour screen
display.
After re-setting the trip computer to zero, the range data become signifi-cant only after a few seconds of use. If horizontal segments are displayed for long periods instead of digits,
contact a PEUGEOT dealer.

02-02-2004

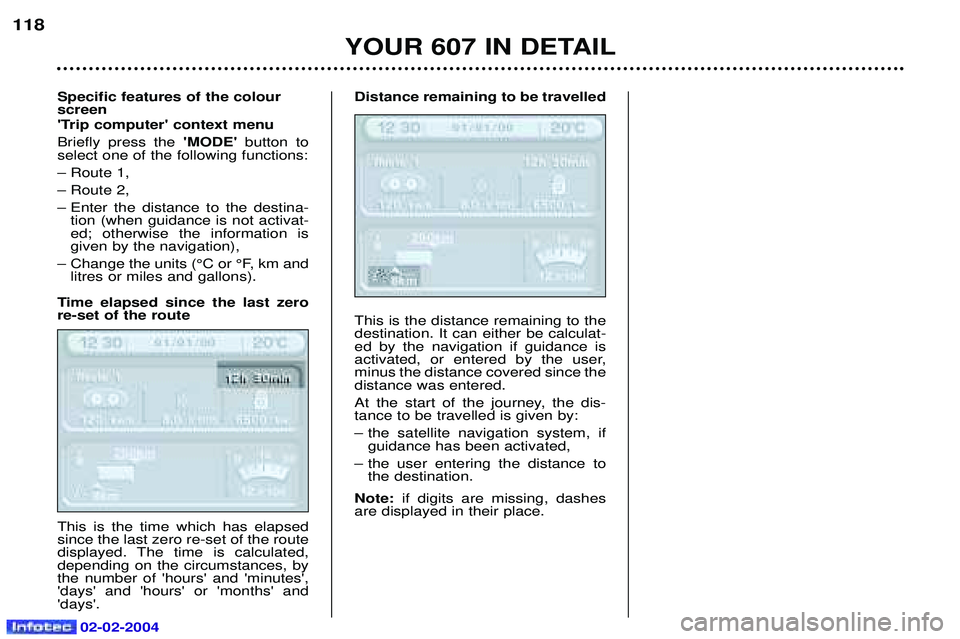

Specific features of the colour screen
'Trip computer' context menu Briefly press the 'MODE' button to
select one of the following functions:Ð Route 1,Ð Route 2,
Ð Enter the distance to the destina- tion (when guidance is not activat- ed; otherwise the information isgiven by the navigation),
Ð Change the units (¡C or ¡F, km and litres or miles and gallons).
Time elapsed since the last zerore-set of the route This is the time which has elapsed since the last zero re-set of the route
displayed. The time is calculated,depending on the circumstances, bythe number of 'hours' and 'minutes','days' and 'hours' or 'months' and'days'. Distance remaining to be travelled This is the distance remaining to the destination. It can either be calculat-ed by the navigation if guidance is
activated, or entered by the user,minus the distance covered since thedistance was entered.
At the start of the journey, the dis- tance to be travelled is given by:
Ð the satellite navigation system, if
guidance has been activated,
Ð the user entering the distance to the destination.
Note: if digits are missing, dashes
are displayed in their place.
YOUR 607 IN DETAIL
118

02-02-2004
Notes
It is only possible to change from one gear to another if the vehicle speedand engine speed permit. If they donot, the vehicle will operate tempora-rily in automatic mode. When the vehicle is stationary or
moving very slowly, the gearboxautomatically selects gear M1.
Programmes S(sport) and (snow)
do not operate in manual mode. Operating abnormality
Any operating abnormality is shown by illumination of thiswarning light, accompaniedby an audible signal and themessage 'Automatic gear-
box faulty' on the multi-function dis-
play. In this situation the gearbox operates in downgrade mode (locked in 3rd
gear). You may feel a substantialknock when changing from Pto R
and from Nto R(this will not cause
any damage to the gearbox). Do not exceed 60 mph (100 km/h).
Contact a PEUGEOT dealer as soon as possible.Automatic operation
Automatic changing of the four gears:
 select function Din the gate.
The gearbox always selects the most suitable gear according to the follo-wing parameters:
- the style of driving,
- the road profile,
- the vehicle load.The gearbox is then operating in auto-adaptive mode, without anyaction on your part.
WARNING Never select function N when the
vehicle is moving.Never select functions Por Runless
the vehicle is stationary.Never change betwen functions to optimise braking on a slippery surface. Notes For immediate maximum accelera-
tion without touching the gear lever,press the accelerator pedal down as
far as it will go (kickdown). The gear-box will automatically change downor maintain the gear selected untilmaximum engine speed is reached. When the brake is applied, the gear- box will automatically change down
in order to provide efficient enginebraking.
If you take your foot off the accelera-
tor suddenly, the gearbox will notchange to a higher gear for reasons
of safety. Sport and snow programmesIn addition to the auto-adaptive pro-gramme, there are two special pro-grammes.The programme is displayed on theinstrument panel screen. Sport programme
 Press button Sonce the vehicle
has been started and function D
selected.
The gearbox automatically favours sporty driving and more dynamicacceleration. Snow programme This programme improves starting
and drive when traction is poor.  Press button once the vehicle
has been started and function D
selected.
The gearbox adapts to driving onslippery roads. Note: you can return to the auto-
adaptive programme at any time.
 Press button S or again to switch
off the programme you are in.
Manual operation Manual changing of the four gears:
 select function M in the gate,
 push the lever to the +sign to
change to a higher gear,
 pull the lever to the - sign to change
to a lower gear.
You can change from position D
(driving in automatic mode) to position M (driving in manual mode) at any time.
YOUR 607 IN DETAIL 127
If the battery is flat and the lever is in position
P, it will
be impossible to changeto another position.
