YOUR 607 IN DETAIL99
The ISOFIX KIDDY* child seat This can be installed in the rearwards facing position from birthto 13 kg and in the forwards facingposition from 9 to 18 kg.
In the rear, in the forwards facing position, the front passenger seatmust be in the intermediate longitudi-nal position, with the seat backupright. In the rearwards facing position, the shell of the child seat must be incontact with the back of the corres-ponding front seat. These child seats may be usedwhere there are no Isofix mountings.In this case it is compulsory to attachthem to the vehicle's seat using thethree-point seat belt.
If the ISOFIX KIDDY seat is fitted in the rearwards facing positionon the front passenger seat, it isessential to disarm the passengerair bag. Follow the instructions for fitting the child seat indicated in the seat manufacturer's installationinstructions.
* You can only secure ISOFIX child
seats, approved by PEUGEOT, on your vehicle's ISOFIX mountings.
The ISOFIX R…MER Duo* child seat This child seat is installed in the for- wards facing position only for chil-dren weighing 9 to 18 kg. It is secu-red without the upper strap called the
Top Tether.For the comfort of your child, threeshell angles are possible: sitting,reclining and flat positions.When the Ršmer Duo is installed in
the rear, the front seat of the vehiclemust be adjusted so that the child'sfeet do not touch the back of the frontseat.

02-02-2004
YOUR 607 IN DETAIL
100

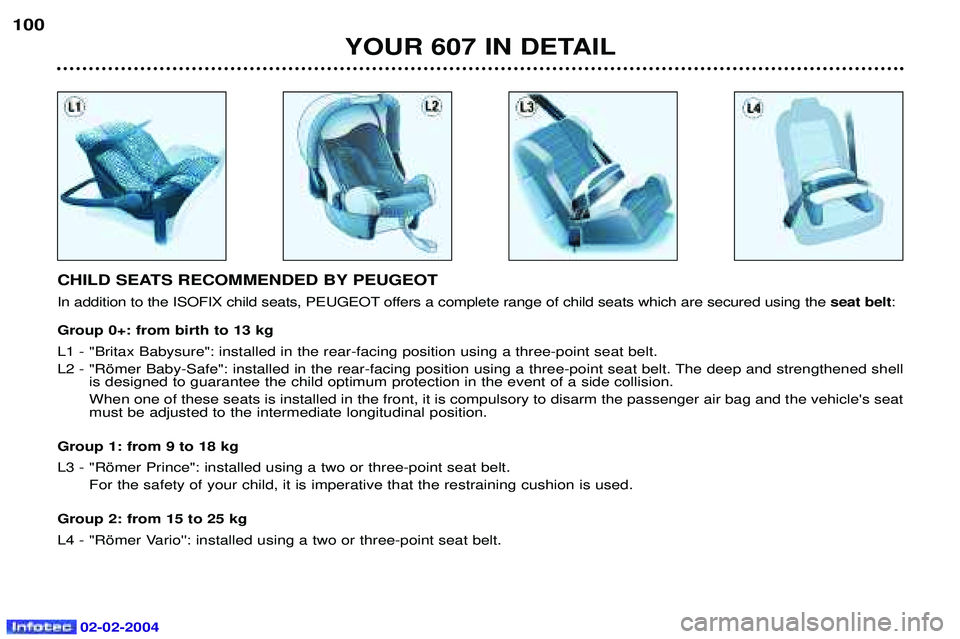

CHILD SEATS RECOMMENDED BY PEUGEOT
In addition to the ISOFIX child seats, PEUGEOT offers a complete range of child seats which are secured using the seat belt:
Group 0+: from birth to 13 kg
L1 - "Britax Babysure": installed in the rear-facing position using a three-point seat belt.
L2 - "Ršmer Baby-Safe": installed in the rear-facing position using a three-point seat belt. The deep and strengthened shell is designed to guarantee the child optimum protection in the event of a side collision.When one of these seats is installed in the front, it is compulsory to disarm the passenger air bag and the vehicle's seat must be adjusted to the intermediate longitudinal position.
Group 1: from 9 to 18 kg
L3 - "Ršmer Prince": installed using a two or three-point seat belt. For the safety of your child, it is imperative that the restraining cushion is used.
Group 2: from 15 to 25 kg
L4 - "Ršmer Vario'': installed using a two or three-point seat belt.

Never leave one or more children alone and unsupervised in avehicle.
Never leave a child or an animal ina vehicle which is exposed to thesun and has the windows closed.
To protect your young children from the sun, fit blinds on the rearwindows. Never leave the keys within reach of children inside the vehicle. Observe strictly the recommenda- tions for assembling and securingthe child seat as shown in thechild seat instructions.
To prevent the doors from opening
accidentally, use the child lock*. Also, do not open the rear windows more than a third*.
* According to model.
YOUR 607 IN DETAIL 101
Groups 2 and 3: from 15 to 36 kg
L5 - "Recaro Start'': installed using a three-point seat belt. The height and width at the shoulders and length of the seat cushion must be adjusted according to the age and build of your child.
L6- "Klippan Optima": installed in the rear using a three-point seat belt. From the age of 6 years (approximately 22 kg), the booster is used on its own.
Groups 1, 2 and 3: from 9 to 36 kg
L7 - "Kiddy Life": installed in the rear using a three-point seat belt. The height and width at the shoulders and the length of the seat cushion must be adjusted according to the age and build of your child.
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of the restraining cushion.
Recommendations For optimum installation of a forwards facing child seat, check that the back of the child seat is resting against the back of the vehicle's seat correctly and thatthe head restraint does not cause any discomfort. If it is necessary to remove the head restraint, as in the case of the "RECARO
Start", "KLIPPAN Optima" and "KIDDY Life" child seats (over 6 years of age),ensure that the head restraint is securely stored or attached so that it cannot actas a projectile in the event of sharp braking. Disarm the passenger air bag when installing a "rearwards facing" child seat on the front passenger seat. Otherwise, the child would risk beingseriously injured or killed were the air bag to inflate.
02-02-2004

THE INSTALLATION OF CHILD SEATS SECURED USING THE SEAT BELT In accordance with European regulations (Directive 2000/3), the table below indicates the options for the installation of child deats secured using the seat belt and universally approved (child seats which can be installed in all vehicles using the seatbelt), in relation to the weight of the child and the seat in the vehicle:
YOUR 607 IN DETAIL
102
U
: seat suitable for the installation of a child seat secured using the seat belt and universally approved. "Rearwards
facing" and "forwards facing" child seats.
U (R) : seat suitable for the installation of a universal "rearwards facing" child seat and universal "forwards facing" child
seats. The front passenger seat must be adjusted to its highest position
X : seat which is not suitable for the installation of a child seat of the weight group indicated.
L- : only the child seats indicated may be installed on the seat concerned (according to destination).
Make Model Approval N¡
L1 : BRITAX Babysure E11 0344117
L3 : R…MER Prince E1 03301058
L4 : R…MER Vario E1 03301120
L5 : RECARO Start E1 03301108
L6 : KLIPPAN Optima E17 030007(a) Group 0: from birth to 10 kg.
(b) The rules for transporting children on the front passenger seat are specific to each country. Consult the current legislation in your country. Weight of the child / indicative age
Seat < 13 kg 9 to 18 kg 15 to 25 kg 22 to 36 kg
Group 0 (a) to 0+ Group 1 Group 2 Group 3 Up to 1 year From 1 to 3 years From 3 to 6 years From 6 to 10 years approx approx approx approx
Front passenger (b)
without height adjustment L1 L3 L4, L5, L6 L5, L6
Front passenger (b) U (R) U (R) U (R) U (R)
with height adjustment
Rear UU UU
side
Rear XX L4, L5, L6 L5, L6
centre
02-02-2004

YOUR 607 IN DETAIL135
For the front, side* and curtain* air bags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags*
¥ Only put approved covers on the seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
Curtain air bags*
¥ Do not fix or glue anything to the pillars or the roof. This could cause injury to the head when the curtain air bag inflates.
¥ Do not remove the bolts from the grab handles installed on the roof, they play a part in securing the curtain air bags.
* According to destination.
02-02-2004

YOUR 607 IN DETAIL135
For the front, side* and curtain* air bags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags*
¥ Only put approved covers on the seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
Curtain air bags*
¥ Do not fix or glue anything to the pillars or the roof. This could cause injury to the head when the curtain air bag inflates.
¥ Do not remove the bolts from the grab handles installed on the roof, they play a part in securing the curtain air bags.
* According to destination.
02-02-2004

02-02-2004
PRACTICAL INFORMATION
144
CHANGING A WHEEL
 Park the vehicle on level, stable and non-slippery ground.
 Apply the handbrake, switch offthe ignition and engage first orreverse gear (position Pfor the
automatic gearbox).
Access to the spare wheel andthe jack in the boot  Detach the luggage net.
 Lift the boot carpet using the liftinghook. Secure this hook behindthe boot seal. Tools available The following tools are located in the polystyrene holder in the centre ofthe spare wheel: 1 -
Wheelbrace.
2 - Centralising tool.
3 - Wheelbrace extension.
4 - Jack fitted with a system which enables it to be folded or unfol-
ded rapidly.
5 - Removable towing eye.
6 - Alloy wheel trim remover.
7 - Trim cover tool. Removal
 For vehicles with alloy wheels fit-ted with wheel trims, pull thecentre trim by using tool 6in one
of the holes.
 Loosen the wheel bolts.
 Take the jack from the tool kit andfold it by pressing the ends A.

02-02-2004
PRACTICAL INFORMATION145

Fold the jack by pressing at the ends Aand place it in one of the
four locations Eunderneath the
vehicle (the nearest one to thewheel to be changed).
 Extend the jack, first by hand, pul-ling the ends Athen using wheel-
brace 1and the extension 3.
 Remove a wheel bolt at the topand fit the centralising tool 2 in its
place.
 Unscrew the other bolts andremove the wheel.
Fitting a wheel  Position the wheel using the cen-tralising tool to assist you.
 Tighten the bolts by hand andremove the centralising tool.
Partly tighten the bolts using thewheelbrace.
 Fold the jack and remove it.
 Fully tighten the bolts using thewheelbrace.
 Replace the wheel trim.
 Put the tool holder back in posi-
tion. This helps to keep the bootfloor in its correct position, to pre-vent any deformation of the floorwhen loaded.
 Tighten the spare wheel securingstrap to prevent noise and for yoursafety in the event of impact.
For your safety, alwayschange the wheel:
- on level, stable, non-slippery
ground,
- with the handbrake applied,
- with first or reverse gear enga- ged (position Pfor the automatic
gearbox),
- never go underneath a vehicle which is supported only by a jack (use a ramp).
After changing the wheel:
- have the tightening of the bolts and the tyre pressure checked by a PEUGEOT dealer as soonas possible.
- have the punctured wheel repai- red and refit it to the vehicle assoon as possible.
Tyres fitted with the Tyre Under-Inflation Detection System. These wheels have a pressure
sensor. Have them repaired by a
PEUGEOT dealer.
