YOUR 607 IN DETAIL47
If the TA traffic programme is selected, only stations broadcasting this type of programme are selected. Searching for a station occurs first in 'LO'sensitivity (selection of the most powerful transmitters) during scanning of the
waveband, then in 'DX' sensitivity (selection of the weakest and most distant transmitters).
To make a direct search in 'DX'sensitivity, briefly press button M or Ltwice.
Manual station search Press the 'MAN' button.
Briefly press button Mor Lto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the
frequency.
The searching stops at the first station found as soon as the button is released. Pressing the 'MAN'button again returns you to automatic station search.
Manual storing of stations in the memorySelect the station required.Press one of the buttons '1'to'6' for more than two seconds.
The sound stops, then becomes audible again, confirming that the station has been stored in the memory.
RM2
RT2
02-02-2004

02-02-2004
YOUR 607 IN DETAIL
48
Automatic storing of FM stations in the memory (autostore) Press button Bfor more than two seconds, to automatically store the 6 stations with the strongest signal in
FM. These stations are stored in the FMast waveband.
If it is not possible to find 6 stations, the remaining memories are empty.
Recalling stations stored in the memoryFor each waveband, briefly press buttons '1' to '6'to recall the corresponding station.
The list of the 6 stations stored on the waveband is displayed each time one of the buttons '1'to'6' is pressed.
RDS SYSTEM Using the RDS (Radio Data System) function on FM Radio Data System allows you to continue listening to the same station, whatever frequency it is using for the region you are going through. RM2 audio:Press the 'RDS' button to switch the function on or off .
RT2 audio: Press the 'j
j
✱ RDS' button to switch the function on or off .
The display will show: - 'RDS' if the function is selected.
- '(RDS)' or 'RDS' if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.

02-02-2004

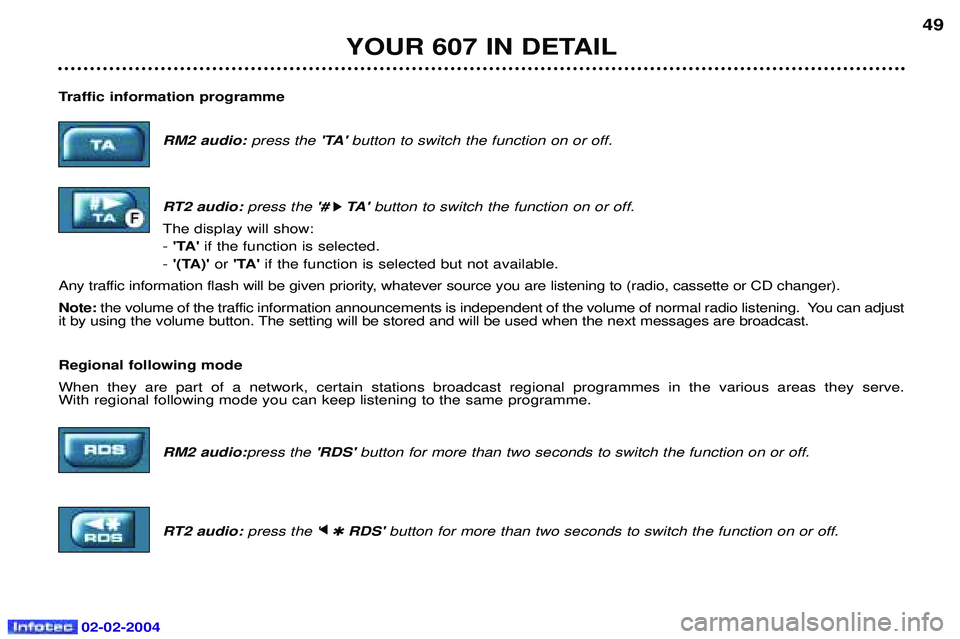

YOUR 607 IN DETAIL49
Traffic information programme RM2 audio: press the 'TA' button to switch the function on or off.
RT2 audio: press the '#
k
k TA '
button to switch the function on or off.
The display will show: - 'TA' if the function is selected.
- '(TA)' or 'TA' if the function is selected but not available.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or CD changer). Note: the volume of the traffic information announcements is independent of the volume of normal radio listening. You can adjust
it by using the volume button. The setting will be stored and will be used when the next messages are broadcast. Regional following mode When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regional following mode you can keep listening to the same programme.
RM2 audio:press the'RDS' button for more than two seconds to switch the function on or off.
RT2 audio: press the 'j
j
✱ RDS' button for more than two seconds to switch the function on or off.

02-02-2004

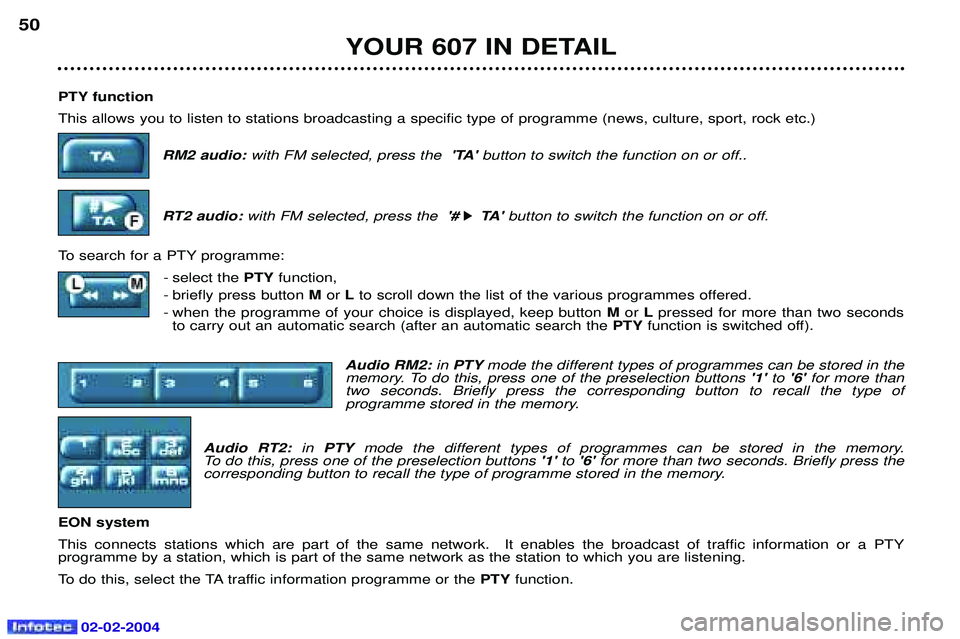

PTY function This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.)RM2 audio: with FM selected, press the 'TA' button to switch the function on or off..
RT2 audio: with FM selected, press the '#
k
k TA '
button to switch the function on or off.
To search for a PTY programme: - select the PTYfunction,
- briefly press button Mor Lto scroll down the list of the various programmes offered.
- when the programme of your choice is displayed, keep button Mor Lpressed for more than two seconds
to carry out an automatic search (after an automatic search the PTYfunction is switched off).
Audio RM2: in PTY mode the different types of programmes can be stored in the
memory. To do this, press one of the preselection buttons '1' to'6' for more than
two seconds. Briefly press the corresponding button to recall the type of
programme stored in the memory.
Audio RT2: in PTY mode the different types of programmes can be stored in the memory.
To do this, press one of the preselection buttons '1' to'6' for more than two seconds. Briefly press the
corresponding button to recall the type of programme stored in the memory.
EON system
This connects stations which are part of the same network. It enables the broadcast of traffic information or a PTY programme by a station, which is part of the same network as the station to which you are listening.
To do this, select the TA traffic information programme or the PTYfunction.
YOUR 607 IN DETAIL
50

02-02-2004
TELEPHONE: Audio/Telephone RT2 This function is a GSM 900 MHZ telephone incorporated in the audio system. It possesses a'hands free'function, provided by a microphone located in the front courtesy light and a steering column
remote control which allows access to most of the functions.It also possesses a 'confidential'function, provided by the instrument panel located in the upper casing of the centre front
armrest. Note: An echo may be heard for a few seconds at the beginning of the call.
The principal 'mobile'type functions are shown on the display incorporated in the audio system; the menu lists can be referr-
red to on the multi-function display.This function is active when the ignition key is in the accessories position (1st notch), the ignition is switched on (2nd
notch), the engine is running or the vehicle is being driven.Note: when the ignition key is in the accessories position (1st notch) or the ignition is switched on (2nd notch), this function
will be interrupted after thirty minutes, when the message 'Economy mode active' appears on the multi-function display. If
you are using the telephone at that time, you will be able to finish your call.
General information about the display (Audio/Telephone RT2 display) In telephone mode, the display shows the following information, where applicable.
1.Network signal indicator (3 levels).
2. Service not available indicator.
3. Indicates a communication in progress.
4. Indicator showing connection to an outside network.
5. Indicates:
- when continuously lit: presence of an unread message or messages. - when flashing: the message system is full.
6 . Display zone (10 symbols x 2 lines).
YOUR 607 IN DETAIL
54

02-02-2004
Selecting telephone mode / Entering a number / Switching off the microphoneTo change to telephone mode, press the 'TEL'button or for more than 2 seconds on the steering column
remote control. Insert your bank card format SIM card fully into the slot at the front (use the 2nd generation SIM card only).
Note: the SIM card must not be taken out while the audio/telephone system is still in use. If you forget this, an audible signal
will sound for a few seconds after the ignition is switched off.
Enter your PIN number and confirm with the 'OK' button in order to access the network. The welcome screen is
displayed.Note: the PIN code is erased each time the ignition is switched off, but the ''PIN code protection'' function may be
cancelled.
Enter the number of the person you wish to speak to on the digital keypad and press the 'OK' button to make the call.
To switch off the microphone mid-communication, press the 'TEL' button.
Cancelling the PIN code request
To cancel the PIN code request, select 'PIN code protection' in the 'Telephone parameters' menu and confirm; select 'OFF' and confirm, then input your PIN code and confirm. Receiving / Ending a call When a ringing sounds to let you know that a call is waiting, you can choose either to accept it by pressing the 'OK' button or not to accept it by pressing button Por by selecting 'Refuse call'using the steering
column remote control, pressing the end to confirm. If you do not accept it, the call is diverted to your voice mail (if this service is available and active).
To end the call, press button Por the end of the steering wheel remote control.
Note: Not accepting or ending a call by means of the steering wheel control returns the system to radio mode.
Receiving two incoming calls
During a call, when there is another incoming call, you are informed of this by a ring and a message. You may choose:
- to accept the call by pressing button 2then "OK" ; the first caller is put on hold and you are in contact with the second.
However, pressing button 2again allows you to return to the first caller,
- to finish the call you are on and talk to the second caller by pressing button 1then "OK" ,
- not to accept the new call by pressing button "C".
YOUR 607 IN DETAIL 55

02-02-2004
Handset
To change to the 'confidential' function during a call, lift the handset located in the front armrest; the 'hands free'function
is then neutralised.
To return to the 'hands free'function during the call, replace the handset on its support.
'PEUGEOT' call*
To callPEUGEOT's Customer Contact Centre and access the services available:
- press button Othen confirm by pressing Oagain or the 'OK'button,
- or, press button Oto display the "Services"menu, select the ''Peugeot Service"* function then confirm (see para-
graph on ''Services'').
Emergency call*:
- directly enter the number 11 2(it is not necessary to insert your SIM card or enter the PIN code),
- or, press button O to display the "Services" menu and select the 'Emergency call'*function then confirm (see paragraph on
''Services'').
YOUR 607 IN DETAIL
56
Using the menus
From the welcome screen, press the "MAN" button to access the menus.
Press the "MAN" button to change from one menu to another on the list, in order to reach the one you
require.
Inside each menu: Cancel a function using button P,
Move around using buttons M and L,
Confirm a function with the "OK" button,,
Change the values with buttons Fand H,
Clear using the "C" button.
Note: during communication, the menus are accessible with the exception of functions which depend on the network
(message service, sending a message etc.). In this case, to cancel any operation, use the "TEL" button rather than button
P , as this allows you to return to the welcome screen at any time.

02-02-2004
Services This menu gives direct access.Press button Oto display the "Services" menu and make a selection from the following three menus, then validate by
pressing the end of the steering wheel remote control:- ''Emergency call''* to automatically send a call containing a text message (SMS) which allows you to be identified and
located; vocal communication is established with the help centre,
- ' 'Technical assistance''* for contacting the call centre controlling the PEUGEOT breakdown service,
- ''Peugeot Service"* to contact directly the PEUGEOT customer contact centre and access the services offered.
IMPORTANT: as is the case for all telephones, your on-board telephone operates using cellular and terrestrial networks.
Because of this, connection cannot be guaranteed in all cases.Selecting a directory
To consult the various directories, insert your SIM card and input the PIN code.
To access the'Directories'menu, press the 'MAN'button or press the end of the steering wheel remote control.
Make a selection from the three directories available: DIRECTORY (SIM), LAST NUMBERS CALLED or TEL
(PEUGEOT customer contact centre). Storing numbers Last numbers called: your phone stores in the memory the five last numbers called or which were used to call you.
To access these numbers, press the 'OK' button or the end of the steering column remote control and scroll
through these numbers using buttons Mand Lor the knob of the steering column remote control. Then, if you
want to call one of these numbers, press the 'OK'button, or the end of the steering column remote control.
Telephone directory (SIM): this can store around eighty numbers (if more than 80 numbers are stored on
the SIM card used, only the first 80 will be accessible).
YOUR 607 IN DETAIL 57
* If option and service available.
