2004 MITSUBISHI ENDEAVOR fluid

6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1394 set?
YES: Initialize the steering sensor (Refer to STEERING WHEEL
SENSOR
).
NO: The procedure is complete.
DTC C1395: INCOMP. BRAKE FLUID FILLING TCL/ASC DTC SET CONDITIONS This DTC is set if air-bleeding has not been performed. TROUBLESHOOTING HINTS (The most likely causes for these DTCs are to set are:)
The CAN bus line is defective. Malfunction of the hydraulic unit (integrated with TCL/ASC-ECU)
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
STEP 1. Using scan tool MB991958, diagnose the CAN bus line. CAUTION: If there is any problem in the CAN bus lines, an
incorrect diagnostic trouble code may be set. Prior to
this diagnosis, diagnose the CAN bus lines.
CAUTION: Whenever the ECU is replaced, ensure that the CAN
bus lines are normal.
CAUTION: To prevent damage to scan tool MB991958,

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

2004 Mitsubishi ENDEAVOR 04 - Electrical Equipment > EQUIPMENT :
ELECTRICAL [Part 353000 ]
TSB No: 93 NHTSA ID: , May 01, 2003 : Replacement:
Summary: whip antenna shipping location and installation during pre-delivery inspection
(pdi). *tt

2004 Mitsubishi ENDEAVOR 04 - Automatic Transmission > POWER TRAIN :
AUTOMATIC TRANSMISSION [Part 103000 ]
TSB No: 0323004 NHTSA ID: , April 01, 2003 : Replacement:
Summary: color variation of the automatic transmission fluid (aft) used in certain
mitsubishi vehicles. *tt

2004 Mitsubishi ENDEAVOR 04 - Electrical System > ELECTRICAL SYSTEM [Part
110000 ]
TSB No: 0354003 NHTSA ID: , March 01, 2003 : Replacement:
Summary: customization using multi-center display. *tt

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

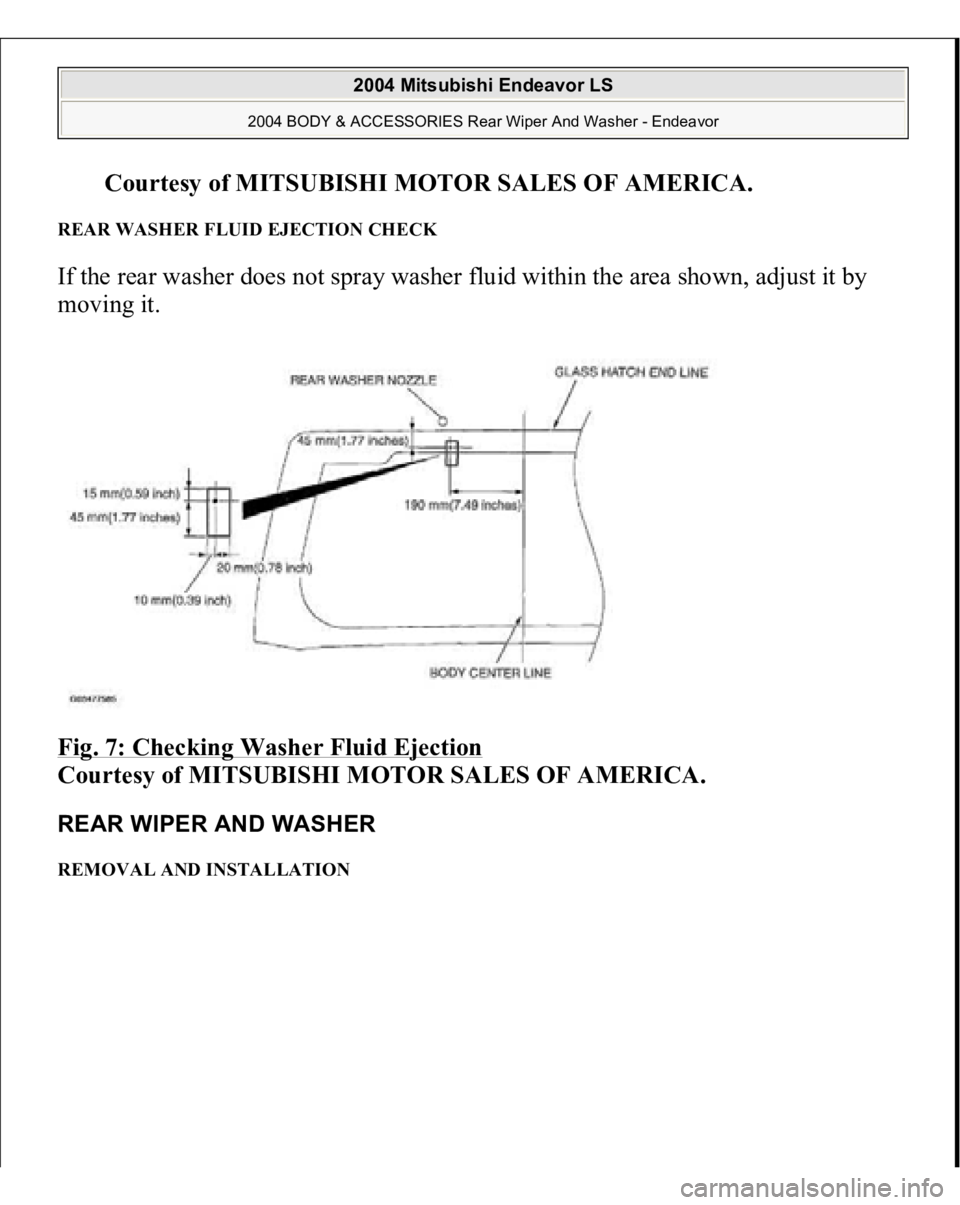

REAR WASHER FLUID EJECTION CHECK If the rear washer does not spray washer fluid within the area shown, adjust it by
moving it.
Fig. 7: Checking Washer Fluid Ejection

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REAR WIPER AND WASHER REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Rear Wiper And Washer - Endeavor

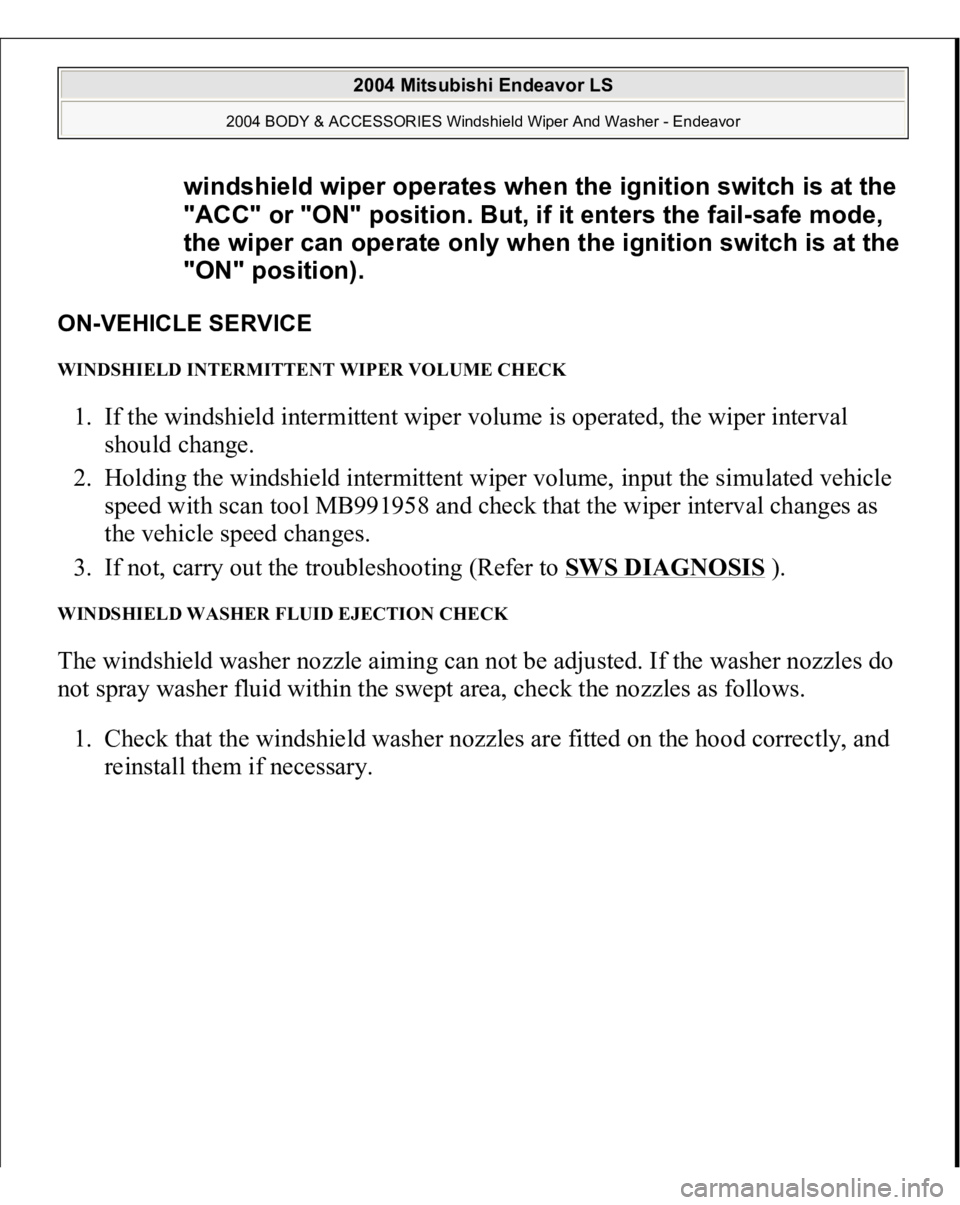

ON-VEHICLE SERVICE WINDSHIELD INTERMITTENT WIPER VOLUME CHECK 1. If the windshield intermittent wiper volume is operated, the wiper interval
should change.
2. Holding the windshield intermittent wiper volume, input the simulated vehicle
speed with scan tool MB991958 and check that the wiper interval changes as
the vehicle speed changes.
3. If not, carry out the troubleshooting (Refer to SWS DIAGNOSIS
).
WINDSHIELD WASHER FLUID EJECTION CHECK The windshield washer nozzle aiming can not be adjusted. If the washer nozzles do
not spray washer fluid within the swept area, check the nozzles as follows.
1. Check that the windshield washer nozzles are fitted on the hood correctly, and
reinstall them if necessary. windshield wiper operates when the ignition switch is at the
"ACC" or "ON" position. But, if it enters the fail-safe mode,
the wiper can operate only when the ignition switch is at the
"ON" position).
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor
