Page 3309 of 3870
Fig. 129: Disconnecting Parking Brake Switch Connector C
-34
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Turn the ignition switch to the "ON" position.
Q: Does the brake warning light illuminate?
YES: Go to Step 6.
NO: Check the brake fluid level switch (Refer to BRAKE FLUID
LEVEL SENSOR CHECK
, ) and parking brake switch and replace
them if necessary. Then go to Step 12.
STEP 6. Measure the resistance at combination meter connector C-102.
1. Disconnect brake fluid level switch connector A-04 and parking brake
switch connector
C-34.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3310 of 3870

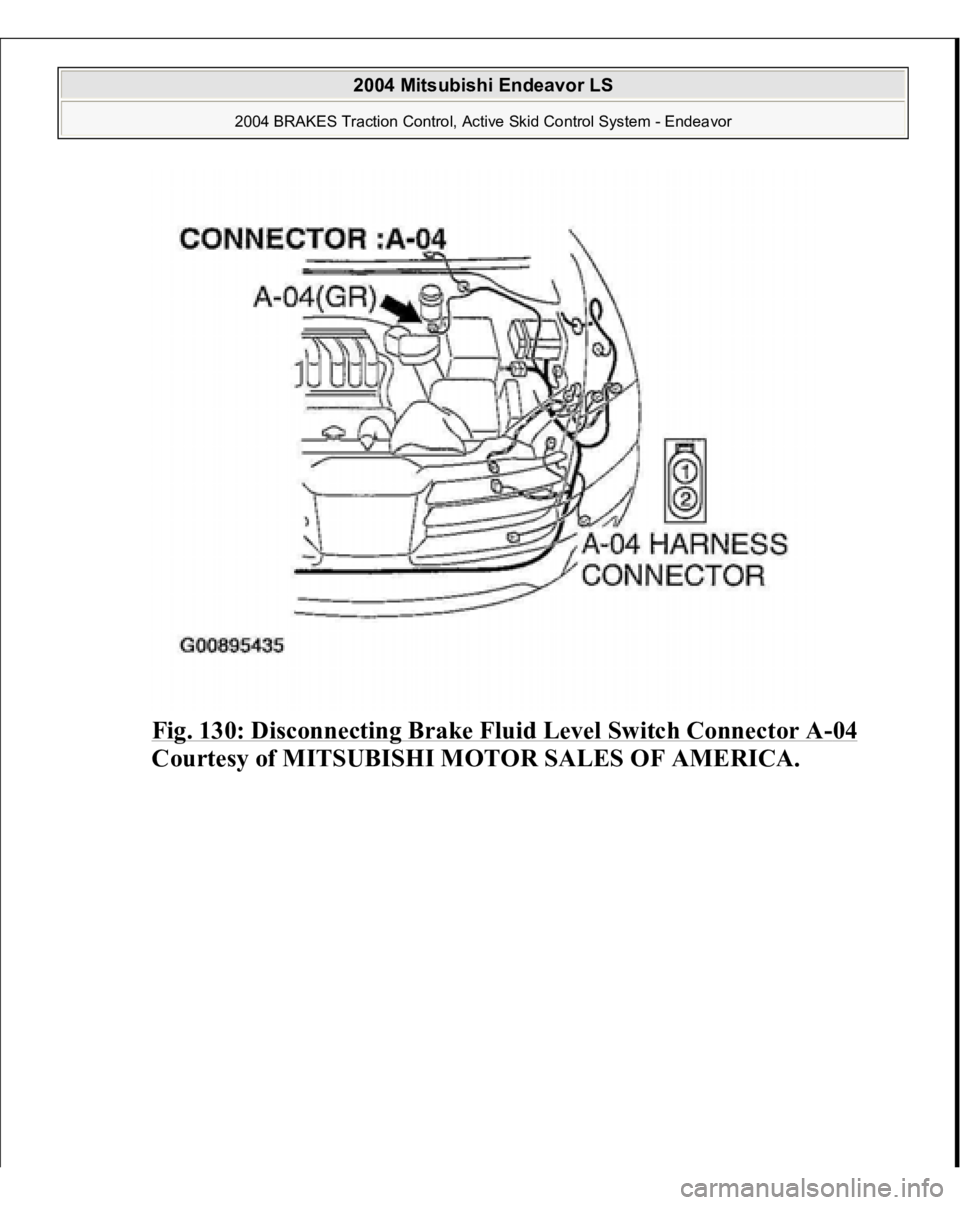

Fig. 130: Disconnecting Brake Fluid Level Switch Connector A
-04
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3313 of 3870

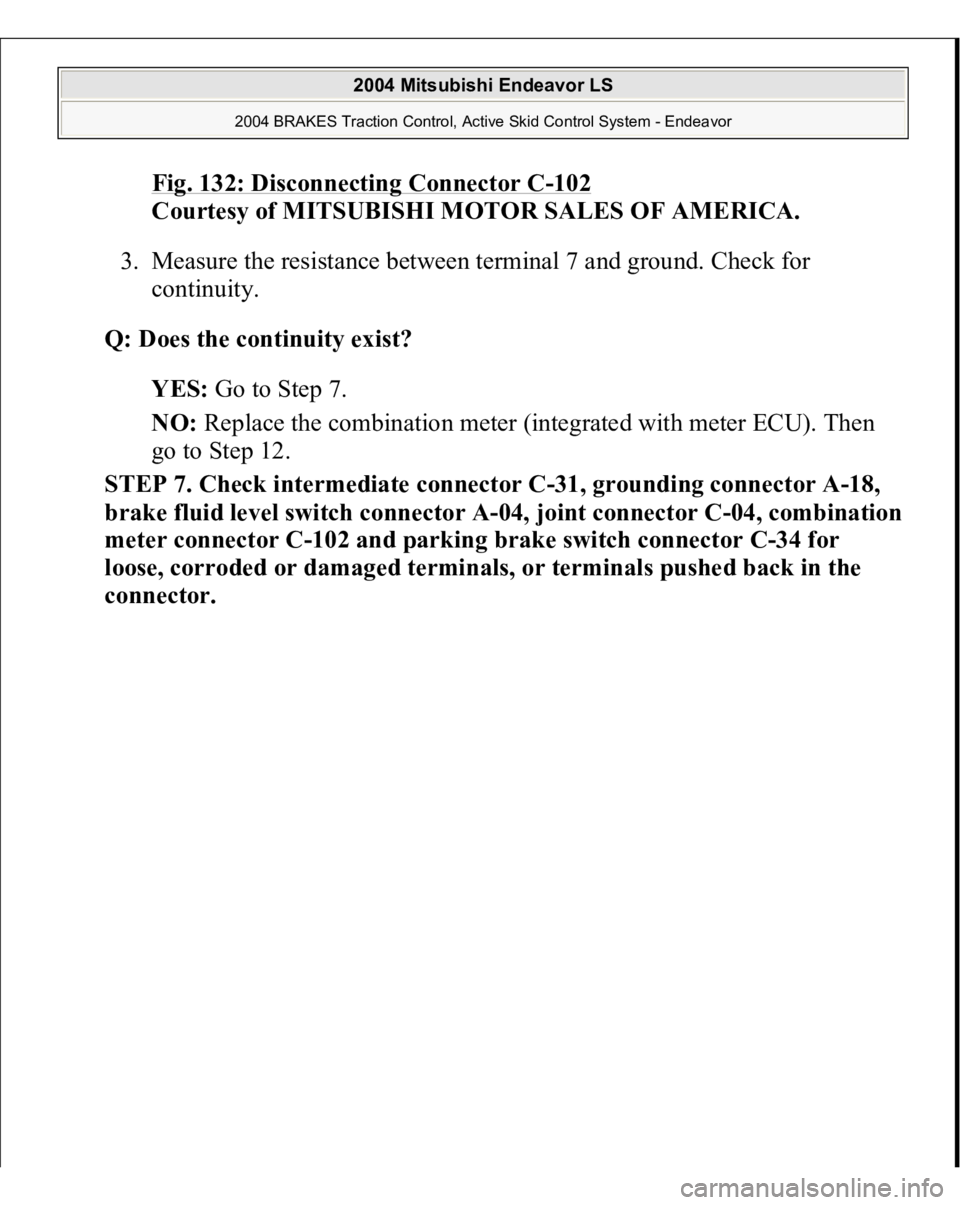

Fig. 132: Disconnecting Connector C
-102
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Measure the resistance between terminal 7 and ground. Check for
continuity.
Q: Does the continuity exist?
YES: Go to Step 7.
NO: Replace the combination meter (integrated with meter ECU). Then
go to Step 12.
STEP 7. Check intermediate connector C-31, grounding connector A-18,
brake fluid level switch connector A-04, joint connector C-04, combination
meter connector C-102 and parking brake switch connector C-34 for
loose, corroded or damaged terminals, or terminals pushed back in the
connector.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3314 of 3870

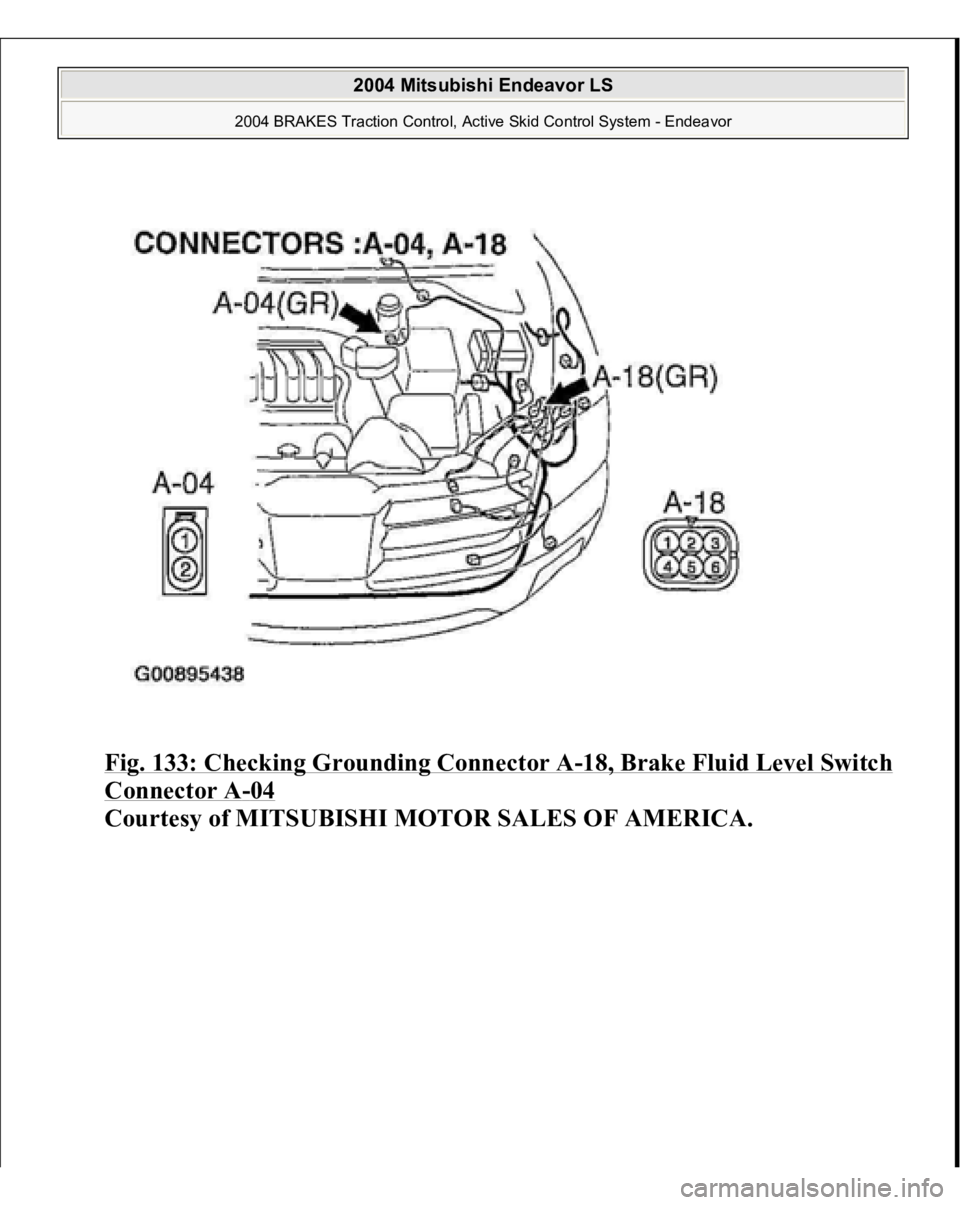

Fig. 133: Checking Grounding Connector A
-18, Brake Fluid Level Switch
Connector A
-04
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3316 of 3870

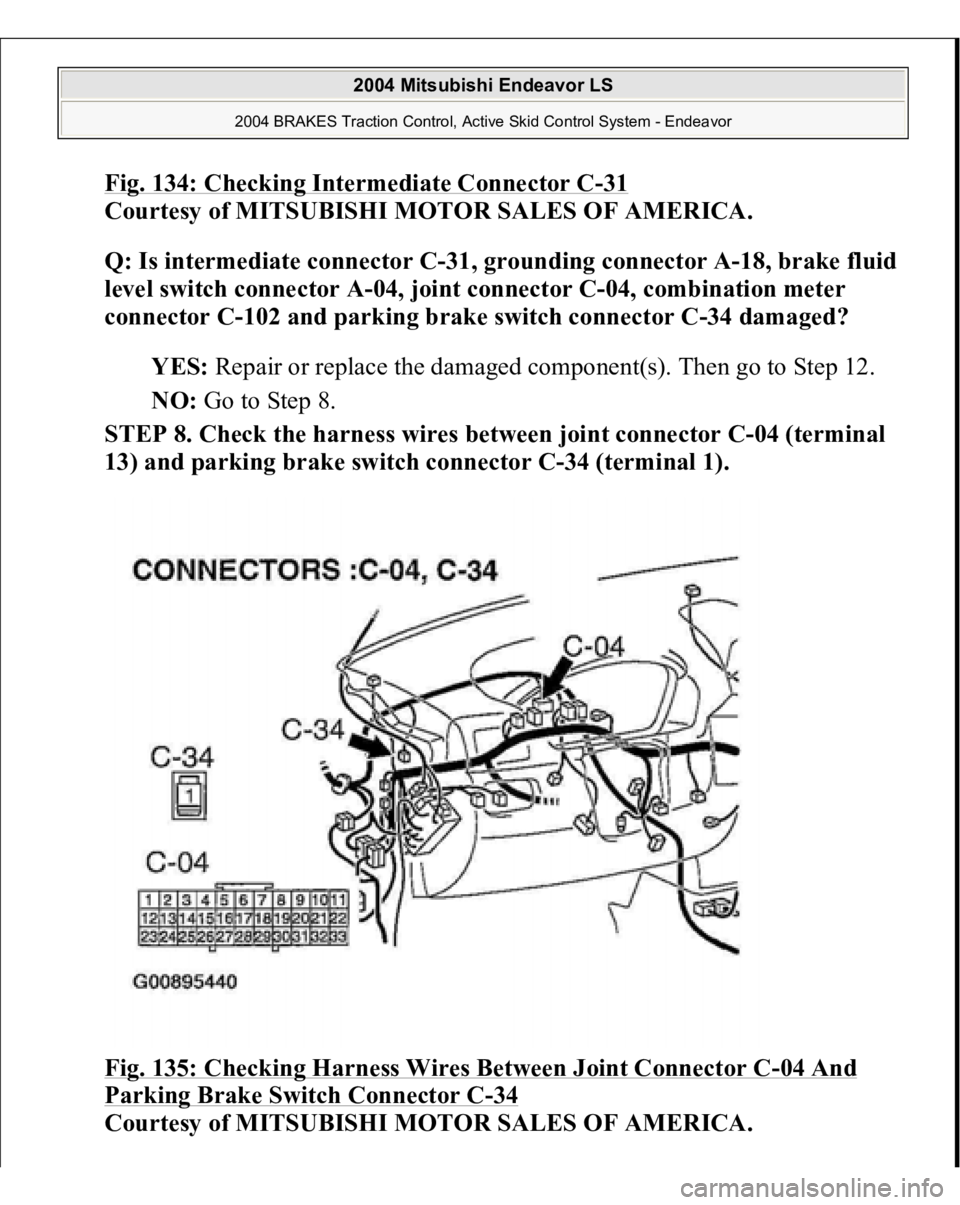

Fig. 134: Checking Intermediate Connector C
-31
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is intermediate connector C-31, grounding connector A-18, brake fluid
level switch connector A-04, joint connector C-04, combination meter
connector C-102 and parking brake switch connector C-34 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 12.
NO: Go to Step 8.
STEP 8. Check the harness wires between joint connector C-04 (terminal
13) and parking brake switch connector C-34 (terminal 1).
Fig. 135: Checking Harness Wires Between Joint Connector C
-04 And
Parking Brake Switch Connector C
-34
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3317 of 3870
Q: Is the harness wires between joint connector C-04 (terminal 13) and
parking brake switch connector C-34 (terminal 1) damaged?
YES: Repair the wiring harness. Then go to Step 12.
NO: Go to Step 9.
STEP 9. Check the harness wires between brake fluid level switch
connector A-04 (terminal 1) and joint connector C-04 (terminal 12).

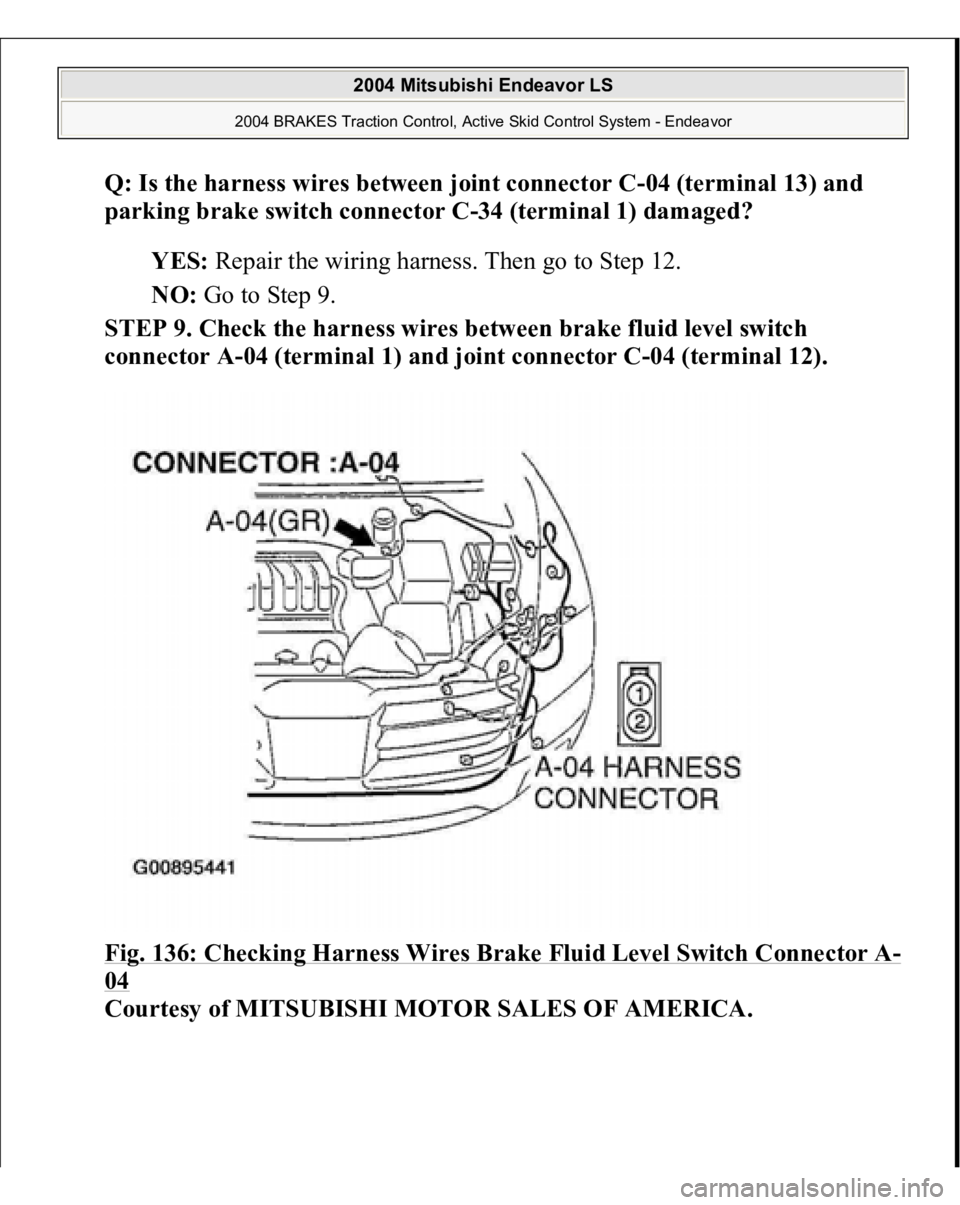

Fig. 136: Checking Harness Wires Brake Fluid Level Switch Connector A
-
04
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3318 of 3870

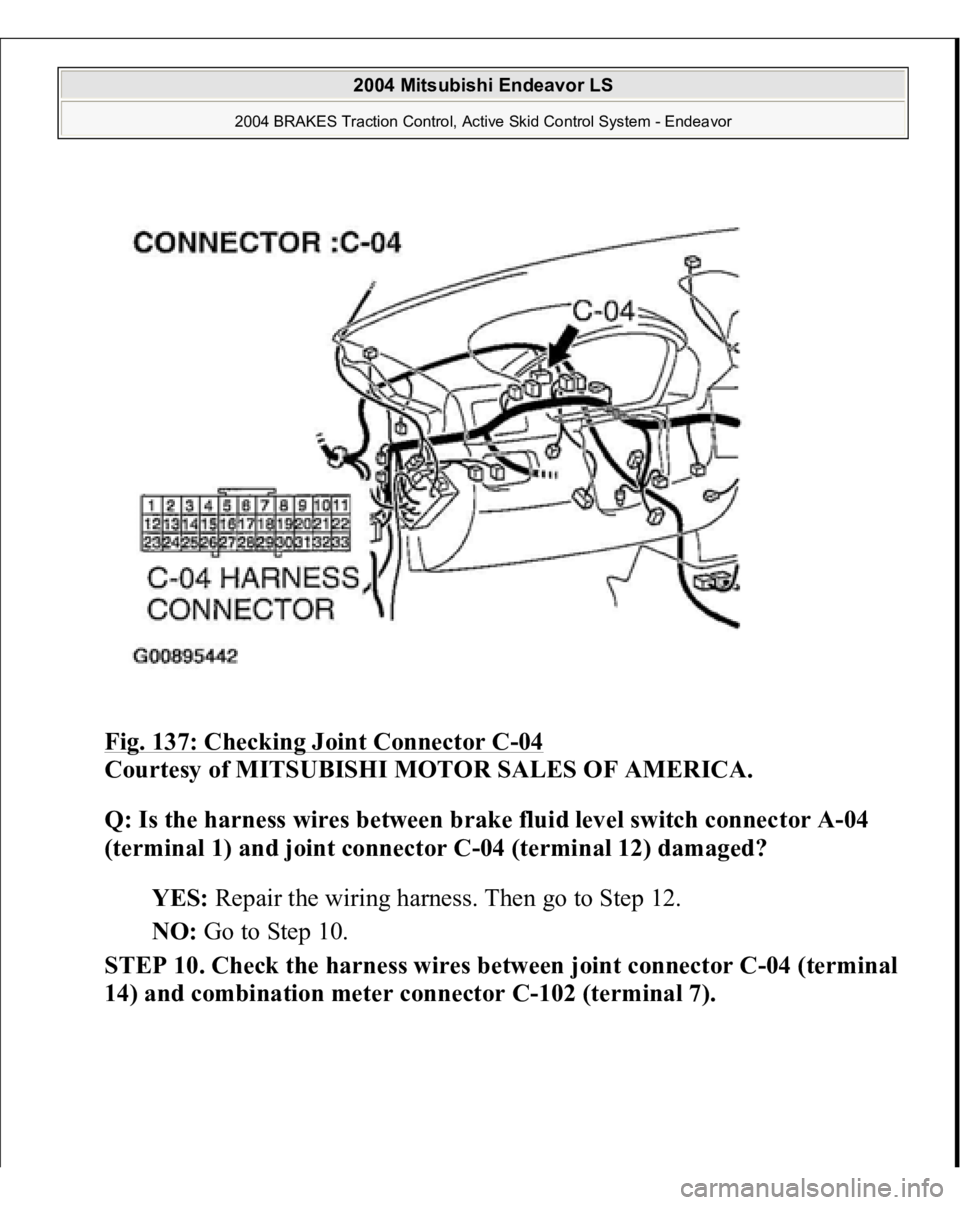

Fig. 137: Checking Joint Connector C
-04
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the harness wires between brake fluid level switch connector A-04
(terminal 1) and joint connector C-04 (terminal 12) damaged?
YES: Repair the wiring harness. Then go to Step 12.
NO: Go to Step 10.
STEP 10. Check the harness wires between joint connector C-04 (terminal
14) and combination meter connector C-102 (terminal 7).
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3324 of 3870
6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1345 set?
YES: Go to Step 1.
NO: The procedure is complete.
DTC C1361: M/C PRESSURE SNSR. STUCK/LOW GAIN, DTC C1362: M/C PRESSURE SNSR. LOW VOLTAGE,
DTC C1363: M/C PRESSURE SNSR. HIGH VOLTAGE CIRCUIT OPERATION The master cylinder pressure sensor is incorporated in the hydraulic unit. When the
brake pedal is depressed, the sensor detects the fluid pressure in the master cylinder,
and converts it to voltage signal. TCL/ASC DTC SET CONDITIONS This DTC is set if the master cylinder pressure sensor is defective. TROUBLESHOOTING HINTS (The most likely causes for these DTCs are to set are:)
The CAN bus line is defective. Malfunction of the hydraulic unit (integrated with TCL/ASC-ECU)
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable CAUTION: If there is any problem in the CAN bus lines, an
incorrect diagnostic trouble code may be set. Prior to
this diagnosis, diagnose the CAN bus lines.
CAUTION: Whenever the ECU is replaced, ensure that the CAN
bus lines are normal.
