Page 3667 of 3870

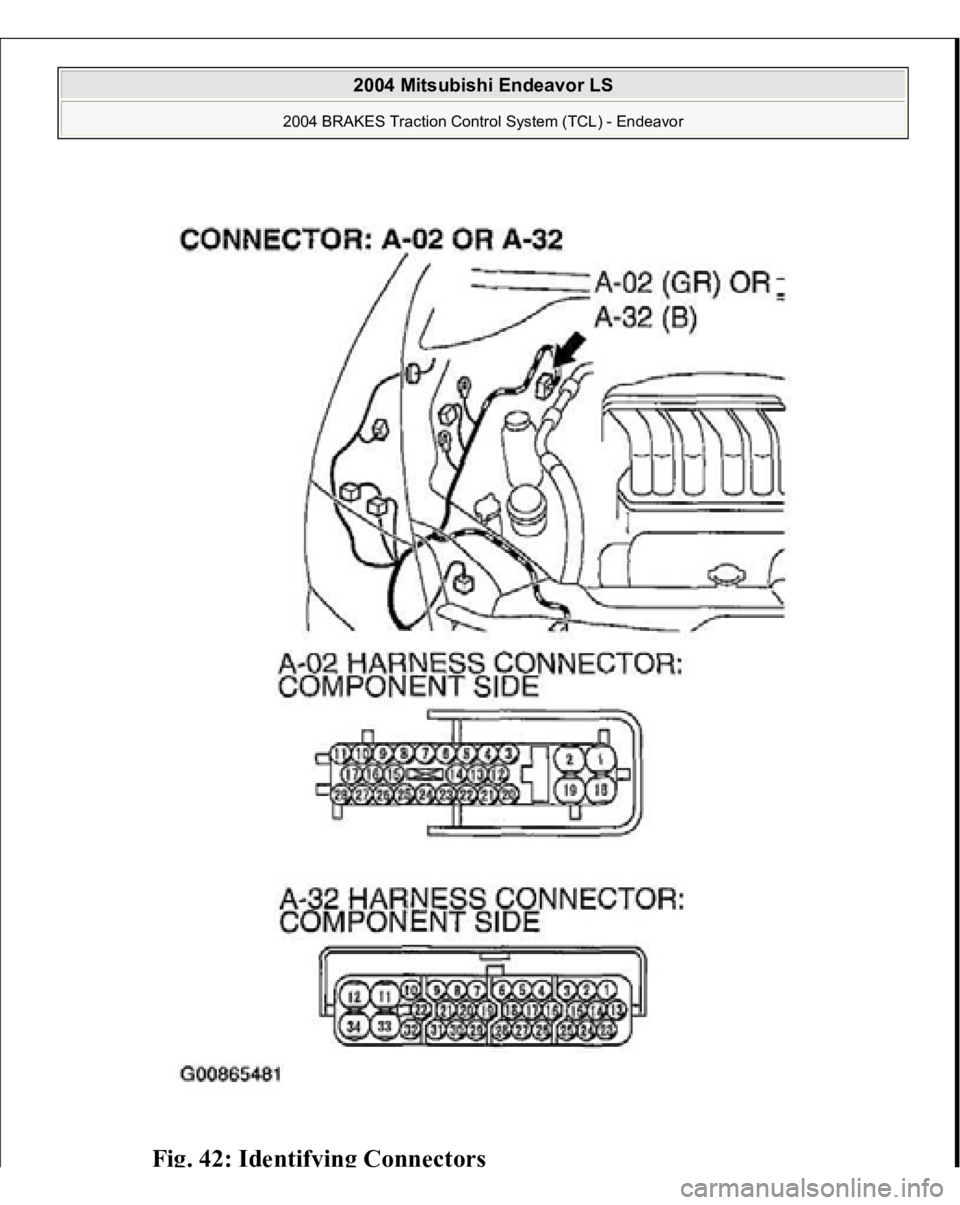

Fig. 42: I
dentif
ying Co
nn
ectors
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor
Page 3668 of 3870

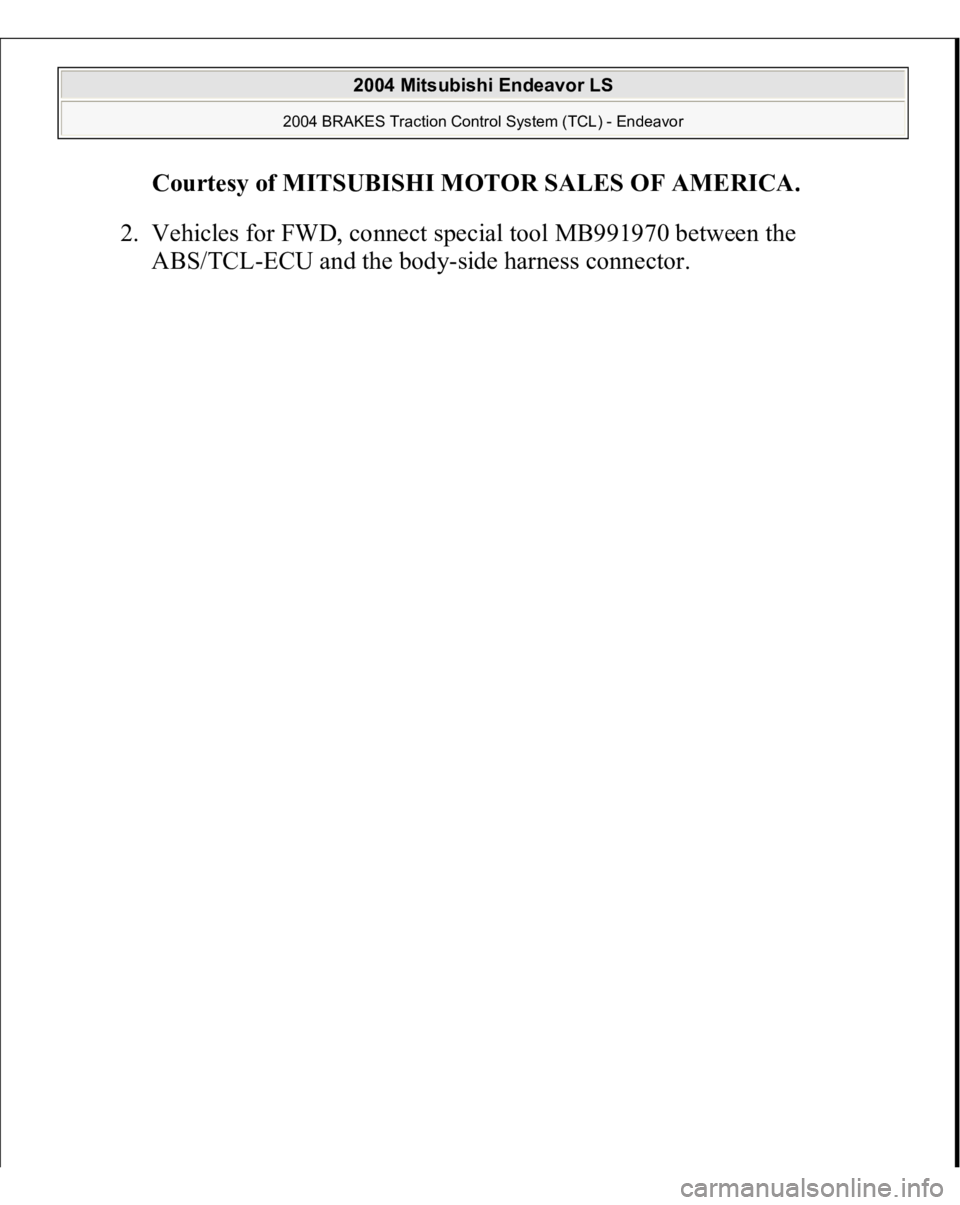

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Vehicles for FWD, connect special tool MB991970 between the
ABS/TC
L-ECU and the bod
y-side harness connector.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor
Page 3669 of 3870

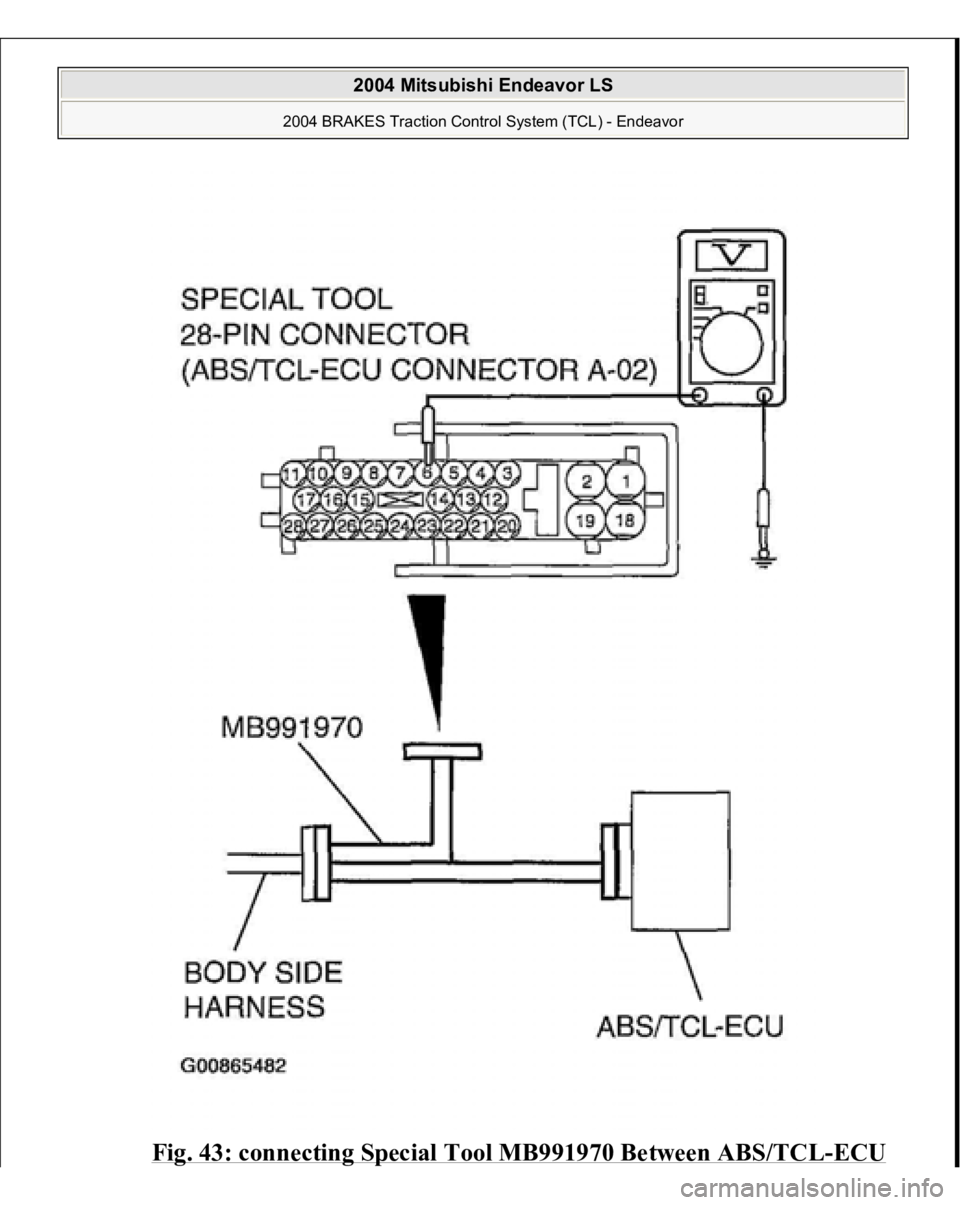

Fig. 43: connecting Special Tool MB991970 Between ABS/TCL
-ECU
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor
Page 3670 of 3870

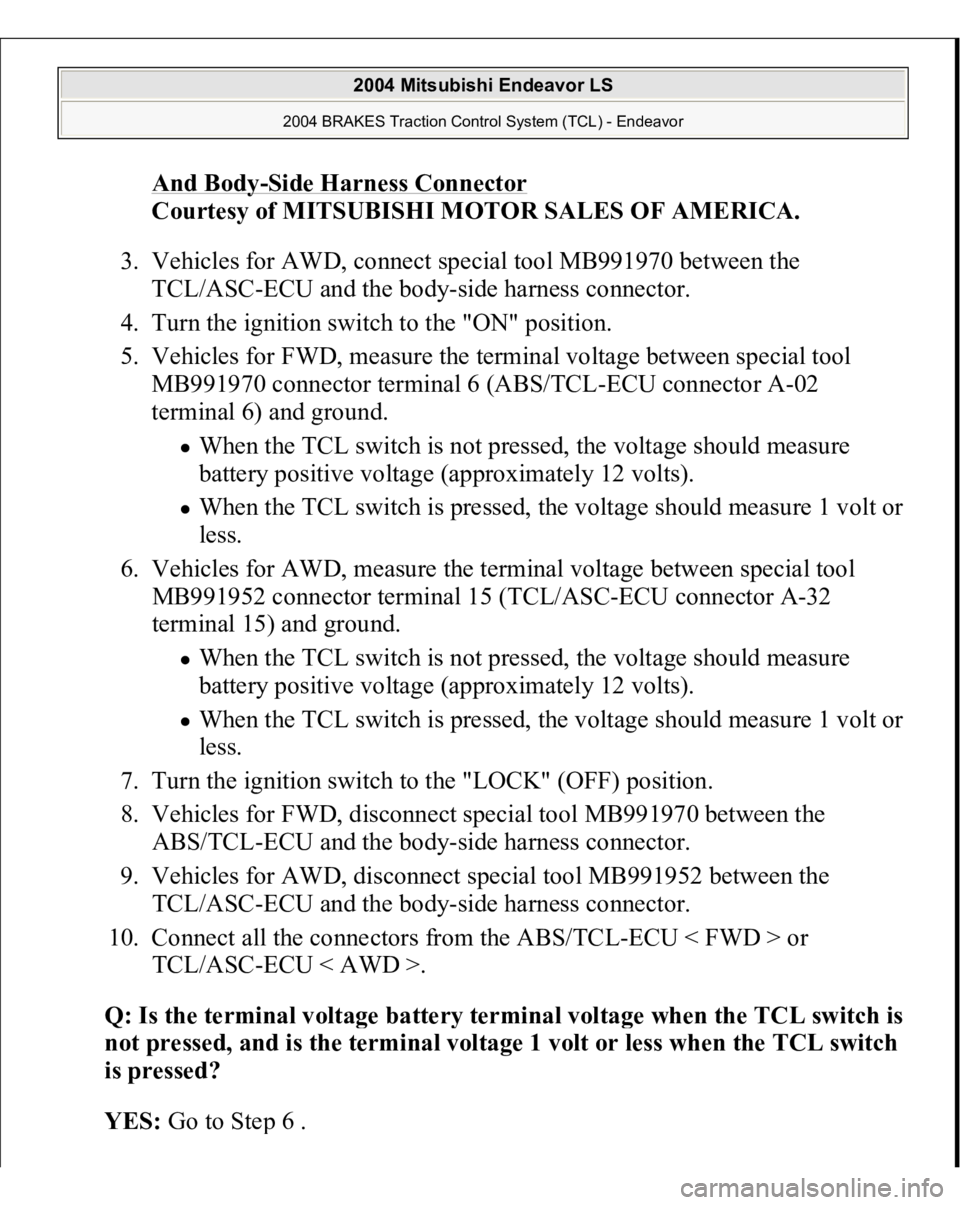

And Body
-Side Harness Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Vehicles for AWD, connect special tool MB991970 between the
TCL/ASC-ECU and the body-side harness connector.
4. Turn the ignition switch to the "ON" position.
5. Vehicles for FWD, measure the terminal voltage between special tool
MB991970 connector terminal 6 (ABS/TCL-ECU connector A-02
terminal 6) and ground.
When the TCL switch is not pressed, the voltage should measure
battery positive voltage (approximately 12 volts). When the TCL switch is pressed, the voltage should measure 1 volt or
less.
6. Vehicles for AWD, measure the terminal voltage between special tool
MB991952 connector terminal 15 (TCL/ASC-ECU connector A-32
terminal 15) and ground. When the TCL switch is not pressed, the voltage should measure
battery positive voltage (approximately 12 volts). When the TCL switch is pressed, the voltage should measure 1 volt or
less.
7. Turn the ignition switch to the "LOCK" (OFF) position.
8. Vehicles for FWD, disconnect special tool MB991970 between the
ABS/TCL-ECU and the body-side harness connector.
9. Vehicles for AWD, disconnect special tool MB991952 between the
TCL/ASC-ECU and the body-side harness connector.
10. Connect all the connectors from the ABS/TCL-ECU < FWD > or
TCL/ASC-ECU < AWD >.
Q: Is the terminal volta
ge batter
y terminal volta
ge when the TCL switch is
not
pressed, and is the terminal volta
ge 1 volt or less when the TCL switch
is pressed?
YES
: Go to Ste
p 6 .
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor
Page 3671 of 3870

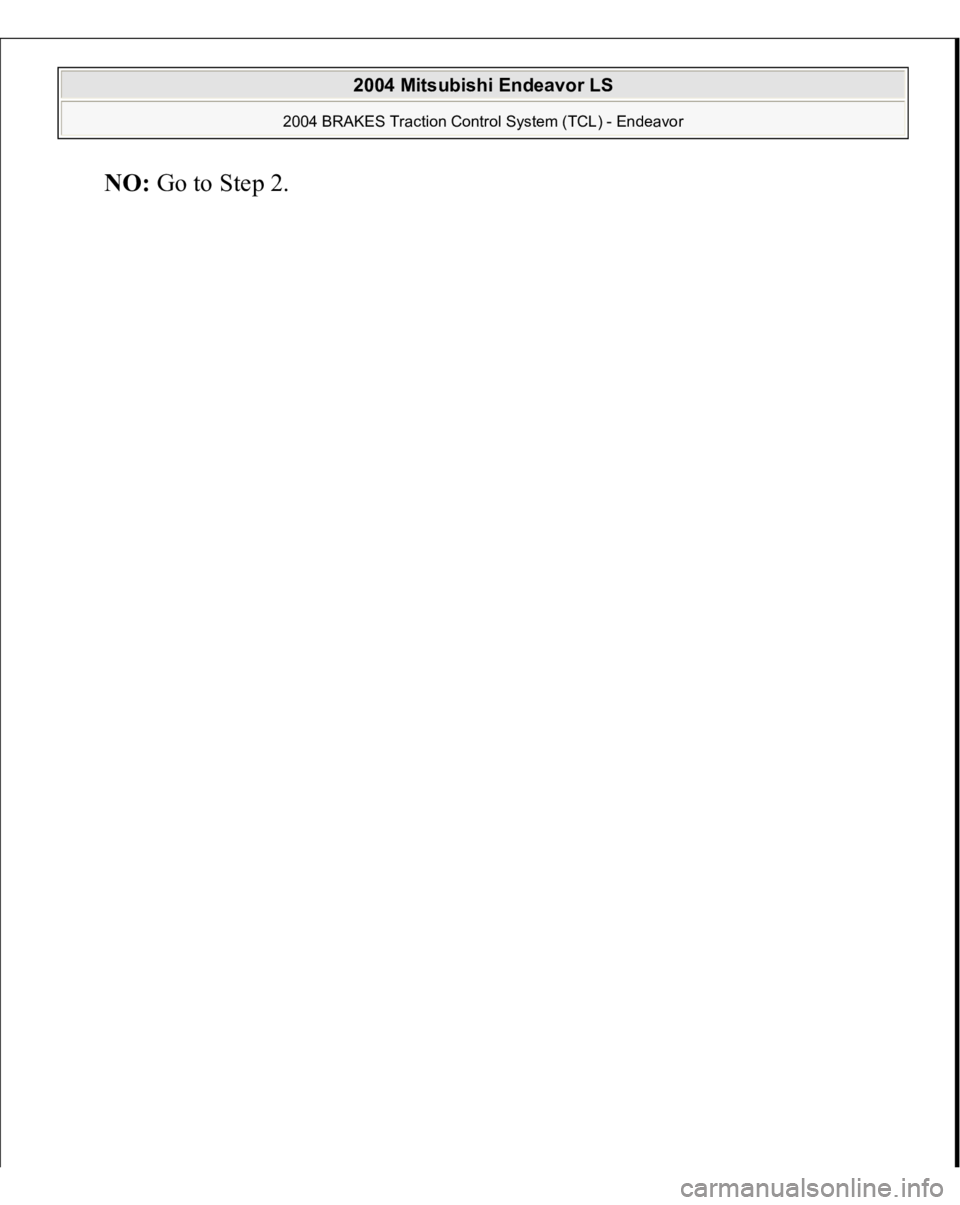

NO
: Go to Ste
p 2.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor
Page 3672 of 3870
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor
Page 3673 of 3870
Fig. 44: Identifying Special Tool 34 Pin Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
STEP 2. Check the TCL switch.
1. Remove the TCL switch. (Refer to TCL SWITCH
).
2. Connect an ohmmeter to the TCL switch between terminals 1 and 2.
3. Check for continuity between terminals 1 and 2 when the TCL switch is
operated.
There is no continuity between terminals 1 and 2 when the TCL
switch is not pressed. There is continuity between terminals 1 and 2 when the TCL switch is
pressed.
Q: Is there no continuity between terminals 1 and 2 when the TCL switch
is not pressed, and is there continuity when the TCL switch is pressed?
YES: Install the TCL switch. (Refer to TCL SWITCH
). Then go to Step 6 .
NO
: Re
place the TCL switch.
(Refer to TCL SWITCH
). Then
go to Ste
p 7 .
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor
Page 3674 of 3870
Fig. 45: Connecting An Ohmmeter To TCL Switch Between Terminals
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
STEP 3. Check ABS/TCL-ECU connector A-02 < FWD > or TCL/ASC-
ECU connector A-32 < 4AWD >, intermediate connector C-31 and TCL
switch connectors C-35 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Are there connectors and terminals in good condition?
YES: Go to Step 4.
NO: Re
pair or re
place the fault
y connector.
(Refer to
). Then
go to Ste
p 7 .
