2004 MITSUBISHI ENDEAVOR ESP

Fig. 76: Disconnecting Connector C
-102

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Measure the voltage between terminal 1 and ground.
The measured value should be approximately 12 volts (battery
positive voltage).
Fig. 77: Measuring Voltage Between Terminal 1 And Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Does the measured voltage correspond with this range?
YES: Go to Step 8.
NO: Go to Step 6.
STEP 6. Check combination meter connector C-102 for loose, corroded or

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

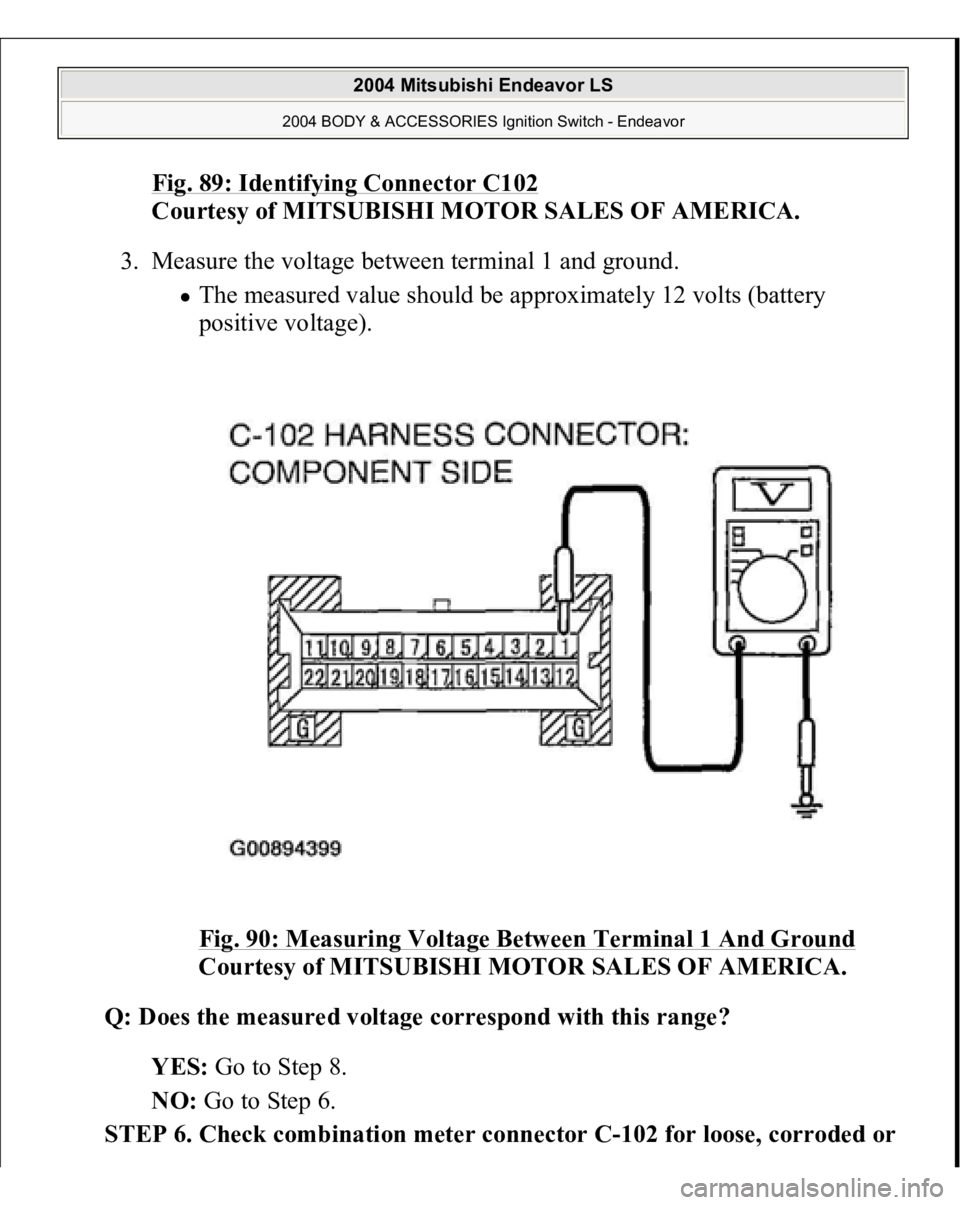

Fig. 89: Identifying Connector C102

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Measure the voltage between terminal 1 and ground.
The measured value should be approximately 12 volts (battery
positive voltage).
Fig. 90: Measuring Voltage Between Terminal 1 And Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Does the measured voltage correspond with this range?
YES: Go to Step 8.
NO: Go to Step 6.
STEP 6. Check combination meter connector C-102 for loose, corroded or

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

2004 ENGINE
Ignition System - Endeavor
GENERAL DESCRIPTION This system is provided with six ignition coils with built-in ignition power
transistors for each of the cylinders.
Interruption of the primary current flowing in the primary side of ignition coil
generates a high voltage in the secondary side of ignition coil.
The powertrain control module (PCM) controls the three ignition power transistors
to turn them alternately ON and OFF. This causes the primary currents in the
ignition coils to be alternately interrupted and allowed to flow to fire the cylinders
in the order 1-2-3-4-5-6.
The PCM determines which ignition coil should be controlled by means of the
signals from the camshaft position sensor which is incorporated in the camshaft and
from the crankshaft position sensor which is incorporated in the crankshaft.
It also detects the crankshaft position to provide ignition at the most appropriate
timing in response to the engine operation conditions.
When the engine is cold or operated at high altitudes, the ignition timing is slightly
advanced to
provide o
ptimum
performance.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Ignition System - Endeavor


2004 Mitsubishi Endeavor Limited 2004 ENGINE Ignition System - Endeavor

1. Operate the transmitter to check that the doors and liftgate can be locked and
unlocked.
2. Operate the transmitter to check that the answerback function works in
response to door and liftgate locking/unlocking.
NOTE: The adjustment function allows you to change the
unlock operation setting as follows. Prior to that check,
confirm which setting is activated.
a. When the unlock button is pressed once, the
driver's door will be unlocked. Then when the
button is pressed once again, all the doors and
liftgate will be opened (initial setting).
b. When the unlock button is pressed only once, all
the doors and liftgate will be opened.
NOTE: The adjustment function allows you to change the
hazard answerback setting as follows. Prior to that
check, confirm which setting is activated.
a. Turn-signal lights: Flash once when doors and
liftgate are locked, and twice when unlocked (initial
setting)
b. Turn-signal lights: Flash once when doors and
liftgate are locked, but does not flash when
unlocked.
c. Turn-signal lights: Do not flash when doors and
liftgate are locked, but flash twice when unlocked.
d. Turn-signal lights: Do not flash when doors and
liftgate are locked and unlocked.
NOTE: The adjustment function allows you to change the horn
answerback setting as follows. Prior to that check,
confirm which setting is activated.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Keyless Entry System - Endeavor

2004 STEERING
Power Steering - Endeavor
GENERAL DESCRIPTION Power steering has been adopted in all vehicles to make the steering system easier
to handle.
A 4-spoke steering wheel is used. A steering column has a shock absorbing mechanism and a tilt steering
mechanism. A rack and pinion steering gear is used. An oil pump responsive to engine RPM is used, which, with tuning for a rigid
gear box mount, improves steering stability at high speeds. The separate plastic resin oil reservoir reduces weight and makes fluid level
checking easier.
Fig. 1: Identifying Power Steering Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
POWER STEERING DIAGNOSIS
2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor


2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

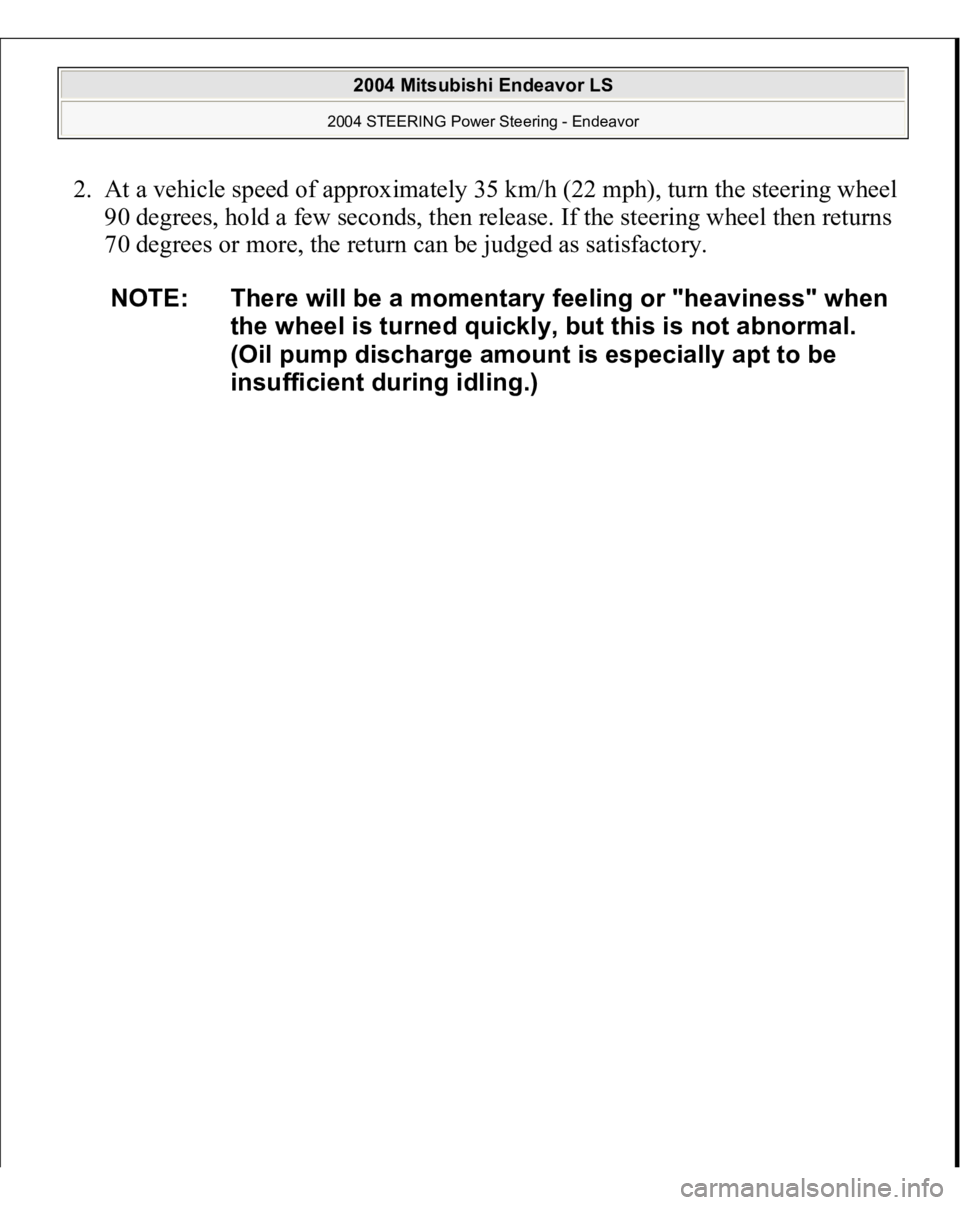

2. At a vehicle speed of approximately 35 km/h (22 mph), turn the steering wheel
90 degrees, hold a few seconds, then release. If the steering wheel then returns
70 degrees or more, the return can be judged as satisfactory.
NOTE: There will be a momentary feeling or "heaviness" when
the wheel is turned quickly, but this is not abnormal.
(Oil pump discharge amount is especially apt to be
insufficient during idling.)

2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

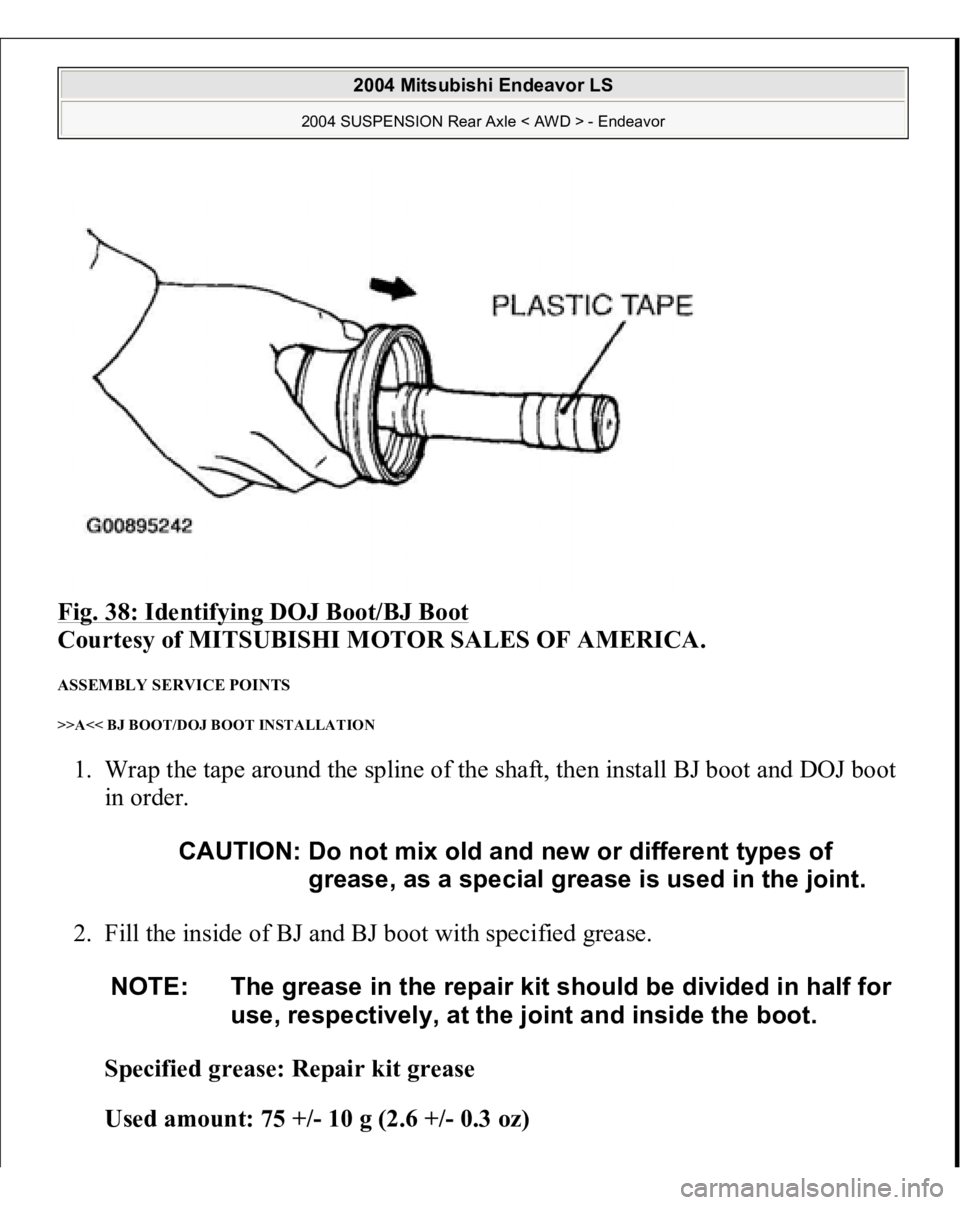

Fig. 38: Identifying DOJ Boot/BJ Boot

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ASSEMBLY SERVICE POINTS >>A<< BJ BOOT/DOJ BOOT INSTALLATION 1. Wrap the tape around the spline of the shaft, then install BJ boot and DOJ boot
in order.
2. Fill the inside of BJ and BJ boot with specified grease.
Specified grease: Repair kit grease
Used amount: 75 +/- 10 g (2.6 +/- 0.3 oz)
CAUTION: Do not mix old and new or different types of
grease, as a special grease is used in the joint.
NOTE: The grease in the repair kit should be divided in half for
use, respectively, at the joint and inside the boot.

2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor

Fig. 72: Bearing Division Turning Torque Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Place special tool MB991365 in the side bearing seat of the differential carrier,
and then select a drive pinion rear shim of a thickness which corresponds to the
gap between the special tools.
NOTE: When selecting the drive pinion rear shims, keep the
number of shims to a minimum.

2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
