2004 MITSUBISHI ENDEAVOR automatic transmission

Fig. 202: Solenoid Valves Number Name Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
DRIVE SHAFT OIL SEAL DISASSEMBLY AND ASSEMBLY
2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

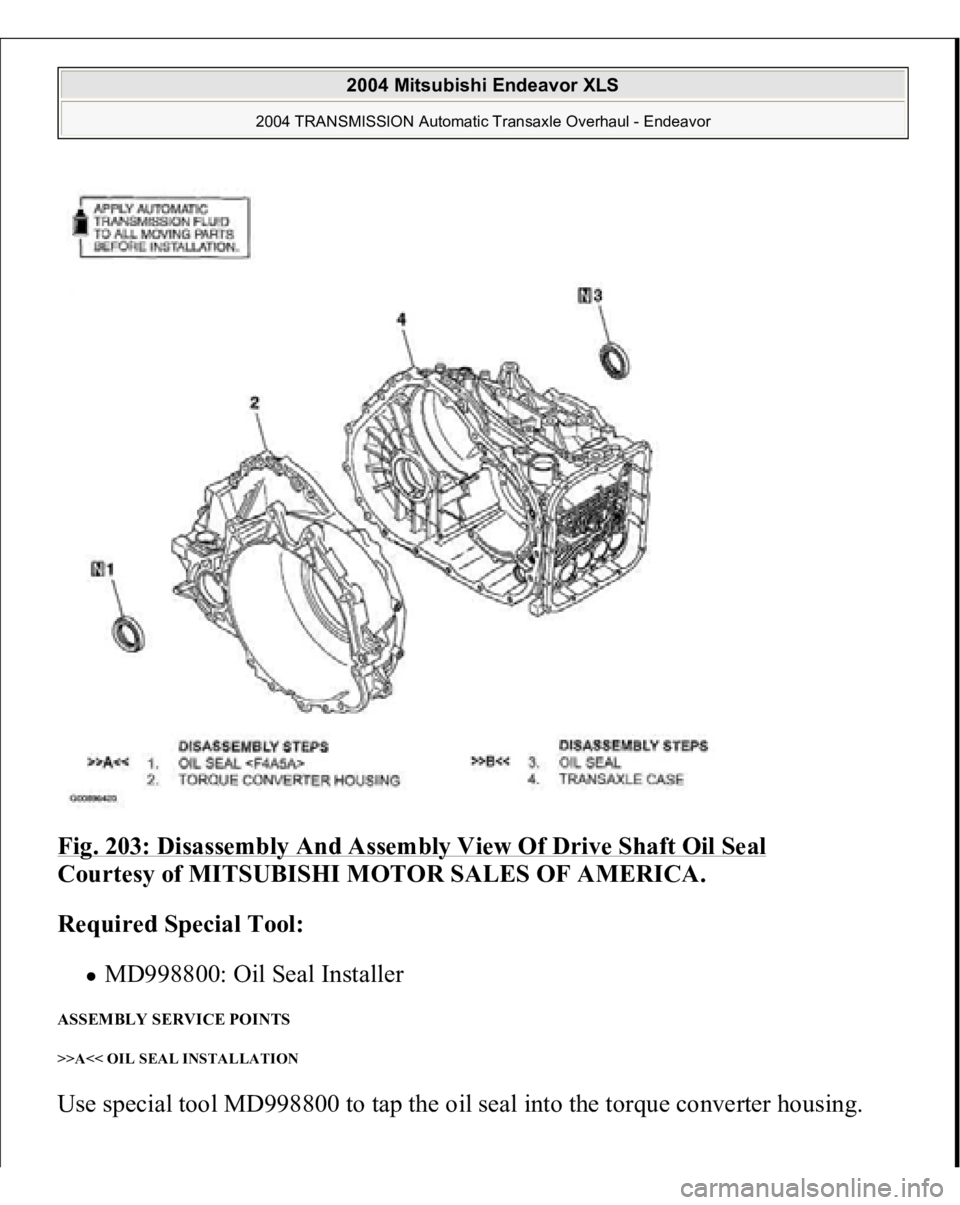

Fig. 203: Disassembly And Assembly View Of Drive Shaft Oil Seal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tool:
MD998800: Oil Seal Installer
ASSEMBLY SERVICE POINTS >>A<< OIL SEAL INSTALLATION Use s
pecial tool MD998800 to ta
p the oil seal into the tor
que converter housin
g.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Fig. 204: Installing Oil Seal Into Torque Converter Housing With Special Tool

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>B<< OIL SEAL INSTALLATION Use special tool MD998800 to tap the oil seal in the transaxle case.
2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

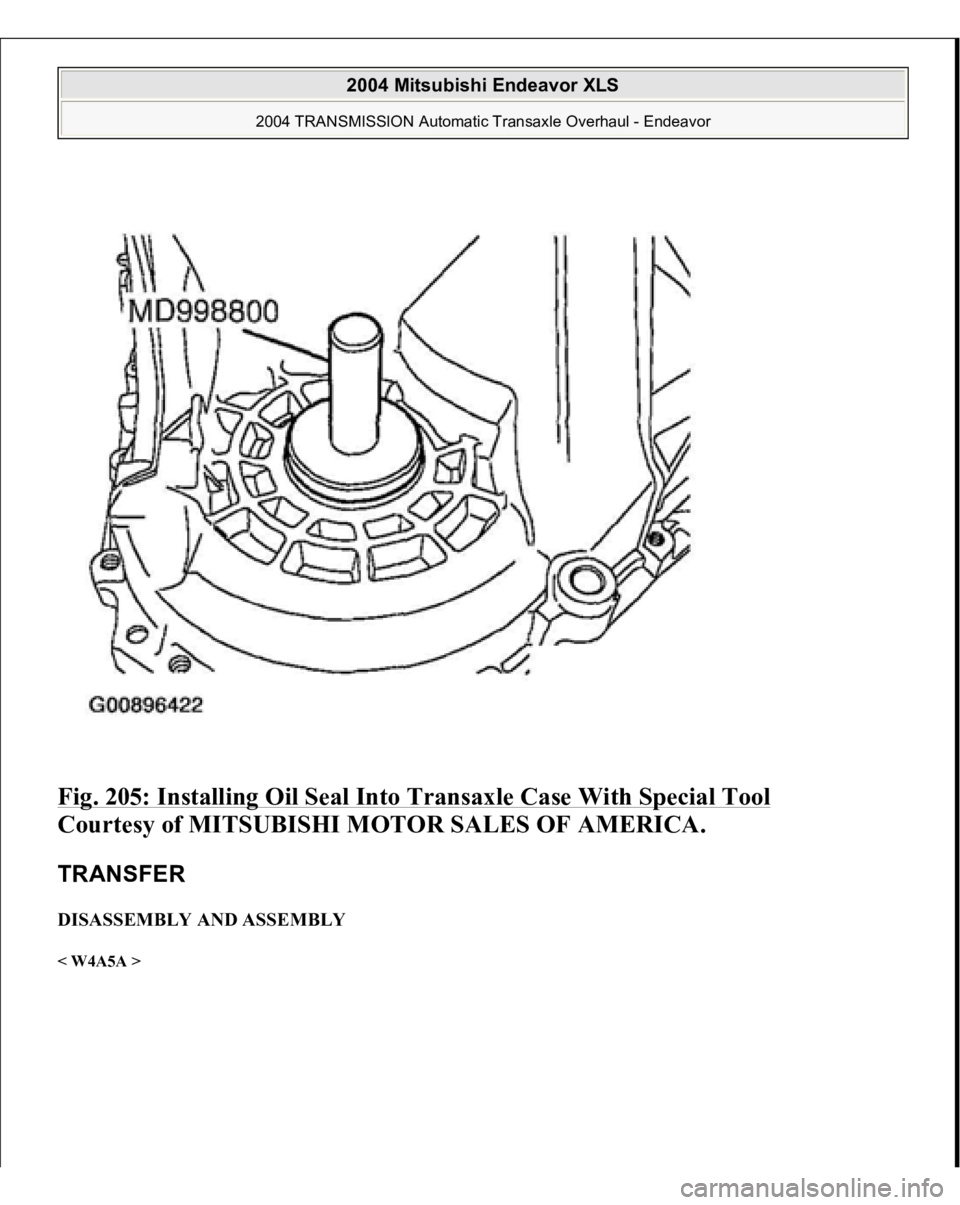

Fig. 205: Installing Oil Seal Into Transaxle Case With Special Tool

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
TRANSFER DISASSEMBLY AND ASSEMBLY < W4A5A >
2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

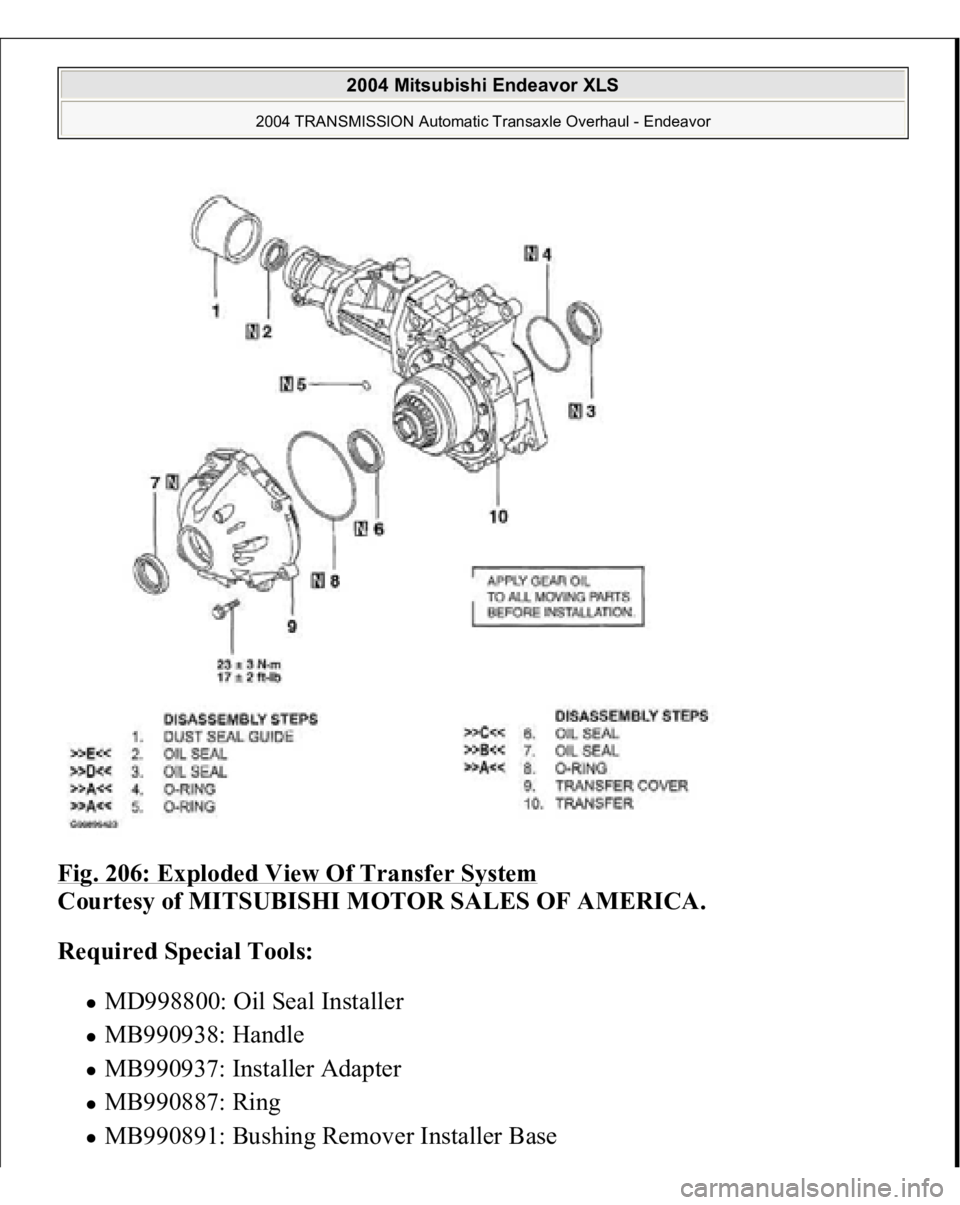

Fig. 206: Exploded View Of Transfer System

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tools:
MD998800: Oil Seal Installer MB990938: Handle MB990937: Installer Adapter MB990887: Ring MB990891: Bushin
g Remover Installer Base

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

MB990936: Installer Adapter
ASSEMBLY SERVICE POINTS >>A<< O-RING INSTALLATION Install a O-ring to the transfer, and apply ATF or petroleum jelly (Vaseline) to the
O-ring. >>B<< OIL SEAL INSTALLATION Use s
pecial tool MD998800, to ta
p the oil seal into the transfer cover.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

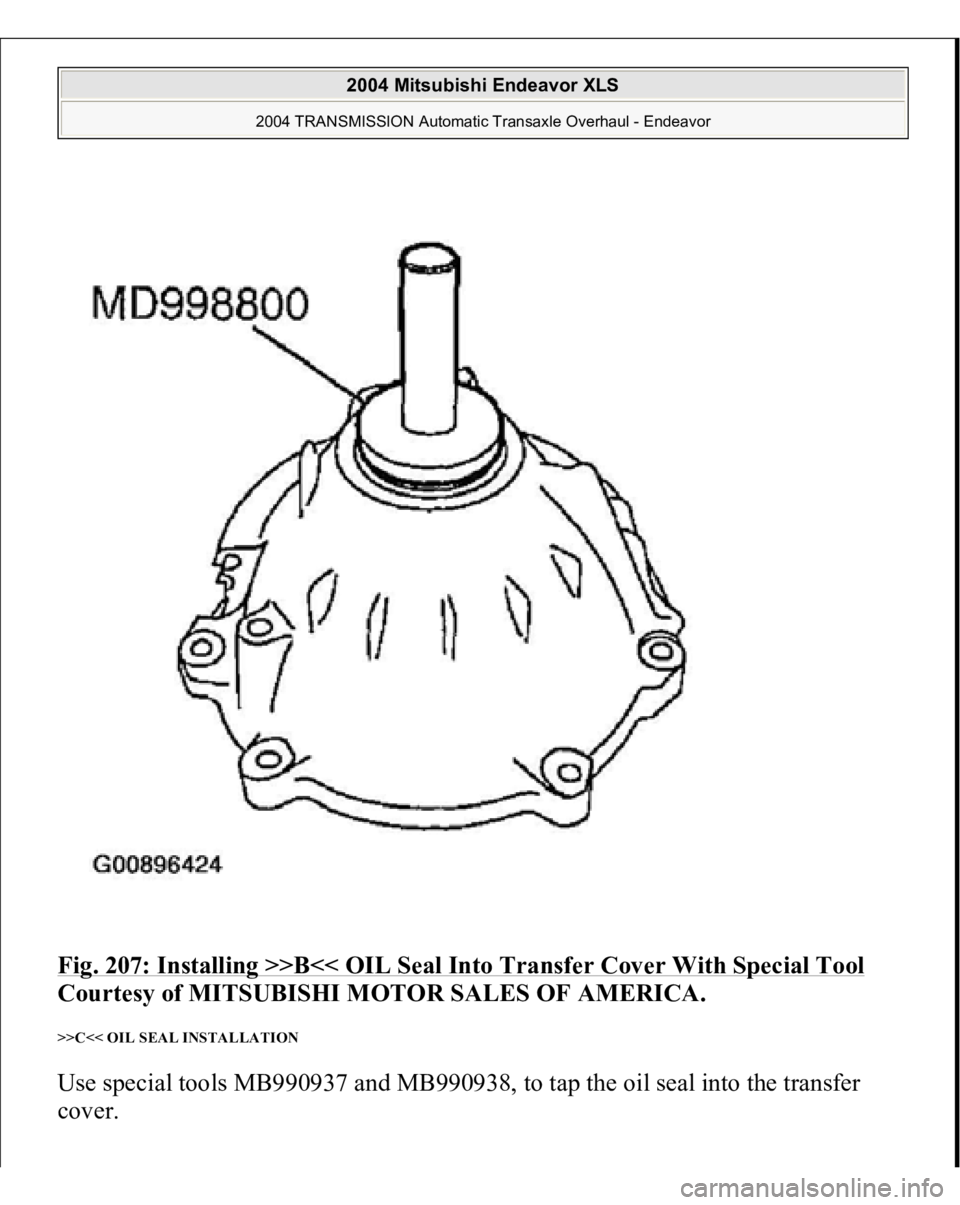

Fig. 207: Installing >>B<< OIL Seal Into Transfer Cover With Special Tool

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>C<< OIL SEAL INSTALLATION Use special tools MB990937 and MB990938, to tap the oil seal into the transfer
cover.
2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

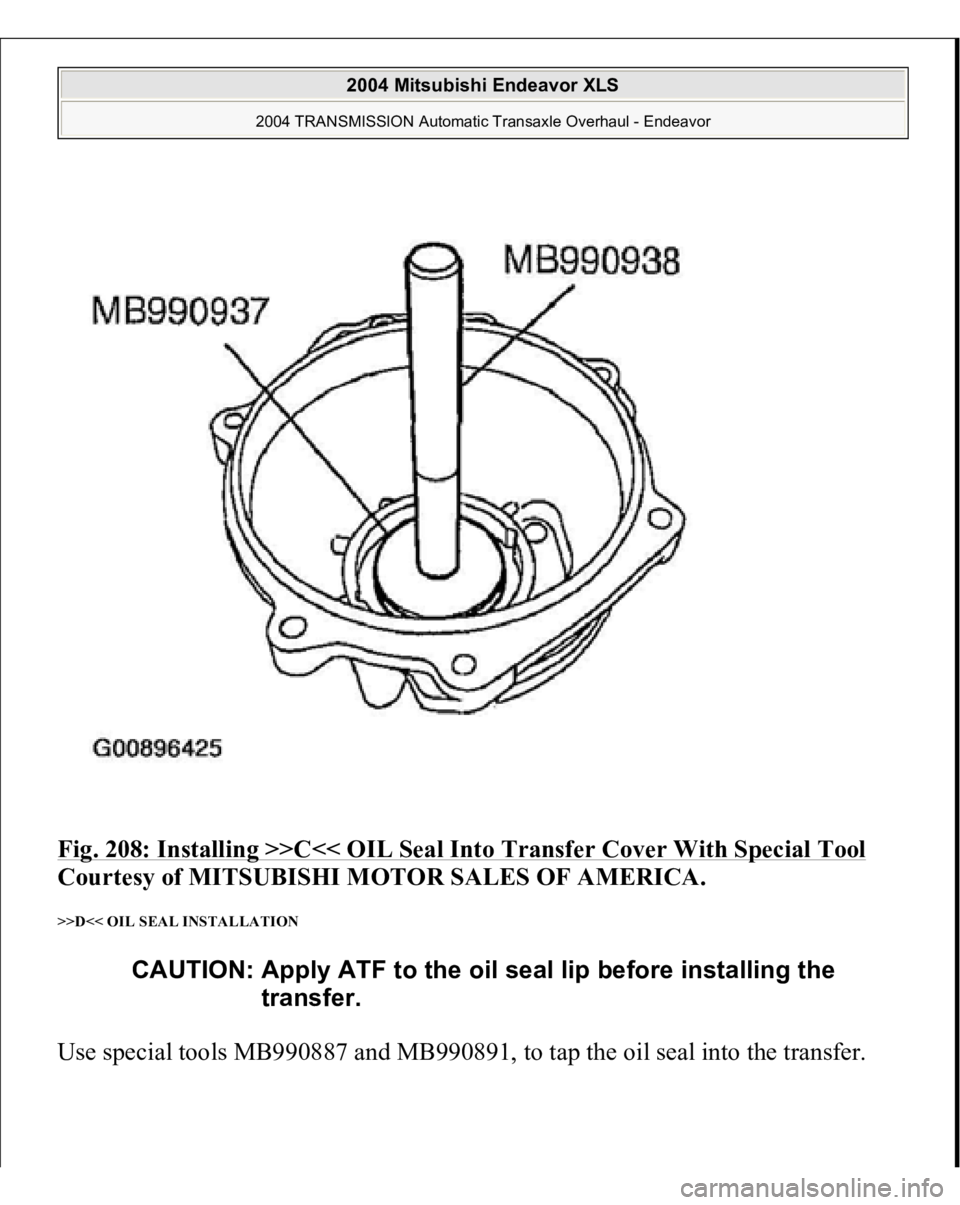

Fig. 208: Installing >>C<< OIL Seal Into Transfer Cover With Special Tool

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>D<< OIL SEAL INSTALLATION Use special tools MB990887 and MB990891, to tap the oil seal into the transfer.
CAUTION: Apply ATF to the oil seal lip before installing the
transfer.
