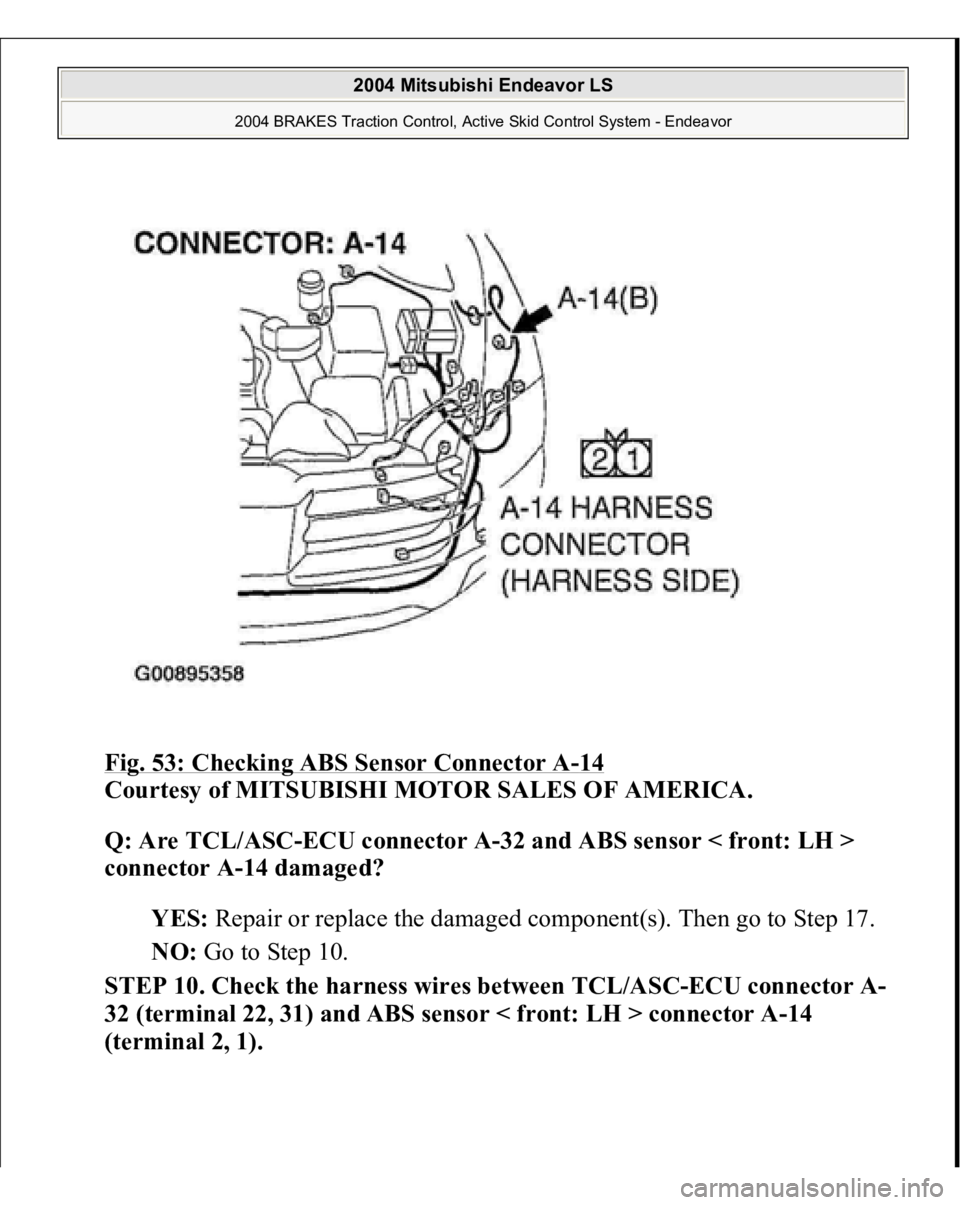

Fig. 53: Checking ABS Sensor Connector A
-14
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are TCL/ASC-ECU connector A-32 and ABS sensor < front: LH >
connector A-14 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 17.
NO: Go to Step 10.
STEP 10. Check the harness wires between TCL/ASC-ECU connector A-
32 (terminal 22, 31) and ABS sensor < front: LH > connector A-14
(terminal 2, 1).
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3178 of 3870

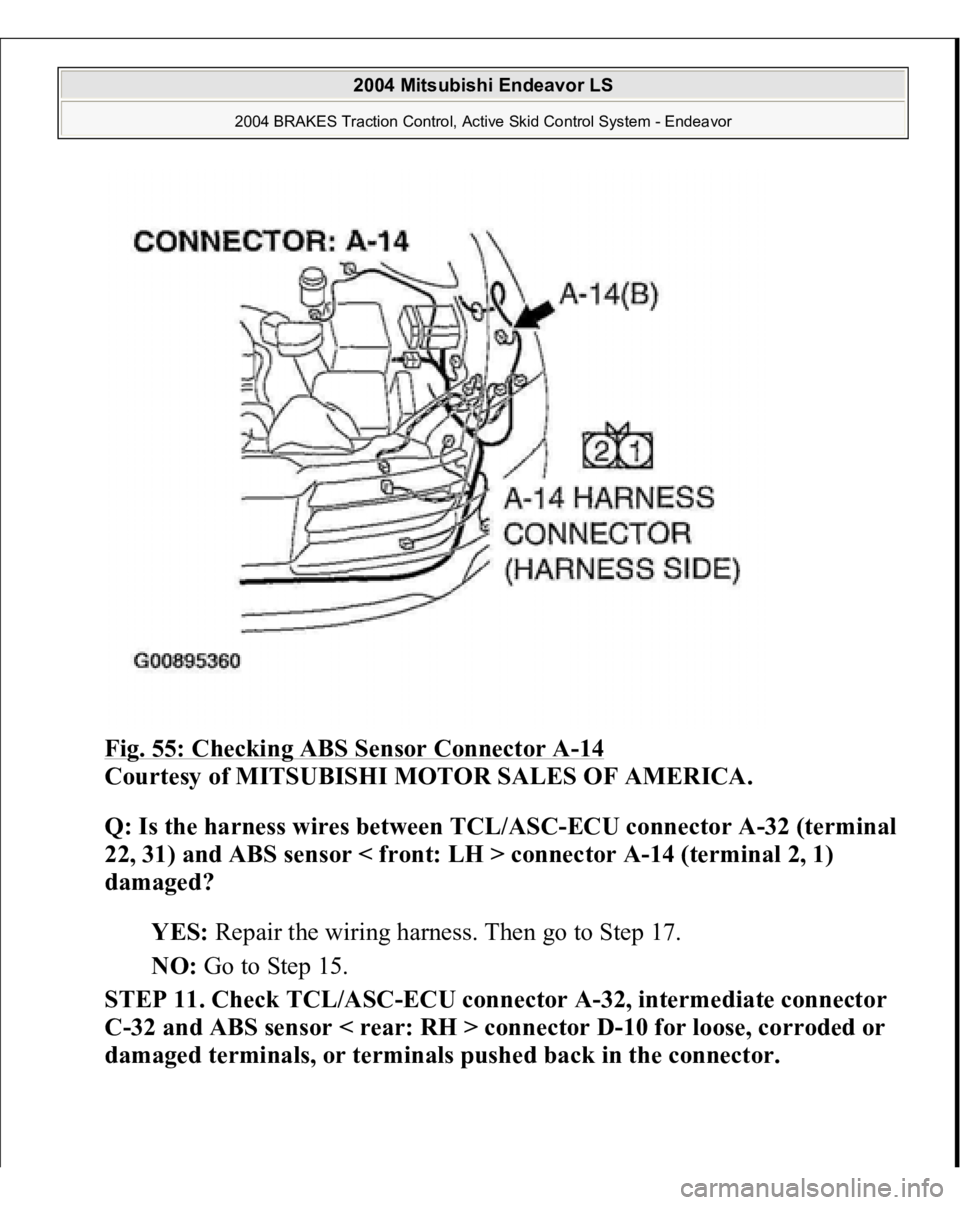

Fig. 55: Checking ABS Sensor Connector A
-14
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the harness wires between TCL/ASC-ECU connector A-32 (terminal
22, 31) and ABS sensor < front: LH > connector A-14 (terminal 2, 1)
damaged?
YES: Repair the wiring harness. Then go to Step 17.
NO: Go to Step 15.
STEP 11. Check TCL/ASC-ECU connector A-32, intermediate connector
C-32 and ABS sensor < rear: RH > connector D-10 for loose, corroded or
damaged terminals, or terminals pushed back in the connector.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3181 of 3870

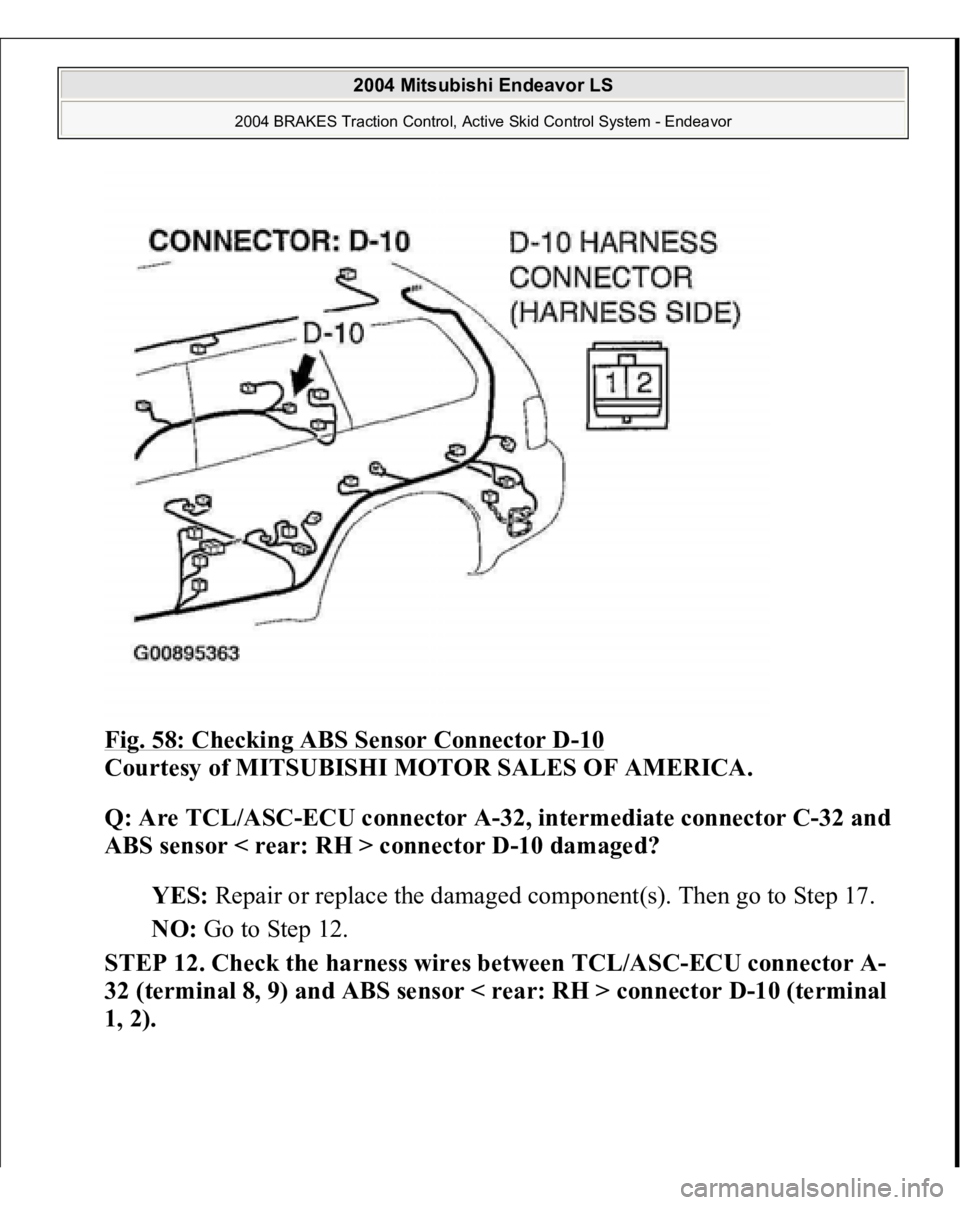

Fig. 58: Checking ABS Sensor Connector D
-10
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are TCL/ASC-ECU connector A-32, intermediate connector C-32 and
ABS sensor < rear: RH > connector D-10 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 17.
NO: Go to Step 12.
STEP 12. Check the harness wires between TCL/ASC-ECU connector A-
32 (terminal 8, 9) and ABS sensor < rear: RH > connector D-10 (terminal
1, 2).
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3183 of 3870

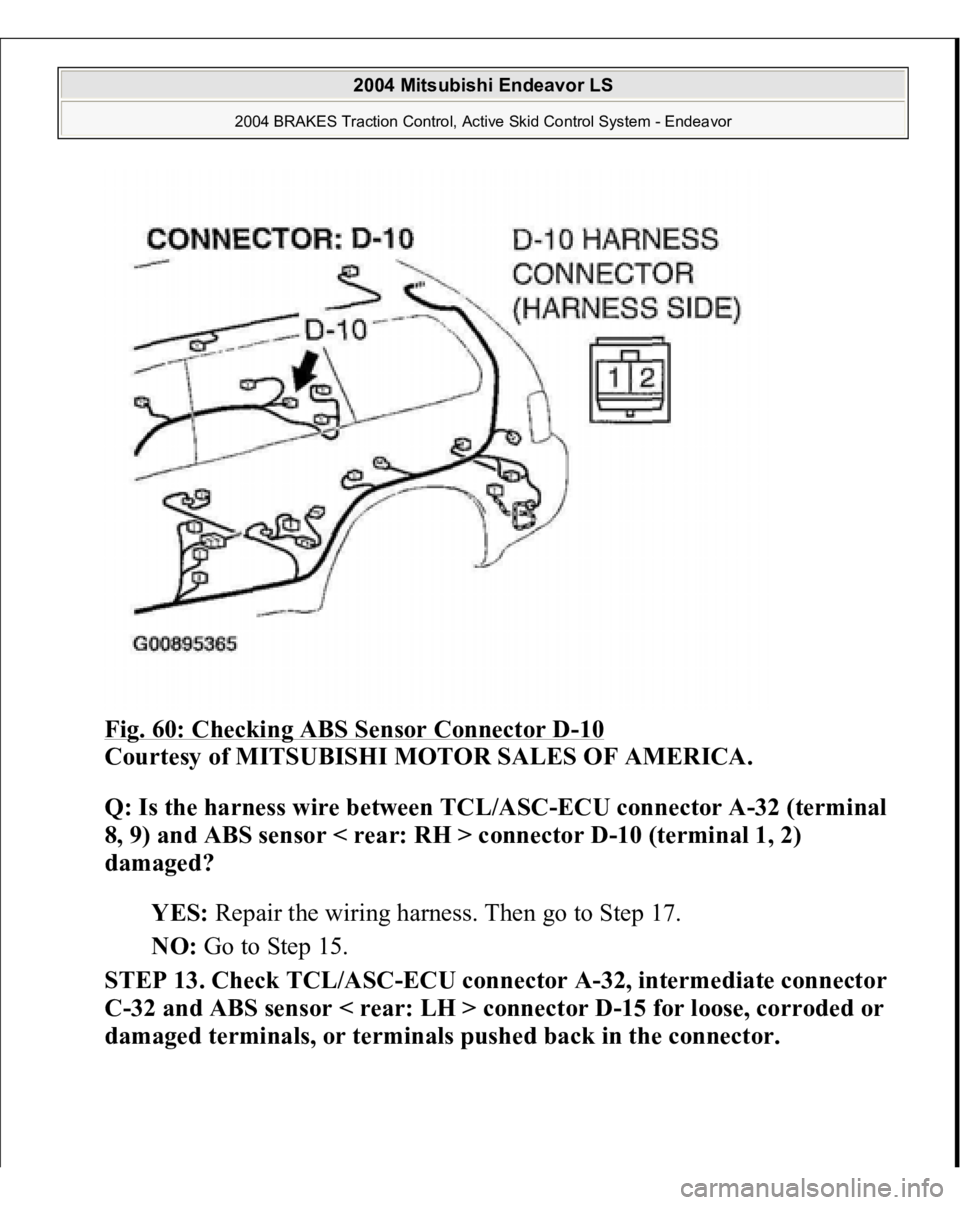

Fig. 60: Checking ABS Sensor Connector D
-10
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the harness wire between TCL/ASC-ECU connector A-32 (terminal
8, 9) and ABS sensor < rear: RH > connector D-10 (terminal 1, 2)
damaged?
YES: Repair the wiring harness. Then go to Step 17.
NO: Go to Step 15.
STEP 13. Check TCL/ASC-ECU connector A-32, intermediate connector
C-32 and ABS sensor < rear: LH > connector D-15 for loose, corroded or
damaged terminals, or terminals pushed back in the connector.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3186 of 3870

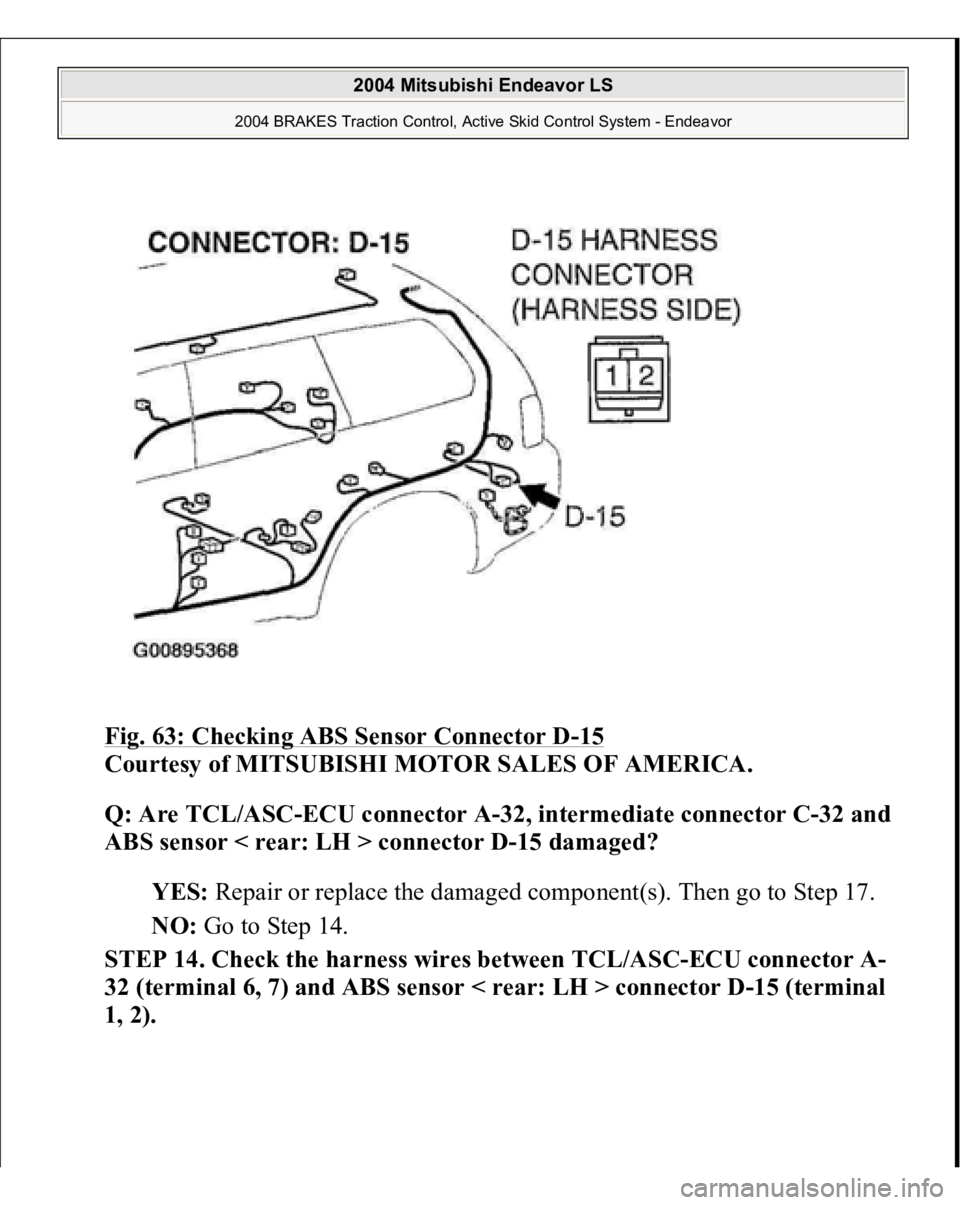

Fig. 63: Checking ABS Sensor Connector D
-15
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are TCL/ASC-ECU connector A-32, intermediate connector C-32 and
ABS sensor < rear: LH > connector D-15 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 17.
NO: Go to Step 14.
STEP 14. Check the harness wires between TCL/ASC-ECU connector A-
32 (terminal 6, 7) and ABS sensor < rear: LH > connector D-15 (terminal
1, 2).
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3188 of 3870

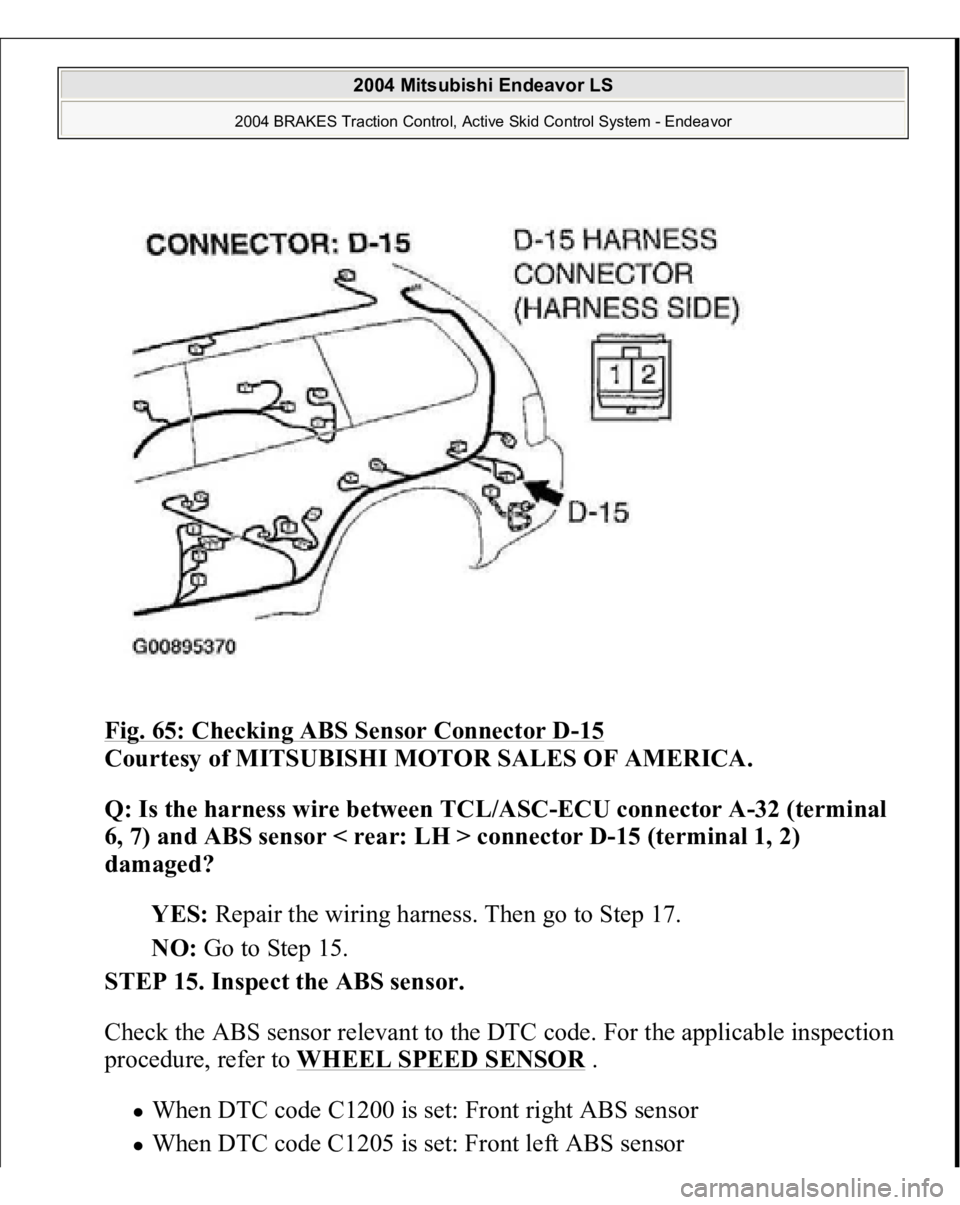

Fig. 65: Checking ABS Sensor Connector D
-15
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the harness wire between TCL/ASC-ECU connector A-32 (terminal
6, 7) and ABS sensor < rear: LH > connector D-15 (terminal 1, 2)
damaged?
YES: Repair the wiring harness. Then go to Step 17.
NO: Go to Step 15.
STEP 15. Inspect the ABS sensor.
Check the ABS sensor relevant to the DTC code. For the applicable inspection
procedure, refer to WHEEL SPEED SENSOR .
When DTC code C1200 is set: Front right ABS sensor When DTC code C1205 is set: Front left ABS sensor
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3189 of 3870

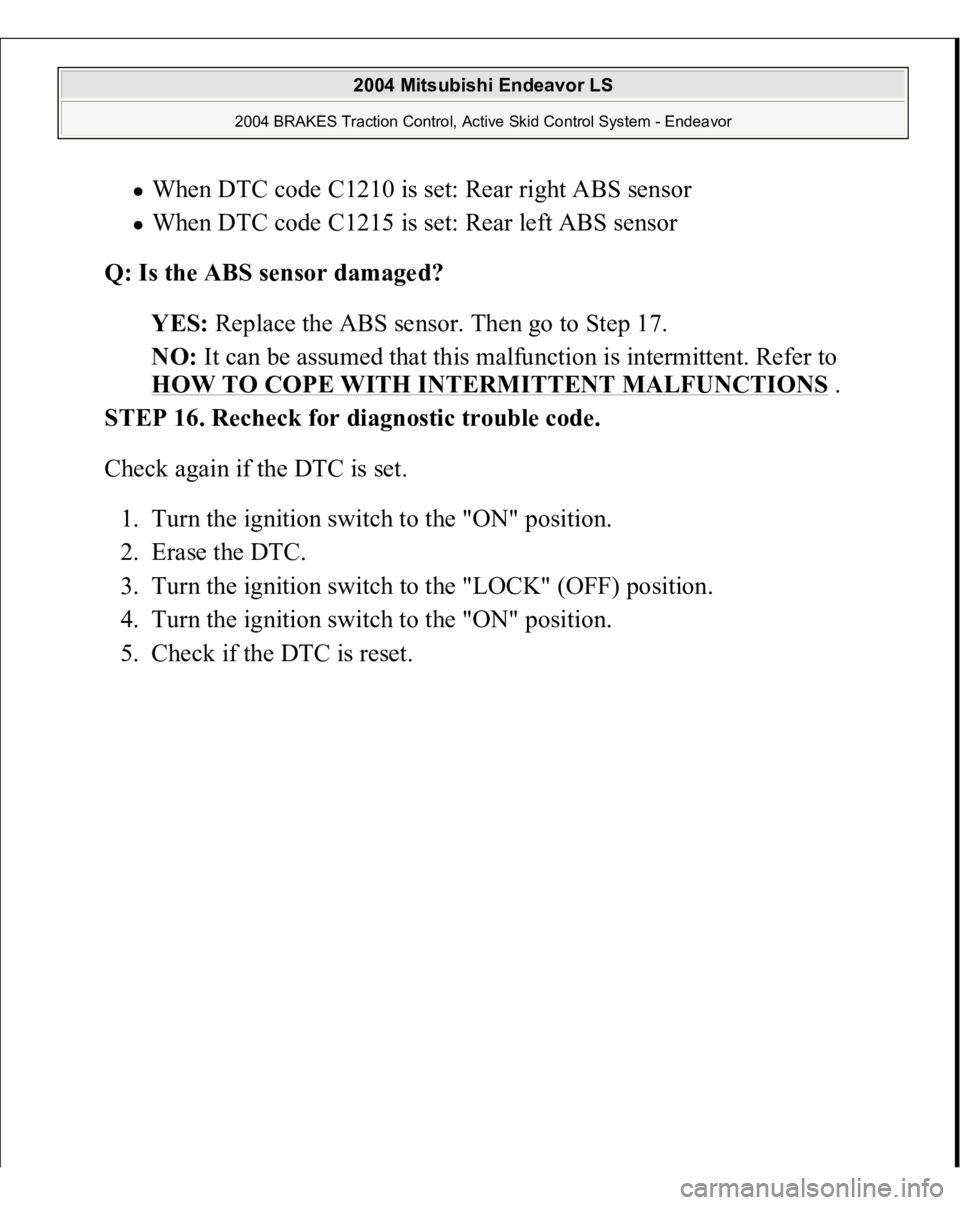

When DTC code C1210 is set: Rear right ABS sensor When DTC code C1215 is set: Rear left ABS sensor
Q: Is the ABS sensor damaged?
YES: Replace the ABS sensor. Then go to Step 17.
NO: It can be assumed that this malfunction is intermittent. Refer to
HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
.
STEP 16. Recheck for diagnostic trouble code.
Check again if the DTC is set.
1. Turn the ignition switch to the "ON" position.
2. Erase the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to the "ON" position.
5. Check if the DTC is reset.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3195 of 3870

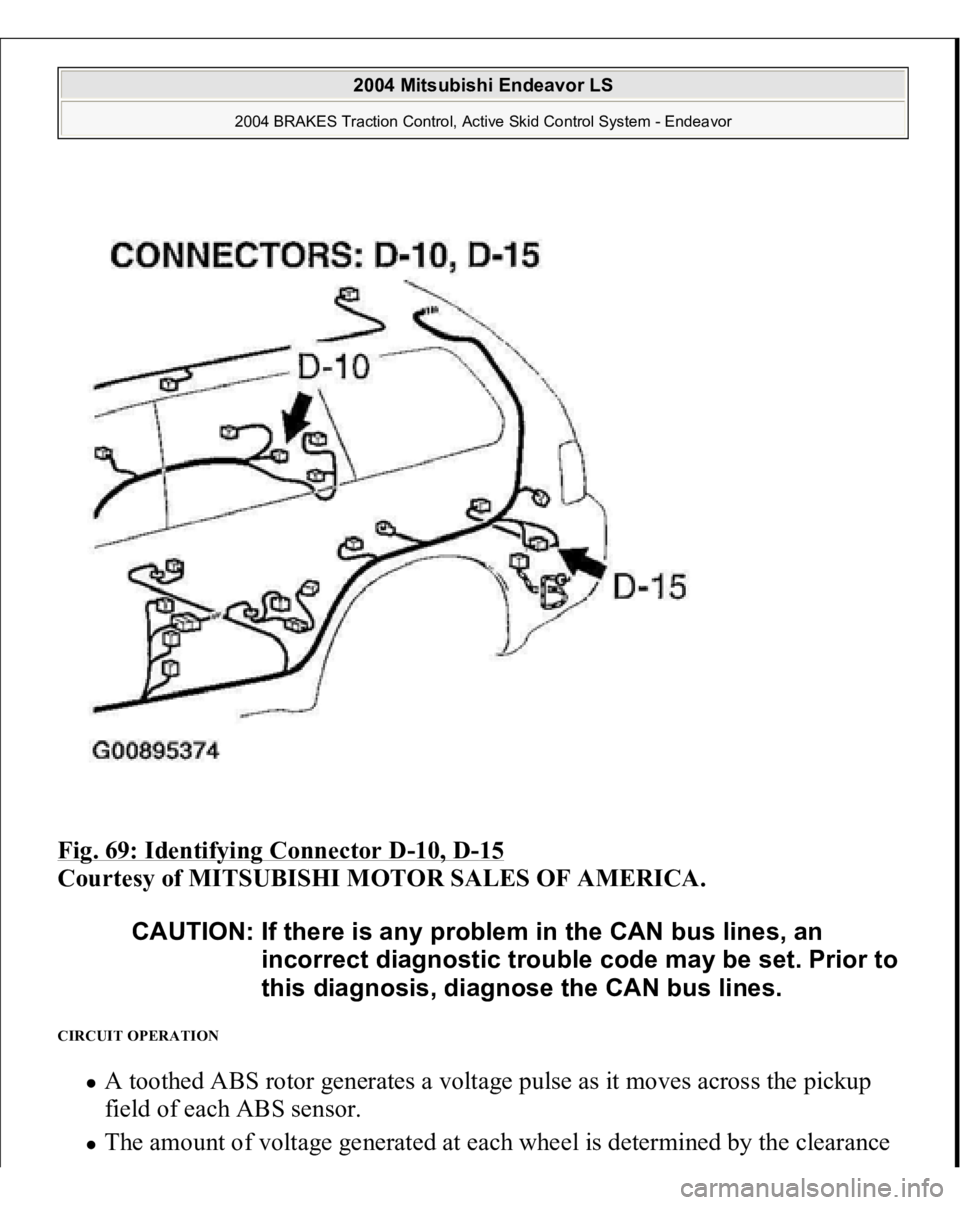

Fig. 69: Identifying Connector D
-10, D
-15
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CIRCUIT OPERATION
A toothed ABS rotor generates a voltage pulse as it moves across the pickup
field of each ABS sensor. The amount of voltage generated at each wheel is determined by the clearance
CAUTION: If there is any problem in the CAN bus lines, an
incorrect diagnostic trouble code may be set. Prior to
this diagnosis, diagnose the CAN bus lines.
