2004 ISUZU TF SERIES wiring

5A-30 BRAKE CONTROL SYSTEM

Diagnostic Trouble Codes
Choose and trace an appropriate flowchart by the
numbers listed below to find fault and repair.
Note:
DTC cannot be erased when the DTC is a present.

Warning Lamp System Control Main Items
DTC
(Flash
Code) Description
ABS Brake
(EBD)ABS EBD
-
(12) Normal Condition




-
C0221
(21) Front Right Wheel Speed Sensor Short
Circuit or Circuit Open

*A

Sensor or Wiring
C0222
(22) Front Right Wheel Speed Sensor
Incorrect Signal *B

A

Sensor or install condition
C0223
(23) Front Right Wheel Speed Sensor Signal
- Tooth Chipping

*A

Sensor Rotor or install
condition
C0225
(25) Front Left Wheel Speed Sensor Short
Circuit or Circuit Open

*A

Sensor or Wiring
C0226
(26) Front Left Wheel Speed Sensor
Incorrect Signal *B

*A

Sensor or install condition
C0227
(27) Front Left Wheel Speed Sensor Signal -
Tooth Chipping

*A

Sensor Rotor or install
condition
C0231
(31) Rear Right Wheel Speed Sensor Short
Circuit or Circuit Open

*A

Sensor or Wiring
C0232
(32) Rear Right Wheel Speed Sensor
Incorrect Signal *B

*A

Sensor or install condition
C0233
(33) Rear Right Wheel Speed Sensor Signal
- Tooth Chipping

*A

Sensor Rotor or install
condition
C0235
(35) Rear Left Wheel Speed Sensor Short
Circuit or Circuit Open

*A

Sensor or Wiring
C0236
(36) Rear Left Wheel Speed Sensor
Incorrect Signal *B

*A

Sensor or install condition
C0237
(37) Rear Left Wheel Speed Sensor Signal -
Tooth Chipping

*A

Sensor Rotor or install
condition
C0238
(38) Tire Diameter Error



Vehicle , Sensor or Tire
C0241
(41) Front Right Isolation Solenoid Circuit
Open or Shorted to Ground



Solenoid (EHCU)
C0242
(42) Front Right Dump Solenoid Circuit
Open or Shorted to Ground



Solenoid (EHCU)
C0243
(43) Front Right Isolation Solenoid Circuit
Shorted to Battery



Solenoid (EHCU)
C0244
(44) Front Right Dump Solenoid Circuit
Shorted to Battery



Solenoid (EHCU)
C0245
(45) Front Left Isolation Solenoid Open Or
Shorted to Ground



Solenoid (EHCU)
C0246
(46) Front Left Dump Solenoid Circuit Open
Or Shorted to Ground



Solenoid (EHCU)
C0247
(47) Front Left Isolation Solenoid Circuit
Shorted to Battery



Solenoid (EHCU)

BRAKE CONTROL SYSTEM 5A-31

Warning Lamp System Control Main Items DTC
(Flash
Code) Description
ABS Brake
(EBD)ABS EBD
C0248
(48) Front Left Dump Solenoid Circuit
Shorted to Battery



Solenoid (EHCU)
C0251
(51) Rear Isolation Solenoid Circuit Open or
Shorted to Ground



Solenoid (EHCU)
C0252
(52) Rear Dump Solenoid Circuit Open or
Shorted to Ground



Solenoid (EHCU)
C0253
(53) Rear Isolation Solenoid Circuit Shorted
to Battery



Solenoid (EHCU)
C0254
(54) Rear Dump Solenoid Circuit Shorted to
Battery



Solenoid (EHCU)
C0265
(65) Fail Safe Relay (FSR) Shorted to
Ground



Motor (EHCU)
C0266
(66) Fail Safe Relay (FSR) Shorted to
Battery



Relay (EHCU)
C0267
(67) ABS Motor Shorted to Ground



Motor (EHCU)
C0268
(68) ABS Motor Shorted to Battery



Motor (EHCU)
C0271
(71) ECU Failure or Valve +B Circuit Open



EHCU
C0274
(74) ABS Operation Long Time



EHCU

C0276
(76) G-Sensor Malfunction



Sensor or Wiring




Battery, Wiring or EHCU
(less than 9V) C0277
(77) Power Supply Low Input




Battery or Wiring
(less than 10V)
C0278
(78) Power Supply High Input



Battery or Wiring EHCU
C0282
(82) 4 Wheel Drive State Input Signal Failure



Wiring
C0285
(85) Assembly Error (G-sensor)



Vehicle (Sensor or EHCU)

*A : When three or more failure are detected, or when
failure containing both front wheels and each rear
wheels are detected, EBD warning lamp is "ON"
and control is canceled.
*B : ABS lamp is “OFF” when the ABS lamp is “ON”
after a repair until vehicles speed becomes more
than 6km/h (4mph) in the following ignition cycle
and failure is not detected.

5B -2 ANTI-LOCK BRAKE SYSTEM

Removal .................................................................................................................................... 5B – 19
Installation ................................................................................................................................ 5B – 19
Special Tools ........................................................................................................................... 5B – 20


Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.


CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

PARKING BRAKE SYSTEM 5D-1

SECTION 5D
BRAKES
PARKING BRAKE SYSTEM
CONTENTS

Service Precaution .......................................... 5D-1
Service Precaution ....................................... 5D-1
General Description ...................................... 5D-1
Parking Brake Lever ........................................ 5D-2
Parking Brake Lever Assembly and
Associated Parts (Bench Seat) .................. 5D-2
Removal ....................................................... 5D-3
Installation............................................................
5D-3
Front Parking Brake Cable....................................
5D-5
Front Parking Brake Cable and Associated
Parts (Bench Seat).........................................
5D-5
Removal...............................................................
5D-6
Installation............................................................
5D-6
Parking Brake Lever...............................................
5D-8
Parking Brake Lever Assembly and Associated
Parts (Buckle Seat)....................................... 5D-8
Removal ....................................................... 5D-8
Installation .................................................... 5D-8
Parking Brake Rear Cable ............................... 5D-9
Parking Brake Rear Cable and Associated
Parts ............................................................ 5D-9
Removal ....................................................... 5D-10
Installation .................................................... 5D-10
Inspection and Repair ................................... 5D-11
Parking Brake Adjustment ............................ 5D-11
Main Data and Specifications........................... 5D-12
Troubleshooting ............................................ 5D-13


Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFE
R
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, o
r
other corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

General Description
Pulling up the parking brake lever by hand will set the
parking brake. By means of a ratchet type lock, the
lever can be held in that position until it is released. The
position of the lever is transmitted through cable/leve
r
systems to the rear wheels. These parts are designed
to obtain sufficient braking force even when parking on
slopes. When the parking brake is set, or when the
ignition SW is in the "ON" position, the brake warning
light illuminates. The rear wheel parking brake is a
leading-trailing brake (mechanical inside expansion
type) built in the rear drum brake. Parking brake
adjustment is made through the adjusting hole (bored
through back plate). Parking brake lever stroke should
be adjusted to 8

14 notches with 30kg (bench seat) o
r
6

8 notches with 30kg (bucket seat). Refer to “Parking
Brake Adjustment" in this section.

ELECTRICAL-BODY AND CHASSIS 8A-1
SECTION 8A
ELECTRICAL-BODY AND CHASSIS
TABLE OF CONTENTS
PAGE
General Information ........................................................................................................ 8A- 4
Notes for Working on Electrical Items .......................................................................... 8A- 5
Symbols and Abbreviations ........................................................................................... 8A- 11
Symbols ...................................................................................................................... 8A- 11
Abbreviations ............................................................................................................. 8A- 12
Parts for Electrical Circuit .............................................................................................. 8A- 13
Wiring .......................................................................................................................... 8A- 13
Fuse ............................................................................................................................. 8A- 15
Fusible Link ................................................................................................................ 8A- 15
Relay ............................................................................................................................ 8A- 16
Diode ........................................................................................................................... 8A- 17
Connector ................................................................................................................... 8A- 18
Battery ......................................................................................................................... 8A- 19
Reading the Circuit Diagram .......................................................................................... 8A- 22
Parts Location ............................................................................................................ 8A- 22
Circuit Diagram ........................................................................................................... 8A- 23
Connector List ............................................................................................................. 8A- 23
Main Data and Specifications ........................................................................................ 8A- 24
Bulb Specifications .................................................................................................... 8A- 24
Relay and Fuse ................................................................................................................ 8A- 26
Relay and Fuse Box Location ................................................................................... 8A- 26
Relay Location ............................................................................................................ 8A- 28

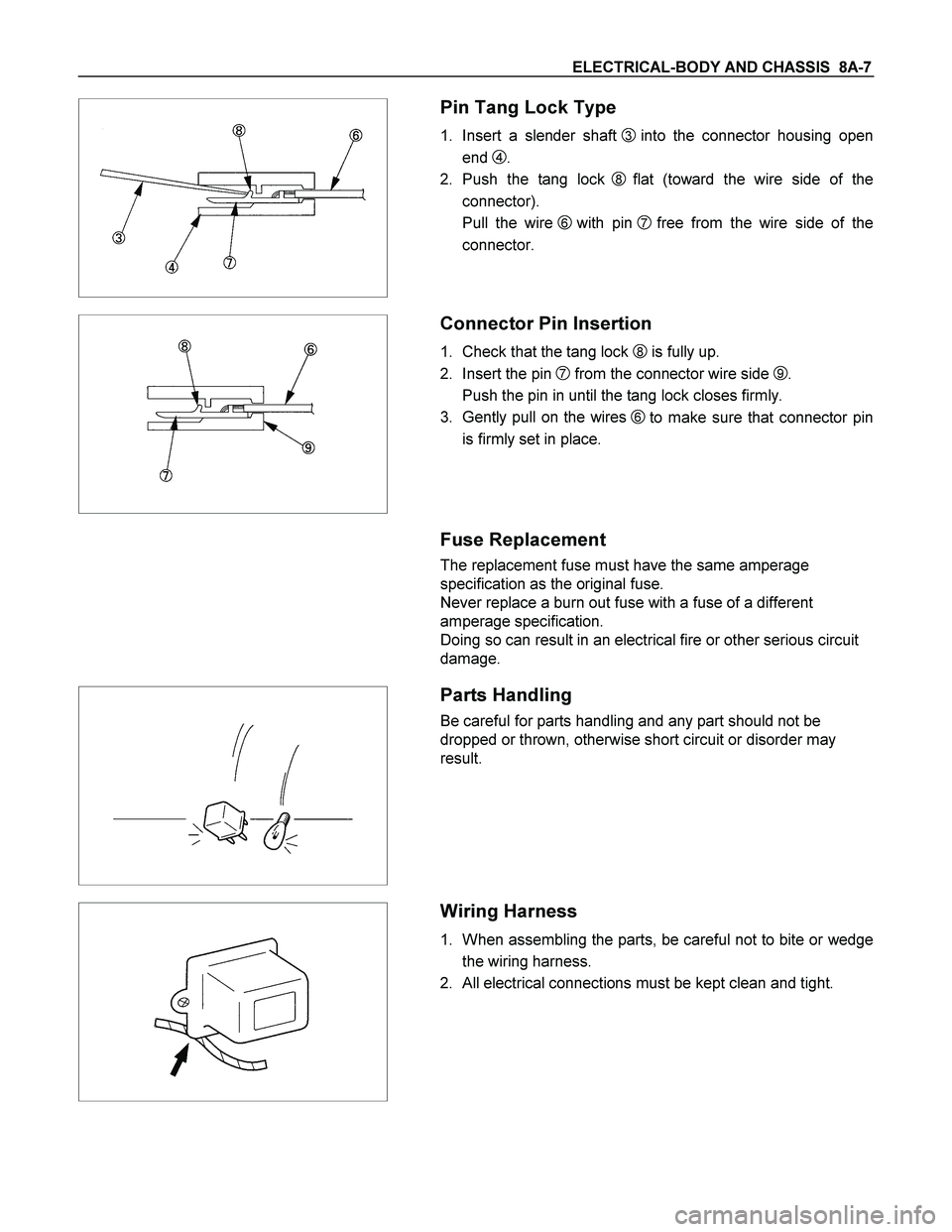

ELECTRICAL-BODY AND CHASSIS 8A-7


Pin Tang Lock Type
1. Insert a slender shaft 3 into the connector housing open
end
4.
2. Push the tang lock
8flat (toward the wire side of the
connector).
Pull the wire
6 with pin 7free from the wire side of the
connector.



Connector Pin Insertion
1. Check that the tang lock 8 is fully up.
2. Insert the pin
7 from the connector wire side 9.
Push the pin in until the tang lock closes firmly.
3. Gently pull on the wires
6to make sure that connector pin
is firmly set in place.



Fuse Replacement
The replacement fuse must have the same amperage
specification as the original fuse.
Never replace a burn out fuse with a fuse of a different
amperage specification.
Doing so can result in an electrical fire or other serious circuit
damage.



Parts Handling
Be careful for parts handling and any part should not be
dropped or thrown, otherwise short circuit or disorder may
result.



Wiring Harness
1. When assembling the parts, be careful not to bite or wedge
the wiring harness.
2. All electrical connections must be kept clean and tight.

8A-8 ELECTRICAL-BODY AND CHASSIS


3. Use a grommet or guard tube to protect the wiring harness
from contacting a sharp edge or surface.



4. Position the wiring harness with enough clearance from the
other parts and guard the wiring harness with a vinyl tube to
avoid direct contact.



5. The wiring harness between engine and chassis should be
long enough to prevent chafing or damage due to various
vibrations.

ELECTRICAL-BODY AND CHASSIS 8A-11
SYMBOLS AND ABBREVIATIONS
SYMBOLS
Symbol Meaning of Symbol Symbol Meaning of Symbol


Fuse
Bulb



Fusible link
Double filament bulb



Fusible link wire
Motor


Switch
Variable resistor Rheostat


Switch
Coil (inductor), solenoid,
magnetic valve


Switch (Normal close type)





Contact wiring
Relay


Battery




Diode
Connector


Electronic Parts
Light emitting diode



Resistor
Reed switch


Speaker
Condenser



Buzzer
Horn


Circuit breaker
Vacuum switching valve
