Page 580 of 4264
10-72 CAB
Important Operations - Removal
1. Front Cover
While pushing the cover downward, pull it.
4. Seat Assembly
Disconnect the seat belt warning harness connecto
r
(Driver’s side only).
5. Side Seat Belt Buckle/Pretensioner Seat Belt/Center
Seat Belt
Remove the seat belt fixing screw and the warning
harness connector clip (Bucket seat model).
RTW4A0SH000101-X
Remove the pretensioner seat belt fixing screw and the
warning harness connector (With pretensioner seat bel
t
model).
Remove the seat belt fixing screws and the warning
harness connector clip (Bench seat model).
Important Operations – Installation
5. Buckle Side Seat Belt/Pretensioner Seat Belt/Center
Seat Belt
Tighten the seat belt fixing screws to the specified
torque.
Torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
Page 584 of 4264
10-76 CAB
FRONT SEAT BELT
REMOVAL AND INSTALLATION
(TONGUE SIDE SEAT BELT)
Removal Steps
1. Body side rear lower trim cover
2. Lower anchor bolt
3. Knob
4. Upper anchor bolt
5. Retractor fixing bolt
6. Body side rear upper trim cover
7. Adjustable shoulder anchor fixing bolts
Installation Steps
7. Adjustable shoulder anchor fixing bolts
6. Body side rear upper trim cover
5. Retractor fixing bolt
4. Upper anchor bolt
3. Knob
2. Lower anchor bolt
1. Body side rear lower trim cover

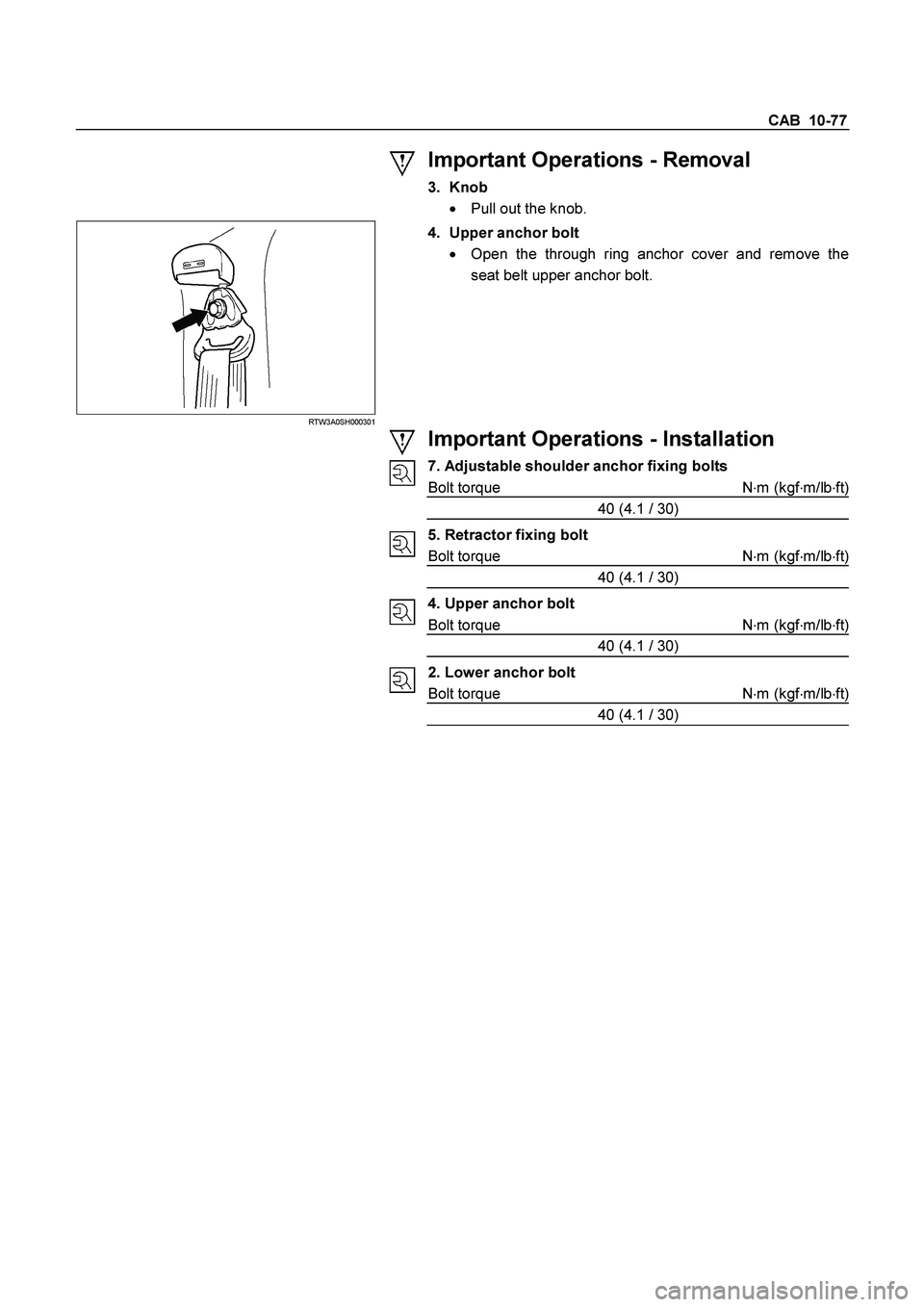

Page 585 of 4264
CAB 10-77
Important Operations - Removal
3. Knob
Pull out the knob.
RTW3A0SH000301
4. Upper anchor bolt
Open the through ring anchor cover and remove the
seat belt upper anchor bolt.
Important Operations - Installation
7. Adjustable shoulder anchor fixing bolts
Bolt torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
5. Retractor fixing bolt
Bolt torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
4. Upper anchor bolt
Bolt torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
2. Lower anchor bolt
Bolt torque Nm (kgfm/lbft)
40 (4.1 / 30)
Page 586 of 4264
10-78 CAB
REMOVAL AND INSTALLATION
(SIDE SEAT BELT BUCKLE/PRETENSIONER SEAT BELT/ CENTER SEAT BELT)
RTW3A0MF000401
Removal Steps
1. Front seat assembly
2. Side seat belt buckle/Pretensioner seat
belt/Center seat belt
Installation Steps
2. Side seat belt buckle/Pretensioner seat
belt/Center seat belt
1. Front seat assembly
Page 587 of 4264
CAB 10-79
Important Operations - Removal
1. Front Seat Assembly
Refer to Front Seat in this section.
2. Side Seat Belt Buckle/Pretensioner Seat Belt/Center
Seat Belt
Remove the seat belt fixing screw and the warning
harness connector clip (Bucket seat model).
RTW4A0SH000101-X
Remove the pretensioner seat belt fixing screw and the
warning harness connector (With pretensioner seat bel
t
model).
Remove the seat belt fixing screws and the warning
harness connector clip (Bench seat model).
Important Operations - Installation
2. Side Seat Belt Buckle/Pretensioner Seat Belt /Center
Seat Belt
Tighten the seat belt fixing screws to the specified
torque.
Torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
1. Front Seat Assembly
Tighten the seat assembly fixing bolts to the specified
torque.
Torque Nm (kgfm/lbft)
40 (4.1 / 30)
Page 588 of 4264
10-80 CAB
REAR SEAT BELT (CREW CAB)
REMOVAL AND INSTALLATION
(TONGUE SIDE SEAT BELT)
Removal Steps
1. Body side rear lower trim cover
2. Lower anchor bolt
3. Knob
4. Upper anchor bolt
5. Retractor fixing bolt
6. Body side rear upper trim cover
7. Adjustable shoulder anchor fixing bolts
Installation Steps
7. Adjustable shoulder anchor fixing bolts
6. Body side rear upper trim cover
5. Retractor fixing bolt
4. Upper anchor bolt
3. Knob
2. Lower anchor bolt
1. Body side rear lower trim cover
Page 589 of 4264
CAB 10-81
Important Operations - Removal
3. Knob
Pull out the knob.
RTW3A0SH000301
4. Upper anchor bolt
Open the through ring anchor cover and remove the
seat belt upper anchor bolt.
Important Operations - Installation
7. Adjustable shoulder anchor fixing bolts
Bolt torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
5. Retractor fixing bolt
Bolt torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
4. Upper anchor bolt
Bolt torque N
m (kgf
m/lb
ft)
40 (4.1 / 30)
2. Lower anchor bolt
Bolt torque Nm (kgfm/lbft)
40 (4.1 / 30)
Page 590 of 4264
10-82 CAB
REMOVAL AND INSTALLATION
(REAR CENTER SEAT BELT/REAR SEAT BELT BACKLE)
RTW3A0LF000901
Removal Steps
1. Nut
2. Rear seat belt buckle
3. Cover
4. Rear end trim cover
5. Bolt
6. Rear center seat belt
Installation Steps
6. Rear center seat belt
5. Bolt
4. Rear end trim cover
3. Cover
2. Rear seat belt buckle
1. Nut
