CAN SYSTEM (TYPE 4)
LAN-131
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Work FlowUKS001NT
1. When there are no indications of “AUTO DRIVE POS.”, “BCM” or “IPDM E/R” on “SELECT SYSTEM” dis-
play of CONSULT-II, print the “SELECT SYSTEM”.
2. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “ICC”, “AUTO DRIVE POS.”, “BCM”,
“ALL MODE AWD/4WD”, “ABS” and “IPDM E/R” displayed on CONSULT-II.
3. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “A/T”, “ICC”, “AUTO DRIVE POS.”,
“BCM”, “ALL MODE AWD/4WD”, “ABS” and “IPDM E/R” displayed on CONSULT-II.
4. Attach the printed sheet of “SELECT SYSTEM”, “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT
MNTR” onto the check sheet. Refer to LAN-133, "
CHECK SHEET" .
5. Based on the indications of “SELECT SYSTEM” and the results of “CAN DIAG SUPPORT MNTR”, put
marks “v” onto the items with “No indication”, “NG” or “UNKWN” in the check sheet table. Refer to LAN-
133, "CHECK SHEET" .
NOTE:

If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” as “CAN DIAG SUPPORT MNTR” for the diag-
nosed control unit, replace the control unit.

The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
6. Check CAN communication line of the navigation system. Refer to AV-131, "
CAN Communication Line
Check" .
7. Attach the CAN DIAG SUPPORT MONITOR check sheet onto the check sheet. Refer to LAN-133,
"CHECK SHEET" .
PKIA2093E
PKIA8260E
PKIA8343E

LAN-132
[CAN]
CAN SYSTEM (TYPE 4)
Revision: August 20072004 QX56
8. Mark the “NG” or “UNKWN” item of the check sheet table with “v” from the result of CAN DIAG SUPPORT
MONITOR check sheet. Refer to LAN-133, "
CHECK SHEET" .
NOTE:
If “NG” is displayed on “CAN COMM” as “CAN DIAG SUPPORT MONITOR” for the diagnosed control
unit, replace the control unit. Refer to AV- 1 3 1 , "
CAN Communication Line Check" .
9. According to the check sheet results (example), start inspection. Refer to LAN-135, "
CHECK SHEET
RESULTS (EXAMPLE)" .

CAN SYSTEM (TYPE 4)
LAN-133
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
CHECK SHEET
NOTE:
If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed control unit,
replace the control unit.
PKIA8110E

CAN SYSTEM (TYPE 4)
LAN-135
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed control unit,
replace the control unit.
Case 1
Check harness between TCM and ICC sensor. Refer to LAN-155, "Circuit Check Between TCM and ICC Sen-
sor" .
PKIA8112E
PKIA8818E

LAN-146
[CAN]
CAN SYSTEM (TYPE 4)
Revision: August 20072004 QX56

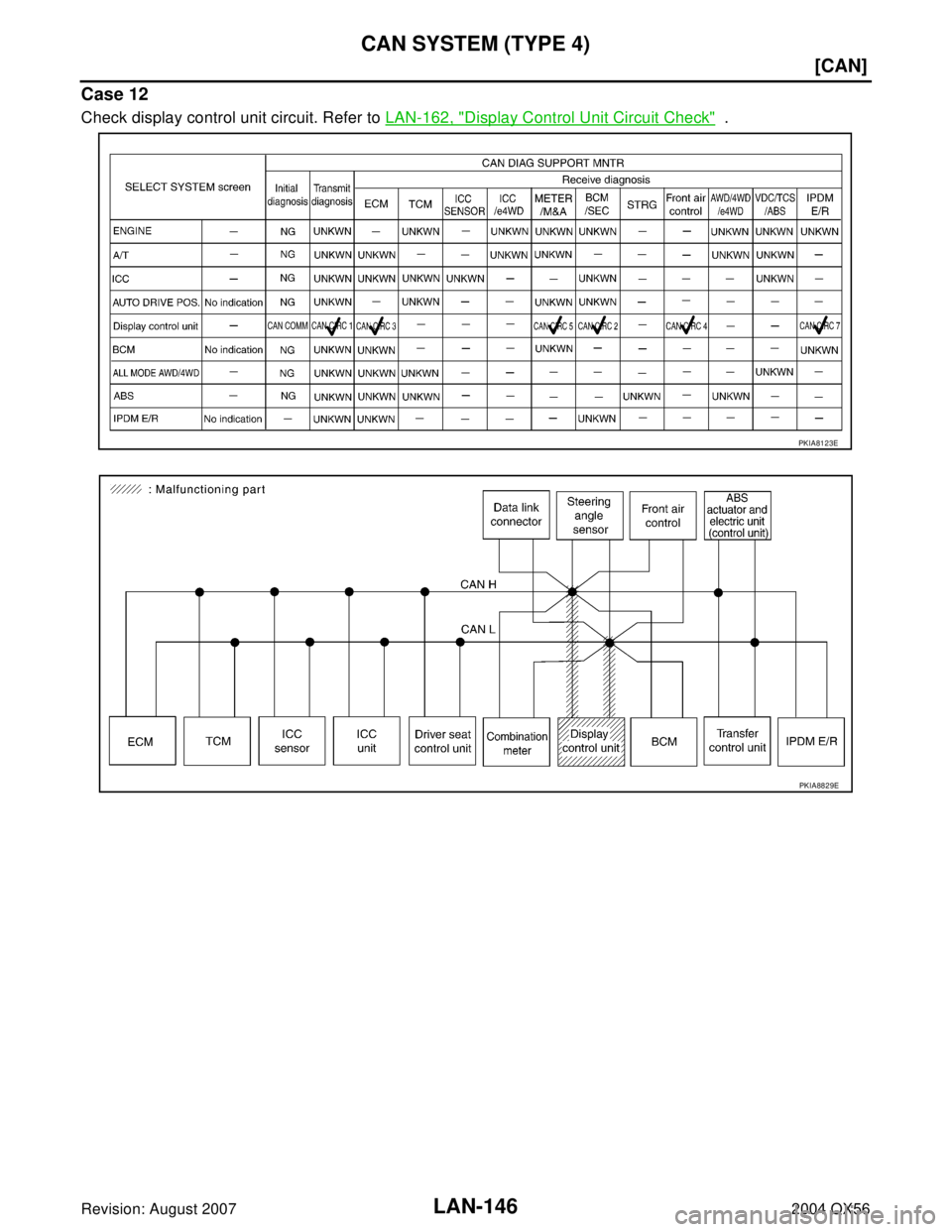

Case 12
Check display control unit circuit. Refer to LAN-162, "Display Control Unit Circuit Check" .
PKIA8123E
PKIA8829E

LAN-162
[CAN]
CAN SYSTEM (TYPE 4)
Revision: August 20072004 QX56
Display Control Unit Circuit CheckUKS001O1
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of display control unit for damage, bend and loose connection (control unit
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect display control unit connector.
2. Check resistance between display control unit harness connec-
tor M95 terminals 25 (W) and 26 (R).
OK or NG
OK >> Replace display control unit.
NG >> Repair harness between display control unit and data
link connector.
BCM Circuit CheckUKS001O2
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of BCM for damage, bend and loose connection (control module side and
harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect BCM connector.
2. Check resistance between BCM harness connector M18 termi-
nals 39 (W) and 40 (R).
OK or NG
OK >> Replace BCM. Refer to BCS-19, "Removal and Installa-
tion of BCM" .
NG >> Repair harness between BCM and data link connector.25 (W) - 26 (R) : Approx. 54 - 66Ω
SKIA6884E
39 (W) - 40 (R) : Approx. 54 - 66Ω
SKIA6869E

LAN-166
[CAN]
CAN SYSTEM (TYPE 4)
Revision: August 20072004 QX56
CAN Communication Circuit CheckUKS001O9
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect the following module and control unit connectors and check terminals for deformation, discon-
nection, looseness or damage.
–ECM
–A/T assembly
–ICC sensor
–ICC unit
–Driver seat control unit
–Combination meter
–Display control unit
–BCM
–Steering angle sensor
–Front air control
–Transfer control unit
–ABS actuator and electric unit (control unit)
–IPDM E/R
OK or NG
OK >> GO TO 2.
NG >> Repair or replace as necessary.
2. CHECK HARNESS FOR SHORT CIRCUIT
With all module and control unit connectors disconnected, check
continuity between data link connector M22 terminals 6 (W) and 14
(R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M22 terminals 6 (W),
14 (R) and ground.
OK or NG
OK >> Check ECM and IPDM E/R. Refer to LAN-167, "ECM/
IPDM E/R INTERNAL CIRCUIT INSPECTION" .
NG >> Repair harness.
IPDM E/R Ignition Relay Circuit CheckUKS001OA
Check the following. If no malfunction is found, replace the IPDM E/R.

IPDM E/R power supply circuit. Refer to PG-27, "IPDM E/R Power/Ground Circuit Inspection" . 6 (W) - 14 (R) : Continuity should not exist.
PKIA2077E
6 (W) - Ground : Continuity should not exist.
14 (R) - Ground : Continuity should not exist.
PKIA2079E

LT-18
HEADLAMP (FOR USA)
Revision: August 20072004 QX56
CONSULT-II Function (BCM)EKS0079Y
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn igni-
tion switch ON.
2. Touch “START (NISSAN BASED VHCL)”.
3. Touch “BCM” on “SELECT SYSTEM” screen.
If “BCM” is not indicated, go to GI-39, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
BCM diagnostic
test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
BBIA0369E
BCIA0029E
