2004 INFINITI FX35 headlamp

LT-30
HEADLAMP - XENON TYPE -
Revision: 2004 November 2004 FX35/FX45

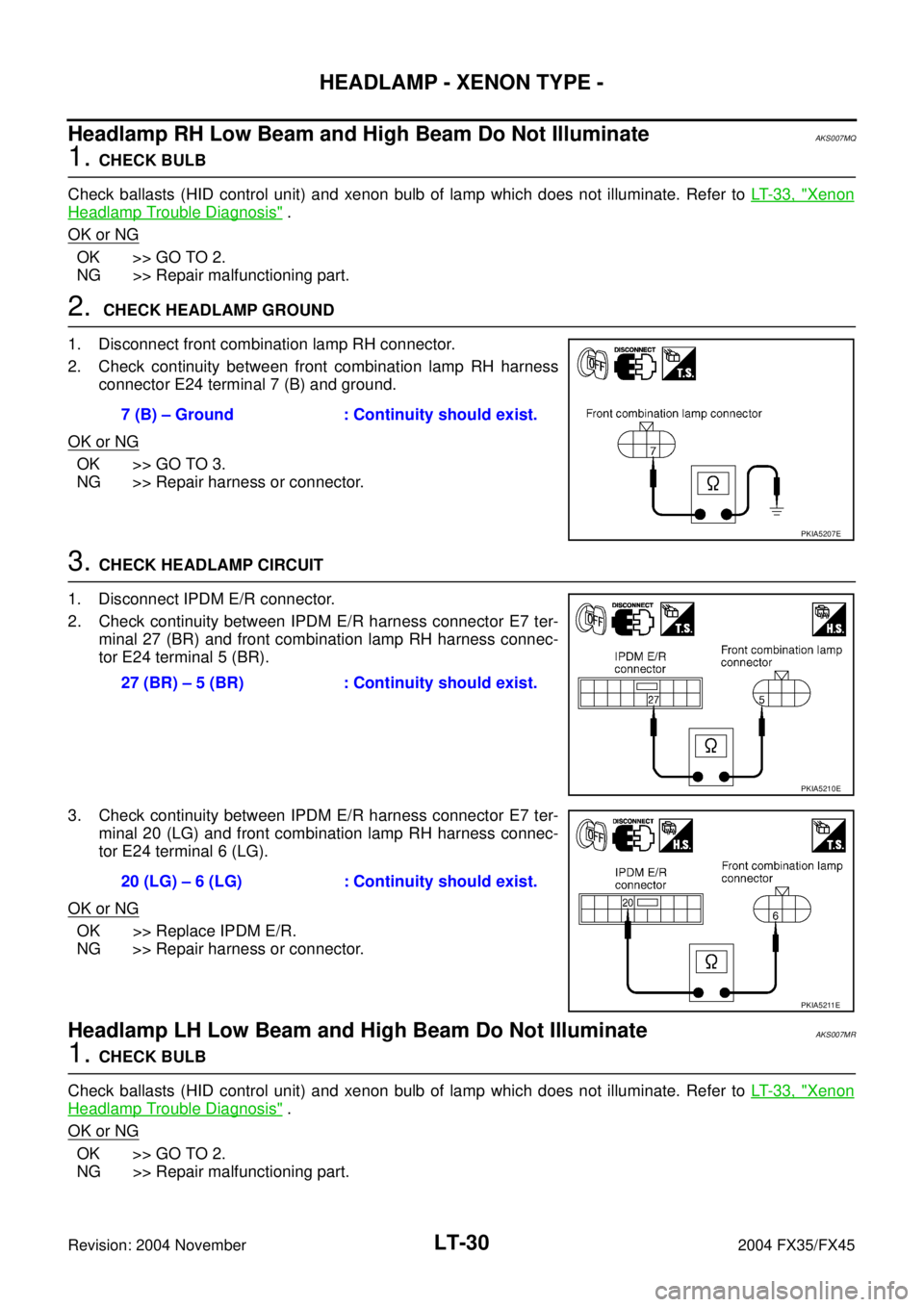

Headlamp RH Low Beam and High Beam Do Not Illuminate AKS007MQ
1. CHECK BULB
Check ballasts (HID control unit) and xenon bulb of lamp which does not illuminate. Refer to LT- 3 3 , "
Xenon
Headlamp Trouble Diagnosis" .
OK or NG
OK >> GO TO 2.
NG >> Repair malfunctioning part.
2. CHECK HEADLAMP GROUND
1. Disconnect front combination lamp RH connector.
2. Check continuity between front combination lamp RH harness
connector E24 terminal 7 (B) and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK HEADLAMP CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector E7 ter-
minal 27 (BR) and front combination lamp RH harness connec-
tor E24 terminal 5 (BR).
3. Check continuity between IPDM E/R harness connector E7 ter-
minal 20 (LG) and front combination lamp RH harness connec-
tor E24 terminal 6 (LG).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness or connector.
Headlamp LH Low Beam and High Beam Do Not Illuminate AKS007MR
1. CHECK BULB
Check ballasts (HID control unit) and xenon bulb of lamp which does not illuminate. Refer to LT- 3 3 , "
Xenon
Headlamp Trouble Diagnosis" .
OK or NG
OK >> GO TO 2.
NG >> Repair malfunctioning part.7 (B) – Ground : Continuity should exist.
PKIA5207E
27 (BR) – 5 (BR) : Continuity should exist.
PKIA5210E
20 (LG) – 6 (LG) : Continuity should exist.
PKIA5211E

HEADLAMP - XENON TYPE -
LT-31
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45

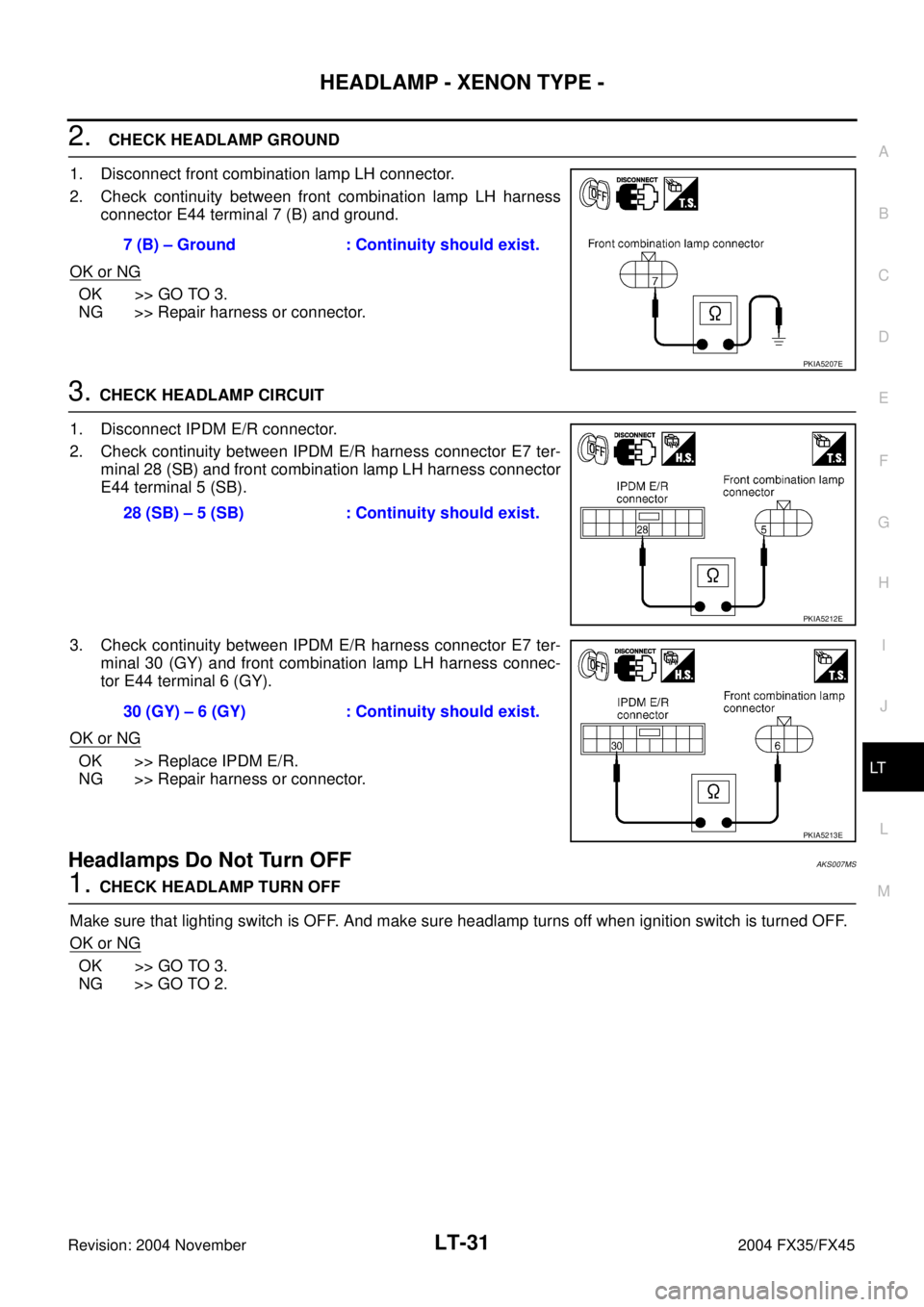

2. CHECK HEADLAMP GROUND
1. Disconnect front combination lamp LH connector.
2. Check continuity between front combination lamp LH harness
connector E44 terminal 7 (B) and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK HEADLAMP CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector E7 ter-
minal 28 (SB) and front combination lamp LH harness connector
E44 terminal 5 (SB).
3. Check continuity between IPDM E/R harness connector E7 ter-
minal 30 (GY) and front combination lamp LH harness connec-
tor E44 terminal 6 (GY).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness or connector.
Headlamps Do Not Turn OFFAKS007MS
1. CHECK HEADLAMP TURN OFF
Make sure that lighting switch is OFF. And make sure headlamp turns off when ignition switch is turned OFF.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.7 (B) – Ground : Continuity should exist.
PKIA5207E
28 (SB) – 5 (SB) : Continuity should exist.
PKIA5212E
30 (GY) – 6 (GY) : Continuity should exist.
PKIA5213E

LT-32
HEADLAMP - XENON TYPE -
Revision: 2004 November 2004 FX35/FX45

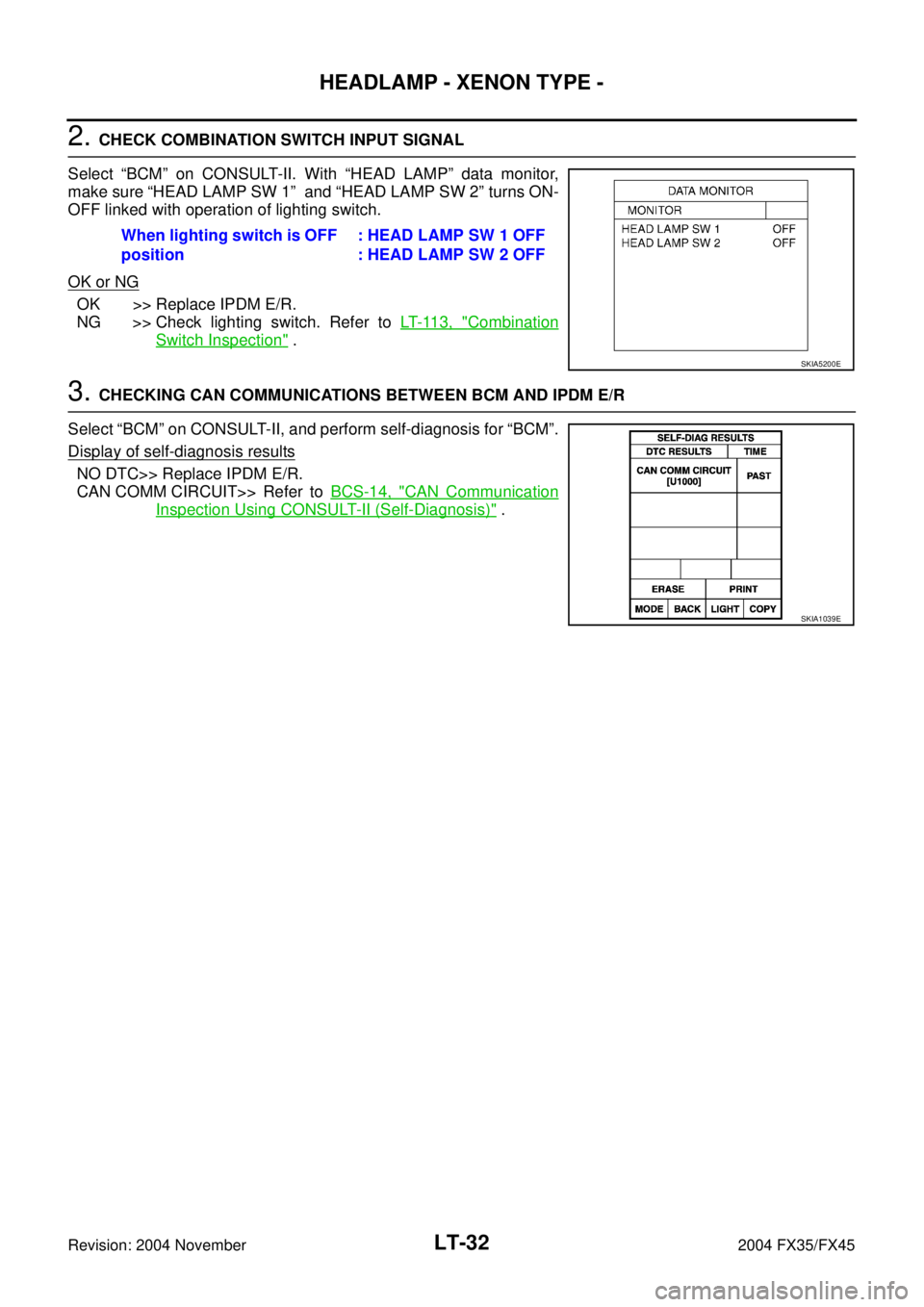

2. CHECK COMBINATION SWITCH INPUT SIGNAL
Select “BCM” on CONSULT-II. With “HEAD LAMP” data monitor,
make sure “HEAD LAMP SW 1” and “HEAD LAMP SW 2” turns ON-
OFF linked with operation of lighting switch.
OK or NG
OK >> Replace IPDM E/R.
NG >> Check lighting switch. Refer to LT- 11 3 , "
Combination
Switch Inspection" .
3. CHECKING CAN COMMUNICATIONS BETWEEN BCM AND IPDM E/R
Select “BCM” on CONSULT-II, and perform self-diagnosis for “BCM”.
Display of self-diagnosis results
NO DTC>> Replace IPDM E/R.
CAN COMM CIRCUIT>> Refer to BCS-14, "
CAN Communication
Inspection Using CONSULT-II (Self-Diagnosis)" . When lighting switch is OFF
position: HEAD LAMP SW 1 OFF
: HEAD LAMP SW 2 OFF
SKIA5200E
SKIA1039E

HEADLAMP - XENON TYPE -
LT-33
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
CAUTION:AKS007MT

Installation or removal of the connector must be done with the lighting switch OFF.

When the lamp is illuminated (when the lighting switch is ON), do not touch the harness, HID control unit,
inside of the lamp, or the lamp metal parts.

To check illumination, temporarily install lamp in the vehicle. Be sure to connect power at the vehicle-side
connector.

If the error can be traced directly to the electrical system, first check for items such as burned-out fuses
and fusible links, broken wires or loose connectors, pulled-out terminals, and improper connections.

Do not work with wet hands.

Using a tester for HID control unit circuit trouble diagnosis is prohibited.

Disassembling the HID control unit or harnesses (bulb socket harness, ECM harness) is prohibited.

Immediately after illumination, the light intensity and color will fluctuate, but there is nothing wrong.

When the bulb has reached the end of its lifetime, the brightness may drop significantly, it may flash
repeatedly, or the light may turn a reddish color.
Xenon Headlamp Trouble DiagnosisAKS007MU
1. CHECK 1: XENON HEADLAMP LIGHTING
Install normal xenon bulb to corresponding xenon bulb headlamp, and check if lamp lights up.
OK or NG
OK >> Replace xenon bulb.
NG >> GO TO 2.
2. CHECK 2: XENON HEADLAMP LIGHTING
Install normal HID control unit to corresponding xenon headlamp, and check if lamp lights up.
OK or NG
OK >> Replace HID control unit.
NG >> GO TO 3.
3. CHECK 3: XENON HEADLAMP LIGHTING
Install normal xenon lamp housing assembly to corresponding xenon headlamp, and check if lamp lights up.
OK or NG
OK >> Malfunction in starter (boosting circuit) in xenon headlamp housing. (Replace xenon headlamp
housing assembly.)
NG >> INSPECTION END

LT-34
HEADLAMP - XENON TYPE -
Revision: 2004 November 2004 FX35/FX45
Aiming AdjustmentAKS007MV
PREPARATION BEFORE ADJUSTING
For details, refer to the regulations in your own country.
Before performing aiming adjustment, check the following.
1. Keep all tires inflated to correct pressures.
2. Place vehicle on flat surface.
3. Set that there is no-load in vehicle other than the driver (or equivalent weight placed in driver's position).
Coolant, engine oil filled up to correct level and full fuel tank.

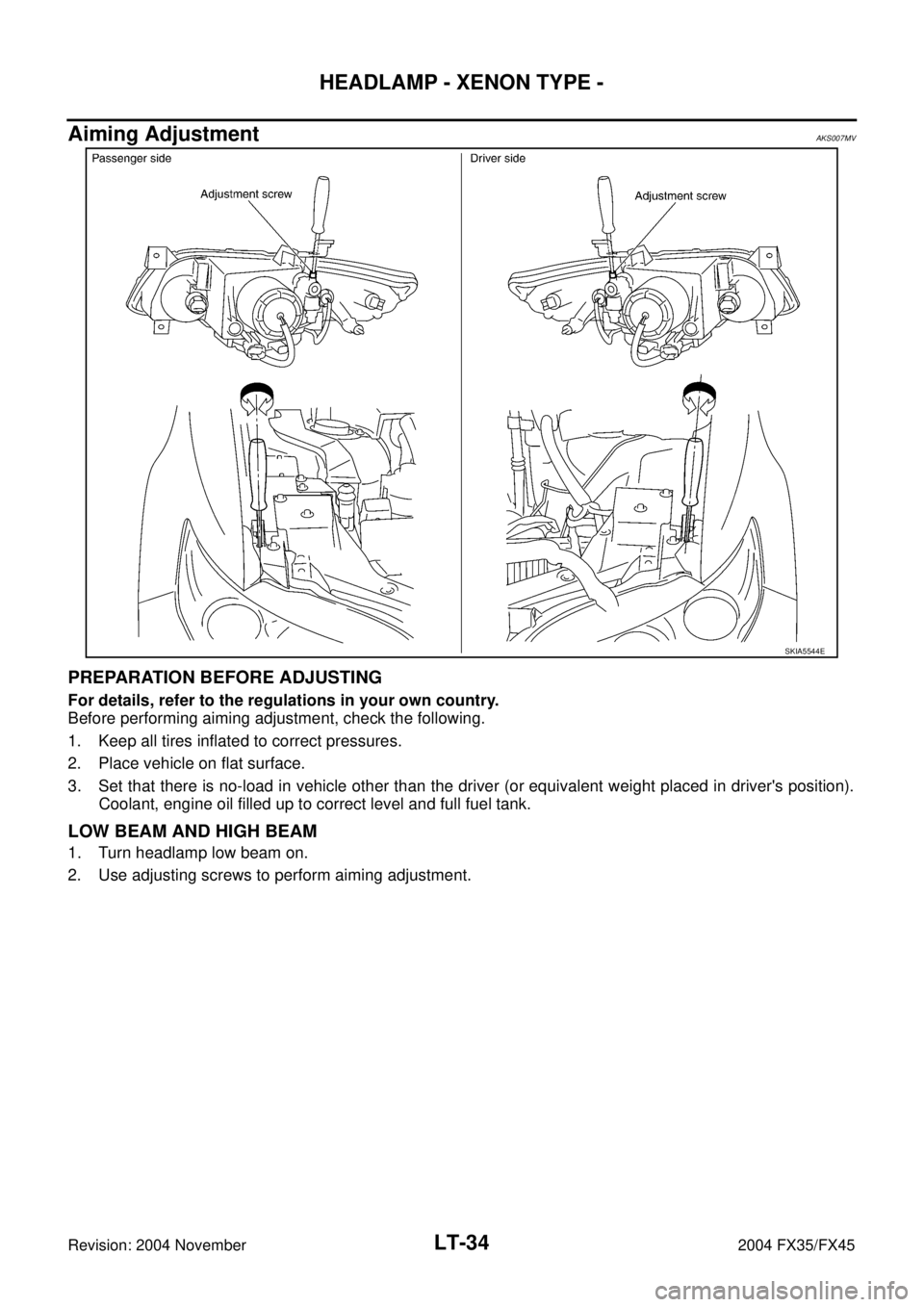

LOW BEAM AND HIGH BEAM
1. Turn headlamp low beam on.
2. Use adjusting screws to perform aiming adjustment.
SKIA5544E

HEADLAMP - XENON TYPE -
LT-35
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45

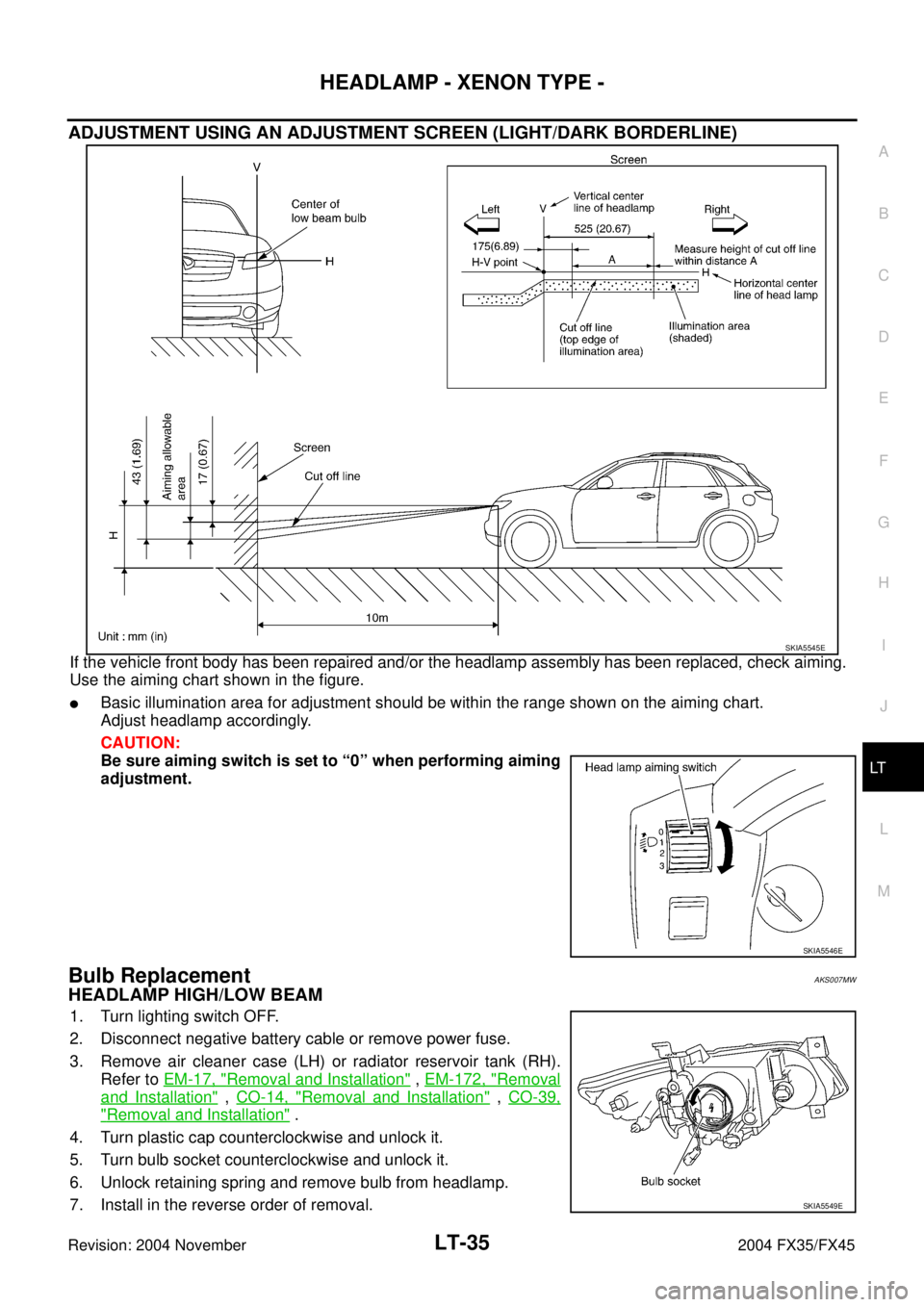

ADJUSTMENT USING AN ADJUSTMENT SCREEN (LIGHT/DARK BORDERLINE)
If the vehicle front body has been repaired and/or the headlamp assembly has been replaced, check aiming.
Use the aiming chart shown in the figure.

Basic illumination area for adjustment should be within the range shown on the aiming chart.
Adjust headlamp accordingly.
CAUTION:
Be sure aiming switch is set to “0” when performing aiming
adjustment.
Bulb ReplacementAKS007MW
HEADLAMP HIGH/LOW BEAM
1. Turn lighting switch OFF.
2. Disconnect negative battery cable or remove power fuse.
3. Remove air cleaner case (LH) or radiator reservoir tank (RH).
Refer to EM-17, "
Removal and Installation" , EM-172, "Removal
and Installation" , CO-14, "Removal and Installation" , CO-39,
"Removal and Installation" .
4. Turn plastic cap counterclockwise and unlock it.
5. Turn bulb socket counterclockwise and unlock it.
6. Unlock retaining spring and remove bulb from headlamp.
7. Install in the reverse order of removal.
SKIA5545E
SKIA5546E
SKIA5549E

LT-36
HEADLAMP - XENON TYPE -
Revision: 2004 November 2004 FX35/FX45

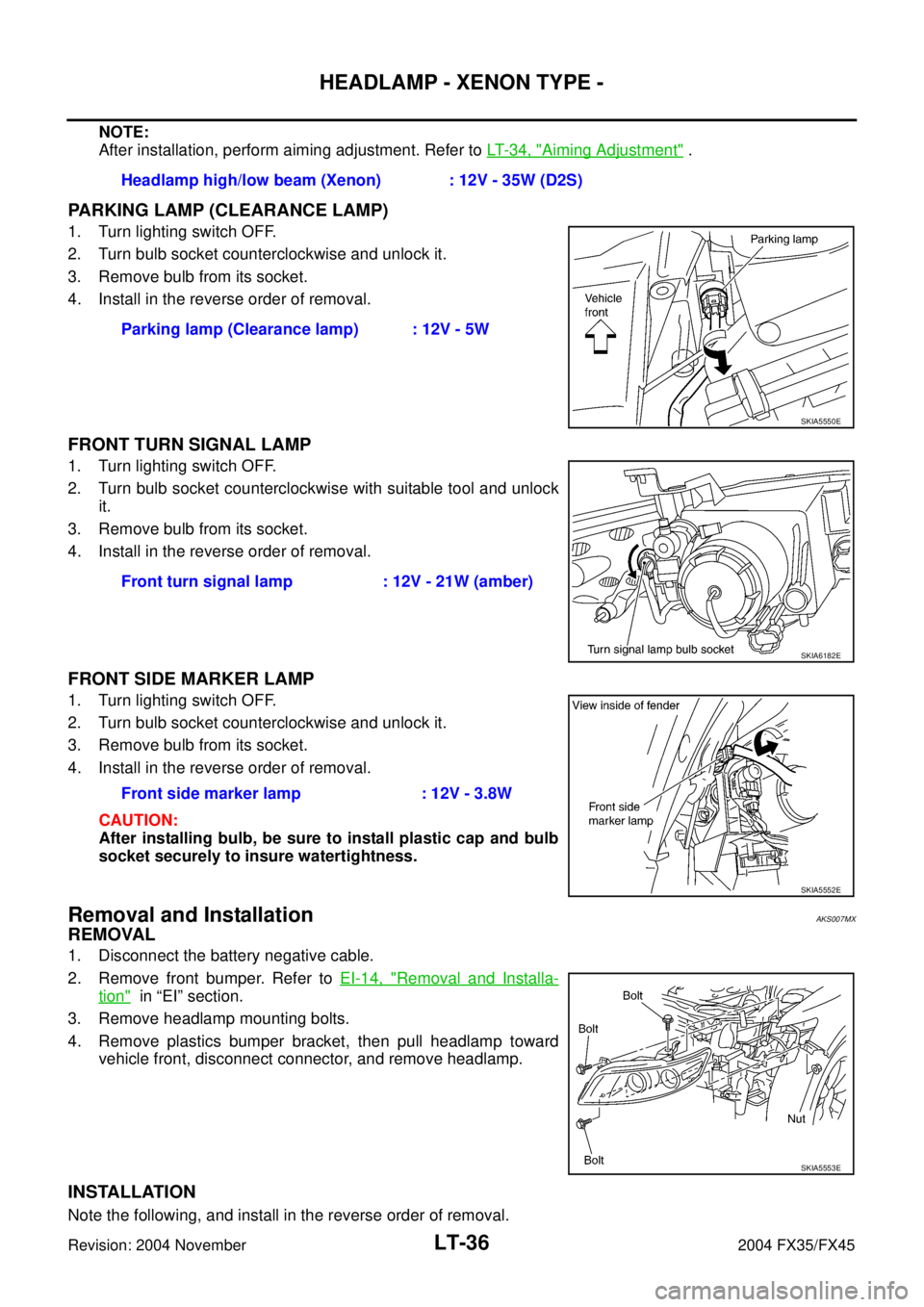

NOTE:
After installation, perform aiming adjustment. Refer to LT- 3 4 , "
Aiming Adjustment" .
PARKING LAMP (CLEARANCE LAMP)
1. Turn lighting switch OFF.
2. Turn bulb socket counterclockwise and unlock it.
3. Remove bulb from its socket.
4. Install in the reverse order of removal.
FRONT TURN SIGNAL LAMP
1. Turn lighting switch OFF.
2. Turn bulb socket counterclockwise with suitable tool and unlock
it.
3. Remove bulb from its socket.
4. Install in the reverse order of removal.
FRONT SIDE MARKER LAMP
1. Turn lighting switch OFF.
2. Turn bulb socket counterclockwise and unlock it.
3. Remove bulb from its socket.
4. Install in the reverse order of removal.
CAUTION:
After installing bulb, be sure to install plastic cap and bulb
socket securely to insure watertightness.
Removal and InstallationAKS007MX
REMOVAL
1. Disconnect the battery negative cable.
2. Remove front bumper. Refer to EI-14, "
Removal and Installa-
tion" in “EI” section.
3. Remove headlamp mounting bolts.
4. Remove plastics bumper bracket, then pull headlamp toward
vehicle front, disconnect connector, and remove headlamp.
INSTALLATION
Note the following, and install in the reverse order of removal. Headlamp high/low beam (Xenon) : 12V - 35W (D2S)
Parking lamp (Clearance lamp) : 12V - 5W
SKIA5550E
Front turn signal lamp : 12V - 21W (amber)
SKIA6182E
Front side marker lamp : 12V - 3.8W
SKIA5552E
SKIA5553E

HEADLAMP - XENON TYPE -
LT-37
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
NOTE:
After installation, perform aiming adjustment. Refer to LT- 3 4 , "
Aiming Adjustment" .

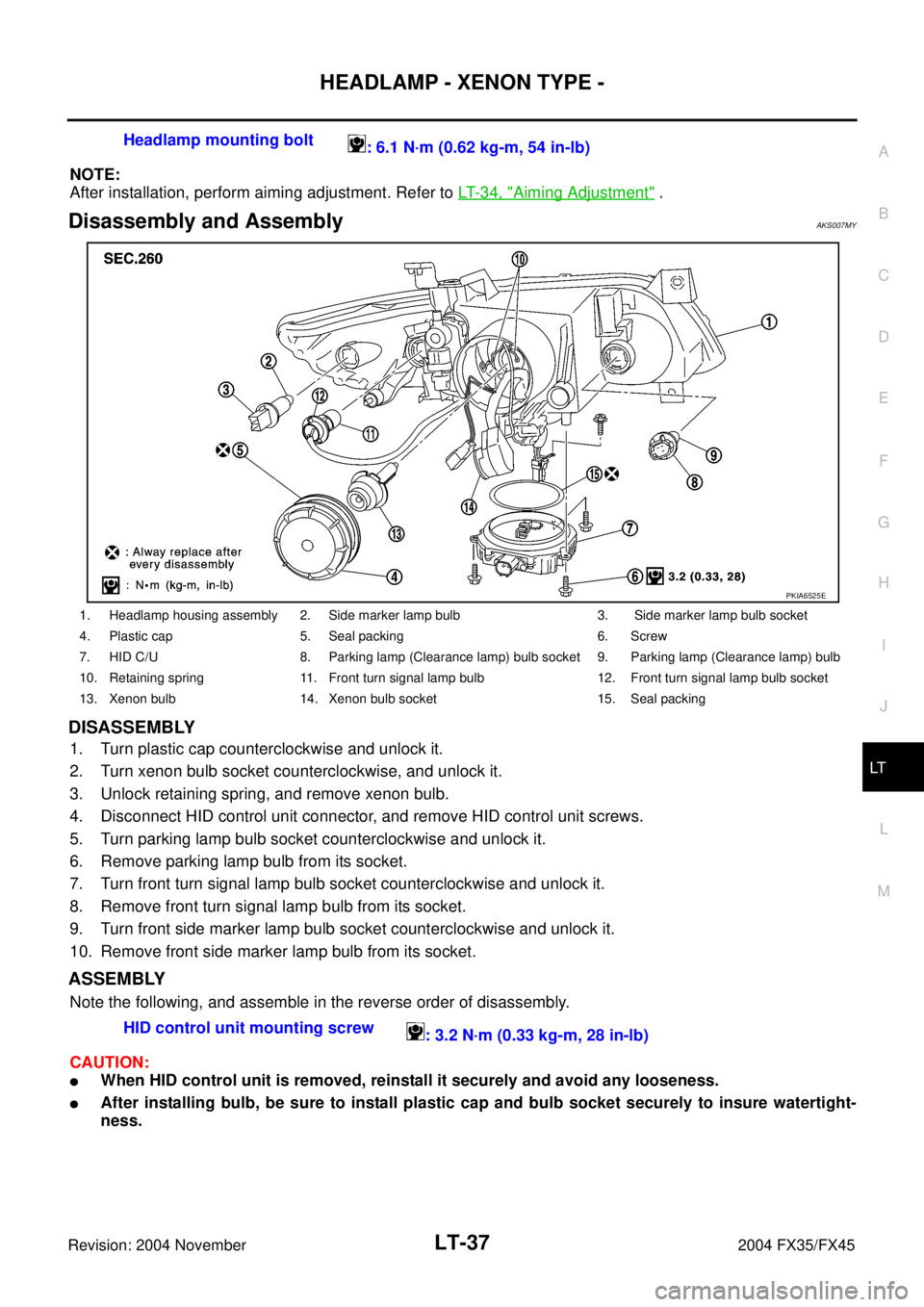

Disassembly and Assembly AKS007MY
DISASSEMBLY
1. Turn plastic cap counterclockwise and unlock it.
2. Turn xenon bulb socket counterclockwise, and unlock it.
3. Unlock retaining spring, and remove xenon bulb.
4. Disconnect HID control unit connector, and remove HID control unit screws.
5. Turn parking lamp bulb socket counterclockwise and unlock it.
6. Remove parking lamp bulb from its socket.
7. Turn front turn signal lamp bulb socket counterclockwise and unlock it.
8. Remove front turn signal lamp bulb from its socket.
9. Turn front side marker lamp bulb socket counterclockwise and unlock it.
10. Remove front side marker lamp bulb from its socket.
ASSEMBLY
Note the following, and assemble in the reverse order of disassembly.
CAUTION:

When HID control unit is removed, reinstall it securely and avoid any looseness.

After installing bulb, be sure to install plastic cap and bulb socket securely to insure watertight-
ness. Headlamp mounting bolt
: 6.1 N·m (0.62 kg-m, 54 in-lb)
1. Headlamp housing assembly 2. Side marker lamp bulb 3. Side marker lamp bulb socket
4. Plastic cap 5. Seal packing 6. Screw
7. HID C/U 8. Parking lamp (Clearance lamp) bulb socket 9. Parking lamp (Clearance lamp) bulb
10. Retaining spring 11. Front turn signal lamp bulb 12. Front turn signal lamp bulb socket
13. Xenon bulb 14. Xenon bulb socket 15. Seal packing
PKIA6525E
HID control unit mounting screw
: 3.2 N·m (0.33 kg-m, 28 in-lb)
