FRONT FOG LAMPPFP:26150
Component Parts and Harness Connector LocationAKS007O5
System DescriptionAKS007CI
Control of the fog lamps is dependent upon the position of the combination switch (lighting switch). The light-
ing switch must be in the 2ND position or AUTO position (LOW beam is ON) for front fog lamp operation.
When the lighting switch is placed in the fog lamp position the BCM (body control module) receives input sig-
nal requesting the fog lamps to illuminate. When the headlamps are illuminated, this input signal is communi-
cated to the IPDM E/R (intelligent power distribution module engine room) across the CAN communication
lines. The central processing unit of the IPDM E/R controls the front fog lamp relay coil. When activated, this
relay directs power to the front fog lamps.
OUTLINE
Power is supplied at all times

to ignition relay [located in IPDM E/R (intelligent power distribution module engine room)]

through 15A fuse [No. 88, located in IPDM E/R (intelligent power distribution module engine room)]

to front fog lamp relay [located in IPDM E/R (intelligent power distribution module engine room)]

through 15A fuse [No. 78, located in IPDM E/R (intelligent power distribution module engine room)]

to CPU (central processing unit) [located in IPDM E/R (intelligent power distribution module engine room)]

through 10A fuse [No. 71, located in IPDM E/R (intelligent power distribution module engine room)]

to CPU (central processing unit) [located in IPDM E/R (intelligent power distribution module engine
room)].
Power is also supplied at all times

through 50A fusible link (letter M, located in the fuse and fusible link block)

to BCM (body control module) terminal 55

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM (body control module) terminal 42.
When the ignition switch is in ON or START position, power is supplied
PKIA5269E

LT-78
FRONT FOG LAMP
Revision: 2004 November 2004 FX35/FX45

to ignition relay [located in IPDM E/R (intelligent power distribution module engine room)]

through 15A fuse [No. 1, located in fuse block (J/B)]

to BCM (body control module) terminal 38.
When the ignition switch is in ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM (body control module) terminal 11.
Ground is supplied

to BCM (body control module) terminals 49 and 52

through grounds M35, M45 and M85

to IPDM E/R (intelligent power distribution module engine room) terminals 38 and 60

through grounds E21, E50 and E51.
Fog Lamp Operation
The fog lamp switch is built into the combination switch. The lighting switch must be in the 2ND position or
AUTO position (LOW beam is ON) and the fog lamp switch must be ON for fog lamp operation.
With the fog lamp switch in the ON position, the CPU of the IPDM E/R grounds the coil side of the fog lamp
relay. The fog lamp relay then directs power

through IPDM E/R terminal 37

to front fog lamp LH terminal 1

through IPDM E/R terminal 36

to front fog lamp RH terminal 1.
Ground is supplied

to front fog lamp LH terminal 2

through grounds E21, E50 and E51, and

to front fog lamp RH terminal 2

through grounds E21, E50 and E51.
With power and grounds supplied, the front fog lamps illuminate.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 2ND position (ON), the fog lamp switch is ON, and the
ignition switch is turned from ON or ACC to OFF, the battery saver control feature is activated.
Under this condition, the fog lamps (and headlamps) remain illuminated for 5 minutes, then the fog lamps (and
headlamps) are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
CAN Communication System DescriptionAKS007CJ
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAKS0080V
Refer to LAN-6, "CAN Communication Unit" .

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-107
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
5. CHECK HAZARD SWITCH
1. Disconnect hazard switch connector.
2. Check continuity hazard switch.
OK or NG
OK >> Replace BCM if turn signal lamps does not work after
setting the connector again. Refer to BCS-15, "
Removal
and Installation of BCM" .
NG >> Replace hazard switch.
Turn Signal Indicator Lamp Does Not OperateAKS007D7
1. CHECK BULB
Check bulb of turn signal indicator lamp in combination meter.
OK or NG
OK >> Replace combination meter.
NG >> Replace indicator bulb.
Bulb Replacement (Front Turn Signal Lamp)AKS007D8
Refer to LT- 3 5 , "Bulb Replacement" in “HEADLAMP -XENON TYPE-”.
Bulb Replacement (Rear Turn Signal Lamp)AKS007D9
Refer to LT- 1 4 7 , "Bulb Replacement" in “REAR COMBINATION LAMP”.
Removal and Installation of Front Turn Signal LampAKS007DA
Refer to LT- 3 6 , "Removal and Installation" in “HEADLAMP -XENON TYPE-”.
Removal and Installation of Rear Turn Signal Lamp AKS007DB
Refer to LT- 1 4 7 , "Removal and Installation" in “REAR COMBINATION LAMP”.
Removal and Installation of Rear Combination Lamp Control UnitAKS007NX
REMOVAL
1. Remove luggage side finisher assembly (left). Refer to EI-44,
"Removal and Installation" in “EI” section.
2. Remove nuts (2), and remove rear combination lamp control
unit.
INSTALLATION
Install in the reverse order of removal.
Te r m i n a l
Condition Continuity
Hazard switch
12Hazard switch is ON. Yes
Hazard switch is OFF. No

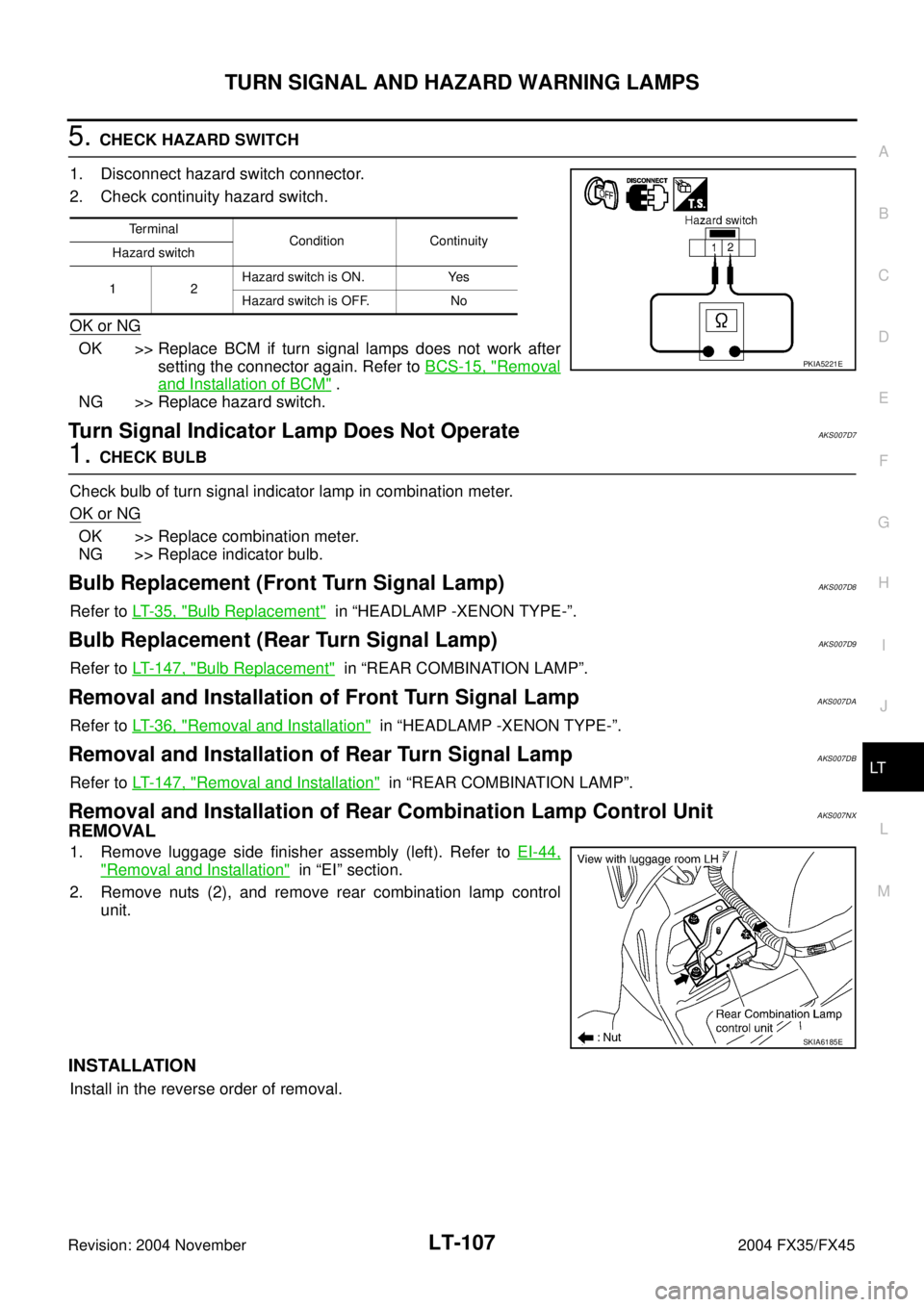

PKIA5221E
SKIA6185E

LT-112
COMBINATION SWITCH
Revision: 2004 November 2004 FX35/FX45
4. Touch “COMB SW”.
DATA MONITOR
Operation Procedure
1. Touch “COMB SW” on “SELECT TEST ITEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on “DATA MONITOR” screen.
4. Touch “START”.
5. When “SELECTION FROM MENU” is selected, touch items to be monitored. When “ALL SIGNALS” is
selected, all the signals will be monitored.
6. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch “STOP”.
Display Item List
PKIA5223E
ALL SIGNALS Monitors all the signals.
SELECTION FROM MENU Selects and monitors individual signal.
Monitor item name
“OPERATION OR UNIT”Contents
TURN SIGNAL R “ON/OFF” Displays “Turn Right (ON)/Other (OFF)” status, determined from lighting switch signal.
TURN SIGNAL L “ON/OFF” Displays “Turn Left (ON)/Other (OFF)” status, determined from lighting switch signal.
HI BEAM SW “ON/OFF”Displays status (high beam switch: ON/Others: OFF) of high beam switch judged from lighting
switch signal.
HEAD LAMP SW 1 “ON/OFF” Displays “Headlamp switch 1 (ON)/Other (OFF)” status, determined from lighting switch signal.
HEAD LAMP SW 2 “ON/OFF”Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 2 judged from lighting
switch signal.
TAIL LAMP SW “ON/OFF”Displays status (lighting switch 1st position: ON/Others: OFF) of lighting switch judged from light-
ing switch signal.
PASSING SW “ON/OFF”Displays status (flash-to-pass switch: ON/Others: OFF) of flash-to-pass switch judged from light-
ing switch signal.
AUTO LIGHT SW “ON/OFF” Displays “Auto light switch (ON)/Other (OFF)” status, determined from lighting switch signal.
FR FOG SW “ON/OFF” Displays “Front fog lamp switch (ON)/Other (OFF)” status, determined from lighting switch signal.
FR WIPER HI “ON/OFF” Displays “Front Wiper HI (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WIPER LOW “ON/OFF” Displays “Front Wiper LOW (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WIPER INT “ON/OFF” Displays “Front Wiper INT (ON)/Other (OFF)” status, determined from wiper switch signal.
FR WASHER SW “ON/OFF” Displays “Front Washer Switch (ON)/Other (OFF)” status, determined from wiper switch signal.
INT VOLUME [1 - 7] Displays intermittent operation knob setting (1 - 7), determined from wiper switch signal.
RR WIPER ON “ON/OFF” Displays “rear Wiper (ON)/Other (OFF)” status as judged from wiper switch signal.
RR WIPER INT “ON/OFF” Displays “rear Wiper INT (ON)/Other (OFF)” status as judged from wiper switch signal.
RR WASHER SW “ON/OFF” Displays “rear Washer Switch (ON)/Other (OFF)” status as judged from wiper switch signal.

LT-198
BULB SPECIFICATIONS
Revision: 2004 November 2004 FX35/FX45
BULB SPECIFICATIONSPFP:26297
HeadlampAKS007EO
Exterior LampAKS007EP
Interior Lamp/IlluminationAKS007EQ
Item Wattage (W)
High/Low (Xenon type)35 (D2S)
Item Wattage (W)
Front combination lampFront Turn signal lamp 21 (amber)
Parking lamp 5
Front side marker lamp 3.8
Rear combination lampStop/Tail lamp LED
Rear Turn signal lamp LED
Rear side marker lamp 3.8
Front fog lamp51 (HB4)
Back-up lamp18
License plate lamp5
High-mounted stop lamp (back door mount) LED
Item Wattage (W)
Map lamp8
Room lamp8
Personal lamp8
Luggage room lamp8
Step lamp5
Glove box lamp1.4
Vanity mirror lamp2
Ignition key hole illumination2
Front door inside handle illumination LED
Console illumination lamp1.4
