2004 INFINITI FX35 headlamp

LT-6
PRECAUTIONS
Revision: 2004 November 2004 FX35/FX45
General precautions for service operationsAKS004ZU

Never work with wet hands.

Xenon headlamp includes high voltage generating part. Be sure
to disconnect battery negative cable (negative terminal) or
power fuse before removing, installing, or touching the xenon
headlamp (including lamp bulb).

Turn the lighting switch OFF before disconnecting and connect-
ing the connector.

When turning the xenon headlamp on and while it is illuminated,
never touch the harness, bulb, and socket of the headlamp.

When checking the headlamp on/off operation, check it on vehi-
cle and with the power connected to the vehicle-side connector.

Do not touch the headlamp bulb glass surface with bare hands or allow oil or grease to get on it. Do not
touch the headlamp bulb just after the headlamp is turned off, because it is very hot.

Install the xenon headlamp bulb socket correctly. If it is installed
improperly, high-voltage leak or corona discharge may occur
that can melt the bulb, connector, and housing. Do not illuminate
the xenon headlamp bulb out of the headlamp housing. Doing
so can cause fire and harm your eyes.

When the bulb has burned out, wrap it in a thick vinyl bag and
discard. Do not break the bulb.

Leaving the bulb removed from the headlamp housing for a long
period of time can deteriorate the performance of the lens and
reflector (dirt, clouding). Always prepare a new bulb and have it
on hand when replacing the bulb.

When adjusting the headlamp aiming, turn the aiming adjust-
ment screw only in the tightening direction. (If it is necessary to loosen the screw, first fully loosen the
screw, and then turn it in the tightening direction.)

Do not use organic solvent (paint thinner or gasoline) to clean lamps and to remove old sealant.
Wiring Diagrams and Trouble DiagnosisAKS004ZV
When you read wiring diagrams, refer to the following:

Refer to GI-15, "How to Read Wiring Diagrams" in GI section.

Refer to PG-3, "POWER SUPPLY ROUTING CIRCUIT" for power distribution in PG section.
When you perform trouble diagnosis, refer to the following:

Refer to GI-11, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES" in GI section.

Refer to GI-27, "How to Perform Efficient Diagnosis for an Electrical Incident" in GI section.

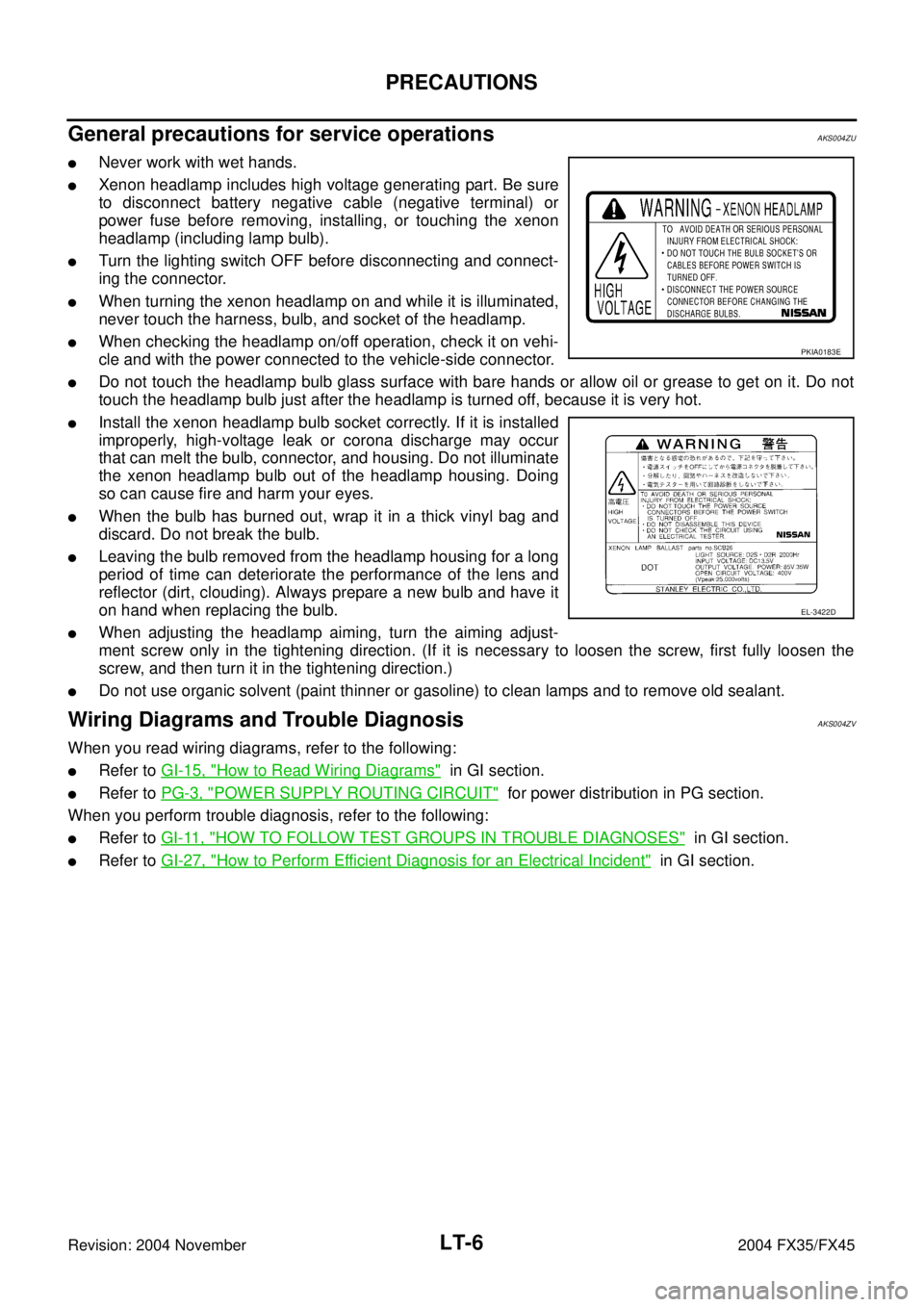

PKIA0183E
EL-3422D

HEADLAMP - XENON TYPE -
LT-7
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
HEADLAMP - XENON TYPE -PFP:26010

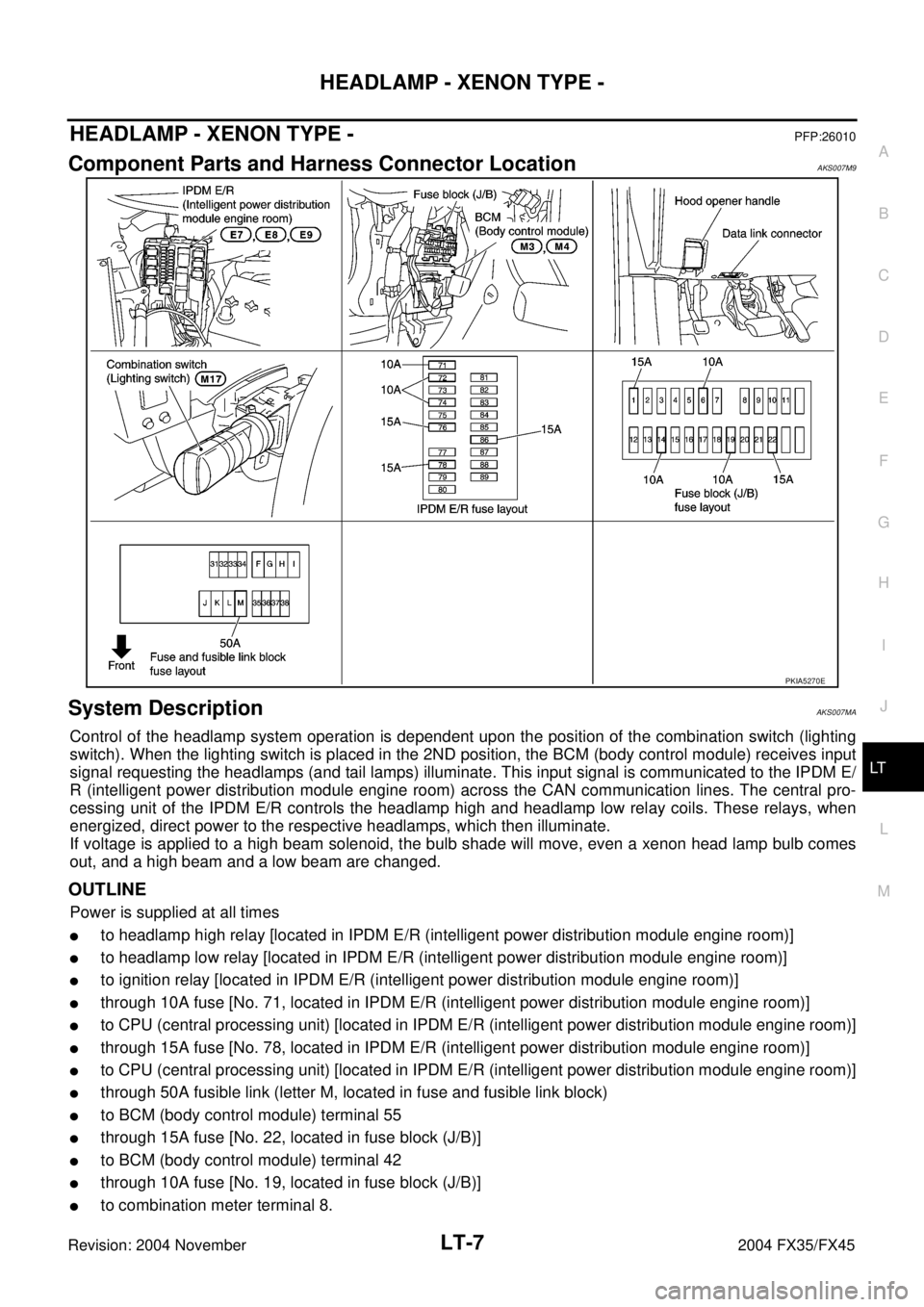

Component Parts and Harness Connector LocationAKS007M9
System DescriptionAKS007MA
Control of the headlamp system operation is dependent upon the position of the combination switch (lighting
switch). When the lighting switch is placed in the 2ND position, the BCM (body control module) receives input
signal requesting the headlamps (and tail lamps) illuminate. This input signal is communicated to the IPDM E/
R (intelligent power distribution module engine room) across the CAN communication lines. The central pro-
cessing unit of the IPDM E/R controls the headlamp high and headlamp low relay coils. These relays, when
energized, direct power to the respective headlamps, which then illuminate.
If voltage is applied to a high beam solenoid, the bulb shade will move, even a xenon head lamp bulb comes
out, and a high beam and a low beam are changed.
OUTLINE
Power is supplied at all times

to headlamp high relay [located in IPDM E/R (intelligent power distribution module engine room)]

to headlamp low relay [located in IPDM E/R (intelligent power distribution module engine room)]

to ignition relay [located in IPDM E/R (intelligent power distribution module engine room)]

through 10A fuse [No. 71, located in IPDM E/R (intelligent power distribution module engine room)]

to CPU (central processing unit) [located in IPDM E/R (intelligent power distribution module engine room)]

through 15A fuse [No. 78, located in IPDM E/R (intelligent power distribution module engine room)]

to CPU (central processing unit) [located in IPDM E/R (intelligent power distribution module engine room)]

through 50A fusible link (letter M, located in fuse and fusible link block)

to BCM (body control module) terminal 55

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM (body control module) terminal 42

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8.
PKIA5270E

LT-8
HEADLAMP - XENON TYPE -
Revision: 2004 November 2004 FX35/FX45
With the ignition switch in the ON or START position, power is supplied

to ignition relay [located in IPDM E/R (intelligent power distribution module engine room)]

through 15A fuse [No. 1, located in fuse block (J/B)]

to BCM (body control module) terminal 38

through 10A fuse [No. 14, located in fuse block (J/B)]

to combination meter terminal 7.
With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM (body control module) terminal 11.
Ground is supplied

to BCM (body control module) terminals 49 and 52

through grounds M35, M45 and M85

to IPDM E/R (intelligent power distribution module engine room) terminals 38 and 60

through grounds E21, E50 and E51

to combination meter terminals 5, 6 and 15

through grounds M35, M45 and M85.
Low Beam Operation
With the lighting switch in 2ND position, the BCM receives input signal requesting the headlamps to illuminate.
This input signal is communicated to the IPDM E/R across the CAN communication lines. The CPU in the
IPDM E/R controls the headlamp low relay coil, which when energized, directs power

to 15A fuse [No. 76, located in IPDM E/R]

through IPDM E/R terminal 20

to headlamp RH terminal 6

to 15A fuse [No. 86, located in IPDM E/R]

through IPDM E/R terminal 30

to headlamp LH terminal 6.
Ground is supplied

to headlamp RH terminal 7

through grounds E21, E50 and E51

to headlamp LH terminal 7

through grounds E21, E50 and E51.
With power and ground supplied, low beam headlamps illuminate.
High Beam Operation/Flash-to-Pass Operation
With the lighting switch in 2ND position and placed in HIGH or PASS position, the BCM receives input signal
requesting the headlamp high beams to illuminate. This input signal is communicated to the IPDM E/R across
the CAN communication lines. The CPU in the IPDM E/R controls the headlamp high relay coil and low relay
coil, which when energized, directs power

to 15A fuse [No. 76, located in IPDM E/R]

through IPDM E/R terminal 20

to headlamp RH terminal 6, and

to 15A fuse [No. 86, located in IPDM E/R]

through IPDM E/R terminal 30

to headlamp LH terminal 6

to 10A fuse [No. 72, located in IPDM E/R]

through IPDM E/R terminal 27

to headlamp RH terminal 5, and

to 10A fuse [No. 74, located in IPDM E/R]

through IPDM E/R terminal 28

to headlamp LH terminal 5.

HEADLAMP - XENON TYPE -
LT-9
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
Ground is supplied

to headlamp RH terminal 7

through grounds E21, E50 and E51

to headlamp LH terminal 7

through grounds E21, E50 and E51.
With power and ground supplied, the high beam headlamps illuminate.
If voltage is applied to a high beam solenoid, the bulb shade will move, even a xenon head lamp bulb comes
out, and a high beam and a low beam are changed.
The unified meter and A/C amp that received the high beam request signal by BCM across the CAN commu-
nication makes a high beam indicator lamp turn on in combination meter.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 2ND position (ON), and the ignition switch is turned
from ON or ACC to OFF, the battery saver control function is activated.
Under this condition, the headlamps remain illuminated for 5 minutes, then the headlamps are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
AUTO LIGHT OPERATION (IF EQUIPPED)
Refer to LT- 5 4 , "System Description" in “AUTO LIGHT SYSTEM”.
VEHICLE SECURITY SYSTEM
The vehicle security system will flash the high beams if the system is triggered. Refer to BL-181, "VEHICLE
SECURITY (THEFT WARNING) SYSTEM" .
XENON HEADLAMP
Xenon type headlamp is adopted to the low and high beam headlamps. Xenon bulbs do not use a filament.
Instead, they produce light when a high voltage current is passed between two tungsten electrodes through a
mixture of xenon (an inert gas) and certain other metal halides. In addition to added lighting power, electronic
control of the power supply gives the headlamps stable quality and tone color.
Following are some of the many advantages of the xenon type headlamp.

The light produced by the headlamps is a white color comparable to sunlight that is easy on the eyes.

Light output is nearly double that of halogen headlamps, affording increased area of illumination.

The light features a high relative spectral distribution at wavelengths to which the human eye is most sen-
sitive. This means that even in the rain, more light is reflected back from the road surface toward the vehi-
cle, for added visibility.

Power consumption is approximately 25 percent less than halogen headlamps, reducing battery load.
CAN Communication System DescriptionAKS007MB
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAKS0080S
Refer to LAN-6, "CAN Communication Unit" .

LT-10
HEADLAMP - XENON TYPE -
Revision: 2004 November 2004 FX35/FX45

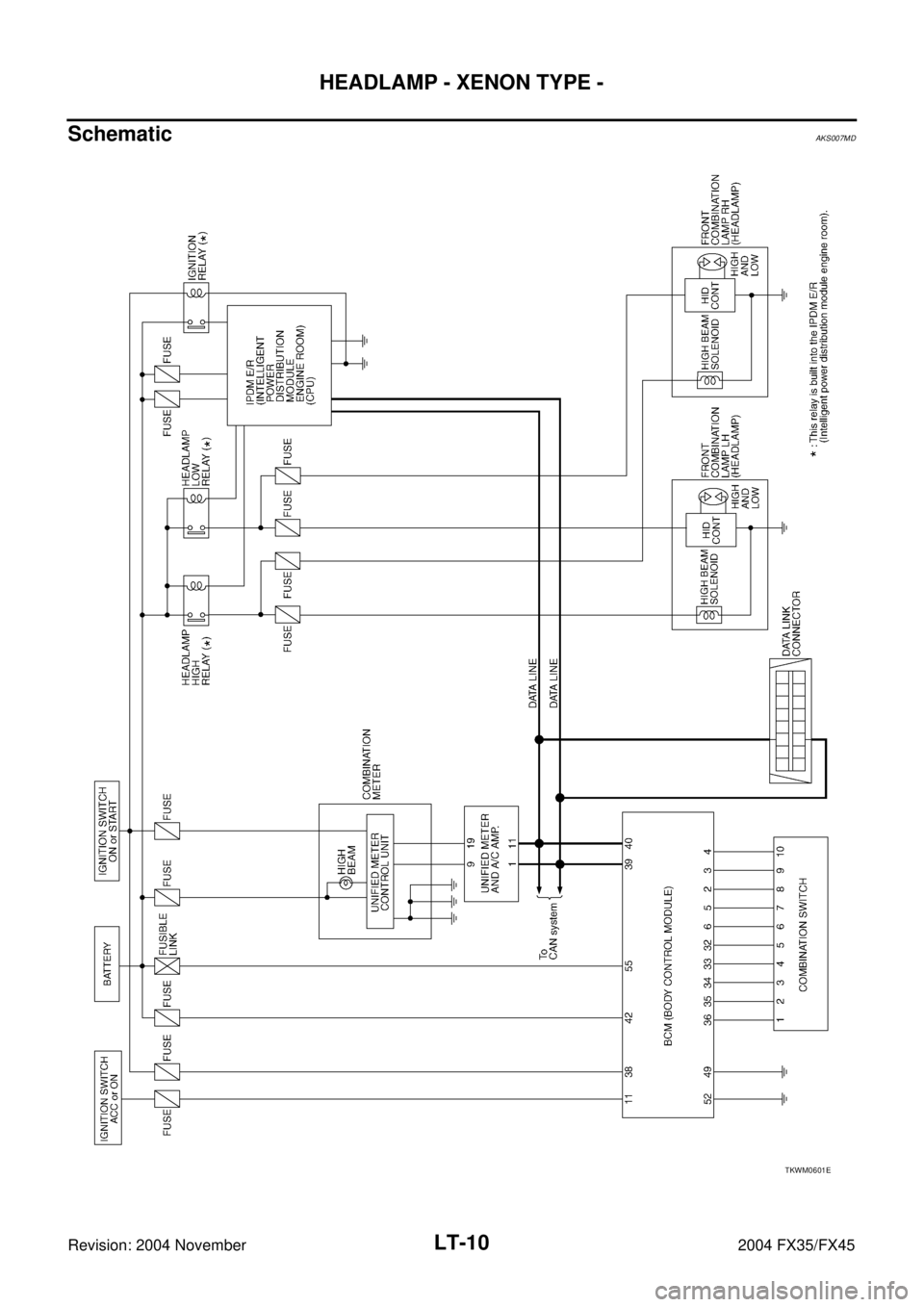

SchematicAKS007MD
TKWM0601E

HEADLAMP - XENON TYPE -
LT-11
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45

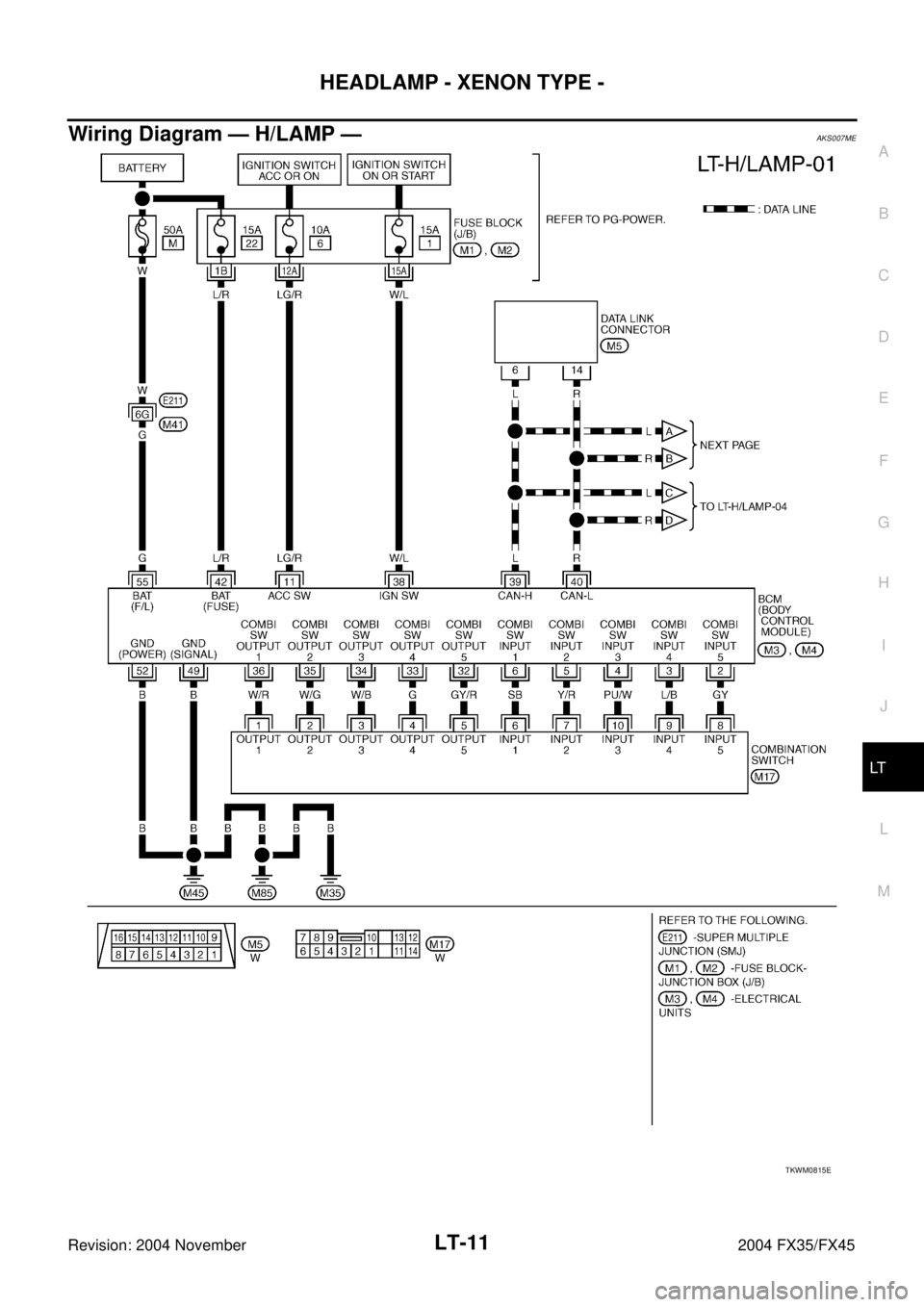

Wiring Diagram — H/LAMP —AKS007ME
TKWM0815E

LT-12
HEADLAMP - XENON TYPE -
Revision: 2004 November 2004 FX35/FX45

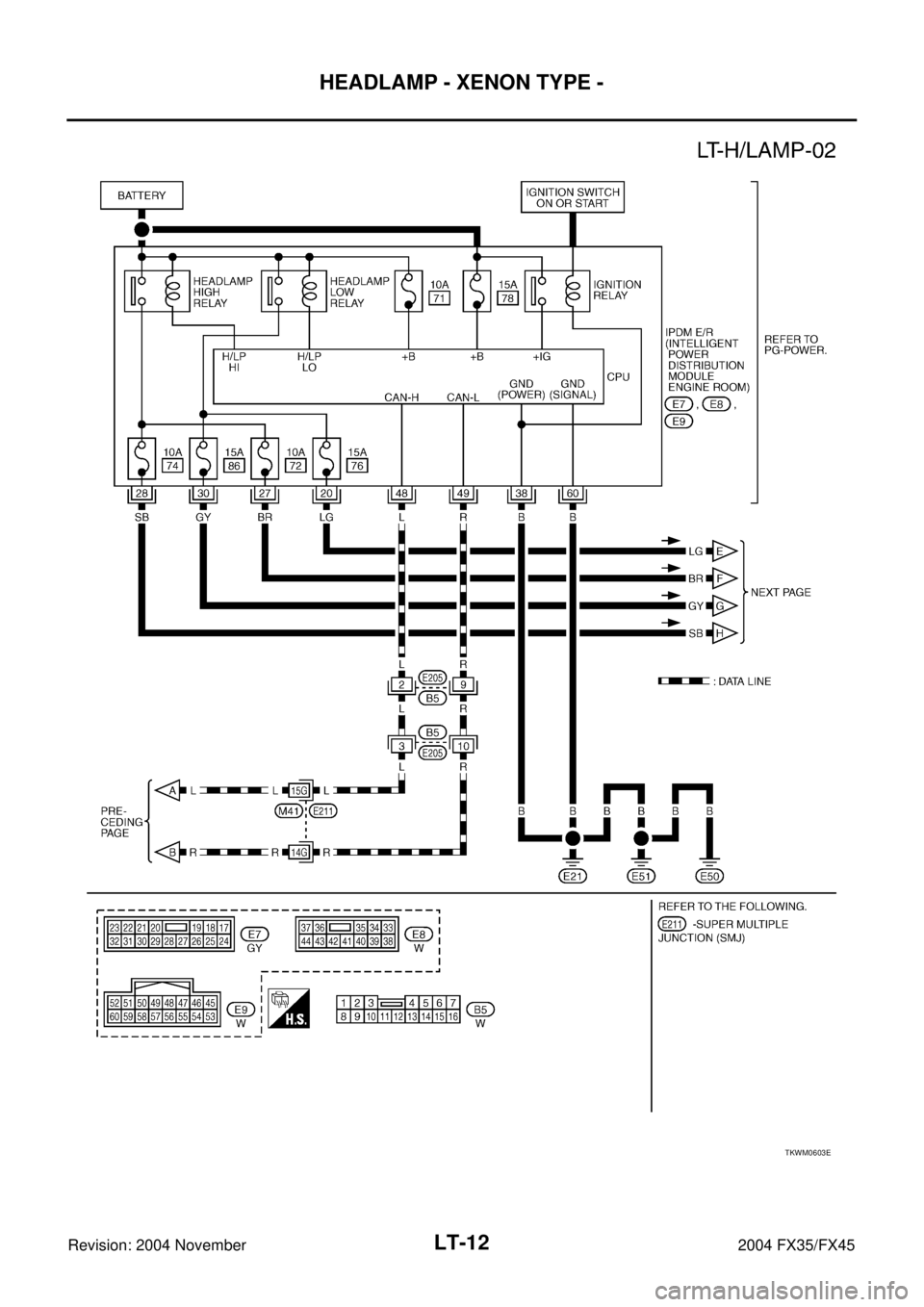

TKWM0603E

HEADLAMP - XENON TYPE -
LT-13
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45

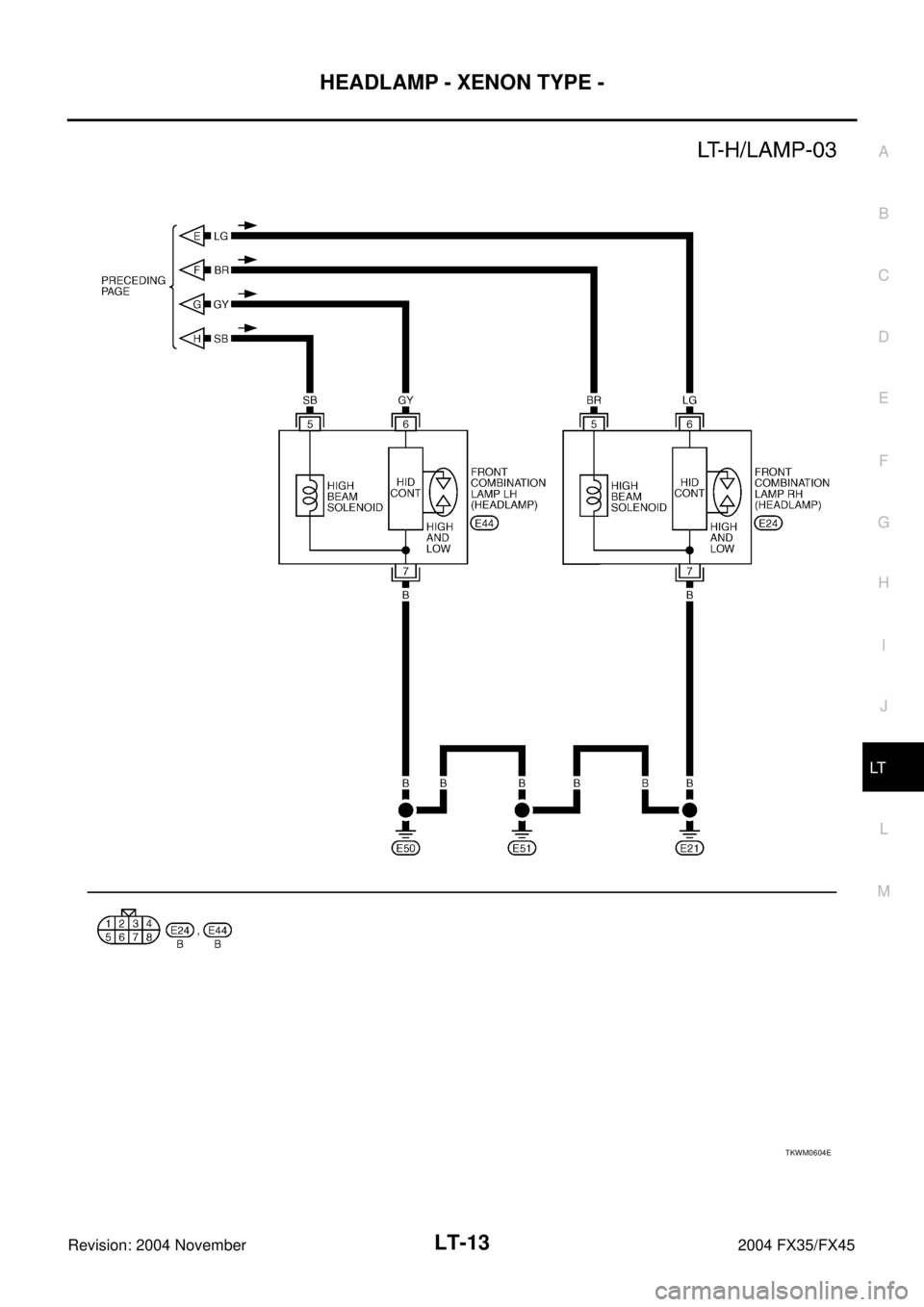

TKWM0604E
