EC-698
[VK45DE]
BASIC SERVICE PROCEDURE
Revision: 2004 November 2004 FX35/FX45
35. ERASE UNNECESSARY DTC
After this inspection, unnecessary DTC might be displayed.
Erase the stored memory in ECM and TCM. Refer to EC-715, "
HOW TO ERASE EMISSION-RELATED DIAG-
NOSTIC INFORMATION" and AT- 3 9 , "HOW TO ERASE DTC" .
>> GO TO 4.
36. CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but
this is a rare case.)
2. Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs. Refer
toBL-208, "
ECM Re-communicating Function" .
>> GO TO 4.
Accelerator Pedal Released Position LearningABS00BZE
DESCRIPTION
Accelerator Pedal Released Position Learning is an operation to learn the fully released position of the accel-
erator pedal by monitoring the accelerator pedal position sensor output signal. It must be performed each time
harness connector of accelerator pedal position sensor or ECM is disconnected.
OPERATION PROCEDURE
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch ON and wait at least 2 seconds.
3. Turn ignition switch OFF wait at least 10 seconds.
4. Turn ignition switch ON and wait at least 2 seconds.
5. Turn ignition switch OFF wait at least 10 seconds.
Throttle Valve Closed Position LearningABS00BZF
DESCRIPTION
Throttle Valve Closed Position Learning is an operation to learn the fully closed position of the throttle valve by
monitoring the throttle position sensor output signal. It must be performed each time harness connector of
electric throttle control actuator or ECM is disconnected.
OPERATION PROCEDURE
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch ON.
3. Turn ignition switch OFF wait at least 10 seconds.
Make sure that throttle valve moves during above 10 seconds by confirming the operating sound.
Idle Air Volume LearningABS00BZG
DESCRIPTION
Idle Air Volume Learning is an operation to learn the idle air volume that keeps each engine within the specific
range. It must be performed under any of the following conditions:

Each time electric throttle control actuator or ECM is replaced.

Idle speed or ignition timing is out of specification.
PREPARATION
Before performing Idle Air Volume Learning, make sure that all of the following conditions are satisfied.
Learning will be cancelled if any of the following conditions are missed for even a moment.

Battery voltage: More than 12.9V (At idle)

Engine coolant temperature: 70 - 100°C (158 - 212°F)

PNP switch: ON

Electric load switch: OFF
(Air conditioner, headlamp, rear window defogger)

BASIC SERVICE PROCEDURE
EC-699
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
On vehicles equipped with daytime light systems, if the parking brake is applied before the engine
is started, the headlamp will not be illuminated.

Steering wheel: Neutral (Straight-ahead position)

Vehicle speed: Stopped

Transmission: Warmed-up
For models with CONSULT-II, drive vehicle until “FLUID TEMP SE” in “DATA MONITOR” mode of “A/T”
system indicates less than 0.9V.
For models without CONSULT-II, drive vehicle for 10 minutes.
OPERATION PROCEDURE
With CONSULT-II
1. Perform EC-698, "Accelerator Pedal Released Position Learning" .
2. Perform EC-698, "
Throttle Valve Closed Position Learning" .
3. Start engine and warm it up to normal operating temperature.
4. Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.
5. Select “IDLE AIR VOL LEARN” in “WORK SUPPORT” mode.
6. Touch “START” and wait 20 seconds.
7. Make sure that “CMPLT” is displayed on CONSULT-II screen. If
“CMPLT” is not displayed, Idle Air Volume Learning will not be
carried out successfully. In this case, find the cause of the inci-
dent by referring to the Diagnostic Procedure below.
8. Rev up the engine two or three times and make sure that idle
speed and ignition timing are within the specifications.
Without CONSULT-II
NOTE:

It is better to count the time accurately with a clock.

It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit
has a malfunction.
1. Perform EC-698, "
Accelerator Pedal Released Position Learning" .
SEF217Z
SEF454Y
ITEM SPECIFICATION
Idle speed 650 ± 50 rpm (in P or N position)
Ignition timing 12 ± 5° BTDC (in P or N position)
MBIB0238E

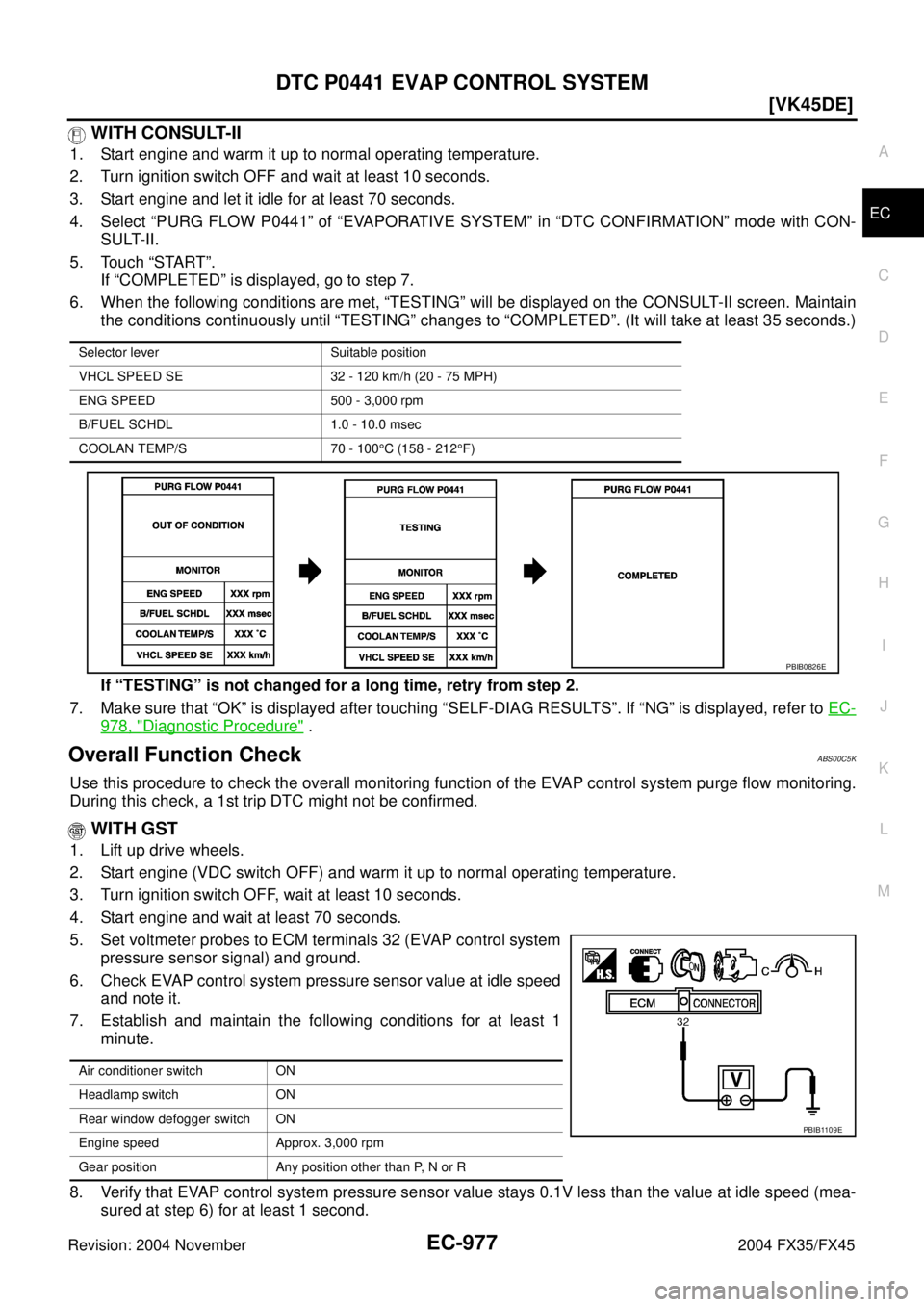

DTC P0441 EVAP CONTROL SYSTEM
EC-977
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and let it idle for at least 70 seconds.
4. Select “PURG FLOW P0441” of “EVAPORATIVE SYSTEM” in “DTC CONFIRMATION” mode with CON-
SULT-II.
5. Touch “START”.
If “COMPLETED” is displayed, go to step 7.
6. When the following conditions are met, “TESTING” will be displayed on the CONSULT-II screen. Maintain
the conditions continuously until “TESTING” changes to “COMPLETED”. (It will take at least 35 seconds.)
If “TESTING” is not changed for a long time, retry from step 2.
7. Make sure that “OK” is displayed after touching “SELF-DIAG RESULTS”. If “NG” is displayed, refer to EC-
978, "Diagnostic Procedure" .
Overall Function CheckABS00C5K
Use this procedure to check the overall monitoring function of the EVAP control system purge flow monitoring.
During this check, a 1st trip DTC might not be confirmed.
WITH GST
1. Lift up drive wheels.
2. Start engine (VDC switch OFF) and warm it up to normal operating temperature.
3. Turn ignition switch OFF, wait at least 10 seconds.
4. Start engine and wait at least 70 seconds.
5. Set voltmeter probes to ECM terminals 32 (EVAP control system
pressure sensor signal) and ground.
6. Check EVAP control system pressure sensor value at idle speed
and note it.
7. Establish and maintain the following conditions for at least 1
minute.
8. Verify that EVAP control system pressure sensor value stays 0.1V less than the value at idle speed (mea-
sured at step 6) for at least 1 second.
Selector lever Suitable position
VHCL SPEED SE 32 - 120 km/h (20 - 75 MPH)
ENG SPEED 500 - 3,000 rpm
B/FUEL SCHDL 1.0 - 10.0 msec
COOLAN TEMP/S 70 - 100°C (158 - 212°F)
PBIB0826E
Air conditioner switch ON
Headlamp switch ON
Rear window defogger switch ON
Engine speed Approx. 3,000 rpm
Gear position Any position other than P, N or R
PBIB1109E

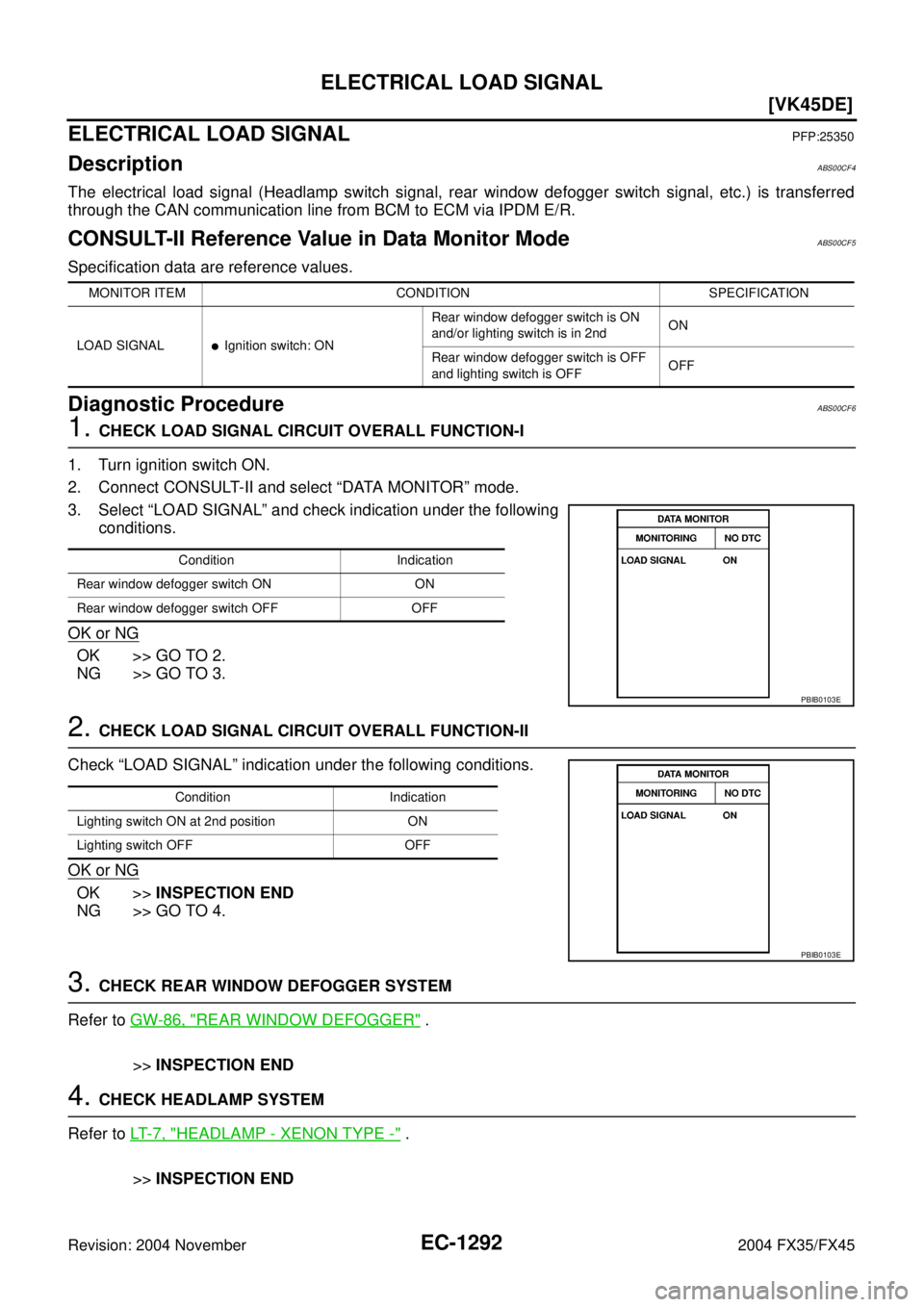

EC-1292
[VK45DE]
ELECTRICAL LOAD SIGNAL
Revision: 2004 November 2004 FX35/FX45
ELECTRICAL LOAD SIGNALPFP:25350
DescriptionABS00CF4
The electrical load signal (Headlamp switch signal, rear window defogger switch signal, etc.) is transferred
through the CAN communication line from BCM to ECM via IPDM E/R.
CONSULT-II Reference Value in Data Monitor ModeABS00CF5
Specification data are reference values.
Diagnostic ProcedureABS00CF6
1. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
1. Turn ignition switch ON.
2. Connect CONSULT-II and select “DATA MONITOR” mode.
3. Select “LOAD SIGNAL” and check indication under the following
conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
Check “LOAD SIGNAL” indication under the following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
3. CHECK REAR WINDOW DEFOGGER SYSTEM
Refer to GW-86, "
REAR WINDOW DEFOGGER" .
>>INSPECTION END
4. CHECK HEADLAMP SYSTEM
Refer to LT- 7 , "
HEADLAMP - XENON TYPE -" .
>>INSPECTION END
MONITOR ITEM CONDITION SPECIFICATION
LOAD SIGNAL

Ignition switch: ONRear window defogger switch is ON
and/or lighting switch is in 2ndON
Rear window defogger switch is OFF
and lighting switch is OFFOFF
Condition Indication
Rear window defogger switch ON ON
Rear window defogger switch OFF OFF
PBIB0103E
Condition Indication
Lighting switch ON at 2nd position ON
Lighting switch OFF OFF
PBIB0103E

IDX-4
ALPHABETICAL INDEX
Electric throttle control actuator ........ EC-415, EC-417,
EC-1077
, EC-1079
Electric throttle control actuator (VK45DE) ..... EM-174
Electric throttle control actuator (VQ35DE) ....... EM-19
Electrical load signal circuit .............. EC-614, EC-1292
Electrical unit ..................................................... PG-77
Electrical units location ...................................... PG-70
Electronic ignition (EI) system ............. EC-34, EC-681
Engine control module (ECM) .......... EC-401, EC-1057
Engine control system diagram and chart ........ EC-29,
EC-676
Engine coolant temperature sensor (ECTS) ... EC-185,
EC-197
, EC-842, EC-855
Engine coolant(VK45DE) .................................. CO-36
Engine coolant(VQ35DE) ................................. CO-11
Engine oil filter replacement ............................. MA-25
Engine oil filter replacement(VQ35DE) ............. MA-18
Engine oil precautions .......................................... GI-8
Engine oil replacement(VQ35DE) ..................... MA-17
Engine oil(VK45DE) ........................................... LU-25
Engine oil(VQ35DE) ............................................ LU-7
Engine removal(VK45DE) ............................... EM-236
Engine removal(VQ35DE) .............................. EM-110
Engine room cover(VK45DE) ......................... EM-168
ETC1 - Wiring diagram .................... EC-418, EC-1080
ETC2 - Wiring diagram .................... EC-425, EC-1087
ETC3 - Wiring diagram .................... EC-429, EC-1091
EVAP canister .................................. EC-646, EC-1323
EVAP canister purge volume control solenoid valve ....
EC-335
, EC-990, EC-1160
EVAP canister vent control valve ...... EC-342, EC-502,
EC-997
, EC-1168
EVAP control system (small leak) diagnosis .. EC-326,
EC-366
, EC-981, EC-1022
EVAP control system pressure sensor ........... EC-349,
EC-352
, EC-358, EC-1004, EC-1007, EC-1014
EVAP control system purge flow monitoring diagnosis
EC-321
, EC-976
EVAP vapor lines inspection ................. MA-20, MA-27
Evaporative emission (EVAP) system ............ EC-643,
EC-1320
Evaporator ..................................................... ATC-155
Exhaust manifold(VK45DE) ............................ EM-178
Exhaust manifold(VQ35DE) .............................. EM-26
Exhaust system ................................................... EX-3
Exhaust system inspection ..................... EX-3, MA-28
Expansion valve ............................................. ATC-156
F
F/FOG - Wiring diagram ..................................... LT-79
F/PUMP - Wiring diagram ................ EC-604, EC-1281
Final drive removal and installation .. FFD-10, RFD-11
Floor trim ............................................................. EI-40
Flow charts ......................................................... GI-27
Fluid temperature sensor (A/T) ........................ AT-139
Fluorescent leak detector .............................. ATC-157
Fog lamp, front .................................................... LT-77
Front axle ............................................. FAX-4, FAX-10
Front brake solenoid valve ................. AT-156, AT-158
Front bumper ...................................................... EI-14
Front door ............................. BL-148, BL-152, GW-76
Front fog lamp .................................................... LT-77
Front passenger air bag .................................. SRS-40
Front seat belt ...................................................... SB-4
Front seat belt pre-tensioner ..... SB-2, SRS-3, SRS-47
Front side air bag ............................................ SRS-41
Front suspension .............................................. FSU-6
Front washer ...................................................... WW-4
Front wiper ......................................................... WW-4
FTTS - Wiring diagram ...... EC-275, EC-280, EC-933,
EC-938
Fuel cut control (at no load high engine speed) EC-35,
EC-683
Fuel filter replacement ......................................... FL-4
Fuel gauge ............................................................ DI-4
Fuel injector and fuel tube(VK45DE) .............. EM-188
Fuel injector and fuel tube(VQ35DE) ................ EM-45
Fuel level sensor EC-384, EC-386, EC-388, EC-1040,
EC-1042
, EC-1044
Fuel line inspection .................................. FL-3, MA-24
Fuel line inspection(VQ35DE) .......................... MA-17
Fuel precautions .......................................... GI-6, GI-7
Fuel pressure check ........................... EC-51, EC-700
Fuel pressure release ......................... EC-51, EC-700
Fuel pump ....................................... EC-603, EC-1280
Fuel pump and gauge .......................................... FL-4
Fuel system ......................................................... FL-3
Fuel tank ............................................................ FL-10
Fuel tank temperature sensor .......... EC-273, EC-279,
EC-931
, EC-937
Fuel tank vacuum relief valve ......... EC-646, EC-1323
FUELB1 - Wiring diagram .. EC-258, EC-267, EC-916,
EC-925
FUELB2 - Wiring diagram .. EC-259, EC-268, EC-917,
EC-926
Fuse .................................................................. PG-17
Fuse and fusible link box .................................. PG-84
Fusible link ........................................................ PG-17
G
Gauges ................................................................. DI-4
Glass ...................................... GW-11, GW-76, GW-80
Glove box lamp ................................... LT-154, LT-197
GPS antenna ..................................................... AV-89
Grille - See Exterior ............................................ EI-23
Ground distribution ........................................... PG-31
H
H/AIM - Wiring diagram ..................................... LT-73
H/LAMP - Wiring diagram .................................. LT-11
Harness connector ............................................ PG-74
Harness layout .................................................. PG-46
Hazard warning lamp ......................................... LT-89
Headlamp aiming control ................................... LT-73
Headlamp leveler - See Headlamp aiming control ........

LT-1
LIGHTING SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION LT
A
B
LT
Revision: 2004 November 2004 FX35/FX45
LIGHTING SYSTEM
PRECAUTIONS .......................................................... 5
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 5
General precautions for service operations ............. 6
Wiring Diagrams and Trouble Diagnosis .................. 6
HEADLAMP - XENON TYPE - ................................... 7
Component Parts and Harness Connector Location ..... 7
System Description .................................................. 7
OUTLINE ............................................................... 7
COMBINATION SWITCH READING FUNCTION ..... 9
EXTERIOR LAMP BATTERY SAVER CONTROL ..... 9
AUTO LIGHT OPERATION (IF EQUIPPED) ......... 9
VEHICLE SECURITY SYSTEM ............................ 9
XENON HEADLAMP ............................................. 9
CAN Communication System Description ................ 9
CAN Communication Unit ........................................ 9
Schematic .............................................................. 10
Wiring Diagram — H/LAMP — ................................ 11
Terminals and Reference Values for BCM ............. 15
Terminals and Reference Values for IPDM E/R ..... 16
How to Proceed With Trouble Diagnosis ................ 16
Preliminary Check .................................................. 17
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................... 17
CONSULT-II Functions (BCM) ............................... 18
CONSULT-II BASIC OPERATION ....................... 18
WORK SUPPORT ............................................... 19
DATA MONITOR ................................................. 19
ACTIVE TEST ..................................................... 20
CONSULT-II Functions (IPDM E/R) ....................... 21
CONSULT-II OPERATION .................................. 21
SELF-DIAGNOSTIC RESULTS .......................... 22
DATA MONITOR ................................................. 22
ACTIVE TEST ..................................................... 23
Headlamp Does Not Change To High Beam (Both
Sides) ..................................................................... 23
Headlamp Does Not Change To High Beam (One
Side) ....................................................................... 25
High Beam Indicator Lamp Does Not Illuminate .... 26Headlamp Low Beam Does Not Illuminate (Both
Sides) ..................................................................... 26
Headlamp Low Beam Does Not Illuminate (One
Side) ....................................................................... 29
Headlamp RH Low Beam and High Beam Do Not
Illuminate ................................................................ 30
Headlamp LH Low Beam and High Beam Do Not
Illuminate ................................................................ 30
Headlamps Do Not Turn OFF ................................. 31
CAUTION: .............................................................. 33
Xenon Headlamp Trouble Diagnosis ...................... 33
Aiming Adjustment .................................................. 34
PREPARATION BEFORE ADJUSTING .............. 34
LOW BEAM AND HIGH BEAM ........................... 34
ADJUSTMENT USING AN ADJUSTMENT
SCREEN (LIGHT/DARK BORDERLINE) ............ 35
Bulb Replacement .................................................. 35
HEADLAMP HIGH/LOW BEAM .......................... 35
PARKING LAMP (CLEARANCE LAMP) .............. 36
FRONT TURN SIGNAL LAMP ............................ 36
FRONT SIDE MARKER LAMP ........................... 36
Removal and Installation ........................................ 36
REMOVAL ........................................................... 36
INSTALLATION ................................................... 36
Disassembly and Assembly .................................... 37
DISASSEMBLY ................................................... 37
ASSEMBLY ......................................................... 37
DAYTIME LIGHT SYSTEM ....................................... 38
Component Parts and Harness Connector Location ... 38
System Description ................................................. 38
OUTLINE ............................................................. 38
DAYTIME LIGHT OPERATION ........................... 39
COMBINATION SWITCH READING FUNCTION ... 39
AUTO LIGHT OPERATION ................................. 39
CAN Communication System Description .............. 39
CAN Communication Unit ....................................... 39
Schematic ............................................................... 40
Wiring Diagram — DTRL — ................................... 41
Terminals and Reference Values for BCM .............. 45
How to Proceed With Trouble Diagnosis ................ 46

LT-2Revision: 2004 November 2004 FX35/FX45Preliminary Check .................................................. 46
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................... 46
INSPECTION PARKING BRAKE SWITCH CIR-
CUIT .................................................................... 47
CONSULT-II Functions ........................................... 48
CONSULT-II BASIC OPERATION ....................... 48
DATA MONITOR .................................................. 49
ACTIVE TEST ..................................................... 50
Daytime Light Control Does Not Operate Properly ... 51
Aiming Adjustment .................................................. 53
Bulb Replacement .................................................. 53
Removal and Installation ........................................ 53
Disassembly and Assembly .................................... 53
AUTO LIGHT SYSTEM ............................................. 54
Component Parts and Harness Connector Location ... 54
System Description ................................................. 54
OUTLINE ............................................................. 54
COMBINATION SWITCH READING FUNCTION ... 55
EXTERIOR LAMP BATTERY SAVER CONTROL ... 55
DELAY TIMER FUNCTION ................................. 55
CAN Communication System Description .............. 55
CAN Communication Unit ....................................... 55
Major Components and Functions .......................... 55
Schematic ............................................................... 56
Wiring Diagram — AUTO/L — ................................ 57
Terminals and Reference Values for BCM .............. 60
Terminals and Reference Values for IPDM E/R ...... 61
How to Proceed With Trouble Diagnosis ................ 62
Preliminary Check .................................................. 62
SETTING CHANGE FUNCTIONS ....................... 62
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................... 62
CONSULT-II Functions (BCM) ................................ 63
CONSULT-II BASIC OPERATION ....................... 64
WORK SUPPORT ............................................... 64
DATA MONITOR .................................................. 65
ACTIVE TEST ..................................................... 66
CONSULT-II Functions (IPDM E/R) ........................ 66
CONSULT-II OPERATION ................................... 66
SELF-DIAGNOSTIC RESULTS ........................... 67
DATA MONITOR .................................................. 67
ACTIVE TEST ..................................................... 68
Trouble Diagnosis Chart by Symptom .................... 68
Lighting Switch Inspection ...................................... 69
Optical Sensor System Inspection .......................... 69
Removal and Installation for Optical Sensor ........... 71
REMOVAL ........................................................... 71
INSTALLATION .................................................... 71
HEADLAMP AIMING CONTROL .............................. 72
Schematic ............................................................... 72
Wiring Diagram — H/AIM — ................................... 73
Removal and Installation ........................................ 76
REMOVAL ........................................................... 76
INSTALLATION .................................................... 76
Switch Circuit Inspection ........................................ 76
FRONT FOG LAMP .................................................. 77
Component Parts and Harness Connector Location ... 77
System Description ................................................. 77OUTLINE ............................................................. 77
COMBINATION SWITCH READING FUNCTION ... 78
EXTERIOR LAMP BATTERY SAVER CONTROL ... 78
CAN Communication System Description .............. 78
CAN Communication Unit ....................................... 78
Wiring Diagram — F/FOG — .................................. 79
Terminals and Reference Values for BCM .............. 81
Terminals and Reference Values for IPDM E/R ...... 82
How to Proceed With Trouble Diagnosis ................ 82
Preliminary Check ................................................... 82
CHECK POWER SUPPLY AND GROUND CIR-
CUIT ..................................................................... 82
CONSULT-II Functions ........................................... 83
Front Fog Lamps Do Not Illuminate (Both Sides) ... 84
Front Fog Lamp Does Not Illuminate (One Side) .... 86
Aiming Adjustment .................................................. 87
Bulb Replacement ................................................... 88
Removal and Installation ......................................... 88
REMOVAL ............................................................ 88
INSTALLATION .................................................... 88
TURN SIGNAL AND HAZARD WARNING LAMPS ... 89
Component Parts and Harness Connector Location ... 89
System Description ................................................. 89
OUTLINE ............................................................. 89
TURN SIGNAL OPERATION ............................... 89
HAZARD LAMP OPERATION ............................. 90
REMOTE CONTROL ENTRY SYSTEM OPER-
ATION .................................................................. 91
COMBINATION SWITCH READING FUNCTION ... 92
CAN Communication System Description .............. 92
CAN Communication Unit ....................................... 92
Schematic ............................................................... 93
Wiring Diagram — TURN — ................................... 94
Terminals and Reference Values for BCM .............. 97
How to Proceed With Trouble Diagnosis ................ 98
Preliminary Check ................................................... 99
CHECK POWER SUPPLY AND GROUND CIR-
CUIT ..................................................................... 99
CONSULT-II Functions .........................................100
CONSULT-II BASIC OPERATION .....................100
DATA MONITOR ................................................101
ACTIVE TEST ....................................................101
Turn Signal Lamp Does Not Operate ....................102
Rear Turn Signal Lamp Does Not Operate ...........103
Hazard Warning Lamp Does Not Operate But Turn
Signal Lamp Operate ............................................105
Turn Signal Indicator Lamp Does Not Operate .....107
Bulb Replacement (Front Turn Signal Lamp) ........107
Bulb Replacement (Rear Turn Signal Lamp) ........107
Removal and Installation of Front Turn Signal Lamp .107
Removal and Installation of Rear Turn Signal Lamp .107
Removal and Installation of Rear Combination
Lamp Control Unit .................................................107
REMOVAL ..........................................................107
INSTALLATION ..................................................107
LIGHTING AND TURN SIGNAL SWITCH ..............108
Removal and Installation .......................................108
REMOVAL ..........................................................108
INSTALLATION ..................................................108

LT-4Revision: 2004 November 2004 FX35/FX45Terminals and Reference Values for BCM ............172
How to Proceed With Trouble Diagnosis ..............173
Preliminary Check ................................................173
CHECK FOR POWER SUPPLY AND GROUND
CIRCUIT ............................................................173
CONSULT-II Functions .........................................174
CONSULT-II BASIC OPERATION .....................174
WORK SUPPORT .............................................175
DATA MONITOR ................................................175
ACTIVE TEST ...................................................176
Interior Room Lamp Control Does Not Operate ...176
Map Lamp Control Does Not Operate ..................178
Personal Lamp Control Does Not Operate ...........180
Ignition key Hole illumination Control Does Not
Operate .................................................................181
All Step Lamps Do Not Operate ............................182
All Interior Room Lamps Do Not Operate .............183
Bulb Replacement ................................................183
ROOM LAMP .....................................................183
MAP LAMP ........................................................184PERSONAL LAMP .............................................184
Removal and Installation .......................................184
ROOM LAMP .....................................................184
MAP LAMP ........................................................184
PERSONAL LAMP .............................................184
ILLUMINATION ........................................................185
System Description ...............................................185
ILLUMINATION OPERATION BY LIGHTING
SWITCH .............................................................185
EXTERIOR LAMP BATTERY SAVER CONTROL .186
CAN Communication System Description ............186
CAN Communication Unit .....................................186
Schematic .............................................................187
Wiring Diagram — ILL — ......................................189
Removal and Installation .......................................197
ILLUMINATION CONTROL SWITCH ................197
GLOVE BOX LAMP ...........................................197
FRONT DOOR INSIDE ILLUMINATION ............197
BULB SPECIFICATIONS ........................................198
Headlamp ..............................................................198
Exterior Lamp ........................................................198
Interior Lamp/Illumination ......................................198
