2004 INFINITI FX35 Lock

FRONT FOG LAMP
LT-77
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
FRONT FOG LAMPPFP:26150
Component Parts and Harness Connector LocationAKS007O5
System DescriptionAKS007CI
Control of the fog lamps is dependent upon the position of the combination switch (lighting switch). The light-
ing switch must be in the 2ND position or AUTO position (LOW beam is ON) for front fog lamp operation.
When the lighting switch is placed in the fog lamp position the BCM (body control module) receives input sig-
nal requesting the fog lamps to illuminate. When the headlamps are illuminated, this input signal is communi-
cated to the IPDM E/R (intelligent power distribution module engine room) across the CAN communication
lines. The central processing unit of the IPDM E/R controls the front fog lamp relay coil. When activated, this
relay directs power to the front fog lamps.
OUTLINE
Power is supplied at all times

to ignition relay [located in IPDM E/R (intelligent power distribution module engine room)]

through 15A fuse [No. 88, located in IPDM E/R (intelligent power distribution module engine room)]

to front fog lamp relay [located in IPDM E/R (intelligent power distribution module engine room)]

through 15A fuse [No. 78, located in IPDM E/R (intelligent power distribution module engine room)]

to CPU (central processing unit) [located in IPDM E/R (intelligent power distribution module engine room)]

through 10A fuse [No. 71, located in IPDM E/R (intelligent power distribution module engine room)]

to CPU (central processing unit) [located in IPDM E/R (intelligent power distribution module engine
room)].
Power is also supplied at all times

through 50A fusible link (letter M, located in the fuse and fusible link block)

to BCM (body control module) terminal 55

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM (body control module) terminal 42.
When the ignition switch is in ON or START position, power is supplied
PKIA5269E

LT-78
FRONT FOG LAMP
Revision: 2004 November 2004 FX35/FX45

to ignition relay [located in IPDM E/R (intelligent power distribution module engine room)]

through 15A fuse [No. 1, located in fuse block (J/B)]

to BCM (body control module) terminal 38.
When the ignition switch is in ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM (body control module) terminal 11.
Ground is supplied

to BCM (body control module) terminals 49 and 52

through grounds M35, M45 and M85

to IPDM E/R (intelligent power distribution module engine room) terminals 38 and 60

through grounds E21, E50 and E51.
Fog Lamp Operation
The fog lamp switch is built into the combination switch. The lighting switch must be in the 2ND position or
AUTO position (LOW beam is ON) and the fog lamp switch must be ON for fog lamp operation.
With the fog lamp switch in the ON position, the CPU of the IPDM E/R grounds the coil side of the fog lamp
relay. The fog lamp relay then directs power

through IPDM E/R terminal 37

to front fog lamp LH terminal 1

through IPDM E/R terminal 36

to front fog lamp RH terminal 1.
Ground is supplied

to front fog lamp LH terminal 2

through grounds E21, E50 and E51, and

to front fog lamp RH terminal 2

through grounds E21, E50 and E51.
With power and grounds supplied, the front fog lamps illuminate.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 2ND position (ON), the fog lamp switch is ON, and the
ignition switch is turned from ON or ACC to OFF, the battery saver control feature is activated.
Under this condition, the fog lamps (and headlamps) remain illuminated for 5 minutes, then the fog lamps (and
headlamps) are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
CAN Communication System DescriptionAKS007CJ
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAKS0080V
Refer to LAN-6, "CAN Communication Unit" .

LT-88
FRONT FOG LAMP
Revision: 2004 November 2004 FX35/FX45
Bulb Replacement AKS007CU
1. Remove left side fender protector (front). Refer to EI-25,
"Removal and Installation" , EI-14, "Removal and Installation" in
“EI” section.
2. Disconnect fog lamp connector.
3. Turn bulb socket counterclockwise and unlock it.
CAUTION:

Do not touch the glass of bulb directly by hand. Keep
grease and other oily matters away from it. Do not touch
bulb by hand while it is lit or right after being turned off.
Burning may result.

Do not leave bulb out of fog lamp reflector for a long time because dust, moisture smoke, etc.
May affect the performance of fog lamp. When replacing bulb, be sure to replace it with new
one.
Removal and Installation AKS007CV
REMOVAL
1. Remove front bumper fascia. Refer to EI-14, "Removal and
Installation" in “EI” section.
2. Remove fog lamp mounting bolt.
3. Pull out fog lamp from vehicle and disconnect fog lamp connec-
tor.
INSTALLATION

Install fog lamp in the reverse order of removal, observing the tightening torque shown below.Fog lamp : 12 V - 51 W (HB4 halogen)
SKIA5558E
SKIA5559E
Fog lamp mounting bolt
: 5.5 N·m (0.56 kg-m, 49 in-lb)

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-89
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
TURN SIGNAL AND HAZARD WARNING LAMPSPFP:26120

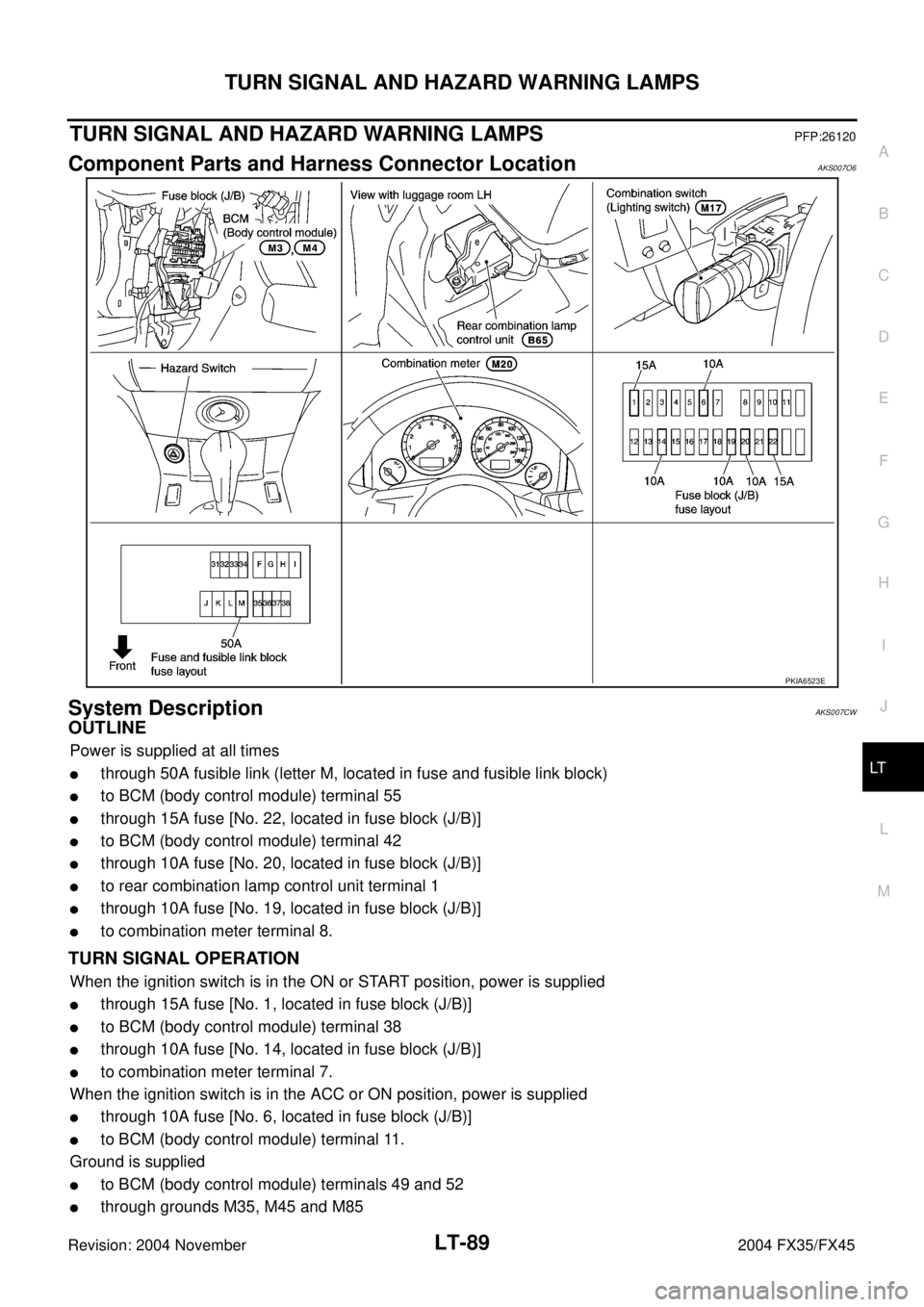

Component Parts and Harness Connector LocationAKS007O6
System DescriptionAKS007CW
OUTLINE
Power is supplied at all times

through 50A fusible link (letter M, located in fuse and fusible link block)

to BCM (body control module) terminal 55

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM (body control module) terminal 42

through 10A fuse [No. 20, located in fuse block (J/B)]

to rear combination lamp control unit terminal 1

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8.
TURN SIGNAL OPERATION
When the ignition switch is in the ON or START position, power is supplied

through 15A fuse [No. 1, located in fuse block (J/B)]

to BCM (body control module) terminal 38

through 10A fuse [No. 14, located in fuse block (J/B)]

to combination meter terminal 7.
When the ignition switch is in the ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM (body control module) terminal 11.
Ground is supplied

to BCM (body control module) terminals 49 and 52

through grounds M35, M45 and M85
PKIA6523E

LT-90
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2004 November 2004 FX35/FX45

to rear combination lamp control unit terminal 7

through grounds E21, E50 and E51

to combination meter terminals 5, 6 and 15

through grounds M35, M45 and M85.
LH Turn
When the turn signal switch is moved to the left position, BCM output turn signal from BCM terminal 45, inter-
preting it as turn signal is ON.
Connected from BCM terminal 45 to front combination lamp LH terminal 4.
Turn signal lamp turns on

through front combination lamp LH terminal 8

to grounds E21, E50 and E51.
Connected form BCM terminal 45 to rear combination lamp control unit terminal 4.
Rear turn signal (LED) turns on

through rear combination lamp control unit terminal 11

to rear combination lamp LH terminal 3

through rear combination lamp LH terminal 4

to rear combination lamp control unit terminal 10.
BCM sends signal to unified meter and A/C amp. through CAN communication lines, and turns on turn signal
indicator lamp with combination meter.
When rear turn signal lamp (LED) does not turn on, Rear combination lamp control unit sends signal to unified
meter and A/C amp. Unified meter and A/C amp. turn LED burnout status signal to BCM through CAN commu-
nication lines for speeding up turn signal blinking.
RH Turn
When the turn signal switch is moved to the right position, BCM output turn signal from BCM terminal 46, inter-
preting it as turn signal is ON.
Connected from BCM terminal 46 to front combination lamp RH terminal 4.
Turn signal lamp turns on

through front combination lamp RH terminal 8

to grounds E21, E50 and E51.
Connected form BCM terminal 46 to rear combination lamp control unit terminal 5.
Rear turn signal (LED) turns on

through rear combination lamp control unit terminal 9

to rear combination lamp RH terminal 3

through rear combination lamp RH terminal 4

to rear combination lamp control unit terminal 8.
BCM sends signal to unified meter and A/C amp. through CAN communication lines, and turns on turn signal
indicator lamp with combination meter.
When rear turn signal lamp (LED) does not turn on, Rear combination lamp control unit sends signal to unified
meter and A/C amp. Unified meter and A/C amp. turn LED burnout status signal to BCM through CAN commu-
nication lines for speeding up turn signal blinking.
HAZARD LAMP OPERATION
Power is supplied at all times

through 50A fusible link [letter M, located in fuse and fusible link block]

to BCM terminal 55

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8

through 10A fuse [No. 20, located in fuse block (J/B)]

to rear combination lamp control unit terminal 1.
Ground is supplied

through BCM terminals 49 and 52

to grounds M35, M45 and M85

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-91
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45

through rear combination lamp control unit terminal 7

to grounds E21, E50 and E51

through combination meter terminals 5, 6 and 15

to grounds M35, M45 and M85.
When the hazard switch is depressed, ground is supplied

through BCM terminal 29

to hazard switch terminal 2

through hazard switch terminal 1

to grounds M35, M45 and M85.
When the hazard switch is depressed, BCM output turn signal from BCM terminals 45 and 46, interpreting it as
turn signal is ON.
Connected from BCM terminal 45 and 46 to front combination lamp terminal 4.
Turn signal lamp turns on

through front combination lamp terminal 8

to grounds E21, E50 and E51.
Connected form BCM terminals 45 and 46 to rear combination lamp control unit terminals 4 and 5.
Rear turn signal (LED) turns on

through rear combination lamp control unit terminal 11

to rear combination lamp LH terminal 3

through rear combination lamp LH terminal 4

to rear combination lamp control unit terminal 10

through rear combination lamp control unit terminal 9

to rear combination lamp RH terminal 3

through rear combination lamp RH terminal 4

to rear combination lamp control unit terminal 8.
BCM sends signal to unified meter and A/C amp. through CAN communication lines, and turns on turn signal
indicator lamp with combination meter.
When rear turn signal lamp (LED) does not turn on, rear combination lamp control unit sends signal to unified
meter and A/C amp. Unified meter and A/C amp. turn LED burnout status signal to BCM through CAN commu-
nication lines for speeding up turn signal blinking.
REMOTE CONTROL ENTRY SYSTEM OPERATION
Power is supplied at all times

through 50A fusible link [letter M, located in fuse and fusible link block]

to BCM terminal 55

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8

through 10A fuse [No. 20, located in fuse block (J/B)]

to rear combination lamp control unit terminal 1.
Ground is supplied

to BCM terminals 49 and 52

through grounds M35, M45 and M85

to rear combination lamp control unit terminal 7

through grounds E21, E50 and E51

to combination meter terminals 5, 6 and 15

through grounds M35, M45 and M85.
When the remote control entry system is triggered by input from the keyfob, BCM output turn signal from BCM
terminals 45 and 46, interpreting it as turn signal is ON.
Connected from BCM terminals 45 and 46 to front combination lamp terminal 4,
turn signal lamp turns on

through front combination lamp terminal 8

to grounds E21, E50 and E51.

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-127
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
PARKING, LICENSE PLATE AND TAIL LAMPSPFP:26550
Component Parts and Harness Connector LocationAKS007O7
System DescriptionAKS007DT
Control of the parking, license plate, and tail lamp operation is dependent upon the position of the lighting
switch (combination switch). When the lighting switch is placed in the 1ST position, the BCM (body control
module) receives input signal requesting the parking, license plate, side marker and tail lamps to illuminate.
This input signal is communicated to the IPDM E/R (intelligent power distribution module engine room) across
the CAN communication lines. The CPU (central processing unit) of the IPDM E/R (intelligent power distribu-
tion module engine room) controls the tail lamp relay coil. This relay, when energized, directs power to the
parking, license plate, side marker and tail lamps, which then illuminate.
The current that flows by Rear combination lamp unit is controlled, and a tail lamp (LED) is made to turn on.
Power is supplied at all times

through 10A fuse [No. 71, located in IPDM E/R (intelligent power distribution module engine room)]

to tail lamp relay [located in IPDM E/R (intelligent power distribution module engine room)] and

to CPU (central processing unit) [located in IPDM E/R (intelligent power distribution module engine
room)].

through 15A fuse [No. 78, located in IPDM E/R (intelligent power distribution module engine room)]

to CPU (central processing unit) [located in IPDM E/R (intelligent power distribution module engine
room)].
Power is also supplied at all times

through 50A fusible link (letter M, located in the fuse and fusible link block)

to BCM (body control module) terminal 55

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM (body control module) terminal 42

through 10A fuse [No. 20, located in fuse block (J/B)]

to rear combination lamp control unit terminal 1.
With the ignition switch in the ON or START position, power is supplied
PKIA5272E

LT-128
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2004 November 2004 FX35/FX45

through 15A fuse [No. 1, located in fuse block (J/B)]

to BCM (body control module) terminal 38

through ignition relay [located in IPDM E/R (intelligent power distribution module engine room)]

to CPU (central processing unit) [located in IPDM E/R (intelligent power distribution module engine
room)].
With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM (body control module) terminal 11.
Ground is supplied

to BCM (body control module) terminals 49 and 52

through grounds M35, M45 and M85

to IPDM E/R (intelligent power distribution module engine room) terminals 38 and 60

through grounds E21, E50 and E51

to rear combination lamp control unit terminal 7

through grounds E21, E50 and E51.
OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position (or if the auto light system is activated), the BCM receives
input signal requesting the parking, license plate, side marker and tail lamps to illuminate. This input signal is
communicated to the IPDM E/R across the CAN communication lines. The CPU in the IPDM E/R controls the
tail lamp relay coil, which when energized, directs power

through IPDM E/R terminal 22

to front side marker lamp LH terminal 1

to clearance lamp LH terminal 2

to license plate lamp LH terminal 1

to rear combination lamp LH terminal 1

to rear combination lamp control unit terminal 2

to front side marker lamp RH terminal 1

to clearance lamp RH terminal 2

to license plate lamp RH terminal 1

to rear combination lamp RH terminal 1.
Ground is supplied at all times

to front side marker lamp LH terminal 2

through grounds E21, E50 and E51

to clearance lamp LH terminal 3

through grounds E21, E50 and E51

to license plate lamp LH terminal 2

through grounds B15 and B45

to rear combination lamp LH terminal 2

through grounds B15 and B45

to front side marker lamp RH terminal 2

through grounds E21, E50 and E51

to clearance lamp RH terminal 3

through grounds E21, E50 and E51

to license plate lamp RH terminal 2

through grounds B15 and B45

to rear combination lamp RH terminal 2

through grounds B203 and B210

to rear combination lamp control unit terminal 7

through grounds E21, E50 and E51.
