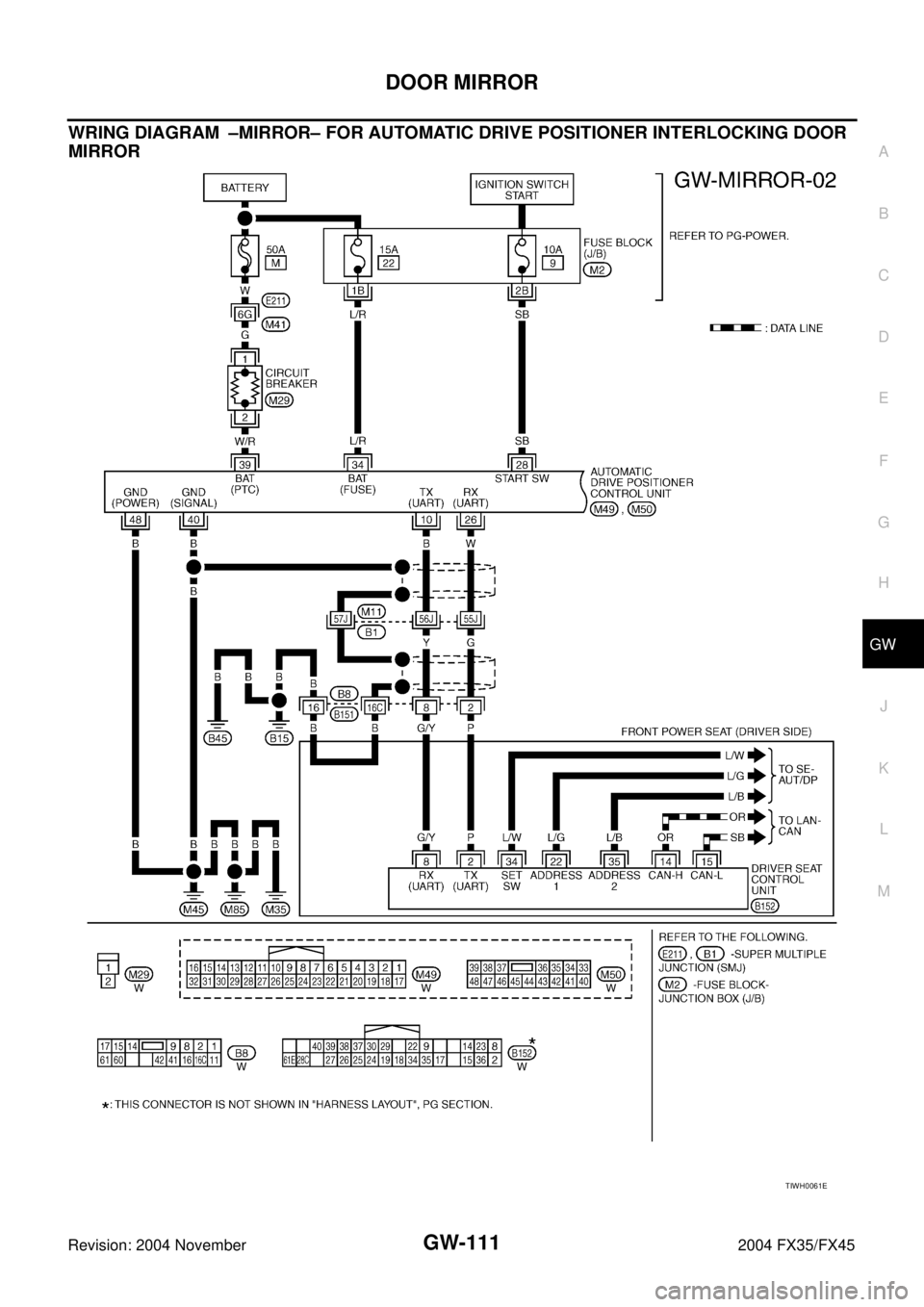

WRING DIAGRAM –MIRROR– FOR AUTOMATIC DRIVE POSITIONER INTERLOCKING DOOR
MIRROR
TIWH0061E

IDX-2
ALPHABETICAL INDEX
A
A/C air flow ...................................................... ATC-37
A/C component layout ..................................... ATC-26
A/C compressor clutch removal and installation ...........
ATC-143
A/C compressor mounting ........... ATC-140, ATC-143,
ATC-147
, ATC-148, ATC-149, ATC-150, ATC-151,
ATC-153
, ATC-154, ATC-155, ATC-156
A/C compressor precaution ............................. ATC-13
A/C compressor special service tool ................ ATC-17
A/C control operation (auto A/C) ...................... ATC-34
A/C diagnostic work flow (auto A/C) .............. ATC-102
A/C evaporator ............................................... ATC-155
A/C HFC134a (R134a) system precaution ........ ATC-5
A/C HFC134a (R134a) system service procedure .......
ATC-137
A/C HFC134a (R134a) system service tools ... ATC-18
A/C HFC134a system service equipment precaution ...
ATC-13
A/C lubricant (R134a) ...................................... ATC-27
A/C lubrication oil ........................................... ATC-161
A/C operational check ...................................... ATC-61
A/C self-diagnoses (auto A/C) ........ ATC-53, ATC-102
A/C service data specification ........................ ATC-161
A/C system description (auto A/C) ................... ATC-30
A/C trouble diagnoses (auto A/C) .................... ATC-40
A/C, A - Wiring diagram ................................... ATC-46
A/T fluid checking ...................... AT-12, AT-51, MA-28
A/T fluid cooler cleaning .................................... AT-14
A/T fluid replacement ............................. AT-12, MA-30
A/T fluid temperature sensor ........................... AT-139
A/T IND - Wiring diagram .................................... DI-51
A/T self-diagnoses ........................................... AT-103
A/T shift lock system ........................................ AT-235
A/T shift lock system - Wiring diagram ............ AT-236
A/T trouble diagnoses ........................................ AT-42
A/T Wiring diagram AT - CAN .......................... AT-106
A/T Wiring diagram AT - FTS .......................... AT-140
A/T Wiring diagram AT - MMSW ..................... AT-173
A/T Wiring diagram AT - NONDTC .................. AT-188
A/T Wiring diagram AT - PNP/SW ................... AT-113
A/T Wiring diagram AT - POWER .................... AT-130
A/T Wiring diagram AT - STSIG ...................... AT-109
A/T Wiring diagram AT - VSS A/T ................... AT-118
Accelerator control system ............................... ACC-3
Accelerator pedal position (APP) sensor ........ EC-555,
EC-562
, EC-576, EC-1225, EC-1232, EC-1246
Accelerator pedal released position learning .... EC-49,
EC-698
Air bag .............................................................. SRS-3
Air bag disposal .............................................. SRS-49
Air bag precautions ........................................... SRS-3
Air cleaner and air duct(VK45DE) ................... EM-172
Air cleaner and air duct(VQ35DE) .................... EM-17
Air cleaner filter replacement ............................ MA-24
Air cleaner filter replacement(VQ35DE) ........... MA-17
Air cleaner filter(VQ35DE) ................................ EM-18
Air conditioner cut control .................... EC-35, EC-683
Air flow meter - See Mass air flow sensor ....... EC-165,
EC-173
, EC-822, EC-830, EC-1064
Air mix. door motor ......................... ATC-73, ATC-131
Ambient sensor ............................. ATC-104, ATC-117
Angular tightening application(VK45DE) ........ EM-160
Angular tightening application(VQ35DE) ............ EM-6
APPS1 - Wiring diagram ................. EC-557, EC-1227
APPS2 - Wiring diagram ................. EC-564, EC-1234
APPS3 - Wiring diagram ................. EC-578, EC-1248
ASC/BS - Wiring diagram ............... EC-534, EC-1201
ASC/SW - Wiring diagram .............. EC-517, EC-1183
ASCBOF - Wiring diagram .............. EC-625, EC-1303
ASCD .............................................. EC-657, EC-1334
ASCD (automatic speed control device) ........... ACS-3
ASCIND - Wiring diagram ............... EC-633, EC-1310
Ashtray illumination .......................................... LT-155
AT indicator lamp ................................................ DI-51
Auto air conditioner - Wiring diagram ............. ATC-46
Auto amp ...................................................... ATC-116
Auto anti-dazzling inside mirror ....................... GW-84
Automatic amplifier ........... ATC-51, ATC-63, ATC-116
Automatic transmission fluid replacement ........ MA-31
AV and NAVI control unit ................................... AV-90
AV communication line ........................ AV-69, AV-116
AWD - Wiring diagram ....................................... TF-16
Axle ................................................................... MA-36
Axle housing (rear) ........................................... RAX-7
B
Back Door ........................................................ BL-159
Back door ......................................................... BL-159
Back door opener - See Back door .................. BL-163
BACK/L - Wiring diagram ................................. LT-125
Back-up lamp ................................................... LT-125
Battery ................................................................. SC-4
Battery/Starting/Charging System Tester SC-6, SC-13,
SC-26
BCM (Body control module) .............................. BCS-3
Block heater(VK45DE) .................................... EM-240
Block heater(VQ35DE) ................................... EM-120
Blower motor ................................... ATC-79, ATC-123
Blower unit .................................................... ATC-121
Board computer ................................................. AV-56
Bose speaker amp. .............................................. AV-7
Brake booster .................................................... BR-15
Brake fluid level ................................................ MA-34
Brake hydraulic line ........................................... BR-11
Brake inspection ............................................... MA-35
Brake lines and cables inspection .................... MA-34
Brake master cylinder ........................................ BR-13
Brake switch ................................... EC-550, EC-1220
BRK/SW - Wiring diagram .............. EC-551, EC-1221
Bulb specifications ........................................... LT-198
Bumper, front ...................................................... EI-14
Bumper, rear ....................................................... EI-18

IDX-3
A
C
D
E
F
G
H
I
J
K
L B
IDX
ALPHABETICAL INDEX
C
Camshaft inspection(VK45DE) ........................ EM-209
Camshaft inspection(VQ35DE) ......................... EM-84
Camshaft position sensor (PHASE) .. EC-308, EC-966
Camshaft(VK45DE) ......................................... EM-208
Camshaft(VQ35DE) ........................................... EM-82
CAN .................................................................... DI-29
CAN - Wiring diagram ......... EC-143, EC-793, LAN-22,
LAN-53
, LAN-89, LAN-135, LAN-169, LAN-208
CAN (Controller Area Network) . BL-25, BL-59, BL-93,
BL-185
, GW-22, GW-88, RF-13, SE-16, LAN-6, LAN-21,
LAN-52
, LAN-87, LAN-133, LAN-167, LAN-206
CAN communication EC-36, EC-142, EC-684, EC-792,
AT-31
, AT-105, TF-12, TF-31, WT-9, BRC-11, BL-25,
BL-59
, BL-93, BL-185, GW-22, GW-88, RF-13, SE-16,
WW-9
, LAN-6, LAN-21, LAN-52, LAN-87, LAN-133,
LAN-167
, LAN-206
Canister-See EVAP canister ........... EC-646, EC-1323
CHARGE - Wiring diagram ................................ SC-24
Charging system ................................................ SC-23
Chassis and body maintenance ........................ MA-28
CHIME - Wiring diagram ..................................... DI-59
CIGAR - Wiring diagram .................................. WW-52
Cigarette lighter ............................................... WW-52
Cigarette lighter illumination ............................. LT-156
Circuit breaker ................................................... PG-17
Clock ................................................................... DI-79
CLOCK - Wiring diagram .................................... DI-79
Closed loop control .............................. EC-33, EC-680
Collision diagnosis ........................................... SRS-56
Combination lamp, rear, removal and installation ........
LT-147
Combination meter ............................................... DI-4
Combination meter removal and installation - See
Instrument panel .................................................. IP-11
COMM - Wiring diagram ...................... AV-69, AV-116
COMPAS - Wiring diagram ................................. DI-37
Compass ............................................................ DI-35
Component Location (auto A/C) ...................... ATC-43
Compression pressure(VK45DE) .................... EM-224
Compression pressure(VQ35DE) ...................... EM-98
Compressor clutch removal and installation .. ATC-143
Compressor special service tool ...................... ATC-17
Condenser ..................................................... ATC-154
Connecting rod bearing clearance(VK45DE) .. EM-263
Connecting rod bearing clearance(VQ35DE) .. EM-138
Connecting rod bushing clearance(VK45DE) .. EM-258
Connecting rod bushing clearance(VQ35DE) . EM-138
Connecting rod(VK45DE) ................................ EM-258
Connecting rod(VQ35DE) ................................ EM-136
Console box - See Instrument panel ................... IP-10
CONSULT for VDC ......................................... BRC-25
CONSULT-II Reference value (A/T) .................. AT-91
Control units (terminal arrangement) ................. PG-77
Control valve (A/T) ............................................. AT-36
Controller Area Network (CAN) . BL-25, BL-59, BL-93,
BL-185
, GW-22, GW-88, RF-13, SE-16, LAN-6, LAN-21,
LAN-52
, LAN-87, LAN-133, LAN-167, LAN-206
Converter housing installation ........... AT-268, AT-272
COOL/F - Wiring diagram ................ EC-477, EC-1145
Coolant replacement(VQ35DE) ........................ MA-15
Cooling circuit (engine)(VK45DE) ..................... CO-34
Cooling circuit (engine)(VQ35DE) ...................... CO-9
Cooling fan motor ............................ EC-484, EC-1151
Cooling fan(VK45DE) ....................................... CO-47
Cooling fan(VQ35DE) ....................................... CO-21
Cowl top .............................................................. EI-24
Cowl top cover .................................................... EI-24
Crankcase ventilation system - See Positive crankcase
ventilation ......................................... EC-655
, EC-1332
Crankshaft position sensor (POS) ..... EC-302, EC-960
Crankshaft(VK45DE) ...................................... EM-241
Crankshaft(VQ35DE) ...................................... EM-136
Crash zone sensor .......................................... SRS-45
Cylinder block boring(VK45DE) ...................... EM-261
Cylinder block(VK45DE) ................................. EM-240
Cylinder block(VQ35DE) ................................. EM-120
Cylinder head bolt tightening(VK45DE) .......... EM-226
Cylinder head bolt tightening(VQ35DE) .......... EM-101
Cylinder head(VK45DE) ................................. EM-224
Cylinder head(VQ35DE) ................................... EM-98
D
D/LOCK - Wiring diagram ....................... BL-27
, BL-33
Daytime light system ........................................... LT-38
Daytime running light - See Daytime light system LT-38
Diagnosis sensor unit ..................................... SRS-48
Diagnostic trouble code (DTC) for OBD system EC-15,
EC-662
Direct clutch solenoid valve ............... AT-160, AT-162
Display and amp.assembly ............... ATC-51, ATC-63
Door glass ........................................... GW-76, GW-80
Door glass Fitting Adjustment(Front) ................ GW-78
Door glass Fitting Adjustment(Rear) ................. GW-83
Door lock .......................................................... BL-152
Door mirror ...................................................... GW-113
Door trim ............................................................. EI-35
Door, front ........................................... BL-148, GW-76
Door, rear ............................................ BL-148, GW-80
Drive belt inspection ......................................... MA-21
Drive belt inspection(VQ35DE) ......................... MA-14
Drive belt(VK45DE) ........................................ EM-169
Drive belt(VQ35DE) .......................................... EM-15
Drive pinion diff. inspection ............................. RFD-13
Drive shaft ......................................................... MA-37
Drive shaft (rear) ............................................... RAX-9
Driver air bag .................................................. SRS-36
DTRL - Wiring diagram ....................................... LT-41
Duct and grilles .............................................. ATC-133
E
ECM power supply EC-136
, EC-404, EC-785, EC-1060
ECM/PW - Wiring diagram ............... EC-405, EC-1061
ECTS - Wiring diagram ...................... EC-187, EC-844
Electric sunroof .................................................. RF-10

IDX-7
A
C
D
E
F
G
H
I
J
K
L B
IDX
ALPHABETICAL INDEX
Propeller shaft ..................................................... PR-6
Propeller shaft on vehicle service ........................ PR-6
Propeller shaft vibration ....................................... PR-6
PS/SEN - Wiring diagram ................ EC-397, EC-1053
R
R/VIEW - Wiring diagram ................................... DI-84
Radiator(VK45DE) ............................................. CO-39
Radiator(VQ35DE) ............................................ CO-14
Rear axle ........................................................... RAX-5
Rear bumper ........................................................ EI-18
Rear combination lamp removal and installation ..........
LT-147
Rear door ............................................ BL-148, GW-80
Rear seat ......................................................... SE-107
Rear suspension ............................................... RSU-5
Rear view monitor ............................................... DI-81
Rear washer .................................................... WW-35
Rear window defogger ...................................... GW-86
Rear wiper ....................................................... WW-35
Refrigerant connection precaution ..................... ATC-8
Refrigerant discharging evacuating charging ATC-137
Refrigerant general precaution .......................... ATC-7
Refrigerant lines ............................................ ATC-137
Refrigerant pressure sensor ........... EC-609, EC-1287,
ATC-90
, ATC-155
Refrigeration cycle ........................................... ATC-21
Removal and installation (A/T) ........... AT-266, AT-269
Removal and installation (Transfer) .................... TF-43
Revolution sensor (A/T) ...................... AT-116, AT-260
Ring gear diff. inspection ................................. RFD-13
Rocker cover(VK45DE) ................................... EM-193
Rocker cover(VQ35DE) ..................................... EM-51
Room lamp - See Interior lamp ......................... LT-157
ROOM/L - Wiring diagram ................................ LT-164
RP/SEN - Wiring diagram ................ EC-610, EC-1288
S
Seal - See Exterior .............................................. EI-28
SEAT - Wiring diagram ...................................... SE-95
Seat belt inspection ............................................. SB-8
Seat belt pre-tensioner disposal ...................... SRS-49
Seat belt, front ..................................................... SB-4
Seat, rear ......................................................... SE-107
Self-diagnosis (Transfer) .................................... TF-21
SEN/PW - Wiring diagram ............... EC-490, EC-1157
SHIFT - Wiring diagram ................................... AT-236
Shift change signal ........................................ EC-1218
Shift lock system .............................................. AT-235
Shift schedule .................................................. AT-348
Shock absorber (rear) ....................................... RSU-9
Side air bag (satellite) sensor .......................... SRS-46
Side bearing preload diff. ................................. RFD-20
Side curtain air bag .......................................... SRS-43
Side flange installation diff. .............................. RFD-10
Side trim .............................................................. EI-37
SMJ (super multiple junction) ............................ PG-79
Spark plug replacement .................................... MA-26
Spark plug replacement(VQ35DE) ................... MA-19
Spark plug(VK45DE) ...................................... EM-186
Spark plug(VQ35DE) ........................................ EM-43
Specification value ............................. EC-131, EC-780
Speedometer ........................................................ DI-4
Spiral cable ..................................................... SRS-38
Spot lamp .......................................................... LT-184
SROOF - Wiring diagram ..................... BL-167, RF-14
SRS - See Supplemental Restraint System ..... SRS-5
SRS Trouble diagnoses .................................... SRS-7
Stabilizer bar (rear) ......................................... RSU-16
Stall test (A/T) .................................................... AT-51
Standardized relay ............................................. PG-81
START - Wiring diagram .................................... SC-11
Starter ................................................................ SC-10
Starting system .................................................. SC-10
Steering gear and linkage inspection ................ MA-35
Steering linkage ................................................. PS-19
Steering wheel and column ................... PS-10, PS-12
Steering wheel turning force .............................. PS-10
Step lamp .......................................................... LT-124
Stop lamp .......................................................... LT-116
Stop lamp switch .............................. EC-550, EC-1220
STOP/L - Wiring diagram .................................. LT-118
Sun roof, electric ................................................ RF-10
Sunload sensor ............................. ATC-110, ATC-119
Sunroof .................................................. RF-10, RF-25
Supplemental Restraint System ....................... SRS-5
Suspension ....................................................... MA-36
Symbols and abbreviations ...................... GI-10, GI-23
T
Tachometer ........................................................... DI-4
TCM circuit diagram ........................................... AT-50
TCM inspection table ......................................... AT-90
Thermostat(VK45DE) ....................................... CO-51
Thermostat(VQ35DE) ....................................... CO-26
Three way catalyst function (Bank 1) . EC-316, EC-971
Three way catalyst function (Bank 2) . EC-316, EC-971
Three way catalyst precautions ............................ GI-6
Three way catalyst(VK45DE) .......................... EM-178
Three way catalyst(VQ35DE) ........................... EM-26
Throttle control motor ....................... EC-428, EC-1090
Throttle control motor relay .............. EC-423, EC-1085
Throttle position sensor (TPS) .......... EC-190, EC-284,
EC-485
, EC-487, EC-569, EC-848, EC-942, EC-1152,
EC-1154
, EC-1239
Tie-rod ............................................................... PS-19
Timing chain(VK45DE) ................................... EM-196
Timing chain(VQ35DE) ..................................... EM-63
Tire rotation ............................................. WT-6, MA-34
Tooth contact diff. ........................................... RFD-24
Top tether strap child restraint ........................... SB-12
Torque converter installation AT-267, AT-268, AT-272
Torque convertor clutch solenoid valve AT-123, AT-125
TPS1 - Wiring diagram ...................... EC-286, EC-944
TPS2 - Wiring diagram ...................... EC-192, EC-850

IP-4
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2004 November 2004 FX35/FX45
SQUEAK AND RATTLE TROUBLE DIAGNOSESPFP:00000
Work FlowAIS003CF
CUSTOMER INTERVIEW
Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any
customer's comments; refer to IP-8, "
Diagnostic Worksheet" . This information is necessary to duplicate the
conditions that exist when the noise occurs.

The customer may not be able to provide a detailed description or the location of the noise. Attempt to
obtain all the facts and conditions that exist when the noise occurs (or does not occur).

If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer
is concerned about. This can be accomplished by test driving the vehicle with the customer.

After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics
are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

Squeak —(Like tennis shoes on a clean floor)
Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard sur-
faces=higher pitch noise/softer surfaces=lower pitch noises/edge to surface=chirping

Creak—(Like walking on an old wooden floor)
Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch
dependent on materials/often brought on by activity.

Rattle—(Like shaking a baby rattle)
Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

Knock —(Like a knock on a door)
Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

Tick—(Like a clock second hand)
Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

Thump—(Heavy, muffled knock noise)
Thump characteristics include softer knock/dead sound often brought on by activity.

Buzz—(Like a bumble bee)
Buzz characteristics include high frequency rattle/firm contact.

Often the degree of acceptable noise level will vary depending upon the person. A noise that you may
judge as acceptable may be very irritating to the customer.

Weather conditions, especially humidity and temperature, may have a great effect on noise level.
SBT842

SQUEAK AND RATTLE TROUBLE DIAGNOSES
IP-5
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: 2004 November 2004 FX35/FX45
DUPLICATE THE NOISE AND TEST DRIVE
If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T model, drive position on A/T model).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.

Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.

If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the
vehicle body.
CHECK RELATED SERVICE BULLETINS
After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
1. Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool
(Chassis Ear: J-39570, Engine Ear and mechanics stethoscope).
2. Narrow down the noise to a more specific area and identify the cause of the noise by:

removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fastener can be broken
or lost during the repair, resulting in the creation of new noise.

tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only
temporarily.

feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the
noise.

placing a piece of paper between components that you suspect are causing the noise.

looking for loose components and contact marks.
Refer to IP-6, "
Generic Squeak and Rattle Troubleshooting" .
REPAIR THE CAUSE

If the cause is a loose component, tighten the component securely.

If the cause is insufficient clearance between components:
–separate components by repositioning or loosening and retightening the component, if possible.
–insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or ure-
thane tape. A NISSAN Squeak and Rattle Kit (J-43980) is available through your authorized NISSAN
Parts Department.
CAUTION:
Do not use excessive force as many components are constructed of plastic and may be damaged.
Always check with the Parts Department for the latest parts information.
The following materials are contained in the NISSAN Squeak and Rattle Kit (J-43980). Each item can be
ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100 × 135 mm (3.94 × 5.31 in)/76884-71L01: 60 × 85 mm (2.36 × 3.35 in)/76884-71L02: 15
× 25 mm (0.59 × 0.98 in)
INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
73982-9E000: 45 mm (1.77 in) thick, 50 × 50 mm (1.97 × 1.97 in)/73982-50Y00: 10 mm (0.39 in) thick,
50 × 50 mm (1.97 × 1.97 in)

IP-6
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2004 November 2004 FX35/FX45
INSULATOR (Light foam block)
80845-71L00: 30 mm (1.18 in) thick, 30 × 50 mm (1.18 × 1.97 in)
FELT CLOTH TAPE
Used to insulate where movement does not occur.Ideal for instrument panel applications.
68370-4B000: 15 × 25 mm (0.59 × 0.98 in) pad/68239-13E00: 5 mm (0.20 in) wide tape roll
The following materials, not found in the kit, can also be used to repair squeaks and rattles.
UHMW (TEFLON) TAPE
Insulates where slight movement is present. Ideal for instrument panel applications.
SILICONE GREASE
Used in of UHMW tape that will be visible or not fit.
Note: Will only last a few months.
SILICONE SPRAY
Use when grease cannot be applied.
DUCT TAPE
Use to eliminate movement.
CONFIRM THE REPAIR
Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.
Generic Squeak and Rattle TroubleshootingAIS003CG
Refer to Table of Contents for specific component removal and installation information.
INSTRUMENT PANEL
Most incidents are caused by contact and movement between:
1. The cluster lid A and instrument panel
2. Acrylic lens and combination meter housing
3. Instrument panel to front pillar garnish
4. Instrument panel to windshield
5. Instrument panel mounting pins
6. Wiring harnesses behind the combination meter
7. A/C defroster duct and duct joint
These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicon spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.
CAUTION:
Do not use silicone spray to isolate a squeak or rattle. If you saturate the area with silicone, you will
not be able to recheck the repair.
CENTER CONSOLE
Components to pay attention to include:
1. Shifter assembly cover to finisher
2. A/C control unit and cluster lid C
3. Wiring harnesses behind audio and A/C control unit
The instrument panel repair and isolation procedures also apply to the center console.
DOORS
Pay attention to the:
1. Finisher and inner panel making a slapping noise
2. Inside handle escutcheon to door finisher
3. Wiring harnesses tapping
4. Door striker out of alignment causing a popping noise on starts and stops
Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks from
the NISSAN Squeak and Rattle Kit (J-43980) to repair the noise.

SQUEAK AND RATTLE TROUBLE DIAGNOSES
IP-7
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: 2004 November 2004 FX35/FX45
TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:
1. Trunk lid dumpers out of adjustment
2. Trunk lid striker out of adjustment
3. The trunk lid torsion bars knocking together
4. A loose license plate or bracket
Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area can often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sunvisor shaft shaking in the holder
3. Front or rear windshield touching headlining and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
SEATS
When isolating seat noise it's important to note the position the seat is in and the load placed on the seat when
the noise is present. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. The rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.
