2004 INFINITI FX35 diagram

CONSULT-II CHECKING SYSTEM
GI-41
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: 2004 November 2004 FX35/FX45
INSPECTION PROCEDURE
If the CONSULT-II cannot diagnose the system properly, check the following items.
NOTE:
The DDL1 and DDL2 circuits from DLC pins 12, 13, 14 and 15 may be connected to more than one system. A
short in a DDL circuit connected to a control unit in one system may affect CONSULT-II access to other sys-
tems.
Symptom Check item
CONSULT-II cannot access
any system.

CONSULT-II DLC power supply circuit (Terminal 8) and ground circuit (Terminal 4) (For detailed
circuit, refer to “MIL & Data Link Connectors Wiring Diagram” in EC section.)

CONSULT-II DLC cable and CONSULT-II CONVERTER
CONSULT-II cannot access
individual system. (Other sys-
tems can be accessed.)

CONSULT-II program card (Check the appropriate CONSULT-II program card for the system.
Refer to "Checking Equipment".)

Power supply and ground circuit for the control unit of the system (For detailed circuit, refer to wir-
ing diagram for each system.)

Open or short circuit between the system and CONSULT-II DLC (For detailed circuit, refer to wiring
diagram for each system.)

Open or short circuit CAN communication line. Refer to LAN-4, "Precautions When Using CON-
SULT-II" .

GW-1
GLASSES, WINDOW SYSTEM & MIRRORS
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION GW
A
B
GW
Revision: 2004 November 2004 FX35/FX45
GLASSES, WINDOW SYSTEM & MIRRORS
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Handling for Adhesive and Primer ........................... 3
Wiring Diagrams and Trouble Diagnosis .................. 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 4
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 5
Work Flow ................................................................ 5
CUSTOMER INTERVIEW ..................................... 5
DUPLICATE THE NOISE AND TEST DRIVE ....... 6
CHECK RELATED SERVICE BULLETINS ........... 6
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ...................................................... 6
REPAIR THE CAUSE ........................................... 6
CONFIRM THE REPAIR ....................................... 7
Generic Squeak and Rattle Troubleshooting ........... 7
INSTRUMENT PANEL .......................................... 7
CENTER CONSOLE ............................................. 7
DOORS ................................................................. 7
TRUNK .................................................................. 8
SUNROOF/HEADLINING ..................................... 8
SEATS ................................................................... 8
UNDERHOOD ....................................................... 8
Diagnostic Worksheet .............................................. 9
WINDSHIELD GLASS ...............................................11
Removal and Installation ......................................... 11
REMOVAL ............................................................ 11
INSTALLATION ................................................... 12
REAR WINDOW GLASS AND MOLDING ............... 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 14
POWER WINDOW SYSTEM .................................... 15
Component Parts and Harness Connector Location ... 15
System Description ................................................ 16
WITH FRONT POWER WINDOW ANTI-PINCH
SYSTEM ............................................................. 16WITH FRONT AND REAR WINDOW ANTI-
PINCH SYSTEM ................................................. 16
MANUAL OPERATION ........................................ 17
AUTO OPERATION ............................................. 19
POWER WINDOW SERIAL LINK ....................... 20
POWER WINDOW LOCK ................................... 20
RETAINED POWER OPERATION ...................... 21
ANTI-PINCH SYSTEM ........................................ 21
POWER WINDOW CONTROL BY THE KEY
CYLINDER SWITCH ........................................... 21
CAN Communication System Description .............. 22
CAN Communication Unit ....................................... 22
Schematic (With Front Power Window Anti-pinch
System) .................................................................. 23
Wiring Diagram —WINDOW— (With Front Power
Window Anti-pinch System) .................................... 24
Terminal and Reference Value for BCM / With Front
Power Window Anti-pinch System .......................... 28
Terminal and Reference Value for Power Window
Main Switch / With Front Power Window Anti-pinch
System .................................................................... 29
Terminal and Reference Value for Front Power Win-
dow Switch (Passenger Side) / With Front Power
Window Anti-pinch System ..................................... 30
Schematic (With Front and Rear Power Window
Anti-pinch System) ................................................. 31
Wiring Diagram —WINDOW— (With Front and
Rear Power Window Anti-pinch System) ................ 32
Terminal and Reference Value for BCM / With Front
and Rear Power Window Anti-pinch ....................... 37
Terminal and Reference Value for Power Window
Main Switch / With Front and Rear Power Window
Anti-pinch System ................................................... 38
Terminal and Reference Value for (Front and Rear)
Power Window Switch / With Front and Rear Win-
dow Anti-pinch System ........................................... 39
Work Flow ............................................................... 39
CONSULT-II Inspection Procedure ......................... 40
ACTIVE TEST ..................................................... 41
WORK SUPPORT ............................................... 41

GW-2Revision: 2004 November 2004 FX35/FX45DATE MONITOR ................................................. 41
Trouble Diagnosis Symptom Chart / With Front
Power Window Anti-pinch System .......................... 42
Trouble Diagnosis Symptom Chart / With Front and
Rear Power Window Anti-pinch System ................. 43
BCM Power Supply and Ground Circuit Check ...... 44
Power Window Main Switch Power Supply Circuit
Check ..................................................................... 45
Front Power Window Switch (Passenger Side)
Power Supply and Ground Circuit Check ............... 46
Rear Power Window Switch (LH or RH) Power Sup-
ply and Ground Circuit Check / With Front and Rear
Power Window Anti-pinch System .......................... 47
Front Power Window Motor (Driver Side) Circuit
Check ..................................................................... 48
Front Power Window Motor (Passenger Side) Cir-
cuit Check ............................................................... 49
Rear Power Window Motor (LH) Circuit Check / With
Front Anti-pinch Power Window System ................ 50
Rear Power Window Motor (RH) Circuit Check / With
Front Anti-pinch Power Window System ................ 52
Rear Power Window Motor (LH or RH) Circuit Check
/ With Front and Rear Power Window Anti-pinch
System .................................................................... 55
Limit Switch Circuit Check (Driver Side) ................. 56
Limit Switch Circuit Check (Passenger Side) ......... 57
Limit Switch Circuit Check (Rear LH or RH) / With
Front and Rear Anti-pinch System ......................... 59
Encoder Circuit Check (Driver Side) ....................... 61
Encoder Circuit Check (Passenger Side) ............... 63
Encoder Circuit Check (Rear LH or RH) / With Front
and Rear Power Window Anti-pinch System .......... 65
Door Switch Check ................................................. 67
Front Door Key Cylinder Switch Check .................. 69
Power Window Serial Link Check (Passenger Side) ... 71
Power Window Serial Link Check (Rear LH or RH)
/ With Front and Rear Power Window Anti-pinch
System .................................................................... 73
Power Window Lock Switch Check ........................ 73
SIDE WINDOW GLASS ............................................ 74
Removal and Installation ........................................ 74
REMOVAL ........................................................... 74
INSTALLATION .................................................... 75
FRONT DOOR GLASS AND REGULATOR ............. 76
Removal and Installation ........................................ 76
DOOR GLASS ..................................................... 76
REGULATOR ASSEMBLY .................................. 77
Disassembly and assembly .................................... 78
REGULATOR ASSEMBLY .................................. 78
Inspection after Installation ..................................... 78
SETTING OF LIMIT SWITCH .............................. 78
FITTING INSPECTION ........................................ 78
REAR DOOR GLASS AND REGULATOR ............... 80
Removal and Installation ........................................ 80
DOOR GLASS ..................................................... 80REGULATOR ASSEMBLY ................................... 81
Disassembly and assembly .................................... 82
REGULATOR ASSEMBLY ................................... 82
Inspection after Installation ..................................... 82
SETTING OF LIMIT SWITCH (WITH ANTI-
PINCH SYSTEM ONLY) ...................................... 82
FITTING INSPECTION ........................................ 83
INSIDE MIRROR ....................................................... 84

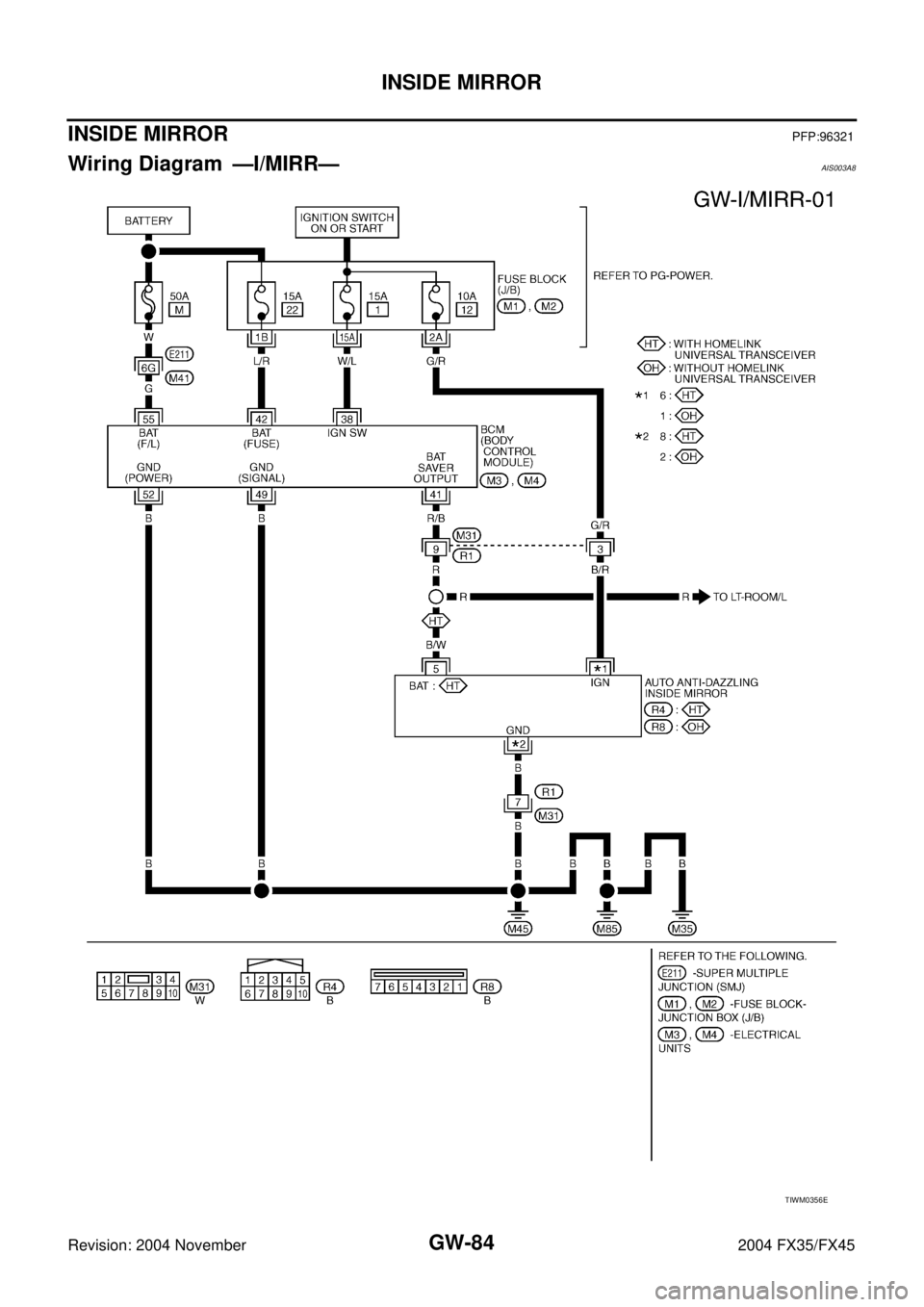

Wiring Diagram —I/MIRR— ................................... 84
Removal and Installation ......................................... 85
REMOVAL ............................................................ 85
INSTALLATION .................................................... 85
COMPASS ........................................................... 85
REAR WINDOW DEFOGGER .................................. 86
Component Parts and Harness Connector Location ... 86
System Description ................................................. 86
CAN Communication System Description .............. 88
CAN Communication Unit ....................................... 88
Schematic ............................................................... 89
Wiring Diagram —DEF— ........................................ 90
Terminal and Reference Value for BCM .................. 94
Terminal and Reference Value for IPDM E/R .......... 94
Work Flow ............................................................... 94
CONSULT-II Inspection Procedure ......................... 95
DATA MONITOR .................................................. 96
ACTIVE TEST ...................................................... 96
Trouble Diagnoses Symptom Chart ........................ 97
BCM Power Supply and Ground Circuit Check ...... 97
Rear Window Defogger Switch Circuit Check ......... 98
Rear Window Defogger Power Supply Circuit
Check ....................................................................100
Rear Window Defogger Circuit Check ..................102
Door Mirror Defogger Power Supply Circuit Check .103
Driver Side Door Mirror Defogger Circuit Check ...104
Passenger Side Door Mirror Defogger Circuit Check
.105
Rear Window Defogger Signal Check ..................106
Filament Check .....................................................107
Filament Repair .....................................................107
REPAIR EQUIPMENT .......................................107
REPAIRING PROCEDURE ...............................108
DOOR MIRROR .......................................................109
Door Mirror (Only Manual Operation) ...................109
WRING DIAGRAM —MIRROR— FOR MAN-
UAL OPERATION DOOR MIRROR ...................109
Automatic Drive Positioner Interlocking Door Mirror .110
WRING DIAGRAM –MIRROR– FOR AUTO-
MATIC DRIVE POSITIONER INTERLOCKING
DOOR MIRROR ................................................. 111
Removal and Installation .......................................113
REMOVAL ..........................................................113
INSTALLATION ..................................................113
Disassembly and Assembly ..................................113
DISASSEMBLY ..................................................113
ASSEMBLY ........................................................114

PRECAUTIONS
GW-3
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
AIS0039V
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Handling for Adhesive and PrimerAIS0039W

Do not use an adhesive which is past its usable date. Shelf life of this product is limited to six months after
the date of manufacture. Carefully adhere to the expiration or manufacture date printed on the box.

Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

Open the seal of the primer and adhesive just before application. Discard the remainder.

Before application, be sure to shake the primer container to stir the contents. If any floating material is
found, do not use it.

If any primer or adhesive contacts the skin, wipe it off with gasoline or equivalent and wash the skin with
soap.

When using primer and adhesive, always observe the precautions in the instruction manual.
Wiring Diagrams and Trouble Diagnosis AIS0039X
When you read wiring diagrams, refer to the following:

GI-15, "How to Read Wiring Diagrams".

PG-3, "POWER SUPPLY ROUTING CIRCUIT".
When you perform trouble diagnosis, refer to the following:

GI-11, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES".

GI-27, "How to Perform Efficient Diagnosis for an Electrical Incident".
Check for any service bulletins before servicing the vehicle.

GW-24
POWER WINDOW SYSTEM
Revision: 2004 November 2004 FX35/FX45
Wiring Diagram —WINDOW— (With Front Power Window Anti-pinch System)AIS004Q1
TIWH0051E

GW-32
POWER WINDOW SYSTEM
Revision: 2004 November 2004 FX35/FX45
Wiring Diagram —WINDOW— (With Front and Rear Power Window Anti-pinch
System)
AIS004Q6
TIWH0056E

GW-84
INSIDE MIRROR
Revision: 2004 November 2004 FX35/FX45
INSIDE MIRRORPFP:96321
Wiring Diagram —I/MIRR—AIS003A8
TIWM0356E

GW-90
REAR WINDOW DEFOGGER
Revision: 2004 November 2004 FX35/FX45
Wiring Diagram —DEF— AIS004R3
TIWM0358E
