DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-1019
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
5. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between EVAP control system pressure sensor terminal 1 and ECM terminal
67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors B201, M81

Harness connectors M82, F102

Harness for open or short between EVAP control system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND
SHORT
1. Check harness continuity between ECM terminal 32 and EVAP control system pressure sensor terminal
2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors B201, M81

Harness connectors M82, F102

Harness for open or short between EVAP control system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK RUBBER TUBE
1. Disconnect rubber tube connected to EVAP canister vent control valve.
2. Check the rubber tube for clogging.
OK or NG
OK >> GO TO 10.
NG >> Clean the rubber tube using an air blower, repair or replace rubber tube.Continuity should exist.
Continuity should exist.

DTC P0550 PSP SENSOR
EC-1053
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Wiring DiagramABS00C7R
TBWM0249E

DTC P0550 PSP SENSOR
EC-1055
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
2. CHECK PSP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect PSP sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between PSP sensor terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E306, F46

Harness for open or short between power steering pressure sensor and ECM
>> Repair open circuit or short to power in harness or connectors.
4. CHECK PSP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between PSP sensor terminal 3 and ECM terminal 67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E306, F46

Harness for open or short between power steering pressure sensor and ECM
>> Repair open circuit or short to ground short to power in harness or connectors.
PBIB1484E
Voltage: Approximately 5V
PBIB0188E
Continuity should exist.

DTC P1065 ECM POWER SUPPLY
EC-1061
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

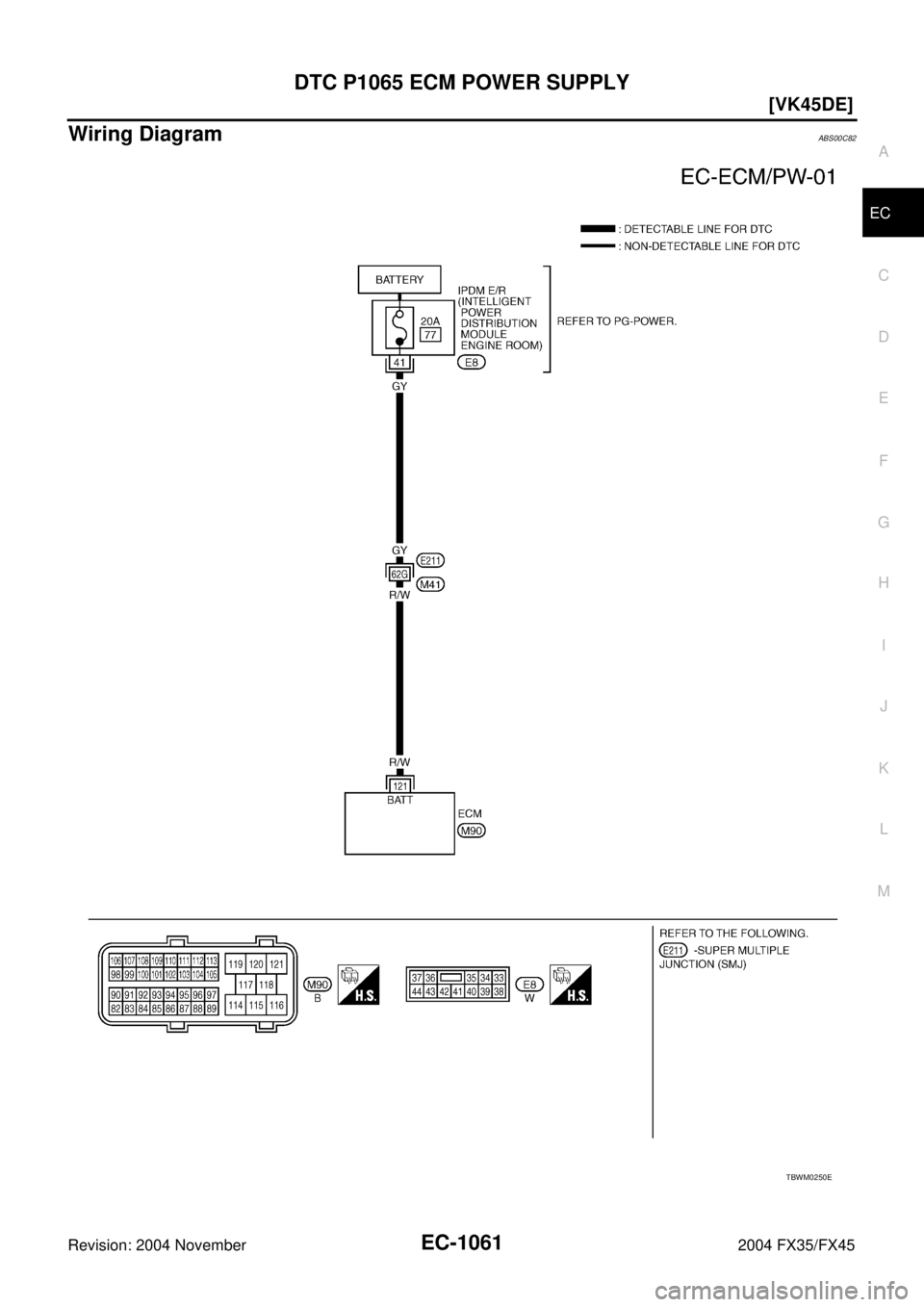

Wiring DiagramABS00C82
TBWM0250E

EC-1066
[VK45DE]
DTC P1102 MAF SENSOR
Revision: 2004 November 2004 FX35/FX45
Wiring DiagramABS00C88
TBWM0225E

EC-1068
[VK45DE]
DTC P1102 MAF SENSOR
Revision: 2004 November 2004 FX35/FX45
2. CHECK MAF SENSOR POWER SUPPLY CIRCUIT
1. Disconnect mass air flow (MAF) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between MAF sensor terminals 2, 4 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E211, M41

Harness connectors M82, F102

Joint connector-3

Harness for open or short between IPDM E/R and mass air flow sensor

Harness for open or short between mass air flow sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK MAF SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between MAF sensor terminal 3 and ECM terminal 67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB1502E
Terminal Voltage
2 Approximately 5V
4 Battery voltage
PBIB0076E
Continuity should exist.

DTC P1102 MAF SENSOR
EC-1069
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
5. CHECK MAF SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between MAF sensor terminal 1 and ECM terminal 51.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK MASS AIR FLOW SENSOR
Refer to EC-829, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace mass air flow sensor.
7. CHECK INTERMITTENT INCIDENT
Refer to EC-784, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionABS00C8A
MASS AIR FLOW SENSOR
1. Reconnect all harness connectors disconnected.
2. Start engine and warm it up to normal operating temperature.
3. Check voltage between ECM terminal 51 (Mass air flow sensor
signal) and ground.
*: Check for linear voltage rise in response to engine being increased to about
4,000 rpm.
4. If the voltage is out of specification, proceed the following.

Turn ignition switch OFF.

Disconnect mass air flow sensor harness connector and reconnect it again.

Perform steps 2 and 3 again.
5. If NG, remove mass air flow sensor from air duct. Check hot film for damage or dust.
6. If NG, clean or replace mass air flow sensor.
Removal and InstallationABS00C8B
MASS AIR FLOW SENSOR
Refer to EM-172, "AIR CLEANER AND AIR DUCT" . Continuity should exist.
Condition Voltage V
Ignition switch ON (Engine stopped.) Approx. 1.0
Idle (Engine is warmed-up to normal
operating temperature.)1.2 - 1.8
2,500 rpm (Engine is warmed-up to
normal operating temperature.)1.7 - 2.4
Idle to about 4,000 rpm* 1.2 - 1.8 to Approx. 4.0
PBIB1106E

DTC P1111, P1136 IVT CONTROL SOLENOID VALVE
EC-1071
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Wiring DiagramABS00C8G
BANK 1
TBWM0219E
