EC-896
[VK45DE]
DTC P0138, P0158 HO2S2
Revision: 2004 November 2004 FX35/FX45
Wiring DiagramABS00C3H
BANK 1
TBWM0230E

EC-900
[VK45DE]
DTC P0138, P0158 HO2S2
Revision: 2004 November 2004 FX35/FX45
2. CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Disconnect heated oxygen sensor 2 harness connector.
2. Disconnect ECM harness connector.
3. Check harness continuity between HO2S2 terminal 4 and ECM terminal 78.
Refer to Wiring Diagram.
4. Also check harness for short to ground or short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal and HO2S2 terminal as follows.
Refer to Wiring Diagram.
2. Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.Continuity should exist.
PBIB1534E
DTCTerminals
Bank
ECM Sensor
P0138 55 1 1
P0158 74 1 2
Continuity should exist.
DTCTerminals
Bank
ECM Sensor
P0138 55 1 1
P0158 74 1 2
Continuity should not exist.

EC-906
[VK45DE]
DTC P0139, P0159 HO2S2
Revision: 2004 November 2004 FX35/FX45
Wiring DiagramABS00C3Q
BANK 1
TBWM0230E

DTC P0139, P0159 HO2S2
EC-911
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
3. CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect heated oxygen sensor 2 harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between HO2S2 terminal 4 and ECM terminal 78.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal and HO2S2 terminal as follows.
Refer to Wiring Diagram.
2. Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.Continuity should exist.
PBIB1534E
DTCTe r m i n a l s
Bank
ECM Sensor
P0139 55 1 1
P0159 74 1 2
Continuity should exist.
DTCTe r m i n a l s
Bank
ECM Sensor
P0139 55 1 1
P0159 74 1 2
Continuity should not exist.

EC-916
[VK45DE]
DTC P0171, P0174 FUEL INJECTION SYSTEM FUNCTION
Revision: 2004 November 2004 FX35/FX45

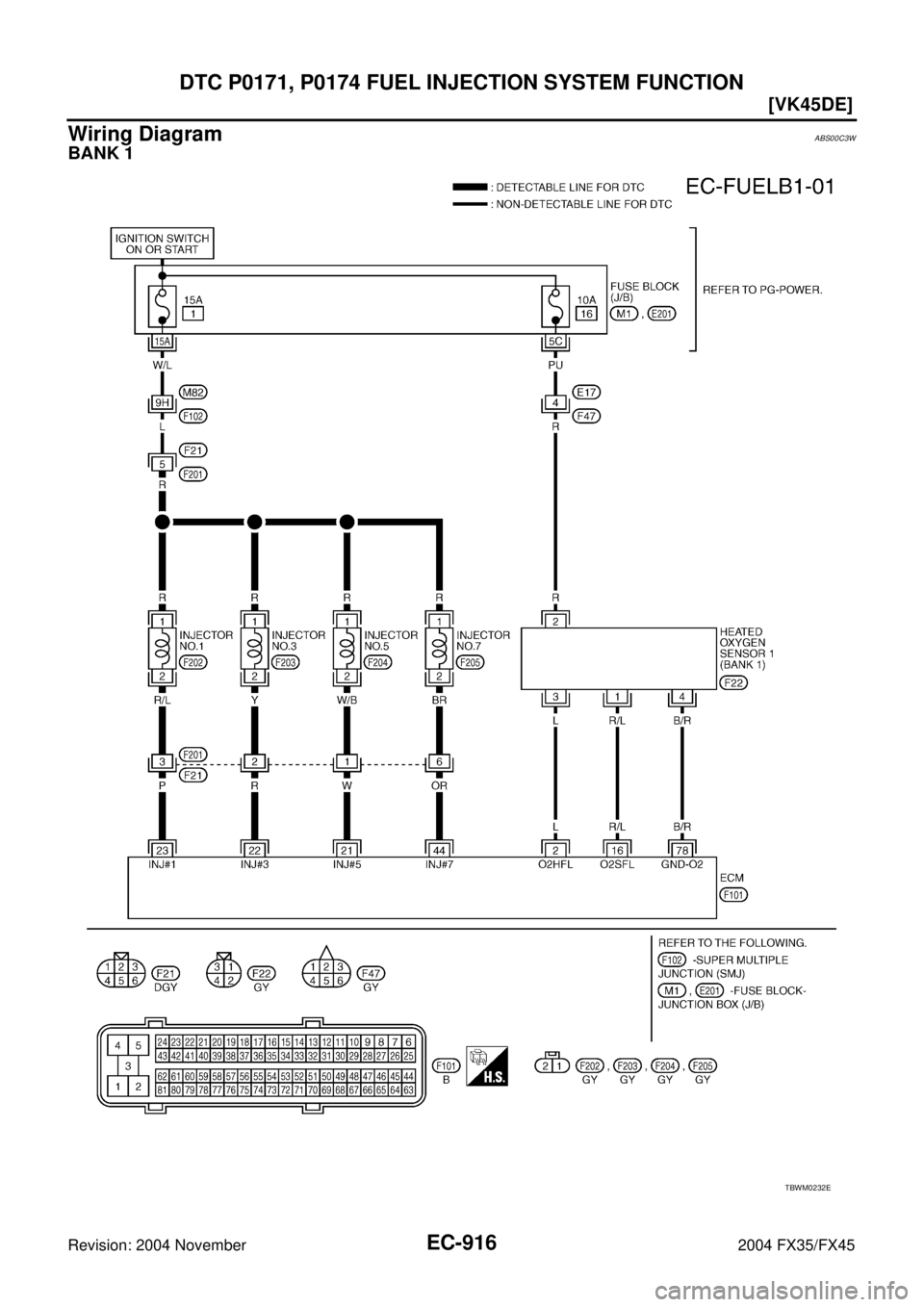

Wiring DiagramABS00C3W
BANK 1
TBWM0232E

DTC P0171, P0174 FUEL INJECTION SYSTEM FUNCTION
EC-919
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
3. CHECK HEATED OXYGEN SENSOR 1 CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect corresponding heated oxygen sensor 1 (HO2S1) harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between ECM terminal and HO2S1 terminal as follows.
Refer to Wiring Diagram.
5. Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.
6. Check harness continuity between HO2S1 terminal 4 and ECM terminal 78.
7. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-700, "
FUEL PRESSURE RELEASE" .
2. Install fuel pressure gauge and check fuel pressure. Refer to EC-701, "
FUEL PRESSURE CHECK" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
DTCTe r m i n a l s
Bank
ECM Sensor
P0171 16 1 1
P0174 35 1 2
Continuity should exist.
PBIB1521E
DTCTe r m i n a l s
Bank
ECM Sensor
P0171 16 1 1
P0174 35 1 2
Continuity should not exist.
Continuity should exist.
At idling: 350 kPa (3.57 kg/cm2 , 51 psi)

DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-925
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Wiring DiagramABS00C40
BANK 1
TBWM0232E

EC-928
[VK45DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2004 November 2004 FX35/FX45
3. CHECK HEATED OXYGEN SENSOR 1 CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect corresponding heated oxygen sensor 1 (HO2S1) harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between ECM terminal and HO2S1 terminal as follows.
Refer to Wiring Diagram.
5. Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.
6. Check harness continuity between HO2S1 terminal 4 and ECM terminal 78.
7. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-700, "
FUEL PRESSURE RELEASE" .
2. Install fuel pressure gauge and check fuel pressure. Refer to EC-701, "
FUEL PRESSURE CHECK" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
DTCTerminals
Bank
ECM Sensor
P0172 16 1 1
P0175 35 1 2
Continuity should exist.
PBIB1521E
DTCTerminals
Bank
ECM Sensor
P0172 16 1 1
P0175 35 1 2
Continuity should not exist.
Continuity should exist.
At idling: 350 kPa (3.57 kg/cm2 , 51 psi)
