COOLING FANPFP:21140
Removal and Installation ABS005GR
REMOVAL
1. Remove air duct (inlet), power duct and air cleaner case assembly. Refer to EM-17, "AIR CLEANER AND
AIR DUCT" .
2. Disconnect fan motor connectors.
3. Remove radiator cooling fan assembly.
CAUTION:
Be careful not to damage or scratch on radiator core.
INSTALLATION
Note to the following, and install in the reverse order of removal.

Cooling fan is controlled by ECM. For details, refer to EC-472, "DTC P1217 ENGINE OVER TEMPERA-
TURE" .
Disassembly and Assembly ABS004WG
DISASSEMBLY
1. Remove fans from fan motors.
2. Remove fan motors from fan shroud.
ASSEMBLY
Install in the reverse order of disassembly.

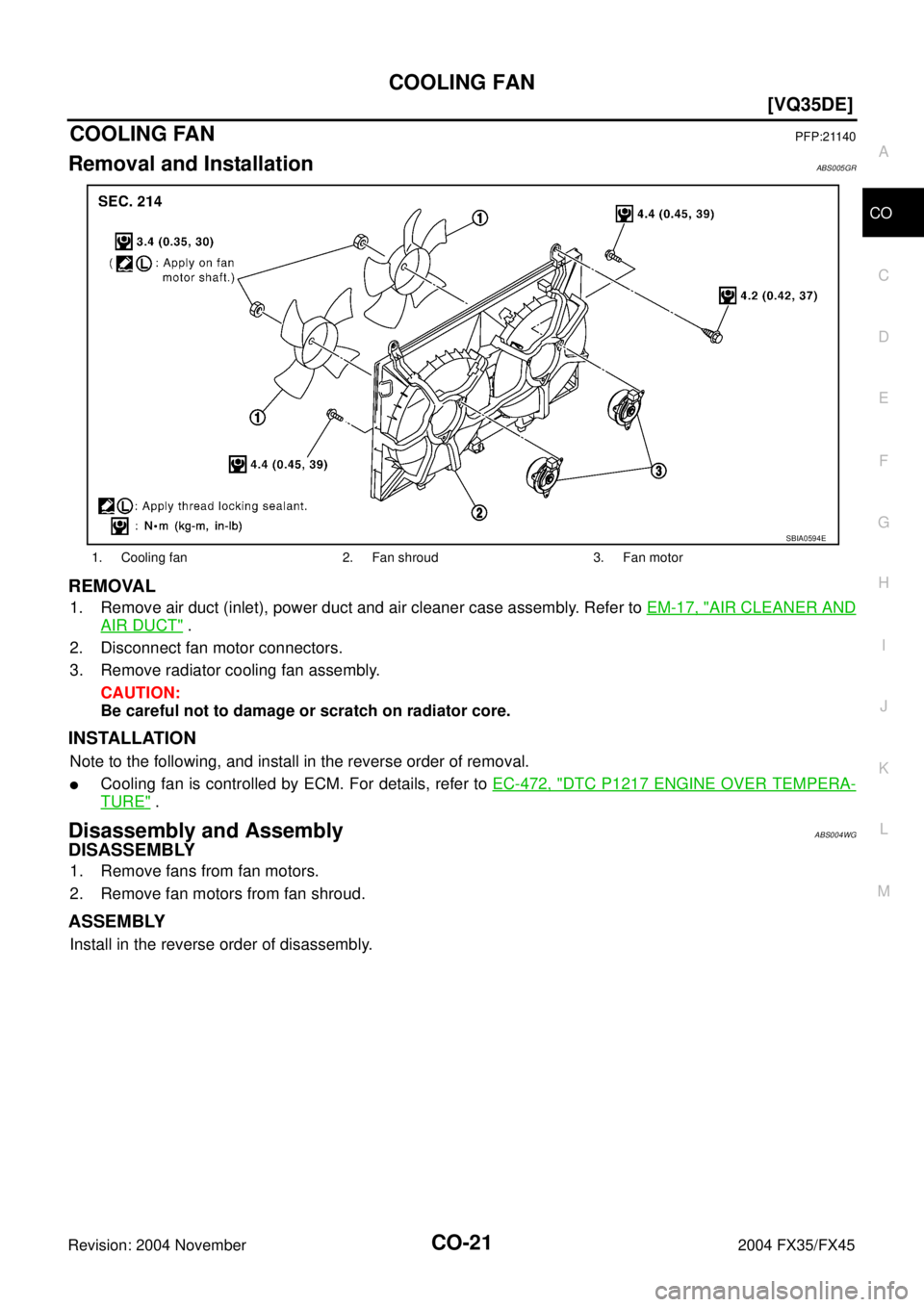

1. Cooling fan 2. Fan shroud 3. Fan motor
SBIA0594E

CO-22
[VQ35DE]
WATER PUMP
Revision: 2004 November 2004 FX35/FX45
WATE R P U M PPFP:21020
Removal and InstallationABS009RE
CAUTION:

When removing water pump, be careful not to get engine coolant on drive belt.

Water pump cannot be disassembled and should be replaced as a unit.
REMOVAL
1. Remove front engine undercover with power tool.
2. Remove drive belts. Refer to EM-15, "
DRIVE BELTS" .
3. Drain engine coolant from radiator. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:
Perform when engine is cold.
4. Remove air duct (inlet), power duct and air cleaner case assembly. Refer to EM-17, "
AIR CLEANER AND
AIR DUCT" .
5. Remove water drain plug (front) of cylinder block.
6. Remove chain tensioner cover and water pump cover separat-
i n g t h e m a t i n g s u r f a c e w i t h a s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J -
37228)].
CAUTION:
Be careful not to damage the mating surfaces.

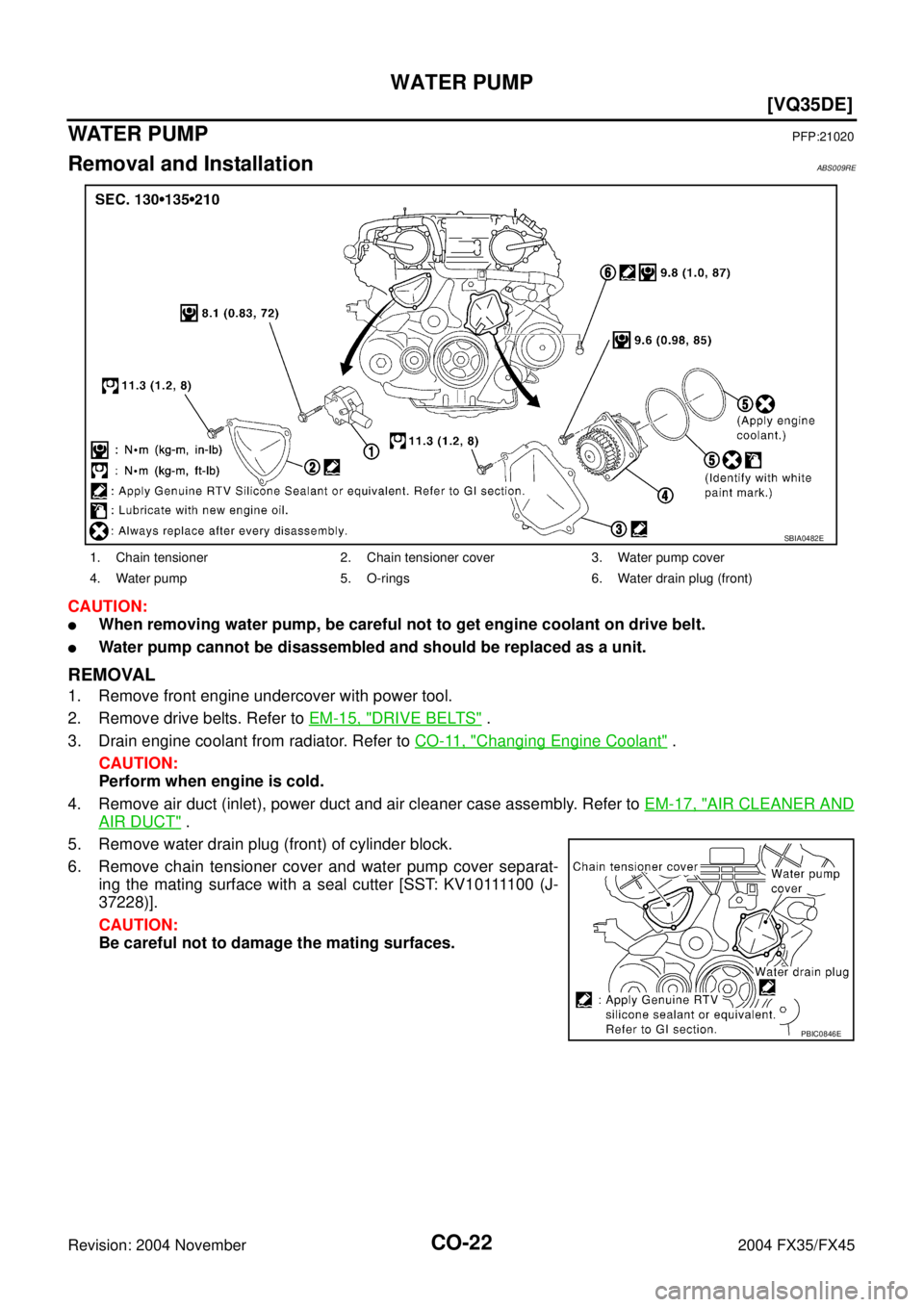

1. Chain tensioner 2. Chain tensioner cover 3. Water pump cover
4. Water pump 5. O-rings 6. Water drain plug (front)
SBIA0482E
PBIC0846E

CO-24
[VQ35DE]
WATER PUMP
Revision: 2004 November 2004 FX35/FX45
9. Screw M8 bolts [pitch: 1.25 mm (0.049 in) length: approx. 50
mm (1.97 in)] into water pumps upper and lower mounting bolt
holes until they reach timing chain case. Then, alternately
tighten each bolt for a half turn, and pull out water pump.
CAUTION:

Pull straight out while preventing vane from contacting
socket in installation area.

Remove water pump without causing sprocket to contact
timing chain.
10. Remove M8 bolts and O-rings from water pump.
CAUTION:
Do not disassembly water pump.
INSPECTION AFTER REMOVAL

Check for badly rusted or corroded water pump body assembly.

Check for rough operation due to excessive end play.

If anything is found, replace water pump.
INSTALLATION
1. Install new O-rings to water pump.

Apply engine oil and engine coolant to O-rings as shown in
the figure.

Locate O-ring with white paint mark to engine front side.
2. Install water pump.
CAUTION:
Do not allow cylinder block to nip O-rings when install
water pump.

Make sure timing chain and water pump sprocket are
engaged.

Insert water pump by tightening mounting bolts alternately
and evenly.
3. Install timing chain tensioner (primary) as the following:
a. Remove dust and foreign material completely from backside of chain tensioner and from installation area
of rear timing chain case.
b. Turn crankshaft pulley clockwise so that timing chain on the timing chain tensioner (primary) side is loose.

Apply engine oil should be applied to the oil hole and tensioner, when installing timing chain
tensioner.
JLC357B
SLC943A
PBIC1397E
PBIC1058E

WATER PUMP
CO-25
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
c. Install timing chain tensioner (primary).
d. Remove stopper pin.
4. Install chain tensioner cover and water pump cover.
a. Before installing, remove all traces of liquid gasket from mating
surface of water pump cover and chain tensioner cover using a
scraper. Also remove traces of liquid gasket from the mating sur-
face of front timing chain case.
b. Apply a continuous bead of liquid gasket to mating surface of
chain tensioner cover and water pump cover with tube presser
[SST: WS39930000 ( – )].
Use Genuine RTV Silicone Sealant or equivalent. GI-48,
"RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS".
5. Install water drain plug (front) of cylinder block.

Apply liquid gasket to the thread of water drain plug (front).
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-48, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS".
6. Install in the reverse order of removal for remaining parts.

After starting engine, let idle for three minutes, then rev engine up to 3,000 rpm under no load to
purge air from the high-pressure chamber of chain tensioner. Engine may produce a rattling
noise. This indicates that air still remains in the chamber and is not a matter of concern.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using radiator cap tester adapter [SST: EG17650301 (J-33984-A)] and
radiator cap tester (commercial service tool). Refer to CO-11, "
CHECKING COOLING SYSTEM FOR
LEAKS" .

Start and warm up engine. Visually make sure that there is no leaks of engine coolant and A/T fluid.
SLC448B
SLC446B
PBIC1283E

CO-26
[VQ35DE]
WATER INLET AND THERMOSTAT ASSEMBLY
Revision: 2004 November 2004 FX35/FX45

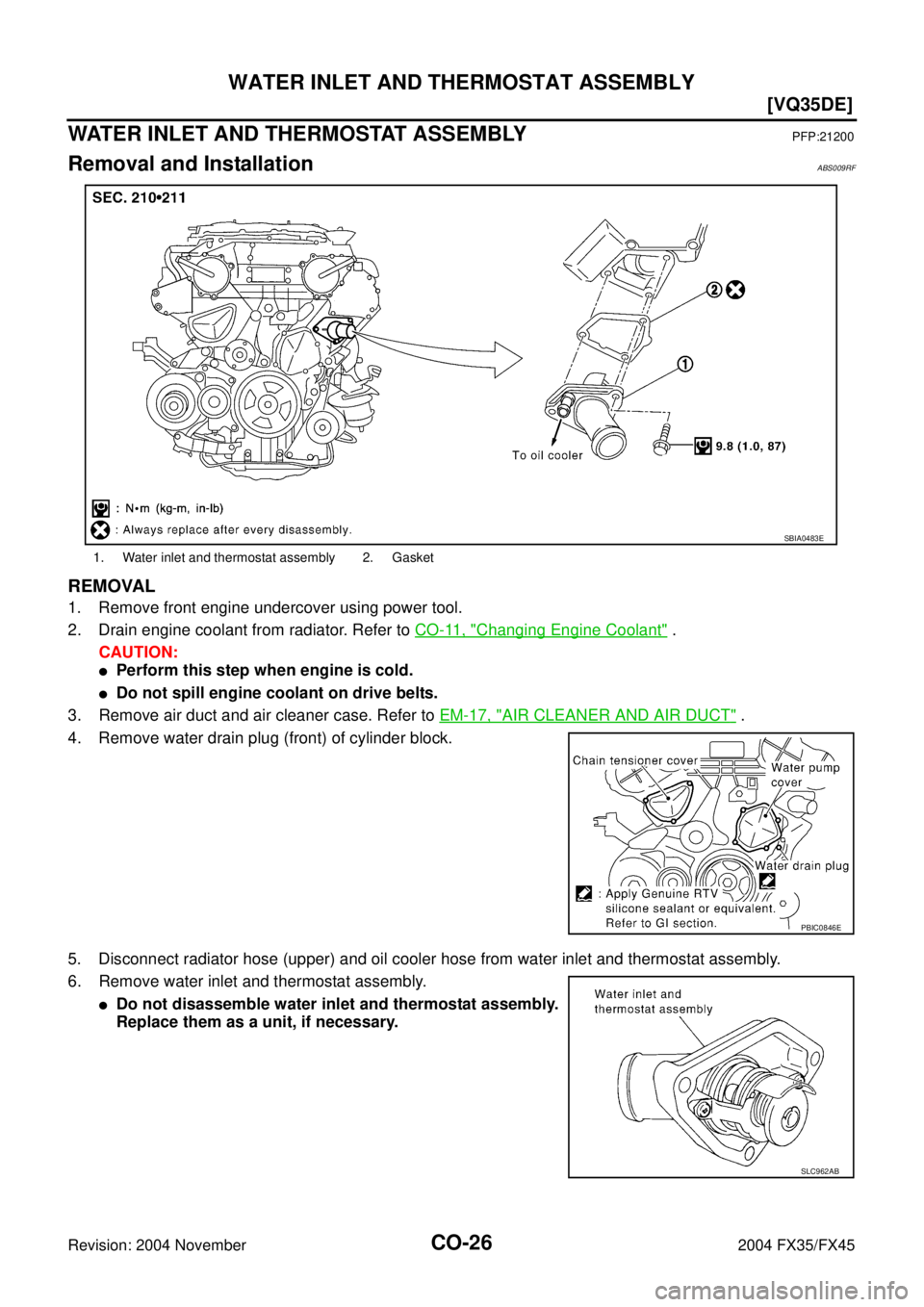

WATER INLET AND THERMOSTAT ASSEMBLYPFP:21200
