2004 INFINITI FX35 Engine

CO-48
[VK45DE]
COOLING FAN
Revision: 2004 November 2004 FX35/FX45
Removal and Installation (Motor Driven Type)ABS006JU
REMOVAL
1. Remove front grille. Refer to EI-23, "FRONT GRILLE" .
2. Disconnect harness connector from fan motor.
3. Remove cooling fan assembly.
CAUTION:
Do not damage or scratch A/C condenser when removed.
INSTALLATION
Install in the reverse order of removal.

Cooling fan is controlled by ECM. For details. Refer to EC-1142, "DTC P1217 ENGINE OVER TEMPER-
ATURE" .
Disassembly and Assembly (Motor Driven Type)ABS00A3O
DISASSEMBLY
1. Remove cooling fan from fan motor.
2. Remove fan motor from fan grille.
INSPECTION AFTER DISASSEMBLY
Cooling Fan
Inspect cooling fan for crack or unusual bend.

If anything is found, replace cooling fan.
ASSEMBLY
Assemble in the reverse order of disassembly.
1. Cooling fan 2. Fan grille 3. Fan motor
PBIC1666E

WATER PUMP
CO-49
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
WAT E R P U MPPFP:21020
Removal and InstallationABS006JO
CAUTION:

When removing water pump, be careful not to get engine coolant on drive belt.

Water pump can not be disassembled and should be replaced as a unit.
REMOVAL
1. Drain engine coolant from drain plugs on radiator and both side of cylinder block. Refer to CO-36, "Chang-
ing Engine Coolant" and EM-241, "DISASSEMBLY" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.
2. Remove following parts:

Engine front undercover

Air duct (inlet); Refer to EM-172, "AIR CLEANER AND AIR DUCT" .

Alternator, water pump and A/C compressor belt; Refer to EM-169, "DRIVE BELTS" .
3. Remove fan coupling with cooling fan, and then water pump pulley.
4. Remove water pump.

Engine coolant will leak from the cylinder block, so have a receptacle ready under vehicle.
CAUTION:

Handle the water pump vane so that it does not contact any other parts.

Do not disassemble water pump.
INSPECTION AFTER REMOVAL

Visually check that there is no significant dirt or rusting on water
pump body and vane.

Make sure there is no looseness in vane shaft, and that it turns
smoothly when rotated by hand.

If anything is found, replace water pump.
1. Water pump pulley 2. Water pump 3. Gasket
PBIC1538E
PBIC1539E

CO-50
[VK45DE]
WATER PUMP
Revision: 2004 November 2004 FX35/FX45
INSTALLATION
Install in the reverse order of removal.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using radiator cap tester adapter [SST: EG17650301 (J33984-A)] and
radiator cap tester (commercial service tool). Refer to CO-36, "
LEAK CHECK" .

Start and warm up engine. Visually make sure that there is no leaks of engine coolant.

THERMOSTAT AND WATER CONTROL VALVE
CO-51
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
THERMOSTAT AND WATER CONTROL VALVEPFP:21200
Removal and InstallationABS006JP
REMOVAL
1. Drain engine coolant from drain plugs on radiator and both side of cylinder block. Refer to CO-36, "Chang-
ing Engine Coolant" and EM-241, "DISASSEMBLY" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.
2. Remove engine cover with power tool. Refer to EM-168, "
ENGINE ROOM COVER" .
3. Remove air duct (inlet). Refer to EM-172, "
AIR CLEANER AND AIR DUCT" .
4. Disconnect water suction hose from water inlet.
5. Remove water inlet and thermostat.
CAUTION:
Do not disassemble thermostat.
6. Remove intake manifolds (upper and lower). Refer to EM-174, "
INTAKE MANIFOLD" .

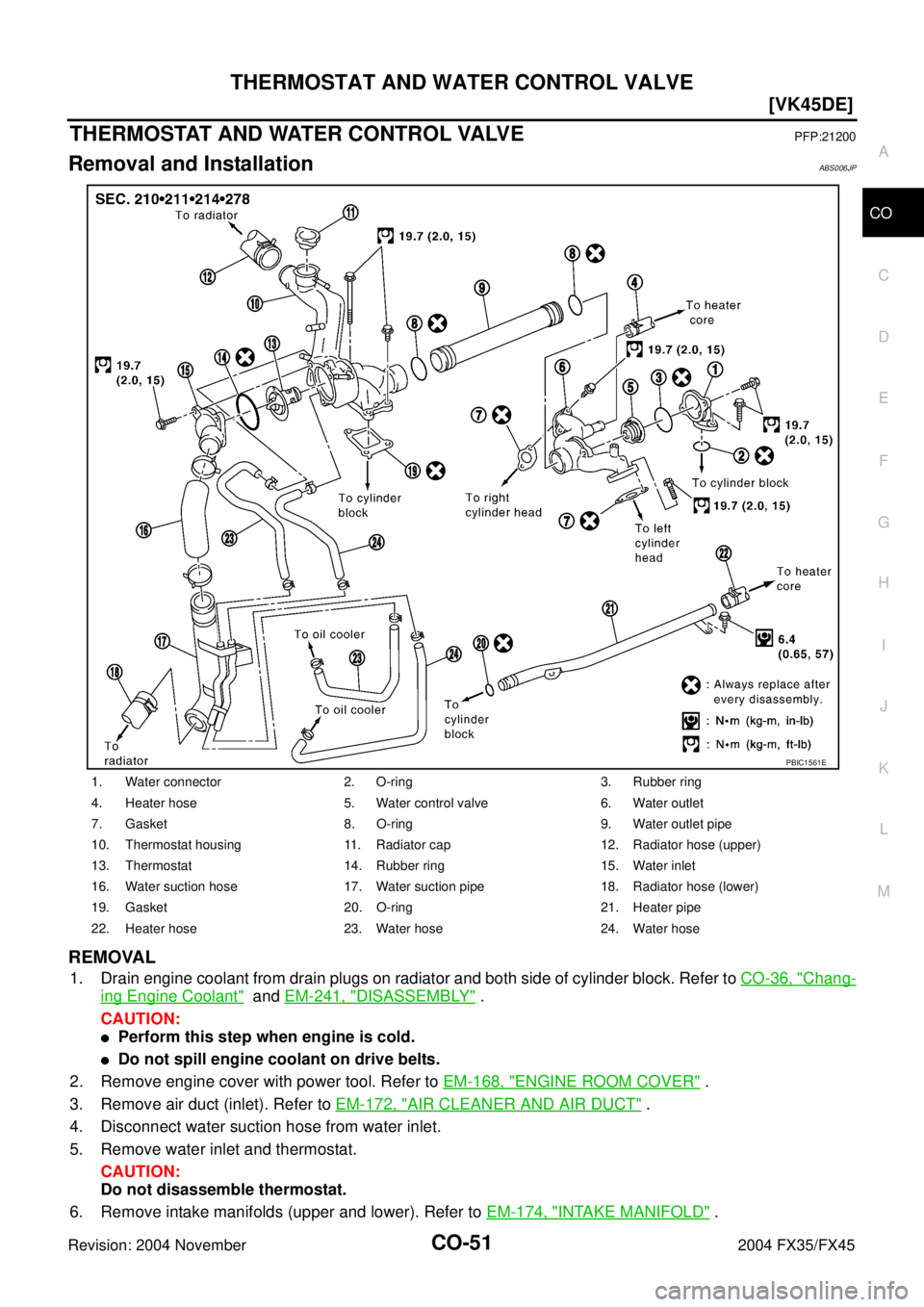

1. Water connector 2. O-ring 3. Rubber ring
4. Heater hose 5. Water control valve 6. Water outlet
7. Gasket 8. O-ring 9. Water outlet pipe
10. Thermostat housing 11. Radiator cap 12. Radiator hose (upper)
13. Thermostat 14. Rubber ring 15. Water inlet
16. Water suction hose 17. Water suction pipe 18. Radiator hose (lower)
19. Gasket 20. O-ring 21. Heater pipe
22. Heater hose 23. Water hose 24. Water hose
PBIC1561E

THERMOSTAT AND WATER CONTROL VALVE
CO-53
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45

Install thermostat with jiggle valve facing upwards. (The position
deviation may be within the range of ±10 degrees)

Install water control valve with the up-mark facing up and the
frame center part facing upwards. (The position deviation may
be within the range of ±10 degrees)
Water Outlet Pipe and Heater Pipe
First apply a neutral detergent to O-rings, then quickly insert the insertion parts of the water outlet pipe and
heater pipe into the installation holes.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using radiator cap tester adapter [SST: EG17650301 (J33984-A)] and
radiator cap tester (commercial service tool). Refer to CO-36, "
LEAK CHECK" .

Start and warm up engine. Visually make sure that there is no leaks of engine coolant.
PBIC0158E

CO-54
[VK45DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2004 November 2004 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitABS006JQ
ENGINE COOLANT CAPACITY (APPROXIMATE)
Unit: (US qt, Imp qt)
RADIATOR
Unit: kPa (kg/cm2 , psi)
THERMOSTAT
WATER CONTROL VALVE
Engine coolant capacity (With reservoir tank at “MAX” level) 10.0 (10-5/8, 8-3/4)
Reservoir tank engine coolant capacity (at “MAX” level) 0.8 (7/8, 3/4)
Radiator cap relief pressureStandard 78 - 98 (0.8 - 1.0, 11 - 14)
Limit 59 (0.6, 9)
Leakage test pressure 157 (1.6, 23)
Valve opening temperature 80 - 84°C (176 - 183°F)
Maximum valve lift More than 10 mm/ 95°C (0.39 in/ 203°F)
Valve closing temperature 77°C (171°F)
Valve opening temperature 93.5 - 96.5°C (200 - 206°F)
Maximum valve lift More than 8 mm/ 108°C (0.315 in/ 226°F)
Valve closing temperature 90°C (194°F)

DI-1
DRIVER INFORMATION SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION DI
A
B
DI
Revision: 2004 November 2004 FX35/FX45
DRIVER INFORMATION SYSTEM
PRECAUTION ............................................................ 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Wiring Diagrams and Trouble Diagnosis .................. 3
COMBINATION METERS ........................................... 4
System Description .................................................. 4
UNIFIED METER CONTROL UNIT ...................... 4
UNIFIED METER AND A/C AMP. ......................... 4
HOW TO CHANGE THE DISPLAY FOR ODO/
TRIP METER ........................................................ 5
POWER SUPPLY AND GROUND CIRCUIT ........ 5
WATER TEMPERATURE GAUGE ........................ 6
TACHOMETER ..................................................... 6
FUEL GAUGE ....................................................... 6
SPEEDOMETER ................................................... 6
Component Parts and Harness Connector Location ..... 6
Combination Meter ................................................... 7
CHECK .................................................................. 7
Circuit Diagram ........................................................ 8
Wiring Diagram — METER — .................................. 9
Terminals and Reference Value for Combination
Meter ....................................................................... 11
Terminals and Reference Value for Unified Meter
and A/C Amp. ......................................................... 12
Meter/Gauge Operation and Odo/Trip Meter ......... 12
SELF-DIAGNOSIS FUNCTION .......................... 12
HOW TO ALTERNATE DIAGNOSIS MODE ....... 12
CONSULT-II Function ............................................ 13
How to Proceed With Trouble Diagnosis ................ 13
Diagnosis Flow ....................................................... 13
Power Supply and Ground Circuit Inspection ........ 15
Symptom Chart 1 ................................................... 16
Symptom Chart 2 ................................................... 16
Vehicle Speed Signal Inspection ............................ 17
Engine Speed Signal Inspection ............................ 18
Water Temperature Signal Inspection .................... 19
Fuel Level Sensor Signal Inspection 1 ................... 20
FUEL GAUGE ..................................................... 20
Fuel Level Sensor Signal Inspection 2 ................... 21LOW-FUEL WARNING LAMP ............................. 21
CAN Communication System Inspection ................ 22
Communication Line Inspection ............................. 22
Odo/Trip Meter and Illumination Control Switch
Inspection ............................................................... 24
Fuel Gauge Pointer Fluctuates, Indicator Wrong
Value or Varies ....................................................... 24
Fuel Gauge Does Not Move to FULL position ........ 25
Electrical Components Inspection .......................... 25
CHECK FUEL LEVEL SENSOR UNIT ................ 25
Removal and Installation ........................................ 26
COMBINATION METER ASSEMBLY .................. 26
Disassembly and Assembly for Combination Meter ... 26
DISASSEMBLY ................................................... 26
ASSEMBLY ......................................................... 27
Removal and Installation of Odo/Trip Meter and Illu-
mination Control Switch .......................................... 27
REMOVAL ........................................................... 27
INSTALLATION ................................................... 27
UNIFIED METER AND A/C AMP .............................. 28
System Description ................................................. 28
INPUT/OUTPUT SIGNALS ................................. 28
FAIL-SAFE .......................................................... 29
CAN Communication System Description .............. 29
CAN Communication Unit ....................................... 29
Schematic ............................................................... 30
CONSULT-II Function ............................................. 31
CONSULT-II BASIC OPERATION ....................... 31
SELF-DIAGNOSTIC RESULTS ........................... 32
DATA MONITOR ................................................. 32
Removal and Installation of Unified Meter and A/C
Amp. ....................................................................... 34
REMOVAL ........................................................... 34
INSTALLATION ................................................... 34
COMPASS ................................................................. 35
System Description ................................................. 35
DIRECTION DISPLAY ......................................... 35
Wiring Diagram – COMPAS – ................................ 37
Removal and Installation of Compass .................... 38
WARNING LAMPS .................................................... 39

DI-6
COMBINATION METERS
Revision: 2004 November 2004 FX35/FX45
WATER TEMPERATURE GAUGE
The water temperature gauge indicates the engine coolant temperature.
ECM provides a water temperature signal to unified meter and A/C amp. with CAN communication line. Uni-
fied meter and A/C amp. provides a water temperature signal to combination meter for water temperature
gauge with communication line between unified meter and A/C amp. and combination meter.
TACHOMETER
The tachometer indicates engine speed in revolutions per minute (rpm).
ECM provides an engine speed signal to unified meter and A/C amp. with CAN communication line. Unified
meter and A/C amp. provides an engine speed signal to combination meter for tachometer with communica-
tion line between unified meter and A/C amp. and combination meter.
FUEL GAUGE
The fuel gauge indicates the approximate fuel level in the fuel tank.
The fuel gauge is regulated by a variable ground signal supplied

from unified meter and A/C amp. terminal 36

through the fuel level sensor unit and fuel pump (main) terminals 5 and 2, and

through the fuel level sensor unit (sub) terminals 2 and 1

to unified meter and A/C amp. terminal 28 for the fuel gauge.
Unified meter and A/C amp. provides an fuel level signal to combination meter for fuel gauge with communica-
tion line between unified meter and A/C amp. and combination meter.
SPEEDOMETER
ABS actuator and electric unit (control unit) provides a vehicle speed signal to the unified meter and A/C amp.
with CAN communication line. After unified meter and A/C amp. received the vehicle speed signal, it changes
the signal to 8 pulse signal and provides the 8 pulse signal to the combination meter for the speedometer.
Component Parts and Harness Connector LocationAKS005MI
SKIA4796E
