2004 INFINITI FX35 Engine

INJECTOR CIRCUIT
EC-1277
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
2. CHECK OVERALL FUNCTION
With CONSULT-II
1. Start engine.
2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with
CONSULT-II.
3. Make sure that each circuit produces a momentary engine
speed drop.
Without CONSULT-II
1. Start engine.
2. Listen to each injector operating sound.
Clicking noise should be heard.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
PBIB0133E
PBIB1986E

EC-1280
[VK45DE]
FUEL PUMP CIRCUIT
Revision: 2004 November 2004 FX35/FX45
FUEL PUMP CIRCUITPFP:17042
DescriptionABS00CEU
SYSTEM DESCRIPTION
*: ECM determines the start signal status by the signals of engine speed and battery voltage.
The ECM activates the fuel pump for several seconds after the ignition switch is turned ON to improve engine
startability. If the ECM receives a engine speed signal from the camshaft position sensor (PHASE), it knows
that the engine is rotating, and causes the pump to operate. If the engine speed signal is not received when
the ignition switch is ON, the engine stalls. The ECM stops pump operation and prevents battery discharging,
thereby improving safety. The ECM does not directly drive the fuel pump. It controls the ON/OFF fuel pump
relay, which in turn controls the fuel pump.
COMPONENT DESCRIPTION
A turbine type design fuel pump is used in the fuel tank.
CONSULT-II Reference Value in Data Monitor ModeABS00CEV
Specification data are reference values.
Sensor Input signal to ECM ECM Function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
Fuel pump control Fuel pump relay
Battery Battery voltage*
Condition Fuel pump operation
Ignition switch is turned to ON Operates for 1 second.
Engine running and crankingOperates.
When engine is stoppedStops in 1.5 seconds.
Except as shown aboveSto ps.
PBIB1508E
MONITOR ITEM CONDITION SPECIFICATION
FUEL PUMP RLY

For 1 second after turning ignition switch ON

Engine running or crankingON

Except above conditions OFF

EC-1282
[VK45DE]
FUEL PUMP CIRCUIT
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS00CEX
1. CHECK OVERALL FUNCTION
1. Turn ignition switch ON.
2. Pinch fuel feed hose with two fingers.
Fuel pressure pulsation should be felt on the fuel feed hose
for 1 second after ignition switch is turned ON.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK FUEL PUMP POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Turn ignition switch ON.
4. Check voltage between ECM terminal 113 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
11 3 G Y / R F u e l p u m p r e l a y[Ignition switch: ON]

For 1 second after turning ignition switch ON
[Engine is running]0 - 1.5V
[Ignition switch: ON]

More than 1 second after turning ignition
switch ONBATTERY VOLTAGE
(11 - 14V)
PBIB1491E
Voltage: Battery voltage
PBIB1187E

REFRIGERANT PRESSURE SENSOR
EC-1289
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS00CF2
1. CHECK REFRIGERANT PRESSURE SENSOR OVERALL FUNCTION
1. Start engine and warm it up to normal operating temperature.
2. Turn A/C switch and blower switch ON.
3. Check voltage between ECM terminal 70 and ground with CON-
SULT-II or tester.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
49 PUSensor power supply
(Refrigerant pressure sen-
sor)[Ignition switch: ON]Approximately 5V
67 B/WSensor ground
(Mass air flow sensor / IAT
sensor / Power steering
pressure sensor / EVAP
control system pressure
sensor / Refrigerant pres-
sure sensor / ECT sensor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
70 L/R Refrigerant pressure sensor[Engine is running]

Warm-up condition

Both A/C switch and blower switch are ON
(Compressor operates)1.0 - 4.0V
Voltage: 1.0 - 4.0V
PBIB1188E

EC-1312
[VK45DE]
SNOW MODE SWITCH
Revision: 2004 November 2004 FX35/FX45
SNOW MODE SWITCHPFP:25130
DescriptionABS00CFL
NOTE:
If DTC U1000 or U1001 are displayed, first perform the trouble diagnosis for DTC U1000, U1001.
Refer to EC-792, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
The snow mode switch signal is sent to the “unified meter and A/C amp.” from the snow mode switch. The
“unified meter and A/C amp.” then sends the signal to the ECM by CAN communication line.
The snow mode is used for driving or starting the vehicle on snowy roads or slippery areas. If the snow mode
is activated, the vehicle speed will not be accelerated immediately than your original pedal in due to avoid the
vehicle slip. In other words, ECM controls the rapid engine torque change by controlling the electric throttle
control actuator operating speed.
CONSULT-II Reference Value in the Data Monitor ModeABS00CFM
MONITOR ITEM CONDITION SPECIFICATION
SNOW MODE SW

Ignition switch: ONSnow mode switch: ON ON
Snow mode switch: OFF OFF

EC-1314
[VK45DE]
SNOW MODE SWITCH
Revision: 2004 November 2004 FX35/FX45
Diagnostic ProcedureABS00CFO
1. CHECK SNOW MODE SWITICH OVERALL FUNCTION-I
1. Turn ignition switch ON.
2. Select “SNOW MODE SW” in “DATA MONITOR” mode with
CONSULT-II.
3. Check “SNOW MODE SW” indication under the following condi-
tions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK SNOW MODE SWITICH OVERALL FUNCTION-II
1. Start engine.
2. Check the snow mode indicator in the snow mode switch under the following condition.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
3. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Refer to EC-791, "
Ground Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace ground connections.
CONDITION INDICATION
Snow mode switch: ON ON
Snow mode switch: OFF OFF
PBIB2009E
CONDITION INDICATION
Snow mode switch: ON ON
Snow mode switch: OFF OFF
PBIB2195E

EC-1320
[VK45DE]
EVAPORATIVE EMISSION SYSTEM
Revision: 2004 November 2004 FX35/FX45
EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionABS00CFR
SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydrocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accomplished by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not operating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve also shuts off the vapor purge line during decelerating and
idling.

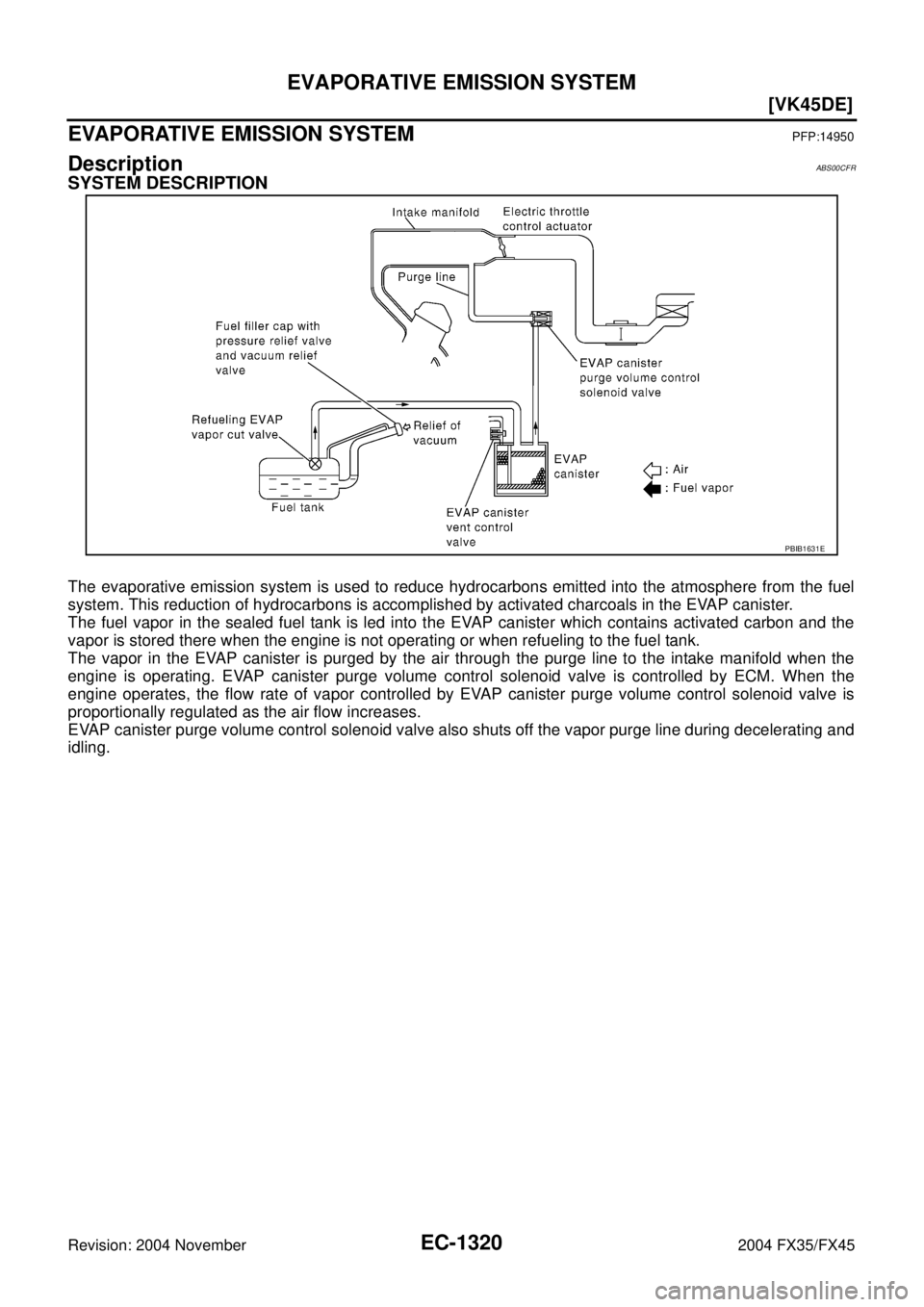

PBIB1631E

EC-1324
[VK45DE]
EVAPORATIVE EMISSION SYSTEM
Revision: 2004 November 2004 FX35/FX45
EVAP SERVICE PORT
Positive pressure is delivered to the EVAP system through the EVAP
service port. If fuel vapor leakage in the EVAP system occurs, use a
leak detector to locate the leak.
Removal and InstallationABS00CFT
EVAP CANISTER
Tighten EVAP canister as shown in the figure.
EVAP CANISTER VENT CONTROL VALVE
1. Turn EVAP canister vent control valve counterclockwise.
2. Remove the EVAP canister vent control valve.
Always replace O-ring with a new one.
How to Detect Fuel Vapor LeakageABS00CFU
CAUTION:

Do not use compressed air or a high pressure pump.

Do not exceed 4.12 kPa (0.042 kg/cm2 , 0.6 psi) of pressure in EVAP system.
NOTE:

Do not start engine.

Improper installation of EVAP service port adapter to the EVAP service port may cause a leak.
SEF462UA
PBIB1628E
PBIB1030E
