HEATING AND COOLING CONTROL (If Installed)
1. Side defrost nozzle
2. Side Ventilator
3. Windscreen Defrost Ventilator
4. Centre VentilatorB710A01S-AAT
VENTILATION
To operate the ventilation system:
o Set the air intake control to "Fresh"
mode
( ).
o To direct all intake air to the dash- board vents, set the air flow control
to "Face".
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm".
HTB032A-D
1
2
3
4 1
2
B710B01A-DAT
Centre Ventilator
The centre ventilators are located in the
middle of the dashboard.
To change the direction of the airflow,
turn the control knob on the middle of
the ventilator as desired.
tbuk-1b.p65 3/23/04, 2:24 PM
71

1- 72 FEATURES OF YOUR HYUNDAI
HTB033A-D
1
23
4 HTB034
B670A01TB-GAT
HEATING AND VENTILATION
1. Temperature control switch
2. Fan speed control switch
3. Air flow control switch
4. Air conditioning switch
5. Air intake control switch
6. Rear window defroster switch B670B01A-AAT
Fan Speed Control
(Blower Control)
This is used to turn the blower fan on
or off and to select the fan speed.
This blower fan speed, and therefore
the volume of air delivered from the
system, may be controlled manually
by setting the blower control between
the "1" and "4" positions.
B710C01Y-AAT
Side Ventilator
The side vent knobs control the amount
of outside air entering the vehicle
through the side vents. These vents
can also be closed, so no air enters
through the side vents. To change the
direction of the air flow, turn the control
knobs as desired.
56
tbuk-1b.p65
3/23/04, 2:24 PM
72

FEATURES OF YOUR HYUNDAI 1- 73
B670C02A-EAT
Air Intake Control
This is used to select fresh outside air
or recirculation inside air. Fresh
Recirculation
With the " " mode selected, air
enters the vehicle from outside and is
heated or cooled according to the other
functions selected.
With the " " mode selected, air from
within the passenger compartment is
drawn through the heating system and
heated or cooled according to the other
functions selected. HTB036-D
NOTE:
It should be noted that prolonged
operation of the heating system in
" " mode will give rise to misting
of the windscreen and side windows
and the air within the passenger com-
partment will become stale. In addi-
tion prolonged use of the air condi-
tioning with the " " mode selected
may result in the air within the pas-
senger compartment becoming ex-
cessively dry.B670D01TB-EAT
Air Flow Control
This is used to direct the flow of air. Air
can be directed to the floor, dashboard
outlets, or windscreen. Five symbols
are used to represent Face, Bi-Level,
Floor, Floor-Defrost and Defrost air po-
sition. HTB038
tbuk-1b.p65
3/23/04, 2:24 PM
73

1- 74 FEATURES OF YOUR HYUNDAI
HTB040-D
Face-Level
Selecting the "Face" mode will cause
air to be discharged through the face
level vents. Bi-Level
Air is discharged through the face vents
and the floor vents. This makes it
possible to have cooler air from the
dashboard vents and warmer air from
the floor outlets at the same time. HTB041-D
Floor-Level
Air is discharged through the floor
vents, windscreen defroster nozzle,
side defroster nozzle, side ventilator. HTB042-D
tbuk-1b.p65
3/23/04, 2:24 PM
74

FEATURES OF YOUR HYUNDAI 1- 75
B670E01A-AAT
Temperature Control
Cool Warm

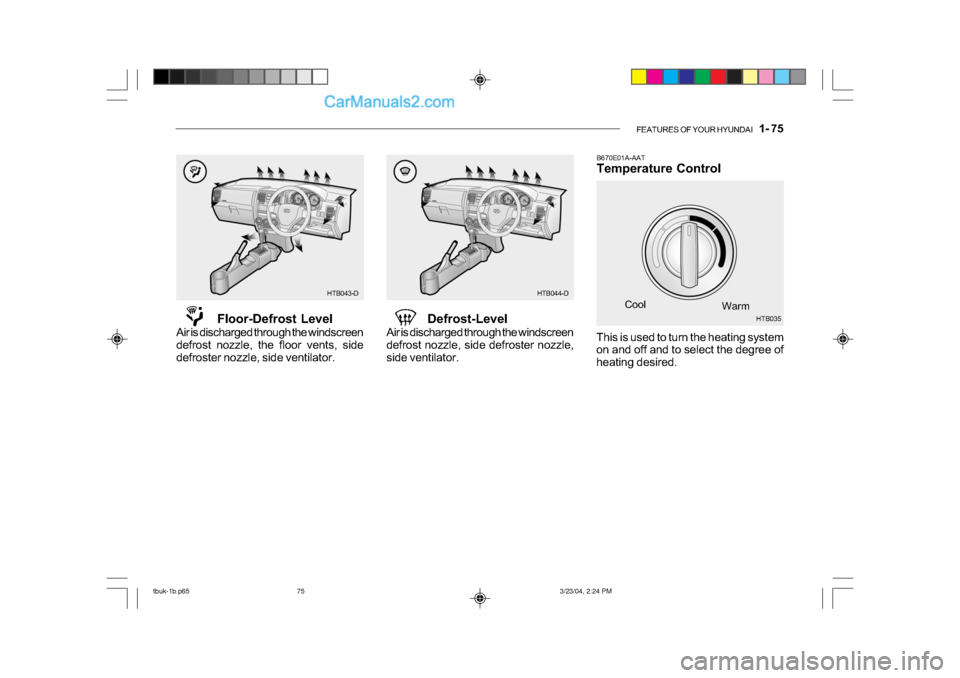

Floor-Defrost Level
Air is discharged through the windscreen
defrost nozzle, the floor vents, side
defroster nozzle, side ventilator. Defrost-Level
Air is discharged through the windscreen
defrost nozzle, side defroster nozzle,
side ventilator.
HTB043-D HTB044-D
This is used to turn the heating system
on and off and to select the degree of
heating desired. HTB035
tbuk-1b.p65
3/23/04, 2:24 PM
75

1- 76 FEATURES OF YOUR HYUNDAI
B670B01A-AAT
BI-LEVEL HEATING
Your Hyundai is equipped with bi-level
heating controls. This makes it pos-
sible to have cooler air from the dash-
board vents and warmer air from the
floor outlets at the same time. To use
this feature:
o Set the air intake control to the fresh
air ( ) position.
o Set the air flow control at the bi-level ( ) position.
o Set the temperature control between "Cool" and "Warm".
B690A01A-AAT
HEATING CONTROLS
For normal heating operation, set the
air intake control to the fresh air ( )
position and the air flow control to the
floor ( ) position.
For faster heating, the air intake con-
trol should be set in the recirculate
( ) position.
If the windows fog up, set the air flow
control to the defrost ( ) position and
the air intake control to the fresh air
( ) position.
For maximum heat, move the tem-
perature control to "Warm". B720A01TB-EAT
DEFROSTING/DEFOGGING
HTB045-D
Use the heating/ventilation system to
defrost or defog the windscreen:
To remove interior fog on the
windscreen:
o Set the air intake control to the fresh air ( ) position.
o Set the air flow control to the defrost
( ) position.
o For more rapid action, turn on the air conditioning.
o Set the temperature control to the
desired position.
o Set the fan speed control between
"1" and "4" position.
tbuk-1b.p65 3/23/04, 2:24 PM
76

FEATURES OF YOUR HYUNDAI 1- 77
B740A01A-AAT
AIR CONDITIONING SWITCH
(Not all models)
B730A01FC-EAT
Operation Tips
o To keep dust or unpleasant fumes
from entering the car through the
ventilation system, temporarily set
the air intake control at "Recircula-
tion". Be sure to return the control to
"Fresh" when the irritation has
passed to keep fresh air in the ve-
hicle. This will help keep the driver
alert and comfortable.
o Air for the heating/cooling system is
drawn in through the grilles just
ahead of the windscreen. Care should
be taken that these are not blocked
by leaves, snow, ice or other ob-
structions.
o To prevent interior fog on the
windscreen, set the air intake control
to the fresh air ( ) position and
fan speed to the desired position.
To remove the frost or exterior
fog on the windscreen:
o Set the air intake control to the fresh
( ) position.
o Set the air flow control to the defrost ( ) position
o Set the temperature control to warm.
o Set the fan speed control to position
"3" or "4".
NOTE:
When the A/C is operated continu-
ously on the floor-defrost level ( )
or defrost level ( ), it may cause
fog to form on the exterior
windscreen. If this occurs, set the air
flow control to the face level posi-
tion ( ) and fan speed control to
the low position. The air conditioning is turned on by
pushing the A/C button on the heating/
air conditioning control panel.
HTB037-D
tbuk-1b.p65
3/23/04, 2:24 PM
77

1- 78 FEATURES OF YOUR HYUNDAI
B740B02A-AAT
AIR CONDITIONING OPERA-
TION (Cooling)
B740C01A-AAT
De-Humidified Heating
To use the air conditioning to cool the
interior:
o Turn on the fan control switch (2).
o Turn on the air conditioning switch(4) by pushing in on the switch.
The air conditioning indicator light
should come on at the same time.
o Set the air intake control to the
position (5).
o Set the temperature control (1) to "Cool". ("Cool" provides maximum
cooling. The temperature may be
moderated by moving the control
toward "Warm".) HTB046-D
o Adjust the fan control (2) to the
desired speed. For greater cooling,
turn the fan control to one of the
higher speeds or temporarily select
the position on the air intake
control. For dehumidified heating:
o Turn on the fan control switch (2).
o Turn on the air conditioning switch
(4). The air conditioning indicator
light should come on at the same
time.
o Set the air intake control (5) to the fresh air ( ) position.
o Set the air flow control (3) to the face ( ) position.
o Adjust the fan control (2) to the
desired speed.
o For more rapid action, set the fan at one of the higher speeds.
o Adjust the temperature control (1)
to provide the desired amount of
warmth.
(1)
(2)
(3)
(4) (5)
HTB046-D
(1)
(2)
(3)
(4) (5)
tbuk-1b.p65 3/23/04, 2:24 PM
