Page 257 of 445

YOUR VEHICLE AT A GLANCE
1. Glove Box
2. Passenger's Airbag (Not all models)
3. Heating/Air Conditioning Control Panel(Not all models)
4. Rear Fog Light Switch
5. Front Fog Light Switch (Not all models)
6. Hazard Warning Light
7. Windshield Wiper/Washer Switch
8. Horn and Driver's Airbag (Not all models)
9. Instrument Cluster
10. Multi-Function Light Switch
CAUTION:
When installing a container of liquid air freshener inside a vehicle, do not place it near the instrument cluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto these areas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these areas, wash them with water immediately. 11. Headlight Leveling Switch (Not all models)
12. Rear Drink Holder
13. Cigarette Lighter
14. Parking Brake Lever
15. Shift Lever (Not all models)
16. Front Drink Holder
17. Ashtray
18. Fuse Box
19. Hood Release Lever
!
tbuk-0.p65
3/23/04, 4:21 PM
11
Page 258 of 445
YOUR VEHICLE AT A GLANCE
B255A01TB-GAT INDICATOR SYMBOLS ON THE INSTRUMENT PANEL * A detail explanations of these items will be found on page 1-37
SRS (Airbag) Service Reminder Indicator ABS Service Reminder Indicator Turn Signal Indicator Lights High Beam Indicator Light Oil Pressure Warning Light Parking Brake/Brake Level Warning Light Charging System Warning Light Tail Gate Open Warning LightDoor Ajar Warning Light and Chime
Low Fuel Level Warning Light Malfunction Indicator Light Seat Belt Reminder Light
O/D OFF Indicator (Automatic transaxle only)
Electric Power Steering System (EPS)Warning Light
Diesel Pre-heat Indicator Light (Diesel only)
Fuel Filter Warning Light (Diesel only)
Immobilizer Indicator
tbuk-0.p65
3/23/04, 4:21 PM
12
Page 259 of 445

1. FEATURES OF YOUR HYUNDAIFuel Reco mmendations ................................................... ................ 1-2
Running In Your new Hyundai ................................................... ...... 1-3
Immobilizer system ............................................. ............................. 1-4
Door locks (Theft-alarm syst em) ................................................ ..... 1-5
Power wi ndows .............................................. ................................1-10
Seat ................................................... .............................................1-11
Seat Belt .......................................... ...............................................1-17
Child restrain t system ........................................... .........................1-22
Supplemental restra int (AIRBAG) system ..................................... 1-30
Instrument cluster and i ndicator lights .................................... ........1-37
Warning Light and Indicator ................................................... .........1-39
Trip computer ................................................... ..............................1-46
Multi-Function Light Switch ............................................. ...............1-48
Windshield wiper/Washer Sw itch ............................................... ....1-50
Sunroof ................................................... ........................................1-55
Mirror ................................................... ...........................................1-59
Bonnet Release ................................................... ...........................1-62
How to use lu ggage Room ............................................... ..............1-66
Heating and cooling control ............................................ ................1-71
Stereo sound system ............................................. ........................1-80
Antenna ................................................... .......................................1-84
1
tbuk-1a.p65 3/23/04, 2:21 PM
1
Page 260 of 445

1- 2 FEATURES OF YOUR HYUNDAI
B010A03O-EAT
FUEL RECOMMENDATIONS
Petrol Engines
THIS VEHICLE MUST ONLY BE OP-
ERATED WITH UNLEADED FUEL.
SERIOUS DAMAGE WILL RESULT
FROM THE USE OF LEADED FUEL. The use of leaded fuel in this vehicle will
result in irreversible pollution of the
catalyst element. Such pollution will
prevent correct operation of the cata-
lyst and give rise to increased operating
temperatures leading to the catalyst
element melting and restricting the ex-
haust flow along with an increase in
exhaust emission levels.
Unleaded fuel with a Research Octane
Number (RON) of 91 or higher must be
used in this vehicle.
To prevent accidental filling of the fuel
tank with leaded fuel, a small diameter
filler neck along with a restrictor flap are
fitted to ensure that only unleaded fuel
pump nozzles may enter the filler neck.
However, care must be exercised when
filling the vehicle tank from jerry cans or
by means of a funnel that the fuel being
used is unleaded. HTB187
!
CAUTION:
The vehicle warranty will not extend
to damage arising from the use of
incorrect fuels.
Diesel Engines
Diesel fuel of 52 to 54 cetane is used in
Hyundai vehicle. If two types of diesel
fuel are available, use summer or winter
fuel properly according to the following
temperature conditions.
o Above 23°F (-5°C) ... Summer type diesel fuel.
o Below 23°F (-5°C) ... Winter type diesel fuel.
! Watch the fuel level in the tank very
carefully : If the engine stops due to fuel
failure, the circuits must be completely
purged to permit restarting.
CAUTION:
Do not let any petrol or water enter
the tank. If this happens, the tank
should be completely drained and
the fuel lines should all be cleaned
out. This will stop the fuel pump
from becoming contaminated.
Overseas Operation:
When the vehicle is to be operated
overseas, the vehicle operator should
establish that a suitable fuel for satis-
factory operation of the vehicle is avail-
able. SB010E1-E
FUELS FOR CLEANER AIR
To help contribute to cleaner air, Hyundai
recommends that you use fuels treated
with detergent additives, which help to
prevent deposit formation in the engine.
These fuels will help the engines run
cleaner and the Emission Control Sys-
tem performance.
tbuk-1a.p65 3/23/04, 2:21 PM
2
Page 261 of 445

FEATURES OF YOUR HYUNDAI 1- 3
B020A01FC-EAT
RUNNING IN YOUR NEW
HYUNDAI (Petrol Engine)
The longevity and performance of the
vehicle are greatly affected by the care
exercised during the first 1,000 miles of
motoring. Because of modern manu-
facturing techniques, rigid guidelines
regarding maximum road speeds have
become unnecessary. However, cer-
tain precautions should be observed in
order to obtain the best possible perfor-
mance and useful life from the vehicle.
1) Do not race the engine without a load
(i.e revving the engine in neutral).
2) During the first 500 miles the maxi-
mum engine speed should be re-
stricted to 3,000 rpm and gradually
increased thereafter.
3) Avoid prolonged constant speed op- eration. The internal components of
the engine will become more quickly
run in if the operation speed is varied
during the running-in period.
4) Never allow the engine to labour. Use
the gearbox freely and avoid large
throttle openings when the engine
speed is below 1,500 rpm.
5) Avoid rapid acceleration and maxi- mum throttle openings.
6) Avoid harsh braking during the first
100 miles of urban motoring or 1,000
miles of motorway driving to allow
the friction facings of the brake pads
and shoes to bed against the discs
and drums properly.
7) No trailer towing should be under-
taken during the running-in period.
B020B01FC-EAT
(Diesel Engine)
The longevity and performance of the
vehicle are greatly affected by the care
exercised during the first 1,000 miles of
motoring. Because of modern manu-
facturing techniques, rigid guidelines
regarding maximum road speeds have
become unnecessary. However, cer-
tain precautions should be observed in
order to obtain the best possible perfor-
mance and useful life from the vehicle. 1) Do not race the engine without a load
(i.e revving the engine in neutral).
2) During the first 600 miles the maxi- mum engine speed should be re-
stricted to 3,000 rpm and gradually
increased thereafter. And while driv-
ing, keep under three quarters of
maximum vehicle speed.
3) Avoid prolonged constant speed op- eration. The internal components of
the engine will become more quickly
run in if the operation speed is varied
during the running in period.
4) Never allow the engine to labour. Use
the gearbox freely and avoid large
throttle openings when the engine
speed is below 1,500 rpm.
5) Avoid rapid acceleration and maxi- mum throttle openings.
6) Avoid harsh braking during the first
100 miles of urban motoring or 1,000
miles of motorway driving to allow
the friction facings of the brake pads
and shoes to bed against the discs
and drums properly.
7) No trailer towing should be under
taken during the running in period.
tbuk-1a.p65 3/23/04, 2:21 PM
3

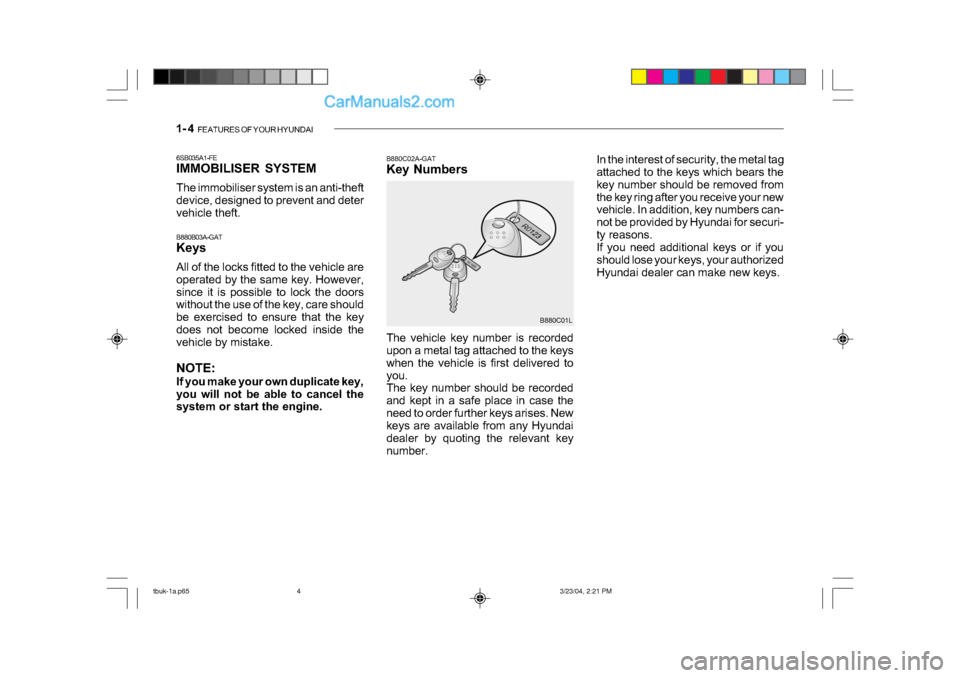

Page 262 of 445

1- 4 FEATURES OF YOUR HYUNDAI
6SB035A1-FE
IMMOBILISER SYSTEM
The immobiliser system is an anti-theft
device, designed to prevent and deter
vehicle theft.
B880B03A-GAT
Keys
All of the locks fitted to the vehicle are
operated by the same key. However,
since it is possible to lock the doors
without the use of the key, care should
be exercised to ensure that the key
does not become locked inside the
vehicle by mistake.
NOTE:
If you make your own duplicate key,
you will not be able to cancel the
system or start the engine. B880C02A-GAT
Key Numbers
The vehicle key number is recorded
upon a metal tag attached to the keys
when the vehicle is first delivered to
you.
The key number should be recorded
and kept in a safe place in case the
need to order further keys arises. New
keys are available from any Hyundai
dealer by quoting the relevant key
number.
B880C01L
In the interest of security, the metal tag
attached to the keys which bears the
key number should be removed from
the key ring after you receive your new
vehicle. In addition, key numbers can-
not be provided by Hyundai for securi-
ty reasons.
If you need additional keys or if you
should lose your keys, your authorized
Hyundai dealer can make new keys.
tbuk-1a.p65
3/23/04, 2:21 PM
4
Page 263 of 445

FEATURES OF YOUR HYUNDAI 1- 5
B040A02Y-EAT
DOOR LOCKS B040B01A-AAT
Locking and Unlocking Front
Doors With a Key
o The door can be locked or unlocked
with a key.
o Lock the door by turning the key toward the front of the vehicle and
unlock it by turning the key toward
the rear. B040C01FC-GAT
Locking From the Outside
The doors can be locked without a key.
To lock the doors from the outside, first
push the inside lock switch to the
"LOCK" position, so that the red mark
on the switch is not visible, then close
the door.
The door will not lock if the key is left in
the ignition switch when the front doors
close. This is normal. (Not all models)
NOTE:
o When locking the door this way, be careful not to lock the door
with the ignition key left in the
vehicle.
LOCK
HTB056-D
UNLOCK
HTB062-D
!WARNING:
o Unlocked doors can be danger- ous. Before you drive away (espe-
cially if there are children in the
car), be sure that all the doors are
securely closed and locked so
that the doors cannot be inadvert-
ently opened from the inside. This
helps ensure that doors will not be
opened accidentally. Also, when
combined with the proper use of
seat belts, locking the doors helps
keep occupants from being ejected
from the car in case of an accident.
o Before opening the door, always
look for and avoid oncoming traf-
fic.
o In case of accident the door is
unlocked automatically (Not all
models).
tbuk-1a.p65 3/23/04, 2:21 PM
5

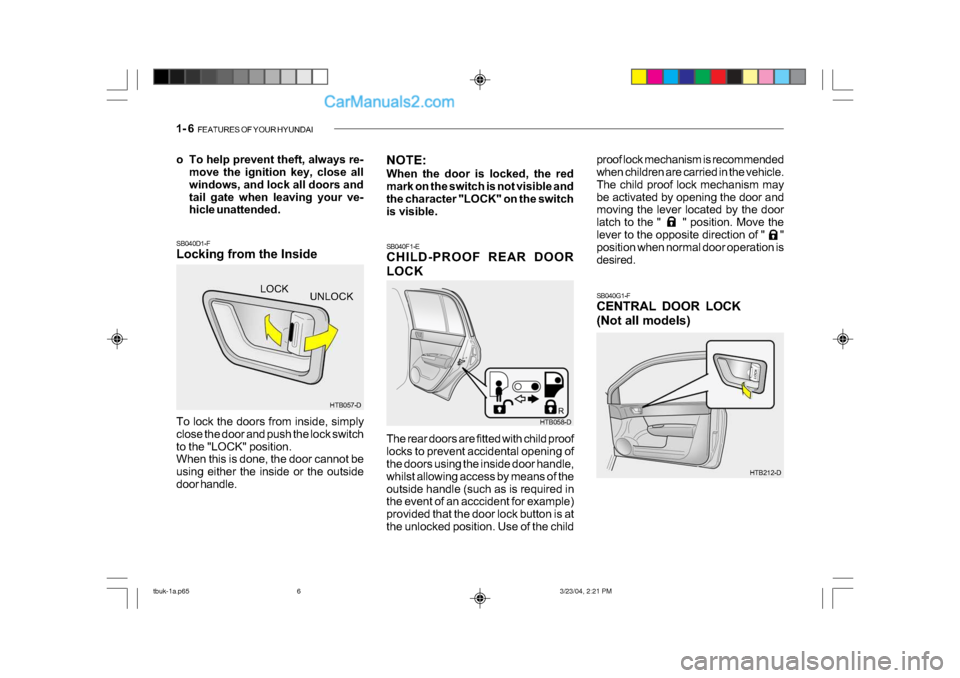

Page 264 of 445

1- 6 FEATURES OF YOUR HYUNDAI
SB040G1-F
CENTRAL DOOR LOCK
(Not all models)
SB040D1-F
Locking from the Inside
To lock the doors from inside, simply
close the door and push the lock switch
to the "LOCK" position.
When this is done, the door cannot be
using either the inside or the outside
door handle. SB040F1-E
CHILD-PROOF REAR DOOR
LOCK
The rear doors are fitted with child proof
locks to prevent accidental opening of
the doors using the inside door handle,
whilst allowing access by means of the
outside handle (such as is required in
the event of an acccident for example)
provided that the door lock button is at
the unlocked position. Use of the child
o To help prevent theft, always re-
move the ignition key, close all
windows, and lock all doors and
tail gate when leaving your ve-
hicle unattended.
NOTE:
When the door is locked, the red
mark on the switch is not visible and
the character "LOCK" on the switch
is visible. proof lock mechanism is recommended
when children are carried in the vehicle.
The child proof lock mechanism may
be activated by opening the door and
moving the lever located by the door
latch to the " " position. Move the
lever to the opposite direction of " "
position when normal door operation is
desired.
HTB057-D
UNLOCK
LOCK
HTB058-D
HTB212-D
tbuk-1a.p65 3/23/04, 2:21 PM
6
