2004 Hyundai Getz Owner's Manual

YOUR VEHICLE AT A GLANCE

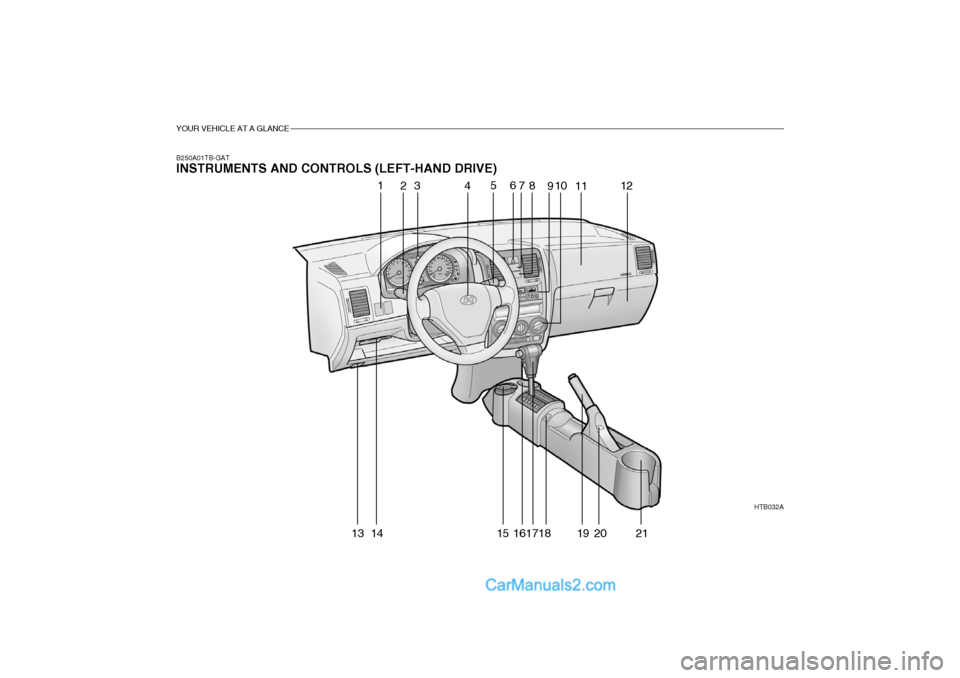

B250A01TB-GAT INSTRUMENTS AND CONTROLS (LEFT-HAND DRIVE)HTB032A
1
23 456
78
910
11 12
13 14 15 161718 19 20 21

YOUR VEHICLE AT A GLANCE
1. Headlight Leveling Switch (If installed)
2. Multi-Function Light Switch
3. Instrument Cluster
4. Horn and Driver's Airbag (If installed)
5. Windshield Wiper/Washer Switch
6. Hazard Warning Light
7. Front Fog Light Switch (If installed)
8. Rear Fog Light Switch (If installed)
9. Audio System (If installed)
10.Heating/Air Conditioning Control Panel(If installed)
11.Passenger's Airbag (If installed)
CAUTION:
When installing a container of liquid air freshener inside a vehicle, do not place it near the instrument cluster noron the instrument panel pad surface. If there is any leakage from the air freshener onto these areas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts.If the liquid from the air freshener doesleak onto these areas, wash them with water immediately. 12.Glove Box
13.Hood Release Lever
14.Fuse Box
15.Ashtray
16.Front Drink Holder
17.Shift Lever (If installed)
18.Seat Warmer (If installed)
19.Parking Brake Lever
20.Cigarette Lighter
21.Rear Drink Holder
!

YOUR VEHICLE AT A GLANCE

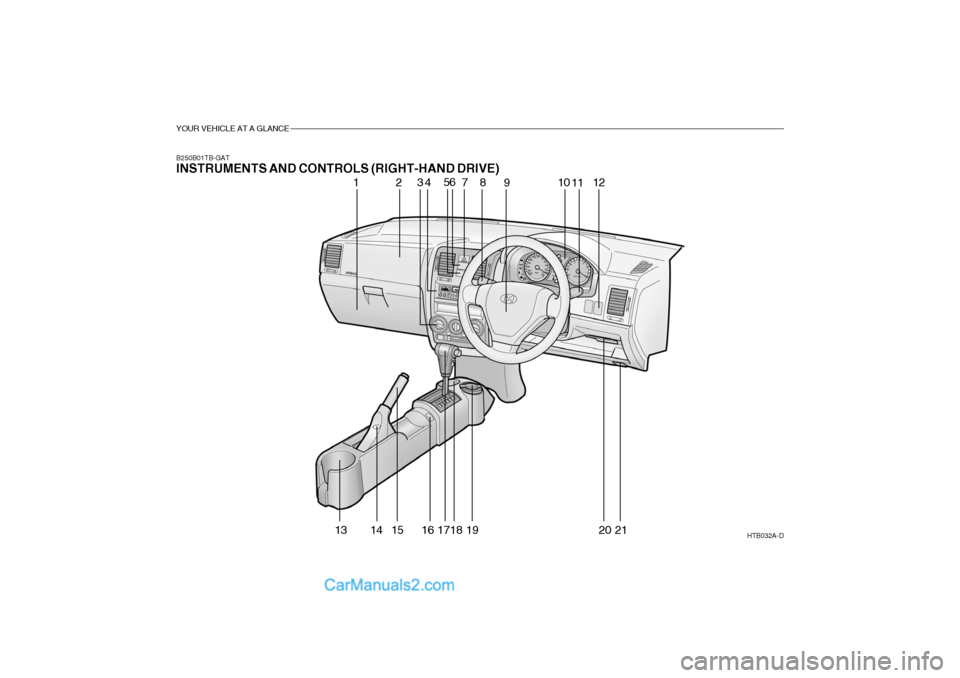

B250B01TB-GAT INSTRUMENTS AND CONTROLS (RIGHT-HAND DRIVE)HTB032A-D
1234 56
7 8
9 10
11 12
13 14 15 16 1718 19 20 21

YOUR VEHICLE AT A GLANCE
1. Glove Box
2. Passenger's Airbag (If installed)
3. Heating/Air Conditioning Control Panel(If installed)
4. Audio System (If installed)
5. Rear Fog Light Switch (If installed)
6. Front Fog Light Switch (If installed)
7. Hazard Warning Light
8. Windshield Wiper/Washer Switch
9. Horn and Driver's Airbag (If installed)
10. Instrument Cluster
CAUTION:
When installing a container of liquid air freshener inside a vehicle, do not place it near the instrument cluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto these areas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these areas, wash them with water immediately. 11. Multi-Function Light Switch
12. Headlight Leveling Switch (If installed)
13. Rear Drink Holder
14. Cigarette Lighter
15. Parking Brake Lever
16. Seat Warmer (If installed)
17. Shift Lever (If installed)
18. Front Drink Holder
19. Ashtray
20. Fuse Box
21. Hood Release Lever
!

YOUR VEHICLE AT A GLANCE
B255A01TB-GAT INDICATOR SYMBOLS ON THE INSTRUMENT PANEL * A detail explanations of these items will be found on page 1-44
SRS (Airbag) Service Reminder Indicator ABS Service Reminder Indicator Turn Signal Indicator Lights High Beam Indicator Light Oil Pressure Warning Light Parking Brake/Brake Level Warning Light Charging System Warning Light Tail Gate Open Warning LightDoor Ajar Warning Light and Chime
Low Fuel Level Warning Light Malfunction Indicator Light Seat Belt Reminder Light
O/D OFF Indicator (Automatic transaxle only)
Electric Power Steering System (EPS)Warning Light
Diesel Pre-heat Indicator Light (Diesel only)
Fuel Filter Warning Light (Diesel only)
Immobilizer Indicator

1. FEATURES OF YOUR HYUNDAI
Fuel Recommendations ................................................................... 1-2
Breaking in Your New Hyundai ........................................................ 1-3
Key (Immobilizer system) ................................................................ 1-4
Door locks (Theft-alarm system) ..................................................... 1-7Power windows.............................................................................. 1-12
Seat ................................................................................................ 1-13
Seat Belt ......................................................................................... 1-20
Child restraint system .................................................................... 1-26
Supplemental restraint (AIRBAG) system .....................................1-34
Instrument cluster and indicator lights ............................................1-41
Warning Light and Indicator ............................................................ 1-44
Trip computer ................................................................................. 1-51
Multi-Function Light Sw itch ............................................................ 1-53
Windshield wiper/Washer Switch ...................................................1-54
Sunroof ........................................................................................... 1-60
Mirror .............................................................................................. 1-64
Hood R elease ................................................................................ 1-67
How to use luggage Room ............................................................. 1-70
Heating and cooling control ............................................................ 1-75
Stereo sound system ..................................................................... 1-84
Audio system ................................................................................. 1-86
Antenna ........................................................................................ 1-120
1

1- 2 FEATURES OF YOUR HYUNDAI
B010B01A-AAT What About Gasohol? Gasohol (a mixture of 90% unleaded gasoline and 10% ethanol or grain alcohol) may be used in your Hyundai. However, if your engine developsdriveability problems, the use of 100% unleaded gasoline is recommended. Fuels with unspecified quantities ofalcohol, or alcohols other than ethanol, should not be used.
B010A01O-GAT FUEL RECOMMENDATIONS Use Unleaded Gasoline
NOTE:
o For some countries, Hyundai
vehicles are designed to use leaded gasoline. When you aregoing to use leaded gasoline, ask to Hyundai dealer whether leaded gasoline in your vehicleis available or not.
o Octane Rating of leaded gaso-
line is same with unleaded one.
Use Diesel Diesel fuel of 52 to 54 cetane is used in Hyundai vehicle. If two types of dieselfuel are available, use summer or win- ter fuel properly according to the fol- lowing temperature conditions.
o Above -5 C (23 F) ... Summer type diesel fuel.
o Below -5 C (23 F) ... Winter type
diesel fuel.
Watch the fuel level in the tank very carefully : If the engine stops through fuel failure, the circuits must be com- pletely purged to permit restarting.
Unleaded gasoline with a Pump Oc- tane Rating of 87 (Research Octane Number 91) or higher must be used inHyundai vehicle. If leaded gasoline is used, it will cause the catalytic con- verter to become ineffective and theemission control system to malfunc- tion. This can also result in increased maintenance expense. To avoid acci-dental use of leaded fuel, the large nozzle used with leaded gasoline at service stations can not be insertedinto fuel tank opening of Hyundai ve- hicle. HTB187
CAUTION:
o Do not let any gasoline or water enter the tank. This would make it necessary to drain it out and tobleed the lines to avoid jamming the injection pump and damag- ing the engine.
o In winter, in order to cut down incidents due to freezing, paraf-fin oil may be added to the fuel ifthe temperature drops to below - 10°C. Never use more than 20% paraffin oil.
!

FEATURES OF YOUR HYUNDAI 1- 3
B010E01A-AAT Gasolines for Cleaner Air To help contribute to cleaner air, Hyundai recommends that you use gasolines treated with detergent addi-tives, which help prevent deposit for- mation in the engine. These gasolines will help the engine run cleaner and theEmission Control System performance.
B010D01S-AAT Do not Use Methanol Fuels containing methanol (wood al- cohol) should not be used in yourHyundai. This type of fuel can reduce vehicle performance and damage com- ponents of the fuel system.
CAUTION:
Your Hyundai's New Vehicle Lim-ited Warranty may not cover dam- age to the fuel system and perfor- mance problems that are caused by the use of methanol or fuels con- taining methanol.
! B010F01A-AAT Operation in Foreign Countries If you are going to drive your Hyundai in another country, be sure to:
o Observe all regulations regarding
registration and insurance.
o Determine that acceptable fuel is available.
B020A01S-GAT BREAKING IN YOUR NEW HYUNDAI During the First 2,000 Km (1,200 Miles)(Gasoline Engine) No formal "break-in" procedure is re- quired with your new Hyundai. How-ever, you can contribute to the eco- nomical operation and durability of your Hyundai by observing the followingrecommendations during the first 2,000 km (1,200 miles). o Don't drive faster than 88 km/h (55
mph).
o While driving, keep your engine
speed (rpm, or revolutions perminute) between 2,000 rpm and 4,000 rpm.
o Use moderate acceleration. Don't start, depress the accelerator pedalfully.
o For the first 300 km (200 miles), try to avoid hard stops.
o Don't lug the engine (in other words, don't drive so slowly in toohigh a gear that the engine "bucks": shift to a lower gear).
o Whether going fast or slow, vary your speed from time to time.
o Don't let the engine idle longer than 3 minutes at one time.
o Don't tow a trailer during the first
2,000 km (1,200 miles) of opera-tion.
