2004 Hyundai Coupe Owner's Manual

8CONSUMER INFORMATION
4
!
I050A01GK-EAT TYRE CHAINS Tyre chains should be installed on the front wheels. Be sure that the chains are installed in accordance with the manufacturer's instructions. Refer tothe following information.
To minimize tyre and chain wear, do
not continue to use tyre chains whenthey are no longer needed. WARNING:
o When driving on roads covered with snow or ice, drive at lessthan 30 km/h (20 mph).
o Use a tyre chains less than 10mm to 16", 17" tyre.
o Avoid sudden stop and turn.
o Tighten firmly not to hear con- tact sound, if it still sounds,remove the chains for damage protection.
Tire size
205/55 R 16 215/45 R 17 Snow Chain
Thickness
Max. 10 mmMax. 10 mmSI030A2-E SNOW TYRES If it is desired to fit snow tyres to the vehicle, it must be ascertained that the original size and load carrying capacity are met by the replacementtyres. When using snow tyres, the vehicle should not be driven at speeds in excess of 60 MPH.

8
CONSUMER INFORMATION
5
HGK5016
!

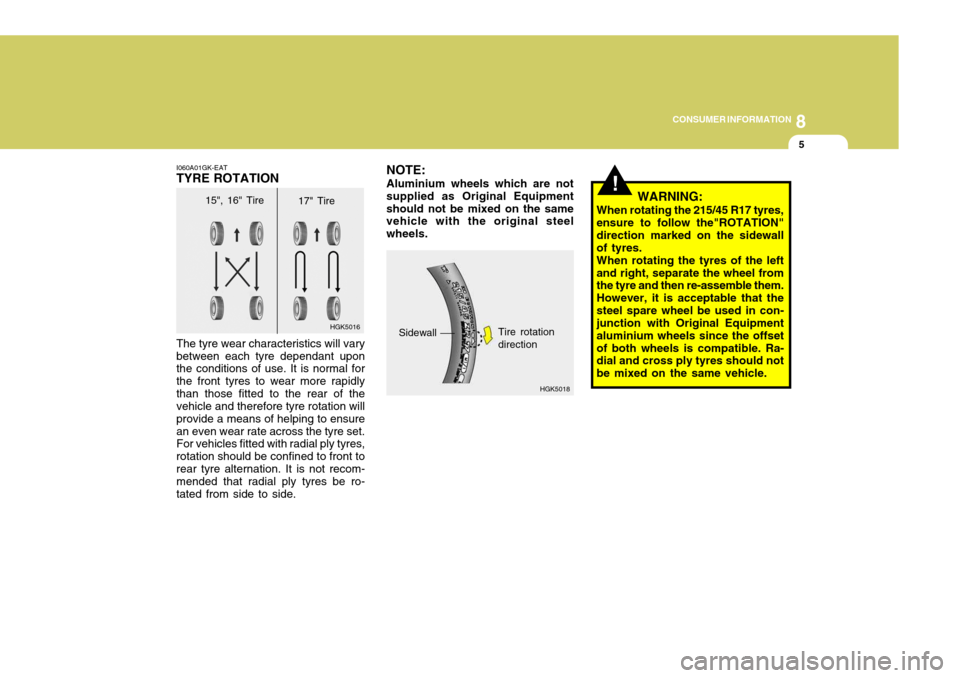

I060A01GK-EAT TYRE ROTATION The tyre wear characteristics will vary between each tyre dependant upon the conditions of use. It is normal for the front tyres to wear more rapidlythan those fitted to the rear of the vehicle and therefore tyre rotation will provide a means of helping to ensurean even wear rate across the tyre set. For vehicles fitted with radial ply tyres, rotation should be confined to front torear tyre alternation. It is not recom- mended that radial ply tyres be ro- tated from side to side. NOTE: Aluminium wheels which are not supplied as Original Equipmentshould not be mixed on the same vehicle with the original steel wheels.
15", 16" Tire
SidewallHGK5018
17" Tire
Tire rotation directionWARNING:
When rotating the 215/45 R17 tyres, ensure to follow the"ROTATION" direction marked on the sidewallof tyres.When rotating the tyres of the leftand right, separate the wheel from the tyre and then re-assemble them. However, it is acceptable that thesteel spare wheel be used in con- junction with Original Equipment aluminium wheels since the offsetof both wheels is compatible. Ra- dial and cross ply tyres should not be mixed on the same vehicle.

8CONSUMER INFORMATION
6
!
SI060B1-E
TYRE REPLACEMENT
Tyres must be replaced when the
wear indicators appear as a solid bar across the tyre tread. At this point, the remaining tread depth will be ap-proximately 1.6 mm. In addition to this, the tyre must be replaced if any portion of the tread has become baldor if there are any lumps, bulges or deep cuts in the sidewalls or tread.
Replacement tyres must be of the
recommended size and rating and should be of the same manufactureand tread pattern on each axle. HGK5015
0.06 in. (1.6 mm )
Wear indicator
SI060A1-E TYRE BALANCING Incorrect tyre balance will cause steer- ing vibration and uneven tyre wear. The vehicle tyres are balanced during production but may need further bal-ancing throughout the life of the tyres.It is recommended that the tyres bebalanced on the car for best results and that the tyres are balanced when- ever they have been removed fromthe wheel for repair. SI060D1-E WHEEL REPLACEMENT The original wheels may only be re- placed with Hyundai Approved Wheels.
WARNING:
Driving on worn or defective tyresis dangerous. Worn tyres may cause loss of steering control anda serious deterioration of braking efficiency. Defective tyres may cause vibration and loss of con-trol through blow outs. Tyres of different size, construction or tread pattern should not be inter-mixed on the same axle. Radial and cross ply tyres should not be used on the same vehicle.The use of tyres and wheels of nonapproved sizes can be dangerous.

8
CONSUMER INFORMATION
7

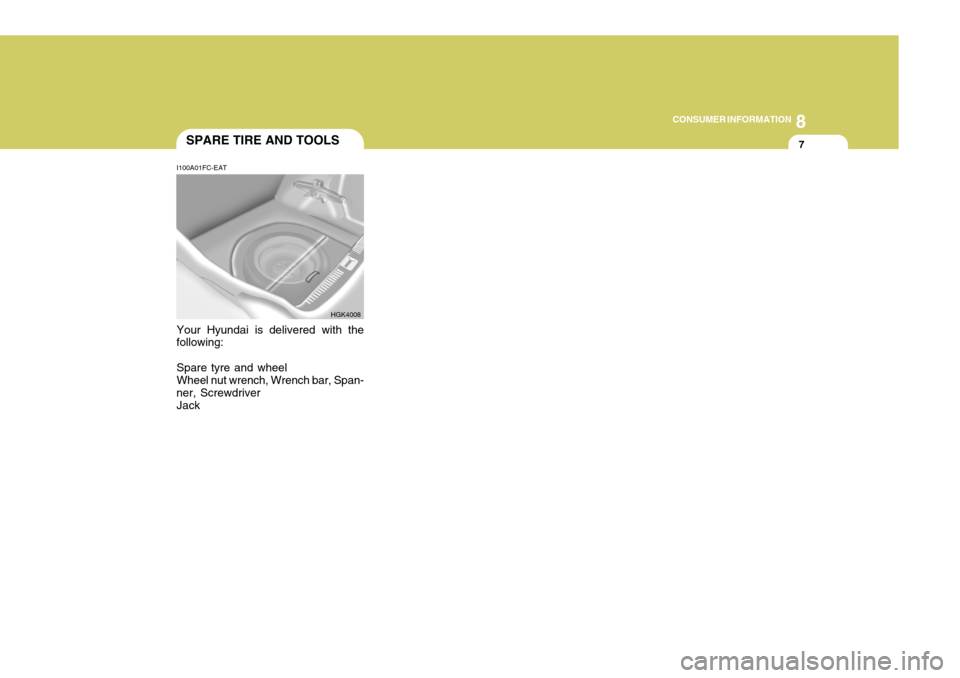

I100A01FC-EAT SPARE TIRE AND TOOLS
Your Hyundai is delivered with the
following:
Spare tyre and wheel Wheel nut wrench, Wrench bar, Span-
ner, Screwdriver
Jack HGK4008

Measurement................................................................ 9-2
Engine ........................................................................... 9-3
Lubrication Chart .......................................................... 9-4
9
VEHICLE SPECIFICATIONS
9

9 VEHICLE SPECIFICATIONS
2
J010A01GK-EAT MEASUREMENT 173(4395)
69.3(1760) 52.4(1330) 99.6(2530)58.7(1490) 58.7(1490)
Overall length Overall width Overall height (unladen)Wheel base Wheel tread FrontRear
Type Wheel free play Rack strokeOil pump type Rack and pinion0 ~ 1.18 in. (0 ~ 30 mm) 5.20 in. (132 mm) Vane type
Option
Item Battery Alternator
in. (mm)
Fuel tank
capacity Imp.gal
12 2.7L
MF 68AH
120A
195/65 R15, 205/55 R16, 215/45 R17
2.0L
MF 68AH 90A
Dual hydraulic with brake booster Ventilated disc Solid discCable
Type Front brake type Rear brake typeParking brake
US.gal
14.5Liter55
Standard T125/70 R16 (Temporary)
1.6L
MF 60AH
90A
SJ030A1-E FUEL SYSTEM
J020A01GK-EATPOWER STEERING J030A01GK-EAT TYRE J040A03GK-GAT ELECTRICAL
J050A01GK-GAT BRAKE
J035A01GK-DATSPARE TYRE

9
VEHICLE SPECIFICATIONS
3
2.0 L
82 x 93.5 1,975
1 - 3 - 4 - 2
0.0067 ~ 0.0091 in. (0.17 ~ 0.23 mm) 0.0098 ~ 0.0122 in. (0.25 ~ 0.31 mm)
0.0047 ~ 0.011 in. (0.12 ~ 0.28 mm) 0.0079 ~ 0.015 in. (0.2 ~ 0.38 mm)

700 ± 100
BTDC 8° ± 5° 2.7 L
6-Cyl., V-type DOHC 86.7 x 75
2,656
1 - 2 - 3 - 4 - 5 - 6
AUTO LASH
PFR5N-11, IFR5G-11 RC10PYPB4
750 ± 100
BTDC 12° ± 10°
4-Cyl., In-line DOHC
1.6 L
76.5 x 87 1,599
1 - 3 - 4 - 2
AUTO LASH
BKR5ES-11 RC10YC4
700 ± 100
BTDC 5° ± 5°
ITEMS
Engine Type Bore x Stroke (mm) Displacement (cc) Firing order Valve clearance (Cold Engine 20 ± 5°C) Spark plug Spark plug gap Idle speed (rpm) Ignition timing (Base)
For adjustingFor checking NGKCHAMPION IntakeExhaustIntake Exhaust
ENGINE
J070A04GK-EAT SPECIFICATION
0.039 ~ 0.043 in. (1.0 ~ 1.1 mm)

9 VEHICLE SPECIFICATIONS
4
Q'ty (Imp.qts.) (litre, us.qts.) (Drain and refill) Engine Oil (With oil filter):1.6 L : 2.9(3.3, 3.5) 2.0L : 3.39 4.0, 4.07) 2.7L : 4.0 (4.5, 4.76)MAX. 1L / 1500 Km MAX. 1L / 1000 Km 5 speed : 1.86 (2.15, 2.27),6 speed : 1.94 (2.2, 2.32) 6.9 (7.8, 8.2)As required As required 1.6L/2.0L : 6.2 (7.0, 7.4)2.7L : 7.0 (8.0, 8.5)LUBRICATION CHART
J080A04GK-EAT Oil & Grease Standard
API SJ, SL SAE 5W-20, 5W-30
or ABOVE, SAE 10W-30 (ABOVE -18°C)
ILSAC GF-3 SAE 15W-40 (ABOVE -13°C)
or ABOVE SAE 20W-50 (ABOVE -7°C) Normal driving condition Severe driving condition HYUNDAI GENUINE PARTS MTF 75W/85(API GL-4)HYUNDAI GENUINE ATF SP III, DIAMOND ATF SP III, SK ATF SP III or other brands approved by Hyundai Motor Co.,PSF-3 DOT 3 or DOT 4 equivalent Ethylene glycol base for aluminium radiator
Item
Engine Oil Engine Oil Consumption Transaxle Power Steering Brake Fluid Coolant
Manual Auto
