2004 HONDA ODYSSEY Owners Manual

Playing the Radio
Comf ort and Convenience Feat ures
LX model
EX and EX-L models Opt ional on U.S. EX-L model
126
AM/FM BUTTON SCAN BUTTONSTEREO INDICATOR
BASS/FADER CONTROL
KNOB
TREBLE/BALANCE CONTROL
KNOB
SEEK SWITCH TUNE BAR
TUNE BAR
PRESET BUTTONS STEREO
INDICATOR
SCAN
INDICATOR
TUNE KNOB
AM/FM
BUTTON
SCAN
BUTTON
PRESET BUTTONS
PRESET BUTTONS
BASS/
FADER
CONTROL
KNOB TREBLE/
BALANCE
CONTROL
KNOB
AUTO SELECT
BUTTON
SCAN BUTTON
PWR/VOL
KNOB
AM/FM
BUTTON
STEREO
INDICATOR
SEEK
BARAUTO
SELECT
BUTTON
PWR/VOL
KNOB SEEK BAR

µÛ
Ý
µ µ
CONT INUED
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR/VOL knob. Adjust the volume
by turning the same knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction in
AM is not available.
You can use any of f ive methods to
f ind radio stations on the selected
band:
the
preset buttons, and
(EX and EX-L models).
Use the TUNE bar or
knob to tune the radio to a desired
f requency. Press the / side
of the bar or turn the knob to the
right to tune to a higher f requency,
or press the / side or turn
the knob to the left to tune to a lower
f requency.
The SEEK f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the / or / side of the bar, or push the
SEEK switch up or down, then
release it. The SCAN function
samples all the stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. SCN/SCAN shows in
the display. The system will scan f or
a station with a strong signal. When
it f inds a strong signal, it will stop
and play that station for about 5
seconds.
If you do nothing, the system will
then scan f or the next strong station
andplayitfor5seconds.Whenit
plays a station that you want to listen
to, press the SCAN button again.
Playing the Radio
Comf ort and Convenience Feat ures
To Play the Radio To Select a Station
TUNE,SEEK,SCAN, AUTO SELECT
TUNE
SEEK SCAN
127

µµEach preset button can
store one f requency on AM, and two
f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
button.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Pick a preset button, and hold it
until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
stations on FM.
The preset f requencies will be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed. If you are
traveling far from home and can no
longer receive your preset stations,
you can use the Auto Select f eature
to find stations in the local area.
Press the A. SEL Button. ‘‘A.SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM, and twelve FM stations in
the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if Auto
Select cannot f ind a strong station
f or every preset button. If you do not like the stations Auto
Select has stored, you can store
other f requencies on the preset
buttons. Use the TUNE, SEEK, or
SCAN functions to find stations, then
store them in the preset buttons as
described.
press the
A. SEL button. This restores the
presets you originally set.
1.
2.
3.
4.
To turn of f Auto Select,
Playing the Radio
Comf ort and Convenience Feat ures
Preset
A UT O SEL ECT
128

µ
µ µµ
These two
controls adjust the strength of the
sound coming f rom each speaker.
The Balance control adjusts the side-
to-side strength, while the Fader
control adjusts the f ront-to-back
strength.
Use these controls
to adjust the tone to your liking.
To adjust the fader or balance, push
on the control knob to get it to pop
out. Pull it out slightly f arther, and
adjust the sound to your liking. Push
theknobbackinwhenyouaredone
so you cannot change the setting by
accidentally bumping it. To adjust the Treble or Bass level,
push on the control knob to get it to
pop out. Without pulling it out
f arther, turn the knob to adjust the
sound level. Push the knob back in
when you are done so you cannot
change the setting by accidentally
bumping it.Press the TUNE knob repeatedly to
display the Bass (BAS), Treble
(TRE), Balance (BAL), and Fader
(FAD) settings.
Eachmodeisshowninthedisplayas
it changes. Turn the TUNE knob to
adjust the setting to your liking.
When the level reaches the center,
you will see ‘‘ ’’ in the display.
The system will automatically return
the display to the selected audio
mode about 5 seconds af ter you stop
adjusting a mode.
Use the TRE/BAS
modes to adjust the tone to your
liking.
These two
modes adjusts the strength of the
sound coming f rom each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the f ront-to-back
strength.
On LX, EX and EX-L models Optional on U.S. EX-L model
Playing the Radio
Comf ort and Convenience Feat ures
Adjusting the Sound
Balance/Fader
Treble/Bass
Treble/Bass
Balance/Fader
129
BASS/FADER
CONTROLTREBLE/BALANCE
CONTROL
EX and EX-L models shown

You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is of f .
Your Honda’s radio can receive the
complete AM and FM bands.
Those bands cover these f requen-
cies:
AM band:
530 to 1,710 kilohertz
FM band:
87.7 to 107.9 megahertz
Radio stations on the AM band are
assigned f requencies at least ten
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned f requencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’
How well your Honda’s radio
receives stations is dependent on
many f actors, such as the distance
from the station’s transmitter,
nearby large objects, and atmos-
pheric conditions.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator willgo of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
72
Playing the Radio, Radio Reception
Comf ort and Convenience Feat ures
A udio System L ighting
Radio Frequencies
Radio Reception
130

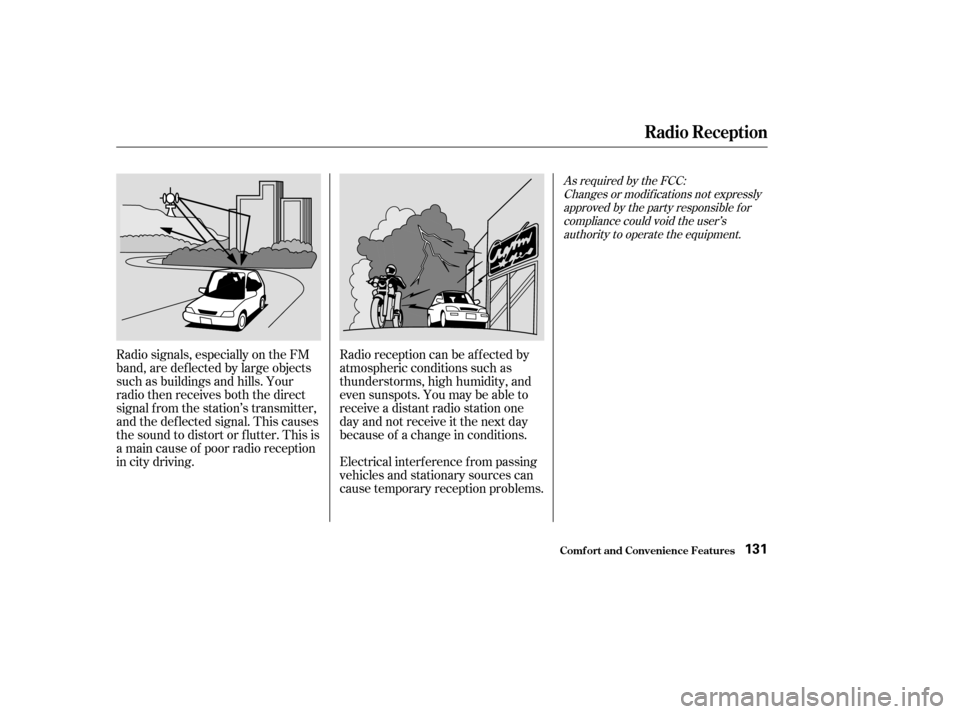

Radio signals, especially on the FM
band, are def lected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal f rom the station’s transmitter,
and the def lected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.Radio reception can be af f ected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interf erence f rom passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
Radio Reception
Comf ort and Convenience Feat ures131

Comf ort and Convenience Feat ures
Playing a CD
LX model
EX and EX-L models Opt ional on U.S. EX-L model
132
PWR/VOL
KNOB
TAPE/CD BUTTON
AM/FM BUTTON RANDOM INDICATOR
REPEAT INDICATOR
PRESET BUTTONS
REPEAT BUTTON
SKIP SWITCH
PWR/VOL KNOB
RANDOM
BUTTONSKIP
BAR
TUNE
BAR
EJECT
BUTTON
CD SLOT
AM/FM BUTTON
PWR/VOL KNOB REPEAT
BUTTON SKIP BAR
CD BUTTON
RANDOM
BUTTON
REPEAT
BUTTON CD SLOT
CD EJECT BUTTON
CD BUTTON

µµ
CONT INUED
To play a CD, the ignition switch
must be in the ACCESSORY (I) or
ON(II) position.
You operate the CD player with the
same controls used f or the radio.
The number of the track playing is
shown in the display. The system will
continuously play a CD until you
change modes.
Insert a CD into the CD slot. The
drive will pull the CD in the rest of
the way to play it. When the system
reaches the end of the disc, it will
return to the beginning and play the
disc again.
You can also play 3-inch (8-cm) discs
without using an adapter ring.
To play the radio when a CD is
playing, press the AM/FM button. Press the CD button again to switch
back to the CD player.
To play the tape when a CD is
playing, insert a tape in the player (if
available). If a tape is in the player,
press the TAPE button. Press the
CD button again to switch back to
the CD player. The cassette player is
optional on EX and EX-L models.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f (at
thesamediscandtrackonLX
model).
Each time you press and
release / or push up the
SKIP switch, the player skips
f orward to the beginning of the next
track. Press and release / button, or push down the SKIP
switch to skip backward to the
beginning of the current track. Press
orpushdownitagaintoskiptothe
beginning of the previous track.
To move rapidly within a track, press
andholdthe / or / side of the SKIP bar. You will
see CUE or REW in the display. On
LX model, push and hold the SKIP
switch. You will hear a beep when
the system begins to move.
To continuously replay
a track, press and release the RPT
button. You will see RPT in the
display. Press the RPT button again
to turn it off.
Optional on LX model
Playing a CD
Comf ort and Convenience Feat ures
To Play a CD SKIP
REPEAT
133
