2004 HONDA ODYSSEY Owners Manual

Keeptheinsideandoutsidemirrors
clean and adjusted f or best visibility.
Be sure to adjust the mirrors bef ore
you start driving.

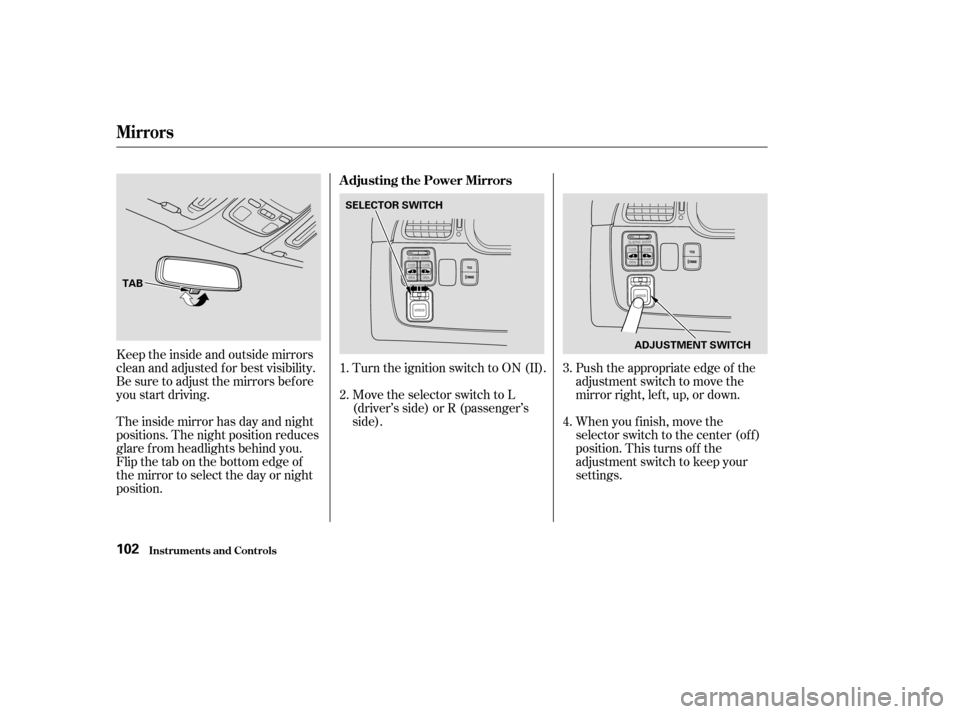

The inside mirror has day and night
positions. The night position reduces
glare f rom headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.Turn the ignition switch to ON (II).
Move the selector switch to L
(driver’s side) or R (passenger’s
side).
Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you f inish, move the
selector switch to the center (off)
position. This turns of f the
adjustment switch to keep your
settings.
1.
2.
3.
4.
Mirrors
Inst rument s and Cont rols
Adjusting the Power Mirrors
102
TAB SELECTOR SWITCH
ADJUSTMENT SWITCH

The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off.To apply the parking brake, push the
parking brake pedal down with your
f oot. To release the parking brake,
push on the pedal again. The parking
brake indicator on the instrument
panel should go out when the
parking brake is f ully released with
the engine running (see page ).
60
Canadian Models
Mirrors, Parking Brake
Inst rument s and Cont rols
Power Mirror Heaters Parking Brake
103
NOTICE:
HEATED MIRROR BUTTON
PARKING BRAKE PEDAL
Driving the vehicle with the
parking brake applied can damage the
rear brakes and axles.

Î
Î
Interior Convenience Items
Inst rument s and Cont rols104
BEVERAGE HOLDERCLOCK
VANITY
MIRROR
CENTER
POCKET
STORAGE
BOX
ACCESSORY
POWER
SOCKET
ACCESSORY
POWER
SOCKET
REAR
COMPARTMENT
COAT HOOK
BEVERAGE
HOLDERCENTER
TABLE SUNGLASSES
HOLDER
GLOVE BOX
BEVERAGE HOLDER,
COIN HOLDER
SUN VISOR
: EX and EX-L models only

The clock displays the time with the
ignition switch in any position.
To set the clock:Turn the ignition switch to ON (II). Press and hold the H button until
the hour advances to the desired
time.
Press and hold the M button until
the numbers advance to the
desired time.
You can use R to quickly set the time
to the nearest hour. If the displayed
time is before the half hour, pressing
Rsetstheclockbacktotheprevious
hour. If the displayed time is af ter
the half hour, pressing R sets the
clock f orward to the beginning of the
next hour.
For example: 1:06 would RESET to 1:00.

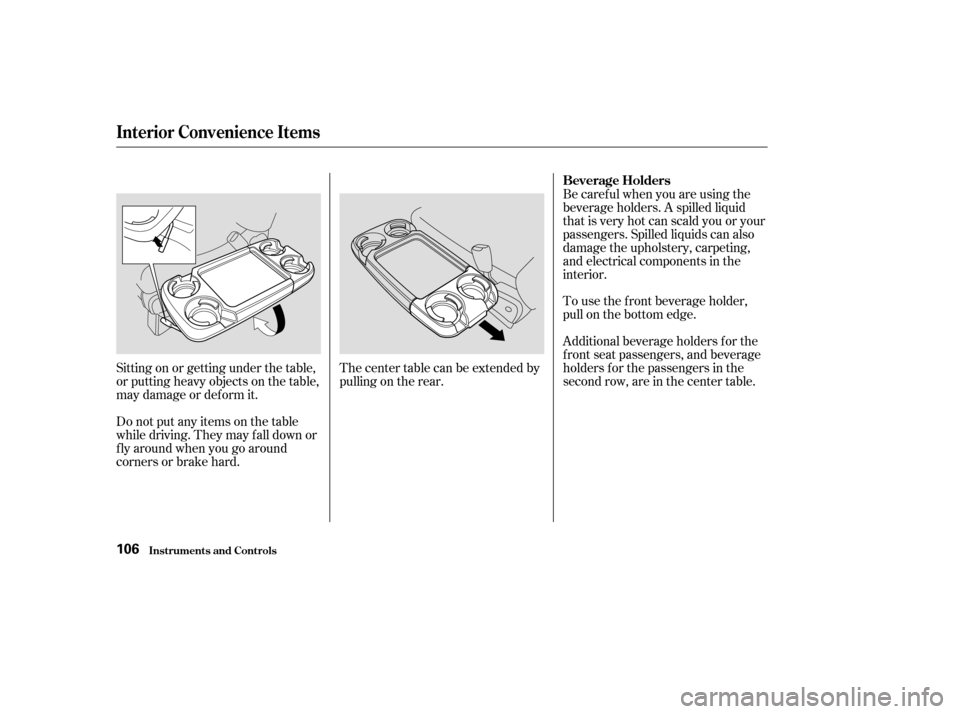

1:52 would RESET to 2:00. To use the center table, pull up the
outside edge of the table until it
latches. To store it, pull the lever and
lower the table.
2.
3.
1.
CONT INUED
On models without navigation system
Interior Convenience Items
Clock Center Table
Inst rument s and Cont rols105
HM R

Sitting on or getting under the table,
or putting heavy objects on the table,
may damage or deform it.
Do not put any items on the table
while driving. They may f all down or
f ly around when you go around
corners or brake hard.Thecentertablecanbeextendedby
pulling on the rear.Be caref ul when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Spilled liquids can also
damage the upholstery, carpeting,
and electrical components in the
interior.
To use the f ront beverage holder,
pull on the bottom edge.
Additional beverage holders f or the
f ront seat passengers, and beverage
holders f or the passengers in the
second row, are in the center table.
Interior Convenience Items
Inst rument s and Cont rols
Beverage Holders
106

Each second row seat has a
beverage holder on the outside of
the seat cushion. To use the
beverage holder, push on the tab.
The beverage holder will swing open.
To close, pivot it up and push it in
until it latches.To protect the beverage holder, the
bottom tray is designed to break
away if you try to place a heavy
object on it. If this happens, hold the
edge of the bottom tray and pull it up
until you f eel a detent.
Be caref ul not to damage an open
beverage holder when you get into
or out of the vehicle.
The beverage holders f or the third
seat passengers are located in the
armrests on the rear side panels.
The inner liner can be removed if
youwanttoholdalargercup.
To open the sunglasses holder, push
on the f ront edge. Make sure the
holder is closed while you are driving.
Some larger styles of sunglasses
may not f it in the holder.
Interior Convenience Items
Inst rument s and Cont rols
Sunglasses Holder
107
TAB

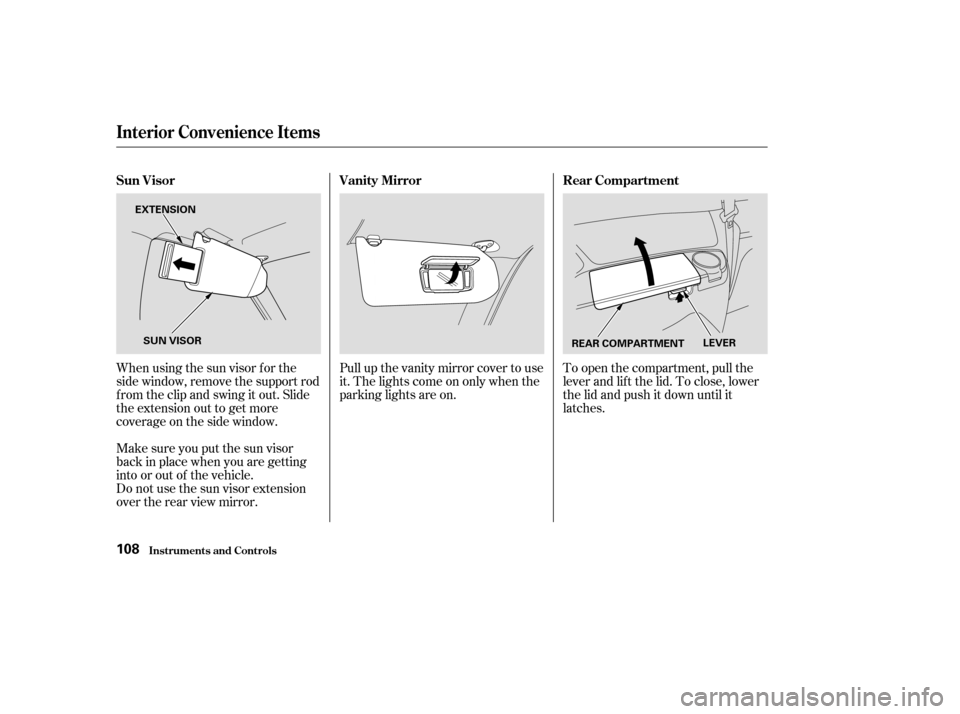

Whenusingthesunvisorforthe
side window, remove the support rod
f rom the clip and swing it out. Slide
the extension out to get more
coverage on the side window.Pull up the vanity mirror cover to use
it. The lights come on only when the
parking lights are on.
To open the compartment, pull the
lever and lif t the lid. To close, lower
the lid and push it down until it
latches.
Make sure you put the sun visor
back in place when you are getting
into or out of the vehicle.
Do not use the sun visor extension
over the rear view mirror.
Interior Convenience Items
Inst rument s and Cont rols
Sun Visor Vanity MirrorRear Compartment
108
REAR COMPARTMENTLEVER
EXTENSION
SUN VISOR

Open the glove box by pulling the
bottom of the handle. Close it with a
f irm push. Lock or unlock the glove
box with the master key.These sockets are intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).
None of the sockets will power an
automotive type cigarette lighter
element. When more than one
socket is being used, the combined
power rating of the accessories
should be 120 watts or less
(10 amps).
Interior Convenience Items
Inst rument s and Cont rols
Glove Box
A ccessory Power Sockets
109
GLOVE BOX
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
