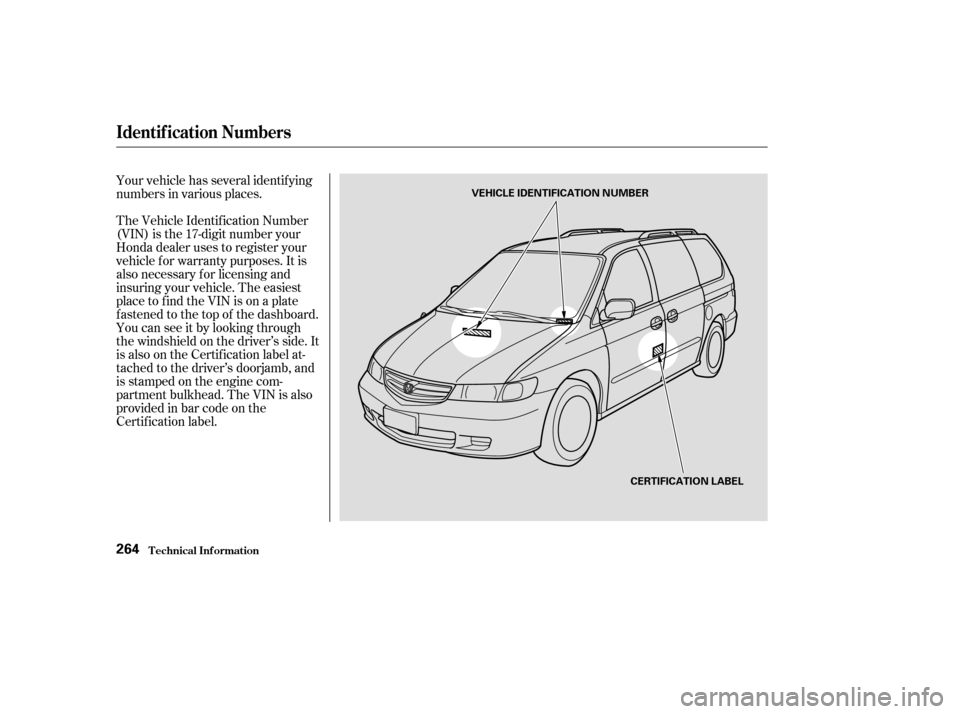

Your vehicle has several identif ying
numbers in various places.
The Vehicle Identif ication Number
(VIN) is the 17-digit number your
Honda dealer uses to register your
vehicle f or warranty purposes. It is
also necessary f or licensing and
insuring your vehicle. The easiest
placetofindtheVINisonaplate
fastened to the top of the dashboard.
Youcanseeitbylookingthrough
the windshield on the driver’s side. It
is also on the Certification label at-
tached to the driver’s doorjamb, and
is stamped on the engine com-
partment bulkhead. The VIN is also
provided in bar code on the
Certif ication label.
Identif ication Numbers
T echnical Inf ormation264
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL

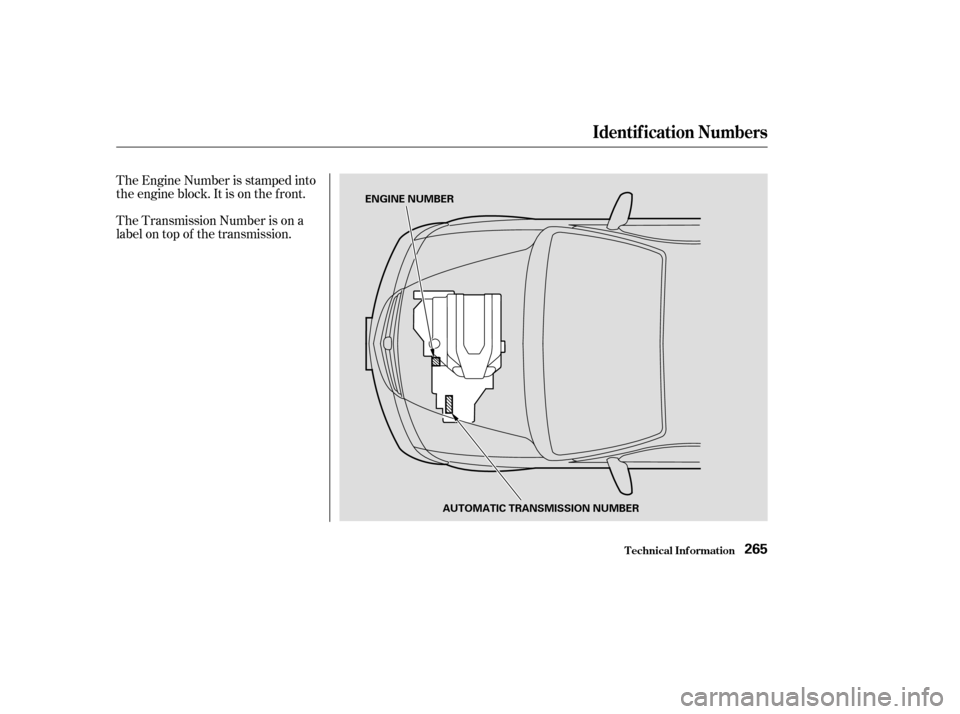

The Engine Number is stamped into
the engine block. It is on the f ront.
The Transmission Number is on a
label on top of the transmission.
Identif ication Numbers
T echnical Inf ormation265
ENGINE NUMBERAUTOMATIC TRANSMISSION NUMBER

µµÎ
Î
Î
Î
Î
Î
Î
Î
Specif ications
T echnical Inf ormation266
Dimensions
Weights Capacities
Air Conditioning 201.2 in (5,110 mm)
75.6 in (1,920 mm)
5.3 US qt (5.0
)
2.6 US qt (2.5
)
0.16 US gal (0.6
) 4.6 US qt (4.4
)
4.2 US qt (4.0
)
2.48 US gal (9.4
)
3.5 US qt (3.3
)
8.3 US qt (7.9)
4.8 US qt (4.5
)
HFC-134a (R-134a)
66.1 in (1,680 mm) 66.1 in (1,680 mm)
118.1 in (3,000 mm) 68.5 in (1,740 mm)
32 34 oz (850 900 g) ND-OIL8 20.00 US gal (75.7
)
1.98 US gal (7.5)
69.7 in (1,770 mm)
8,265 lbs (3,750 kg) Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity:
Excluding the oil remaining in the engine.
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating
Gross combined weight
rating (GCWR)
Fuel tank
Engine
coolant
Engine oil
Automatic
transmission
fluid
Windshield
washer
reservoir
Refrigerant type
Charge quantity
Lubricant type See the tire information label atta-
ched to the driver’s doorjamb. Approx.
Front
Rear
1:
2:Change
Total
Change
Including
filter
Without
filter
Total
Change
Total
U.S. Vehicles
Canada Vehicles
1: LX
2: EX,EX-L1
2
1
2

µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
´
µ
Specif ications
T echnical Inf ormation267
Lights
Battery
Fuses Engine
Alignment
Tires
12 V 21 W
12 V 21/5 W
3.50 x 3.66 in (89.0 x 93.0 mm)
212 cu-in (3,471 cm
)
10 : 1
24/2.2 CP
12 V 1.8 W 12 V 8 W 12 V 21 W
12 V 3 CP 2CP
21 CP (18 W)
4CP
10 W
12 V
12 V
12 V
12 V 12 V
60/55 W (HB2)
12 V
65 AH/20 HR 52 AH/5 HR
12 V
12 V 0.00 in (0.0 mm)
0.00 in (0.0 mm)
0°
0°30’
2°07’
225/60R16 98T
T135/80D16 101M
36 psi (250 kPa , 2.5 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm)
PZFR5F-11
PKJ16CR-L11
0.04 in (1.1 mm)
Headlights
Front turn signal/parking/side
marker lights
Rear turn signal lights
Stop/Taillights/Rear side
marker lights
Taillights
Back-up lights
License plate light
High-mount brake light
Individual map lights
Cargo area light
Vanity mirror lights
Capacity
Interior
Under-hood Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Spark Plug Gap
Toe-in
Camber
Caster
Size
Pressure
See page 261or the fuse label
attached to the dashboard.
See page 261or the fuse label
attached to the inside of the fuse
box door under the dashboard.
See page 260or the fuse box
cover.
High/Low
Front/Rear
Spare
Front/Rear
Spare Front
Rear
Front
Rear
Front
Front
Rear
Driver’s side
Passenger’s side (Amber)
NGK:
DENSO:
Water cooled 4-stroke SOHC VTEC,6-cylinder, gasoline engine
0
0.1 mm

µ
The tires on your car meet all U.S.
Federal Saf ety Requirements. All
tires are also graded for treadwear,
traction, and temperature perform-
ance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
Quality grades can be f ound where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades. The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate.
The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
DOT T ire Quality Grading (U.S. Vehicles)
T echnical Inf ormation
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A Treadwear
Traction AA, A, B, C
268

µ
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. The
grade C corresponds to a level of
perf ormance which all passenger car
tires must meet under the Federal
Motor Vehicle Saf ety Standard No.
109. Grades B and A represent
higher levels of perf ormance on the
laboratory test wheel than the
minimum required by law. Warning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not over-
loaded. Excessive speed, underinf la-
tion, or excessive loading, either
separately or in combination, can
cause heat buildup and possible tire
f ailure.
DOT T ire Quality Grading (U.S. Vehicles)
T echnical Inf ormation
Temperature A,B,C
