2004 HONDA CIVIC HYBRID Owners Manual

86

The standard audio system has
many f eatures. This section de-
scribes those f eatures and how to
use them. (If you selected an
optional audio system, ref er to the
operating instructions that came
with it.) The heating and air conditioning
systems in your Honda provide a
comf ortable driving environment in
all weather conditions.
Your Honda has an anti-thef t audio
system that requires a code number
to enable it................
Vents, Heating, and A/C . 88
............................
Playing the Radio .94
..........................
Radio Reception .97
....................................
Playing a CD .99
..............................
CD Changer .100
................
Protecting Your CDs . 101
.....
CD Player Error Messages . 102
.
CD Changer Error Messages . 103
...............................
Playing a Tape .104
.................
Radio Thef t Protection . 107
..........................
Setting the Clock .108
...............................
Cruise Control .109
Comf ort and Convenience Features
Comf ort and Convenience Feat ures87

Comf ort and Convenience Feat ures
Vents, Heating, and A/C
88

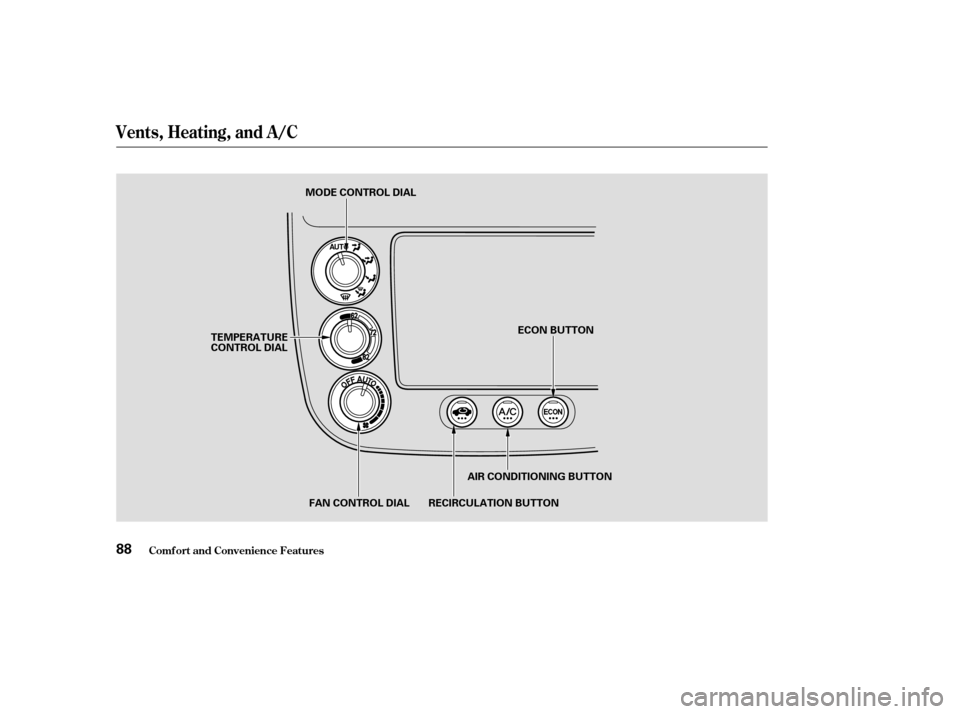

MODE CONTROL DIAL
TEMPERATURE
CONTROL DIAL
FAN CONTROL DIAL RECIRCULATION BUTTON AIR CONDITIONING BUTTONECON BUTTON

CONT INUED
You can manually set the system
controls f or ventilation, air
conditioning, heating, air f low
direction, and fan speed in various
combinations.When the ECON button is on:
The indicator comes on.
The Auto Idle Stop is enabled.
The system will not cool as quickly
when the A/C is on.
If the outside temperature is below
f reezing, the Auto Idle Stop is
disabled, even if the ECON button is
on. The heater will continue to warm
the interior with the vehicle stopped
and engine running.
When the ECON button is off: The Auto Idle Stop is disabled.
The system turns of f the ECON
mode when you select or . If thefancontroldialisoff,the
ECON button will not turn on or of f ,
and the Auto Idle Stop is enabled.
Comf ort and Convenience Feat ures
Manual Operation
ECON Button
Vents, Heating, and A/C
89

The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
ThesystemshouldbeleftinFresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to Recirculation mode when
driving through dusty or smoky
conditions, then return to Fresh Air
mode.
This button turns the rear window
def ogger of f and on (see page ).
Use the mode control dial to select
the vents the air flow from. Some air
will f low f rom the dashboard vents in
all modes.Air flows from the center
and corner vents in the dashboard.
Air f low is divided between
the vents in the dashboard and the
f loor vents.
Air f lows f rom the f loor
vents. When you select , the
system automatically switches to
Fresh Air mode.
Air f low is divided between
the f loor vents and the def roster
vents at the base of the windshield.
Air f lows f rom the def roster
vents at the base of the windshield.
Turn this dial to control fan speed
and the air flow.
When the dial is set to AUTO, the
system controls the f an speed
automatically.
Turning this dial clockwise increases
the temperature of the airflow.
This button turns the air
conditioning on and of f . The light in
thebuttonisonwhentheA/Cison.
When the light in the button is on,
air f rom the vehicle’s interior is sent
throughout the system again. When
the light is of f , air is brought in f rom
the outside of the vehicle (Fresh Air
mode).
When you select or ,
the system automatically switches to
Fresh Air mode and turns on the
A/C and turns off the ECON mode.
68
Fan Control Dial
Rear Window Def ogger Button
Mode Control Dial
Air Conditioning (A/C) Button T emperature Control Dial
Recirculation Button
Comf ort and Convenience Feat ures
Vents, Heating, and A/C
90

If the interior is very warm,you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in Fresh Air mode.
In AUTO mode, the system controls
the air f low direction automatically
between the dashboard vents and
the f loor vents.
The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear side
panels.
Turn the temperature control dial
all the way to the lef t.
Make sure the A/C is of f .
Select and Fresh Air mode.
Set the f an to the desired speed.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming through the
system. Turn on the A/C by pressing the
button. The light in the button
comesonwhenafanspeedis
selected.
Make sure the temperature
control dial is all the way to the left.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reads normally. Select and Fresh Air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
1.
2.
3.
4. 1.
2.
3.
4.
5. 2.
3. 1.
63
Ventilation
Using the Heater Using the A /C
Comf ort and Convenience Feat ures
Vents, Heating, and A/C
91

To use the heating and cooling
system in automatic mode, set the
system as f ollows.Set the f an control dial to AUTO.
Set the mode control dial to AUTO.
Set the desired temperature by
turning the temperature control
dial. Turning this dial clockwise
increases the temperature of the
air flow.
Select Fresh Air mode. The
indicator in the button should be
off.
Turn on the A/C by pressing the
button f or cooling and dehumidi-
f ying. The indicator in the button
lights. To heat or cool the interior f aster,
select Recirculation mode and set
the temperature control dial to the
upper or lower limit.
When you set the temperature to its
lower or its upper limit, the system
runs at f ull cooling or heating only. It
does not regulate the interior
temperature.
TurningthefancontroldialtoOFF.
However, a lack of air flow can cause
the windows to fog up. It is
recommended that you keep the f an
on at all times so stale air and
moisture do not build up in the
interior and cause f ogging.
1.
2.
3.
4.
5.
Comf ort and Convenience Feat ures
Automatic Operation
To Turn Everything Of f
Vents, Heating, and A/C
92

Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.Switch the f an on.
Turn on the air conditioning.
Select and Fresh Air mode.
Adjust the temperature control
dial to your pref erence.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C). To remove f og f rom the inside of the
windows:
When you switch to another mode
f rom , the A/C stays on.
Press the A/C button to turn it of f .
To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel below it. This will
send more warm air to the
windshield def roster vents. Once the
windshield is clear, select the Fresh
Air mode to avoid f ogging the
windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
Set the f an to the desired speed.
Select , the system
automatically switches to Fresh
Air mode, turns on the A/C and
turns off the ECON mode. (The
A/C indicator will not come on.)
Adjust the temperature control
dial so the airflow feels warm.
Select to help clear the
rear window (see page ).
Select . The system
automatically switches to Fresh
Air mode, turns on the A/C and
turns off the ECON mode. (The
A/C indicator will not come on.)
Select .
Set the f an and temperature
controls to maximum level.
1.
2.
3.
4. 1.
2.
3.
1.
2.
3.
4.
68
Dehumidif y the Interior
T o Def og and Def rostT o Remove Exterior Frost or Ice
From the Windows
Vents, Heating, and A/C
Comf ort and Convenience Feat ures93
