2004 FORD FOCUS Owners Manual

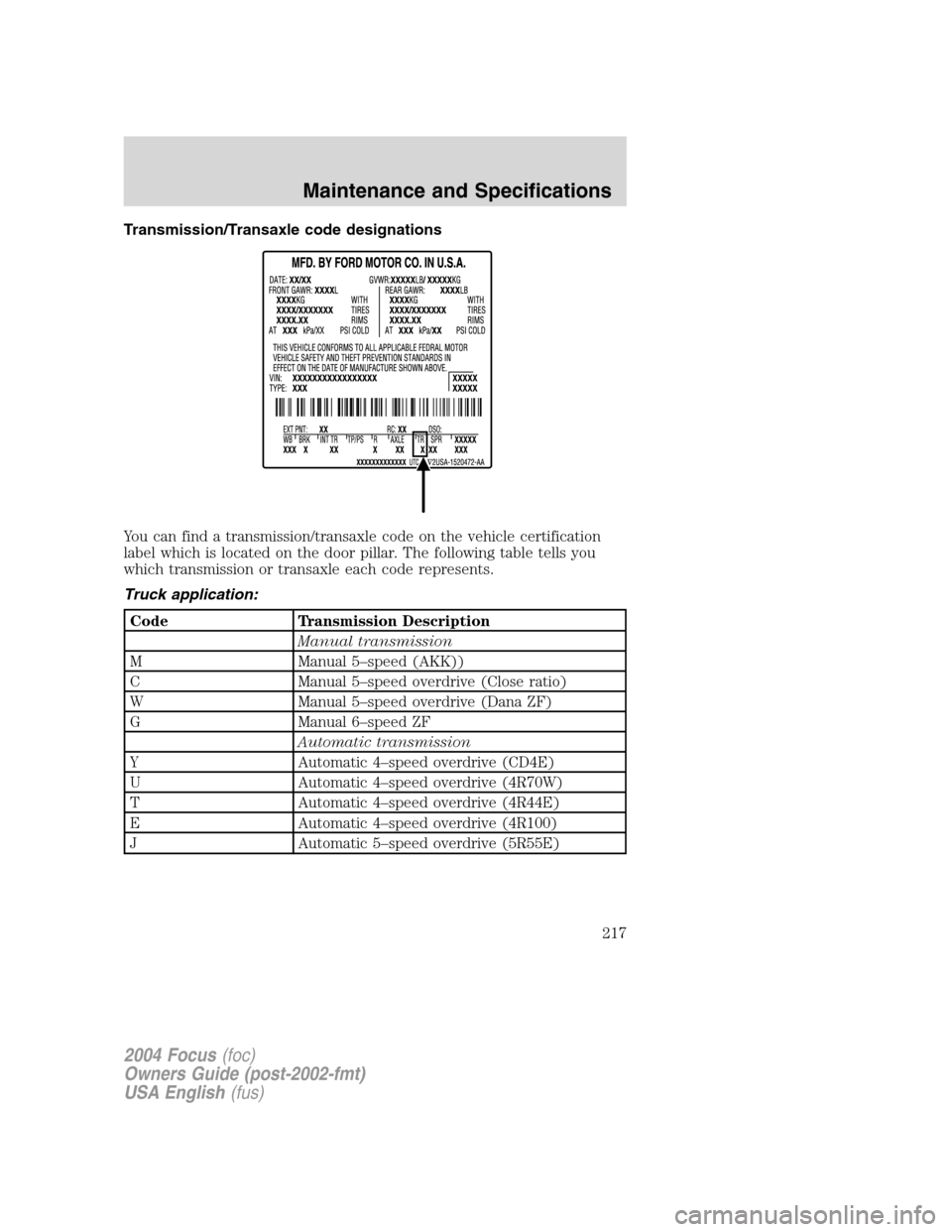

Transmission/Transaxle code designations
You can find a transmission/transaxle code on the vehicle certification
label which is located on the door pillar. The following table tells you
which transmission or transaxle each code represents.
Truck application:
Code Transmission Description
Manual transmission
M Manual 5–speed (AKK))
C Manual 5–speed overdrive (Close ratio)
W Manual 5–speed overdrive (Dana ZF)
G Manual 6–speed ZF
Automatic transmission
Y Automatic 4–speed overdrive (CD4E)
U Automatic 4–speed overdrive (4R70W)
T Automatic 4–speed overdrive (4R44E)
E Automatic 4–speed overdrive (4R100)
J Automatic 5–speed overdrive (5R55E)
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
217

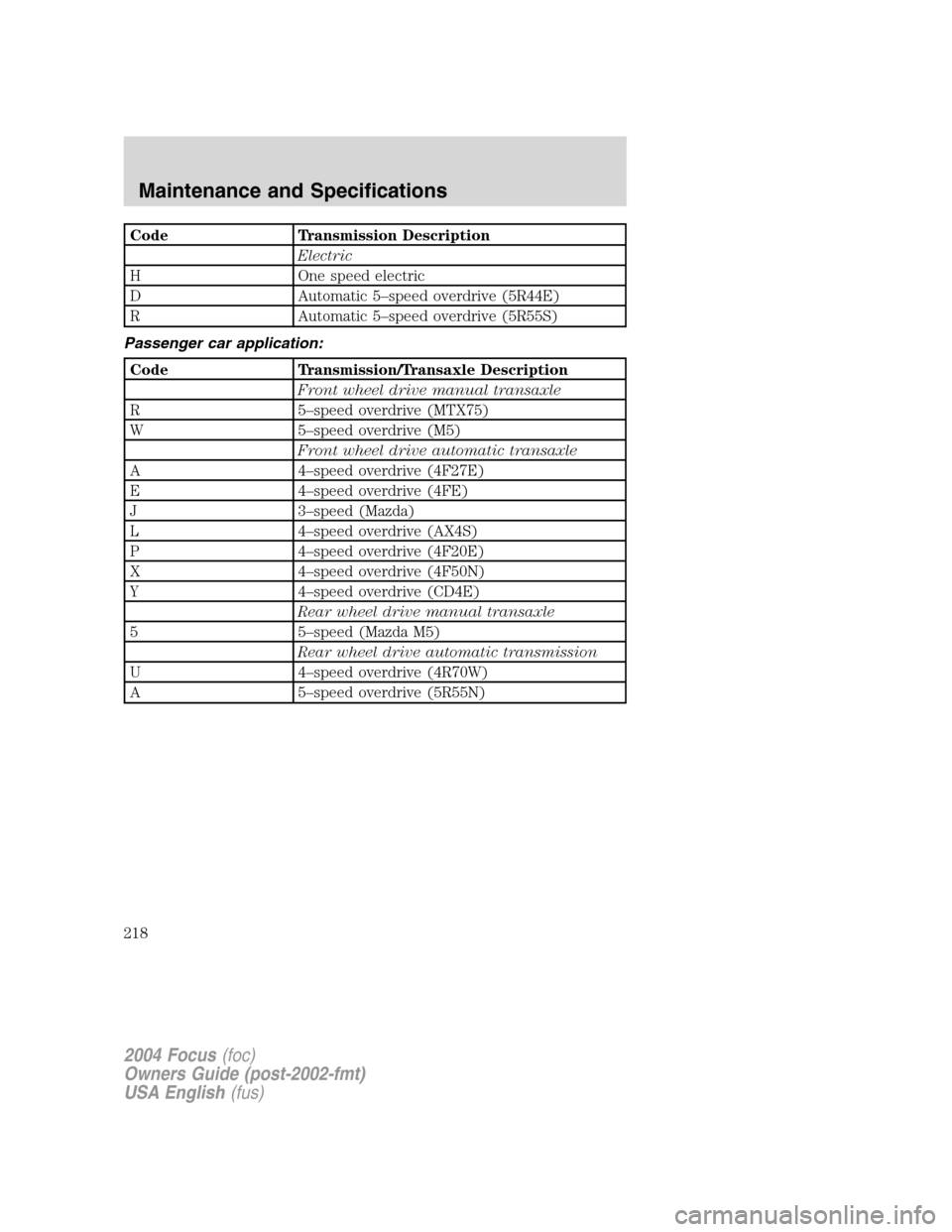

Code Transmission Description
Electric
H One speed electric
D Automatic 5–speed overdrive (5R44E)
R Automatic 5–speed overdrive (5R55S)
Passenger car application:
Code Transmission/Transaxle Description
Front wheel drive manual transaxle
R5–speed overdrive (MTX75)
W5–speed overdrive (M5)
Front wheel drive automatic transaxle
A4–speed overdrive (4F27E)
E4–speed overdrive (4FE)
J3–speed (Mazda)
L4–speed overdrive (AX4S)
P4–speed overdrive (4F20E)
X4–speed overdrive (4F50N)
Y4–speed overdrive (CD4E)
Rear wheel drive manual transaxle
55–speed (Mazda M5)
Rear wheel drive automatic transmission
U4–speed overdrive (4R70W)
A5–speed overdrive (5R55N)
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
218

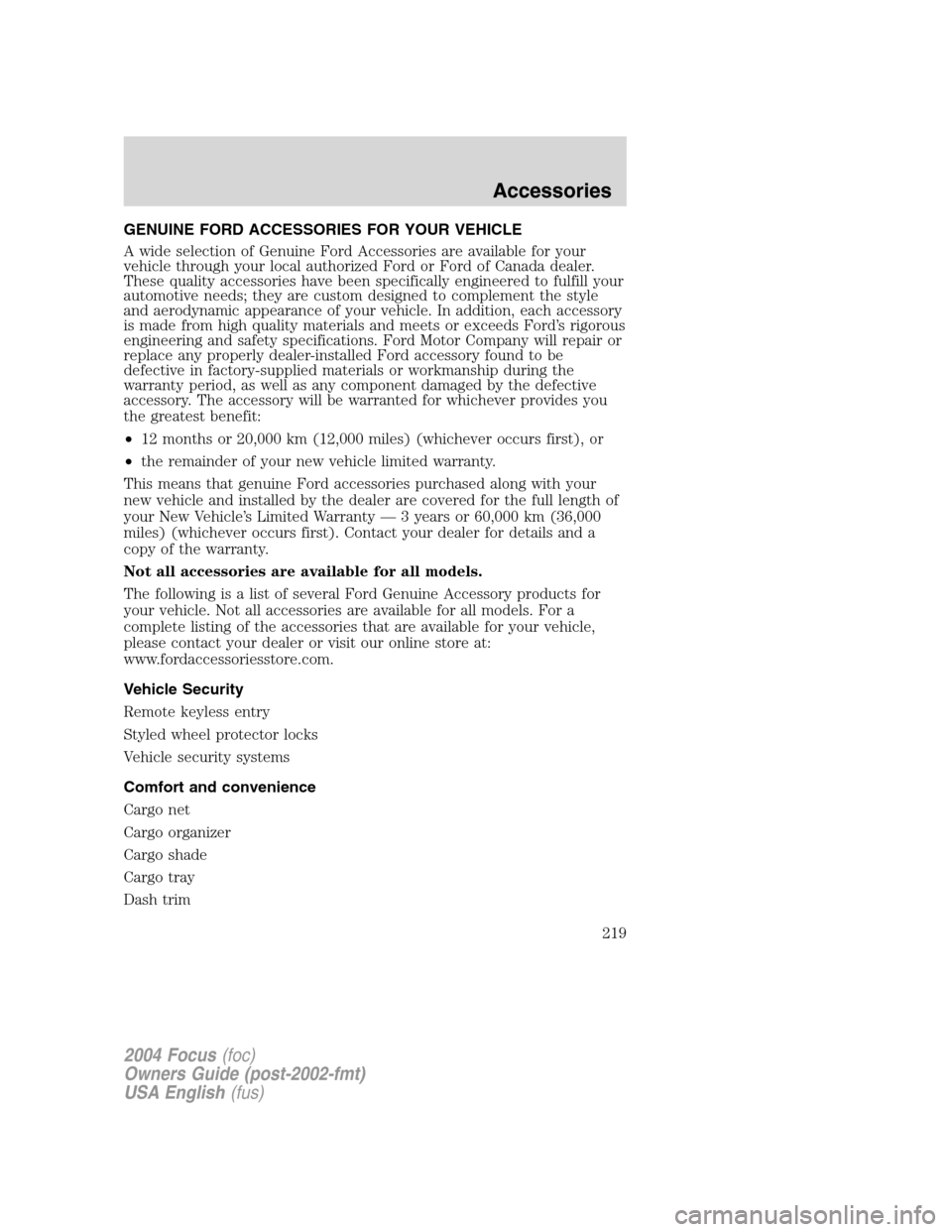

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local authorized Ford or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Ford accessory found to be
defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
•12 months or 20,000 km (12,000 miles) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that genuine Ford accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty—3 years or 60,000 km (36,000
miles) (whichever occurs first). Contact your dealer for details and a
copy of the warranty.
Not all accessories are available for all models.
The following is a list of several Ford Genuine Accessory products for
your vehicle. Not all accessories are available for all models. For a
complete listing of the accessories that are available for your vehicle,
please contact your dealer or visit our online store at:
www.fordaccessoriesstore.com.
Vehicle Security
Remote keyless entry
Styled wheel protector locks
Vehicle security systems
Comfort and convenience
Cargo net
Cargo organizer
Cargo shade
Cargo tray
Dash trim
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
Accessories
219

Electrochromic compass mirror
Electrochromic compass mirror with outside temperature
Engine block heater
Remote start
Smoker’s pack
Travel equipment
Automatic headlamp system
Daytime running lights (DRL)
First aid kit
Fog lights
Highway safety kit
Luggage/cargo basket
Navigation system
Removable luggage rack
Removable luggage rack adapters (bike, ski and snowboard)
Speed control
Protection and appearance equipment
Car cover
Carpet floor mats
Chrome exhaust trim
Door edge guards
Door sill scuff plates
Exterior B-pillar trim
Flat splash guards
Front end covers (full and mini)
Ground effects kit
Hood Deflectors
Leather wrap steering wheel
Molded splash guards
Molded vinyl floor mats
Projector headlamps
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
220

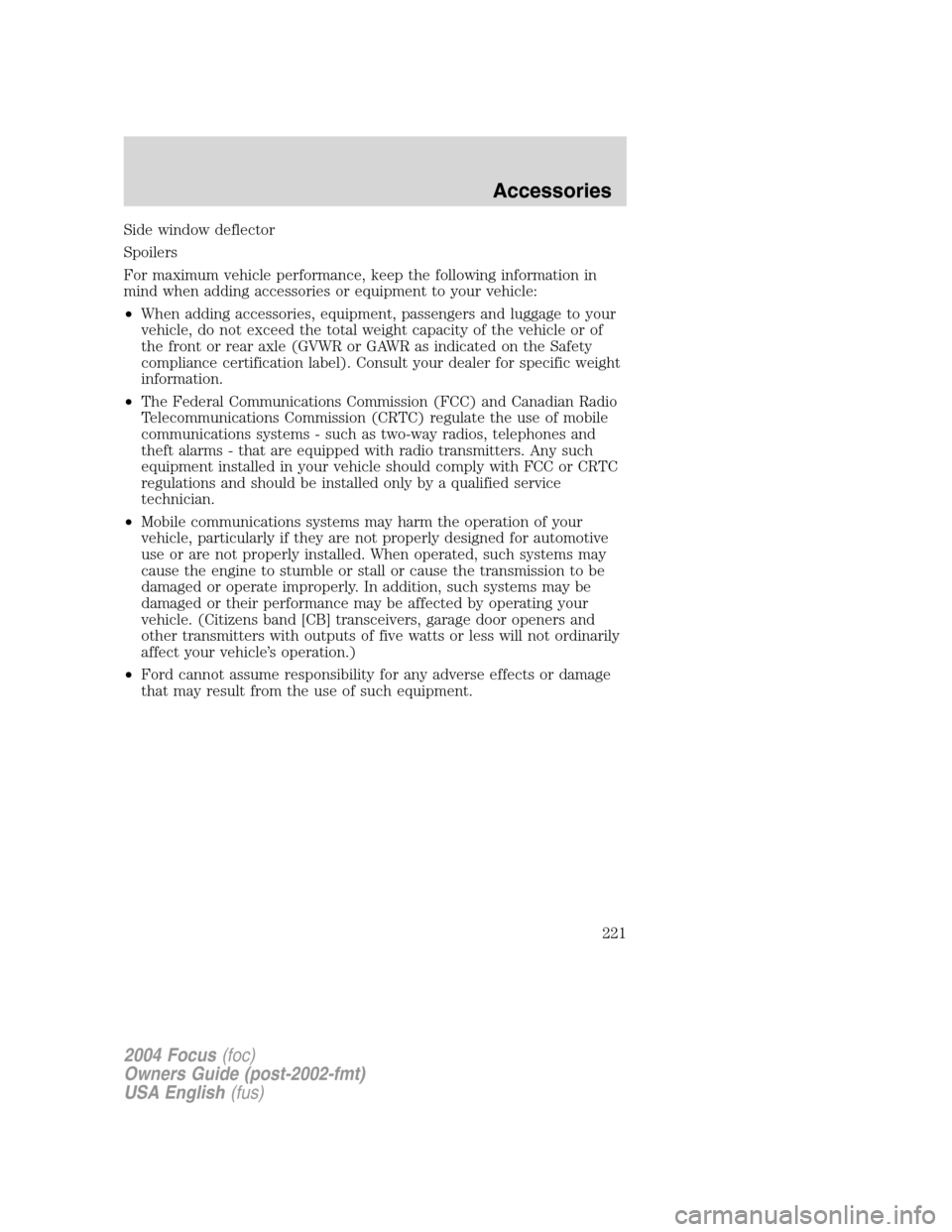

Side window deflector
Spoilers
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
compliance certification label). Consult your dealer for specific weight
information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems - such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use or are not properly installed. When operated, such systems may
cause the engine to stumble or stall or cause the transmission to be
damaged or operate improperly. In addition, such systems may be
damaged or their performance may be affected by operating your
vehicle. (Citizens band [CB] transceivers, garage door openers and
other transmitters with outputs of five watts or less will not ordinarily
affect your vehicle’s operation.)
•Ford cannot assume responsibility for any adverse effects or damage
that may result from the use of such equipment.
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
221

A
Air bag supplemental restraint
system ..............................89–90, 93and child safety seats ..............91
description ..........................90, 93
disposal ......................................95
driver air bag ......................91, 94
indicator light ...........................93
operation .............................91, 94
passenger air bag ...............91, 94
side air bag ................................93
Air cleaner filter .......................207
Antifreeze
(see Engine coolant) ................175
Anti-lock brake system
(see Brakes) ..............................111
Anti-theft system ........................70 arming the system ....................70
disarming a triggered system ..70
Automatic transaxle fluid, adding ............................191
fluid, checking ........................191
fluid, specification ..................212
Automatic transmission ............114 driving an automatic
overdrive .................................115
fluid, refill capacities ..............208
Auxiliary power point .................52
Axle lubricant specifications ..........210
refill capacities ........................208
B
Battery .......................................173 acid, treating emergencies .....173
jumping a disabled battery ....139
maintenance-free ....................173
replacement, specifications ...207 servicing ..................................173
BeltMinder ...................................84
Brakes ........................................111 anti-lock ...................................111
anti-lock brake system (ABS)
warning light ...........................112
fluid, checking and adding ....190
fluid, refill capacities ..............208
fluid, specifications .........210, 212
lubricant specifications ..210, 212
parking ....................................112
shift interlock ..........................114
C
Capacities for refilling fluids ....208
Cargo cover .................................59
Cell phone use ............................58
Certification Label ....................215
Child safety restraints ................96 child safety belts ......................96
Child safety seats ........................99 attaching with tether straps ..103
in front seat ............................100
in rear seat ..............................100
LATCH .....................................105
Cigar lighter Power Point ..............................52
Cleaning your vehicle engine compartment ..............158
instrument panel ....................161
interior .....................................162
plastic parts ............................161
washing ....................................157
waxing .....................................157
wheels ......................................158
wiper blades ............................161
Climate control (see Air
conditioning or Heating) ......34–35
2004 Focus (foc)
Owners Guide (post-2002-fmt)
USA English (fus)
Index
Index
222

Clutchfluid ..................................190 –191
operation while driving ..........117
recommended shift speeds ....118
Coolant checking and adding ..............175
refill capacities ........................208
specifications ..................210, 212
Cruise control (see Speed
control) ........................................54
Customer Assistance ................126 Ford accessories for your
vehicle .....................................163
Ford Extended Service
Plan ..........................................150
Getting assistance outside
the U.S. and Canada ..............154
Getting roadside assistance ...126
Getting the service you
need .........................................148
Ordering additional owner ’s
literature .................................155
The Dispute Settlement
Board .......................................150
Utilizing the Mediation/
Arbitration Program ...............153
D
Daytime running lamps
(see Lamps) ................................38
Defrost rear window ..............................37
Dipstick automatic transmission
fluid ..........................................191
engine oil .................................169
Doors lubricant specifications ..........210 Driving under special
conditions ..................................117
through water .........................119
E
Emergencies, roadside jump-starting ..........................139
Emission control system ..........188
Engine ........................................212 cleaning ...................................158
coolant .....................................175
idle speed control ...................173
lubrication
specifications ..................210, 212
refill capacities ........................208
service points ..................166 –168
starting after a collision .........127
Engine block heater .................110
Engine fan .................................166
Engine oil ..................................169 checking and adding ..............169
dipstick ....................................169
filter, specifications ........172, 207
recommendations ...................172
refill capacities ........................208
specifications ..................210, 212
Exhaust fumes ..........................111
F
Fan, Engine Cooling .................166
Floor mats ...................................59
Fluid capacities .........................208
Foglamps .....................................38
Fuel ............................................180 calculating fuel economy .......185
cap ...........................................182
capacity ...................................208
2004 Focus (foc)
Owners Guide (post-2002-fmt)
USA English (fus)
Index
223

choosing the right fuel ...........183
comparisons with EPA fuel
economy estimates .................187
detergent in fuel .....................184
filling your vehicle with fuel .180,182, 185
filter, specifications ........184, 207
fuel pump shut-off switch .....127
improving fuel economy ........185
octane rating ...................183, 212
quality ......................................184
running out of fuel .................184
safety information relating to
automotive fuels .....................180
Fuel pump shut-off switch .......127
Fuses ..................................128 –129
G
Gas cap (see Fuel cap) ............182
Gas mileage
(see Fuel economy) .................185
Gauges .........................................14
H
Hazard flashers .........................127
Headlamps ...................................38 aiming ........................................39
bulb specifications ....................42
daytime running lights .............38
flash to pass ..............................39
high beam .................................39
turning on and off ....................38
Heating heater only system ...................34
Hood ..........................................165
I
Ignition ...............................107, 212 Infant seats (see Safety seats) ..99
Inspection/maintenance (I/M)
testing ........................................189
Instrument panel
cleaning ...................................161
cluster ........................................10
lighting up panel and interior .39
J
Jump-starting your vehicle ......139
K
Keyless entry system autolock .....................................61
Keys positions of the ignition .........107
L
Lamps bulb replacement
specifications chart ..................42
daytime running light ...............38
fog lamps ...................................38
headlamps .................................38
headlamps, flash to pass ..........39
instrument panel, dimming .....39
interior lamps ...........................42
Lane change indicator
(see Turn signal) ........................41
Lights, warning and indicator ....10 anti-lock brakes (ABS) ..........112
Load limits .................................119
Locks autolock .....................................61
childproof ..................................62
Lubricant specifications ...210, 212
2004 Focus (foc)
Owners Guide (post-2002-fmt)
USA English (fus)
Index
224
