2004 FORD FOCUS Owners Manual

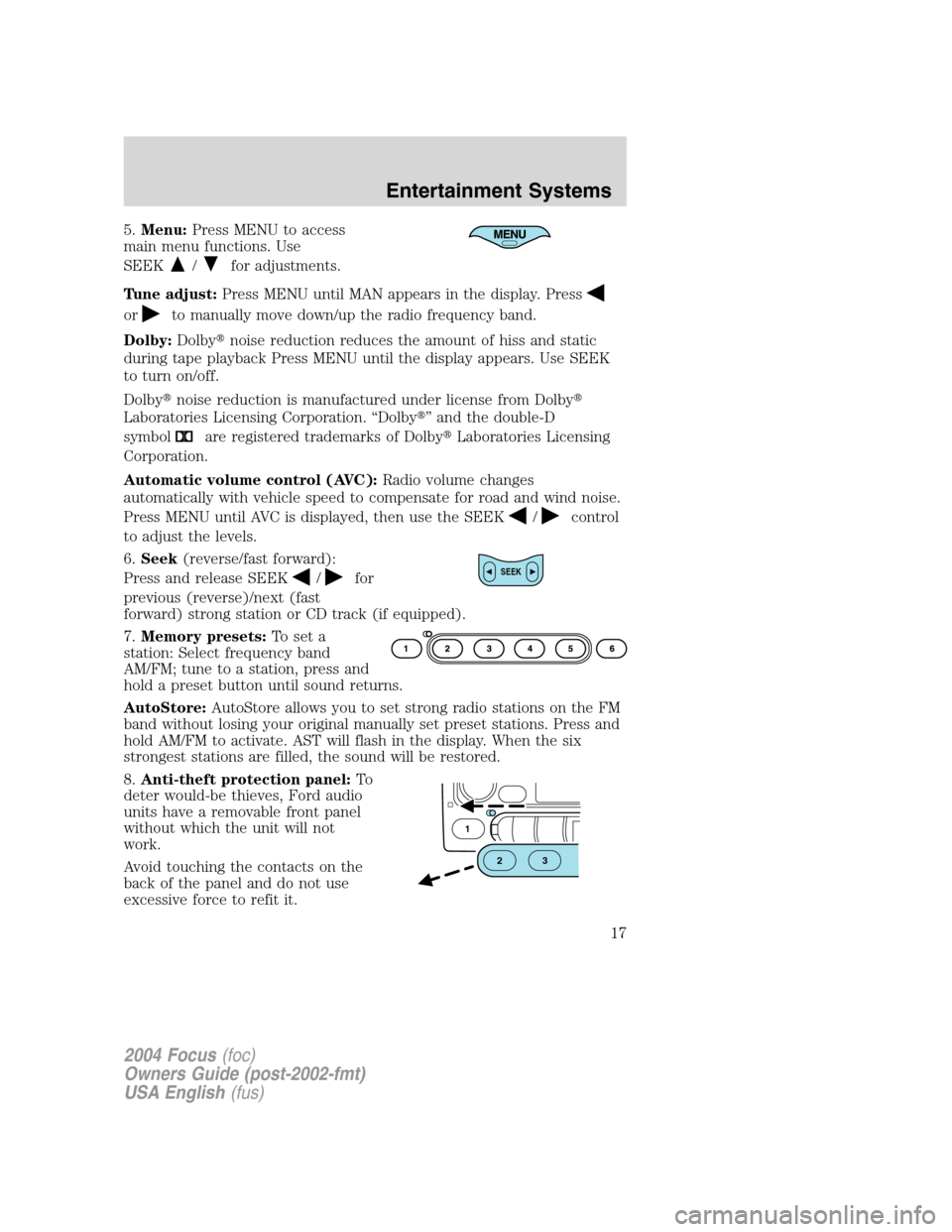

5.Menu:Press MENU to access
main menu functions. Use
SEEK
/for adjustments.
Tune adjust:Press MENU until MAN appears in the display. Press
orto manually move down/up the radio frequency band.
Dolby:Dolbynoise reduction reduces the amount of hiss and static
during tape playback Press MENU until the display appears. Use SEEK
to turn on/off.
Dolbynoise reduction is manufactured under license from Dolby
Laboratories Licensing Corporation.“Dolby”and the double-D
symbol
are registered trademarks of DolbyLaboratories Licensing
Corporation.
Automatic volume control (AVC):Radio volume changes
automatically with vehicle speed to compensate for road and wind noise.
Press MENU until AVC is displayed, then use the SEEK
/control
to adjust the levels.
6.Seek(reverse/fast forward):
Press and release SEEK
/for
previous (reverse)/next (fast
forward) strong station or CD track (if equipped).
7.Memory presets:To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound returns.
AutoStore:AutoStore allows you to set strong radio stations on the FM
band without losing your original manually set preset stations. Press and
hold AM/FM to activate. AST will flash in the display. When the six
strongest stations are filled, the sound will be restored.
8.Anti-theft protection panel:To
deter would-be thieves, Ford audio
units have a removable front panel
without which the unit will not
work.
Avoid touching the contacts on the
back of the panel and do not use
excessive force to refit it.SEEK
1
23
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
17

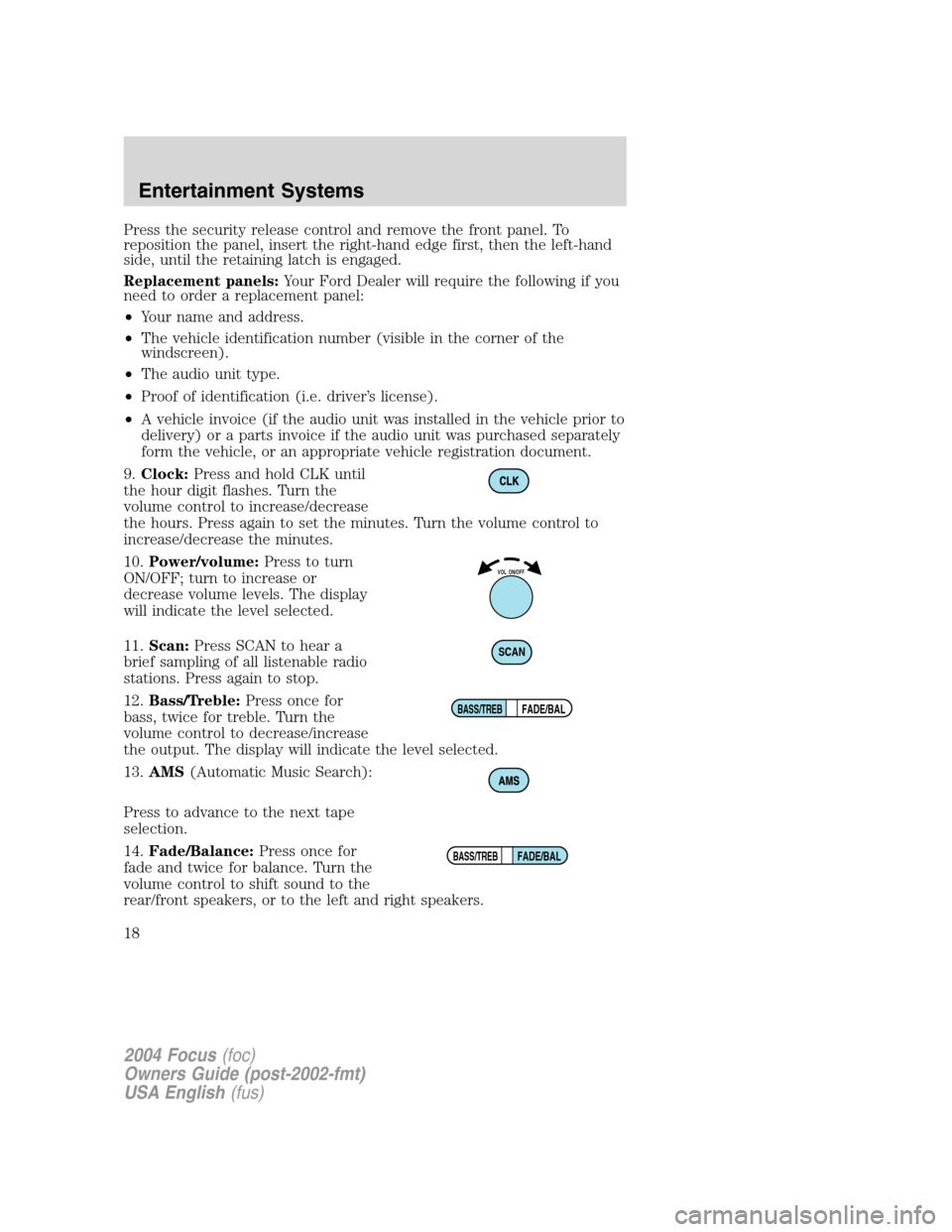

Press the security release control and remove the front panel. To
reposition the panel, insert the right-hand edge first, then the left-hand
side, until the retaining latch is engaged.
Replacement panels:Your Ford Dealer will require the following if you
need to order a replacement panel:
•Your name and address.
•The vehicle identification number (visible in the corner of the
windscreen).
•The audio unit type.
•Proof of identification (i.e. driver’s license).
•A vehicle invoice (if the audio unit was installed in the vehicle prior to
delivery) or a parts invoice if the audio unit was purchased separately
form the vehicle, or an appropriate vehicle registration document.
9.Clock:Press and hold CLK until
the hour digit flashes. Turn the
volume control to increase/decrease
the hours. Press again to set the minutes. Turn the volume control to
increase/decrease the minutes.
10.Power/volume:Press to turn
ON/OFF; turn to increase or
decrease volume levels. The display
will indicate the level selected.
11.Scan:Press SCAN to hear a
brief sampling of all listenable radio
stations. Press again to stop.
12.Bass/Treble:Press once for
bass, twice for treble. Turn the
volume control to decrease/increase
the output. The display will indicate the level selected.
13.AMS(Automatic Music Search):
Press to advance to the next tape
selection.
14.Fade/Balance:Press once for
fade and twice for balance. Turn the
volume control to shift sound to the
rear/front speakers, or to the left and right speakers.
VOL ON/OFF
SCAN
FADE/BALBASS/TREB
FADE/BALBASS/TREB
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
18

AM/FM STEREO WITH CD PLAYER (IF EQUIPPED)
1.CD door:Insert the CD label side up.
2.CD:Press to engage CD mode.
CDs and tracks are selected and
played chronologically. Press the
AM/FM control to restore radio reception without ejecting the disc.
3.AM/FM:Press to toggle between
AM/FM1/FM2 frequency bands or to
stop CD play.
4.Menu:Press MENU to access
main menu functions. Use
SEEK
/for adjustments.
Tune adjust:Press MENU until MAN appears in the display.
Press
/to manually move down/up the radio frequency band.
Compression:Press MENU until COMP appears in the display. Press
SEEK to engage/disengage the feature. Compression adjust brings soft
and loud CD passages together for a more consistent listening level.
Shuffle:Press MENU until SHUF appears in the display. Press SEEK to
engage/disengage the feature. Shuffle plays the songs on the current CD
in random order.
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
19

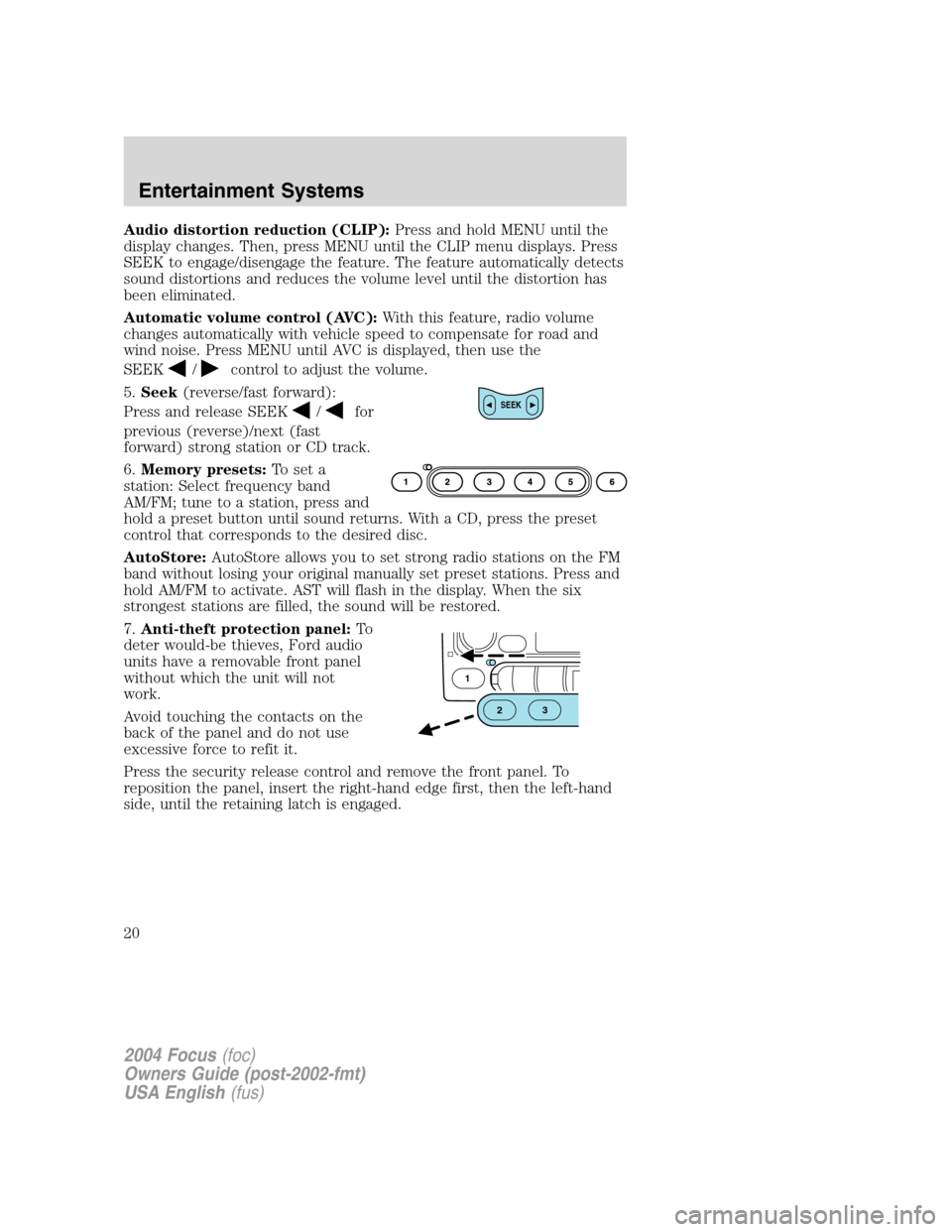

Audio distortion reduction (CLIP):Press and hold MENU until the
display changes. Then, press MENU until the CLIP menu displays. Press
SEEK to engage/disengage the feature. The feature automatically detects
sound distortions and reduces the volume level until the distortion has
been eliminated.
Automatic volume control (AVC):With this feature, radio volume
changes automatically with vehicle speed to compensate for road and
wind noise. Press MENU until AVC is displayed, then use the
SEEK
/control to adjust the volume.
5.Seek(reverse/fast forward):
Press and release SEEK
/for
previous (reverse)/next (fast
forward) strong station or CD track.
6.Memory presets:To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound returns. With a CD, press the preset
control that corresponds to the desired disc.
AutoStore:AutoStore allows you to set strong radio stations on the FM
band without losing your original manually set preset stations. Press and
hold AM/FM to activate. AST will flash in the display. When the six
strongest stations are filled, the sound will be restored.
7.Anti-theft protection panel:To
deter would-be thieves, Ford audio
units have a removable front panel
without which the unit will not
work.
Avoid touching the contacts on the
back of the panel and do not use
excessive force to refit it.
Press the security release control and remove the front panel. To
reposition the panel, insert the right-hand edge first, then the left-hand
side, until the retaining latch is engaged.SEEK
1
23
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
20

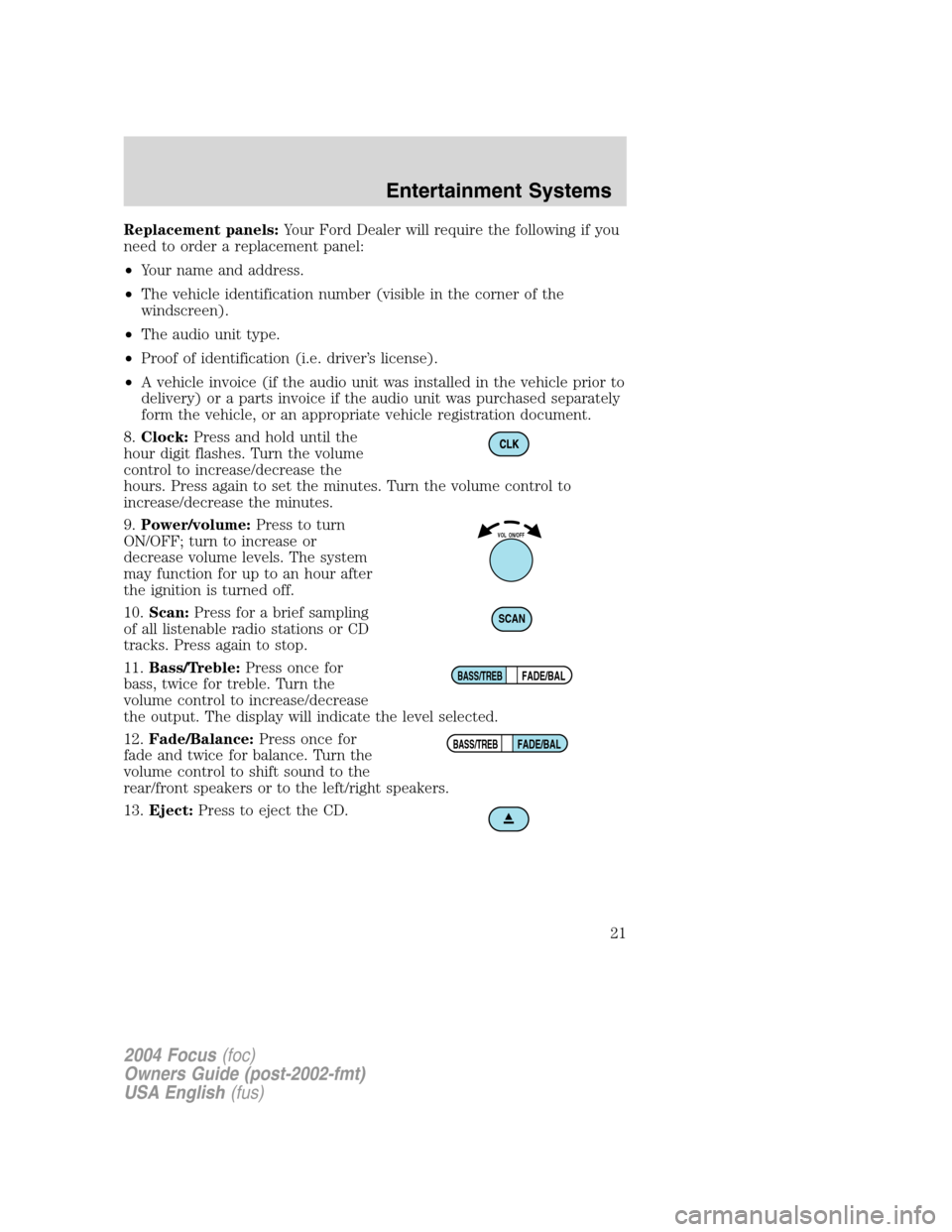

Replacement panels:Your Ford Dealer will require the following if you
need to order a replacement panel:
•Your name and address.
•The vehicle identification number (visible in the corner of the
windscreen).
•The audio unit type.
•Proof of identification (i.e. driver’s license).
•A vehicle invoice (if the audio unit was installed in the vehicle prior to
delivery) or a parts invoice if the audio unit was purchased separately
form the vehicle, or an appropriate vehicle registration document.
8.Clock:Press and hold until the
hour digit flashes. Turn the volume
control to increase/decrease the
hours. Press again to set the minutes. Turn the volume control to
increase/decrease the minutes.
9.Power/volume:Press to turn
ON/OFF; turn to increase or
decrease volume levels. The system
may function for up to an hour after
the ignition is turned off.
10.Scan:Press for a brief sampling
of all listenable radio stations or CD
tracks. Press again to stop.
11.Bass/Treble:Press once for
bass, twice for treble. Turn the
volume control to increase/decrease
the output. The display will indicate the level selected.
12.Fade/Balance:Press once for
fade and twice for balance. Turn the
volume control to shift sound to the
rear/front speakers or to the left/right speakers.
13.Eject:Press to eject the CD.
VOL ON/OFF
SCAN
FADE/BALBASS/TREB
FADE/BALBASS/TREB
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
21

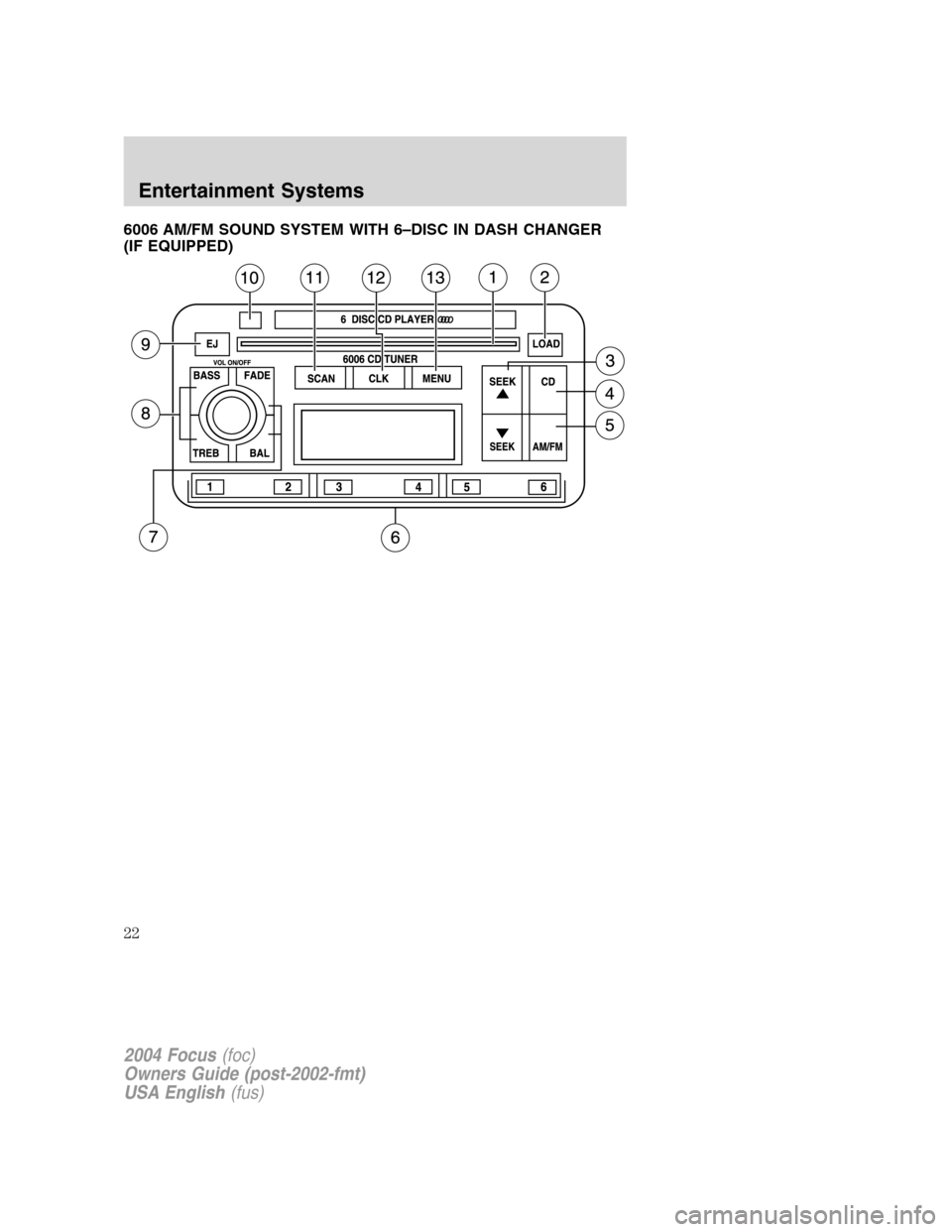

6006 AM/FM SOUND SYSTEM WITH 6–DISC IN DASH CHANGER
(IF EQUIPPED)
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
22

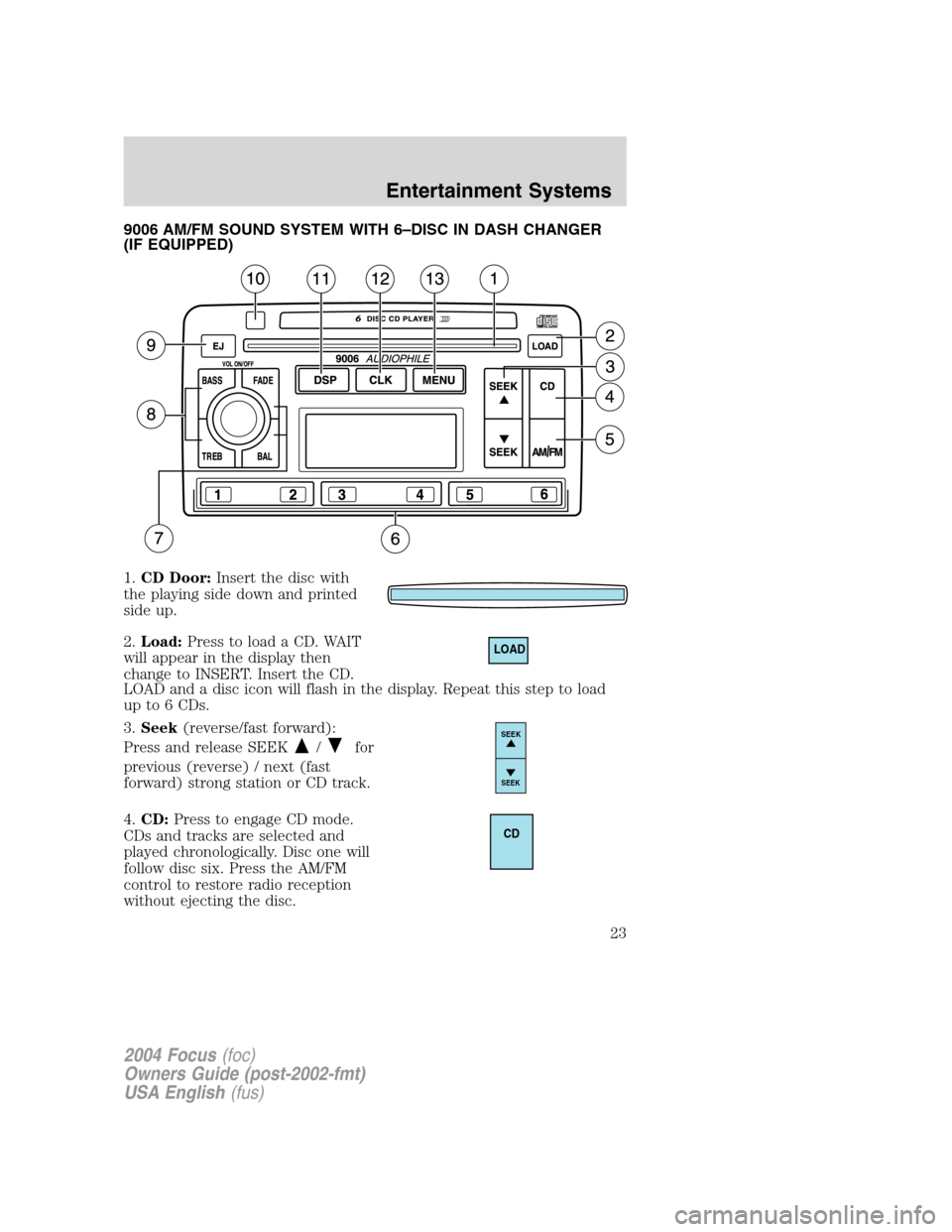

9006 AM/FM SOUND SYSTEM WITH 6–DISC IN DASH CHANGER
(IF EQUIPPED)
1.CD Door:Insert the disc with
the playing side down and printed
side up.
2.Load:Press to load a CD. WAIT
will appear in the display then
change to INSERT. Insert the CD.
LOAD and a disc icon will flash in the display. Repeat this step to load
up to 6 CDs.
3.Seek(reverse/fast forward):
Press and release SEEK
/for
previous (reverse) / next (fast
forward) strong station or CD track.
4.CD:Press to engage CD mode.
CDs and tracks are selected and
played chronologically. Disc one will
follow disc six. Press the AM/FM
control to restore radio reception
without ejecting the disc.
LOAD
SEEK
SEEK
CD
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
23

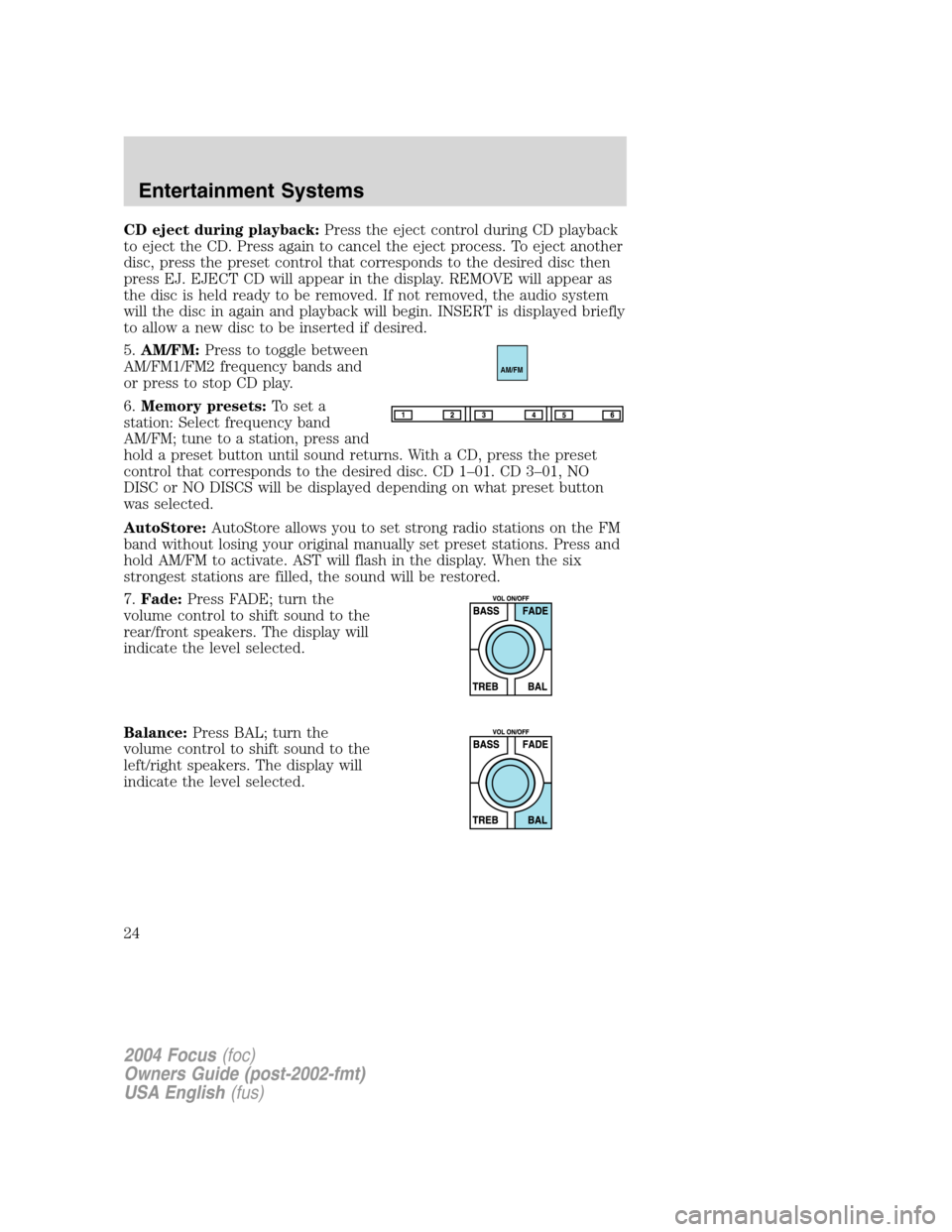

CD eject during playback:Press the eject control during CD playback
to eject the CD. Press again to cancel the eject process. To eject another
disc, press the preset control that corresponds to the desired disc then
press EJ. EJECT CD will appear in the display. REMOVE will appear as
the disc is held ready to be removed. If not removed, the audio system
will the disc in again and playback will begin. INSERT is displayed briefly
to allow a new disc to be inserted if desired.
5.AM/FM:Press to toggle between
AM/FM1/FM2 frequency bands and
or press to stop CD play.
6.Memory presets:To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound returns. With a CD, press the preset
control that corresponds to the desired disc. CD 1–01. CD 3–01, NO
DISC or NO DISCS will be displayed depending on what preset button
was selected.
AutoStore:AutoStore allows you to set strong radio stations on the FM
band without losing your original manually set preset stations. Press and
hold AM/FM to activate. AST will flash in the display. When the six
strongest stations are filled, the sound will be restored.
7.Fade:Press FADE; turn the
volume control to shift sound to the
rear/front speakers. The display will
indicate the level selected.
Balance:Press BAL; turn the
volume control to shift sound to the
left/right speakers. The display will
indicate the level selected.
AM/FM
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
24
