2004 FORD FOCUS Owners Manual

Fluid Ford Part
NameApplication Capacity
Engine oil
(includes filter
change)
4
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)2.0L SPI engine 3.78L (4.0 quarts)
2.0L Zetec E
engine4.25L (4.5 quarts)
2.3L engine 4.3L (4.54 quarts)
Fuel tank N/A 2.0L SPI and
2.0L Zetec E50L (13.2 gallons)
2.3L 53L (14.0 gallons)
Power steering
fluidMotorcraft
MERCONAT FAll Fill to between
MIN and MAX
lines on reservoir
Transaxle fluid
2Motorcraft Full
Synthetic
Manual
Transmission
Fluid5-speed manual 2.0L (2.1 quarts)3
Motorcraft
MERCONV
AT FAutomatic 6.6L (6.9 quarts)3
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateSedan 2.5L (2.6 quarts)
Coupe and
Wagon4.0L (4.2 quarts)
1Add the coolant type originally equipped in your vehicle.
2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick handle
or as listed in the Owner Guide. Check the container to verify the fluid
being added is of the correct type. Refer to your scheduled maintenance
guide to determine the correct service interval.
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
209

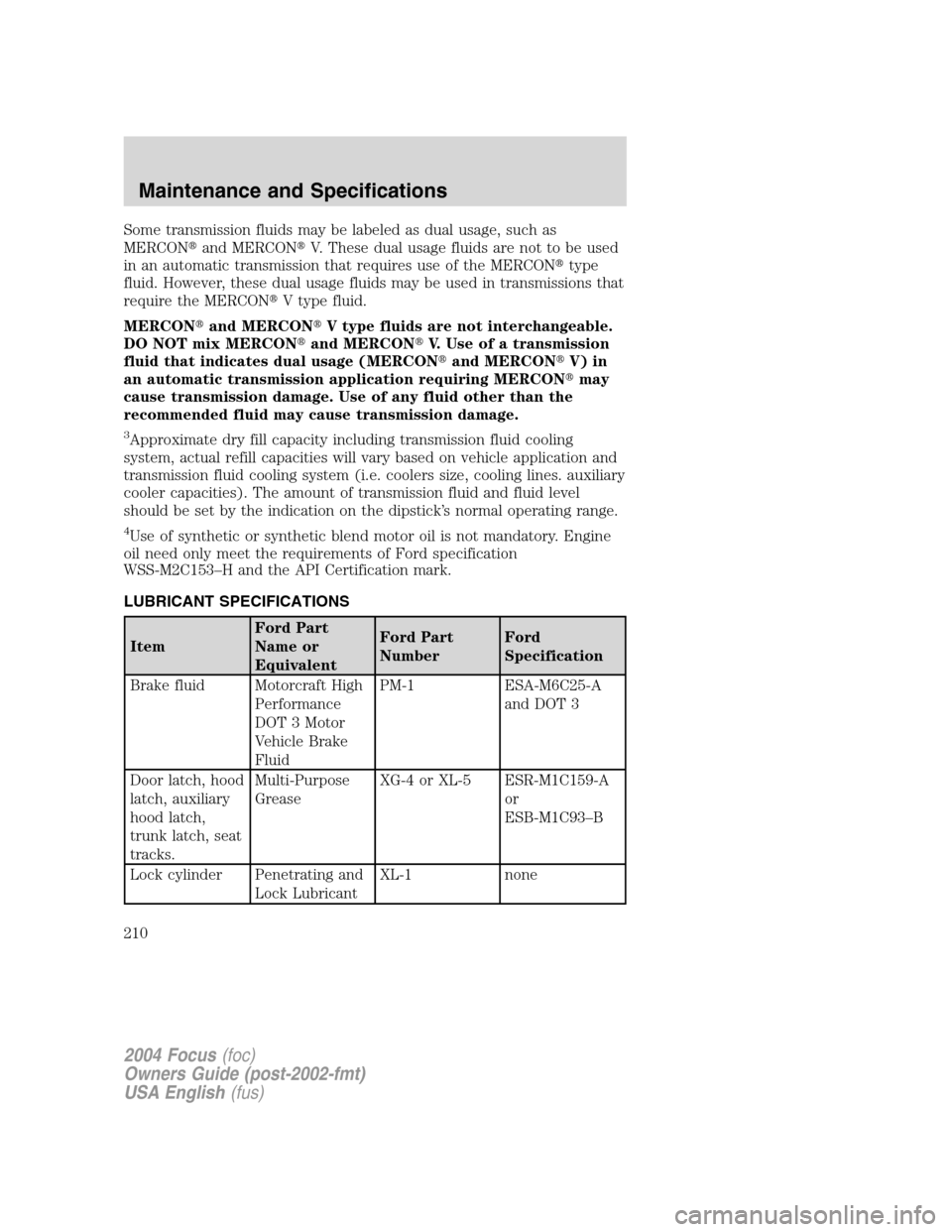

Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
3Approximate dry fill capacity including transmission fluid cooling
system, actual refill capacities will vary based on vehicle application and
transmission fluid cooling system (i.e. coolers size, cooling lines. auxiliary
cooler capacities). The amount of transmission fluid and fluid level
should be set by the indication on the dipstick’s normal operating range.
4Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C153–H and the API Certification mark.
LUBRICANT SPECIFICATIONS
ItemFord Part
Name or
EquivalentFord Part
NumberFord
Specification
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
Door latch, hood
latch, auxiliary
hood latch,
trunk latch, seat
tracks.Multi-Purpose
GreaseXG-4 or XL-5 ESR-M1C159-A
or
ESB-M1C93–B
Lock cylinder Penetrating and
Lock LubricantXL-1 none
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
210

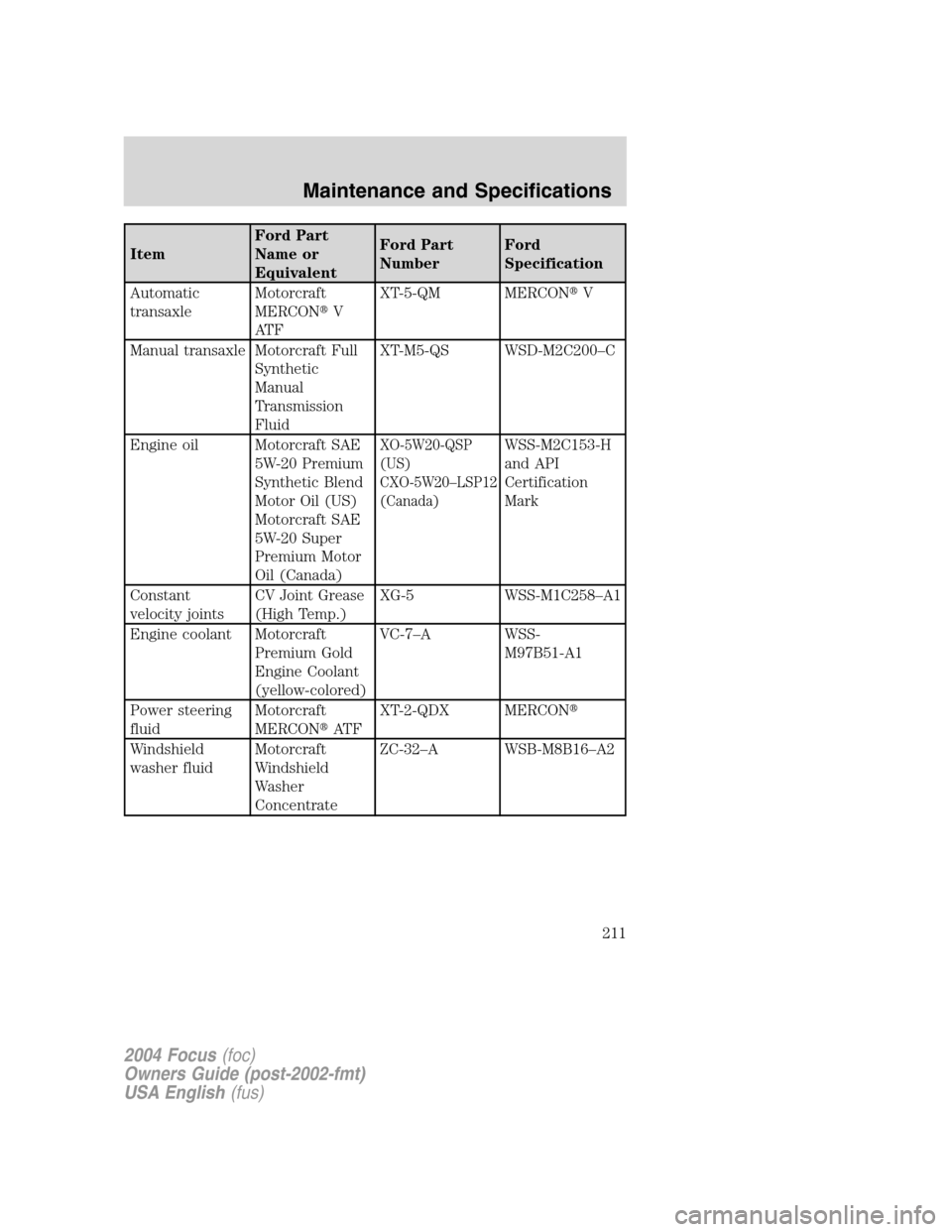

ItemFord Part
Name or
EquivalentFord Part
NumberFord
Specification
Automatic
transaxleMotorcraft
MERCONV
AT FXT-5-QM MERCONV
Manual transaxle Motorcraft Full
Synthetic
Manual
Transmission
FluidXT-M5-QS WSD-M2C200–C
Engine oil Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)
XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C153-H
and API
Certification
Mark
Constant
velocity jointsCV Joint Grease
(High Temp.)XG-5 WSS-M1C258–A1
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7–A WSS-
M97B51-A1
Power steering
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
Windshield
washer fluidMotorcraft
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
211

ENGINE DATA
Engine2.0L SPI
engine2.0L Zetec E
engine2.3L I4 engine
Cubic inches 121 121 138
Required fuel 87 octane 87 octane 87 octane
Firing order 1–3–4–21–3–4–21–3–4–2
Spark plug gap1.4 mm (0.054
inch)1.3 mm (0.051
inch)1.3 mm (0.051
inch)
Ignition systemElectronic
IgnitionElectronic
IgnitionC.O.P.
Compression
ratio9.35:1 9.6:1 9.7:1
VEHICLE DIMENSIONS
Vehicle
dimensionsSedan mm (in) Coupe mm
(in)Wagon mm
(in)
(1) Overall
length4440 (174.8 4269 (168.1) 4523 (178.1)
(2) Overall
width1988 (78.3) 1988 (78.3) 1988 (78.3)
(3) Overall
height1474 (58.0) 1474 (58.0) 1493 (58.8)
1
(4) Wheelbase 2615 (103) 2615 (103) 2615 (103)
(5) Track -
Front1494 (58.8) 1494 (58.8) 1494 (58.8)
(5) Track -
Rear1487 (58.5) 1487 (58.5) 1487 (58.5)
1Overall height with roof rack is 1533 (60.4)
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
212

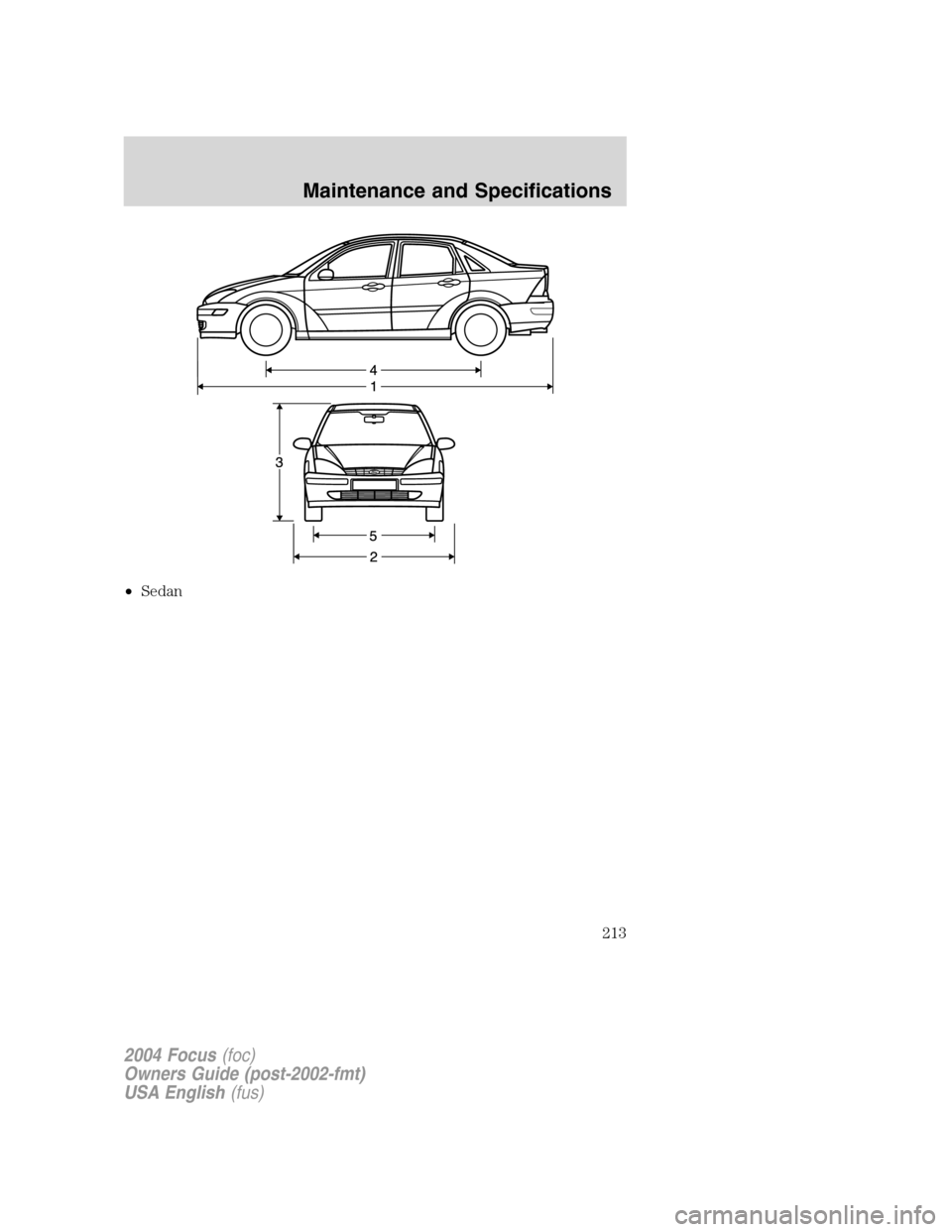

•Sedan
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
213

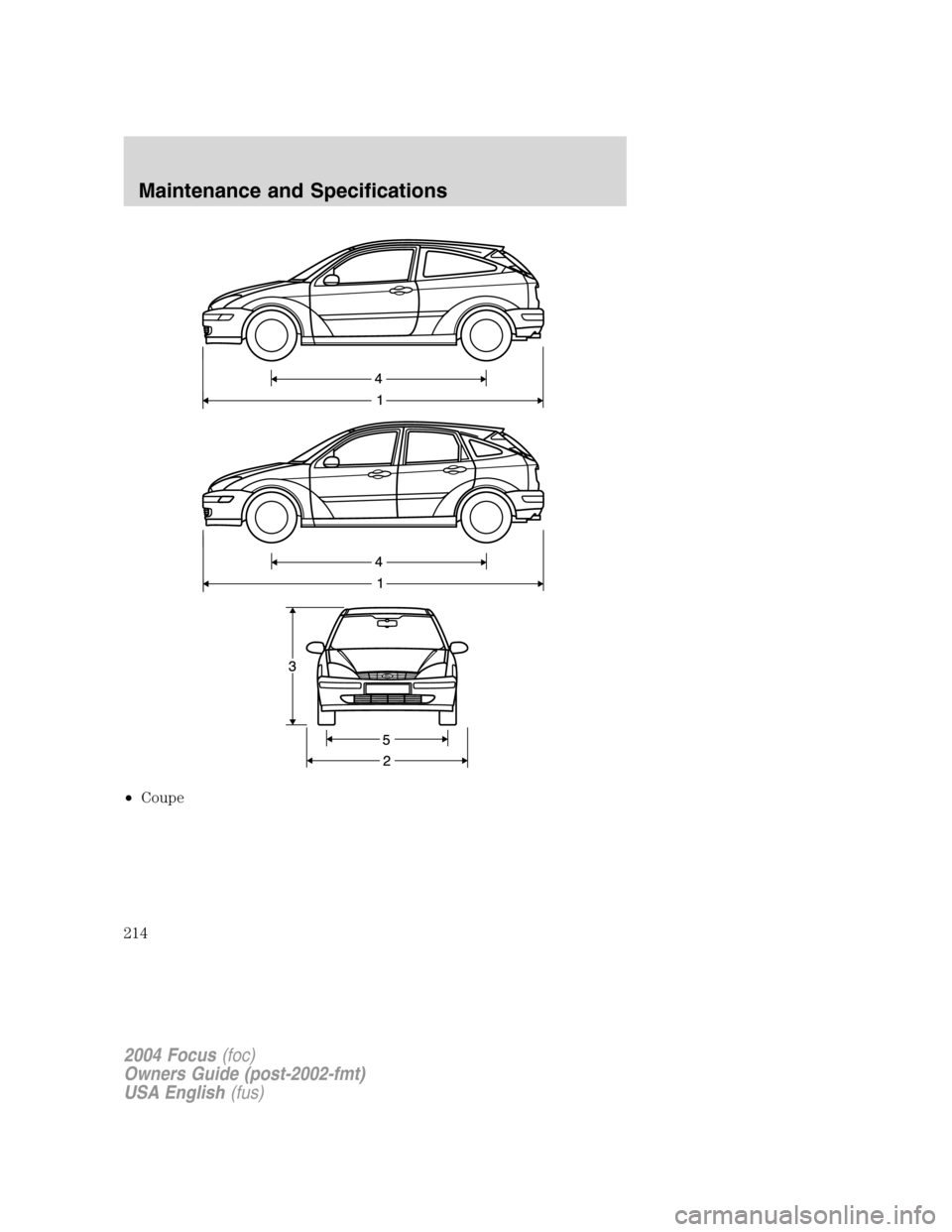

•Coupe
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
214

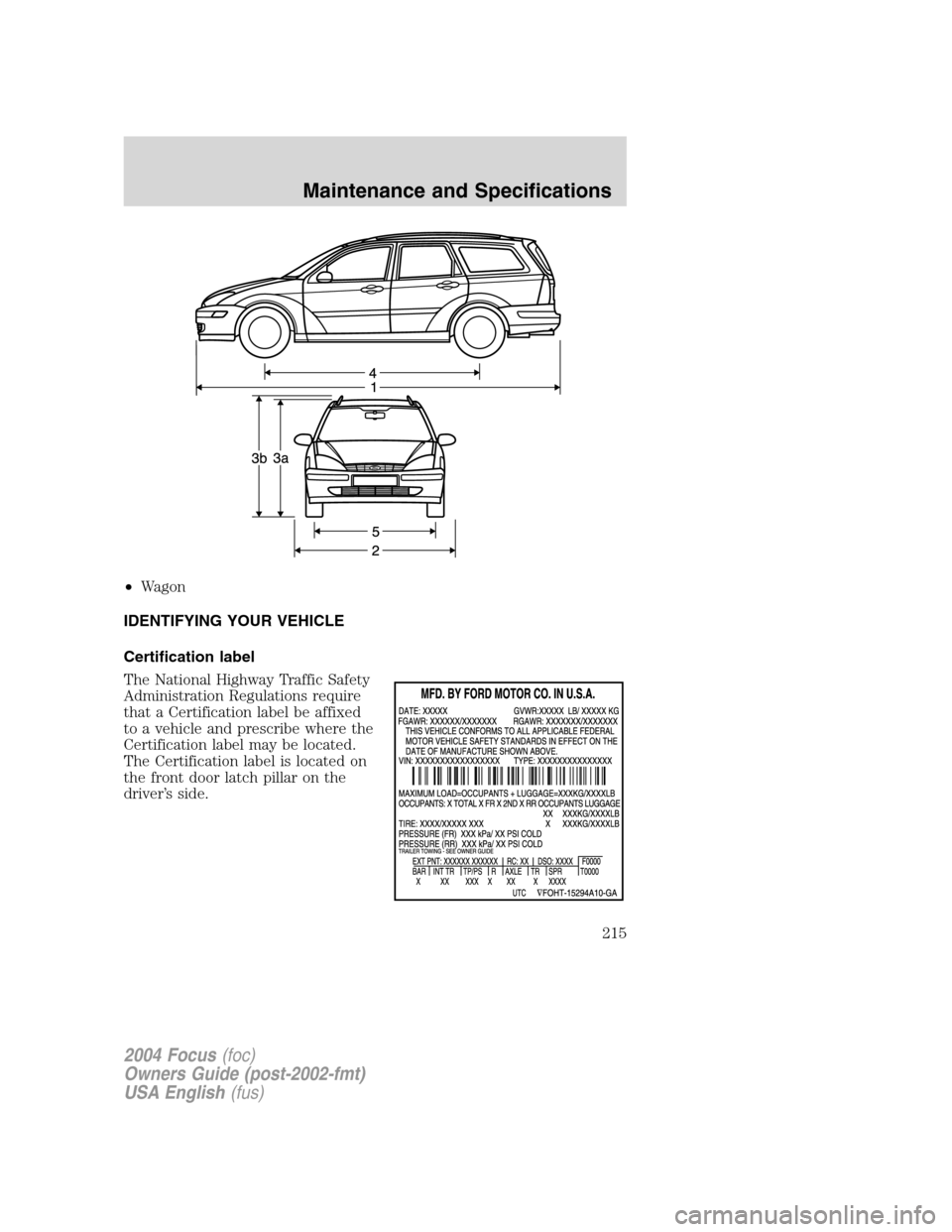

•Wagon
IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver’s side.
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
215

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transaxle, and frame.
XXXXXXXXXXXXXXXXX
2004 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
216
