8–2 BODY DIMENSIONNUBIRA/LACETTI
1. BODY DRAWING
1–1. UNDER BODY
NOTCHBACKUnit: mm (in.)
Fig. 1

NUBIRA/LACETTIBODY DIMENSION 8–3
HATCHBACK
Fig. 2

8–4 BODY DIMENSIONNUBIRA/LACETTI

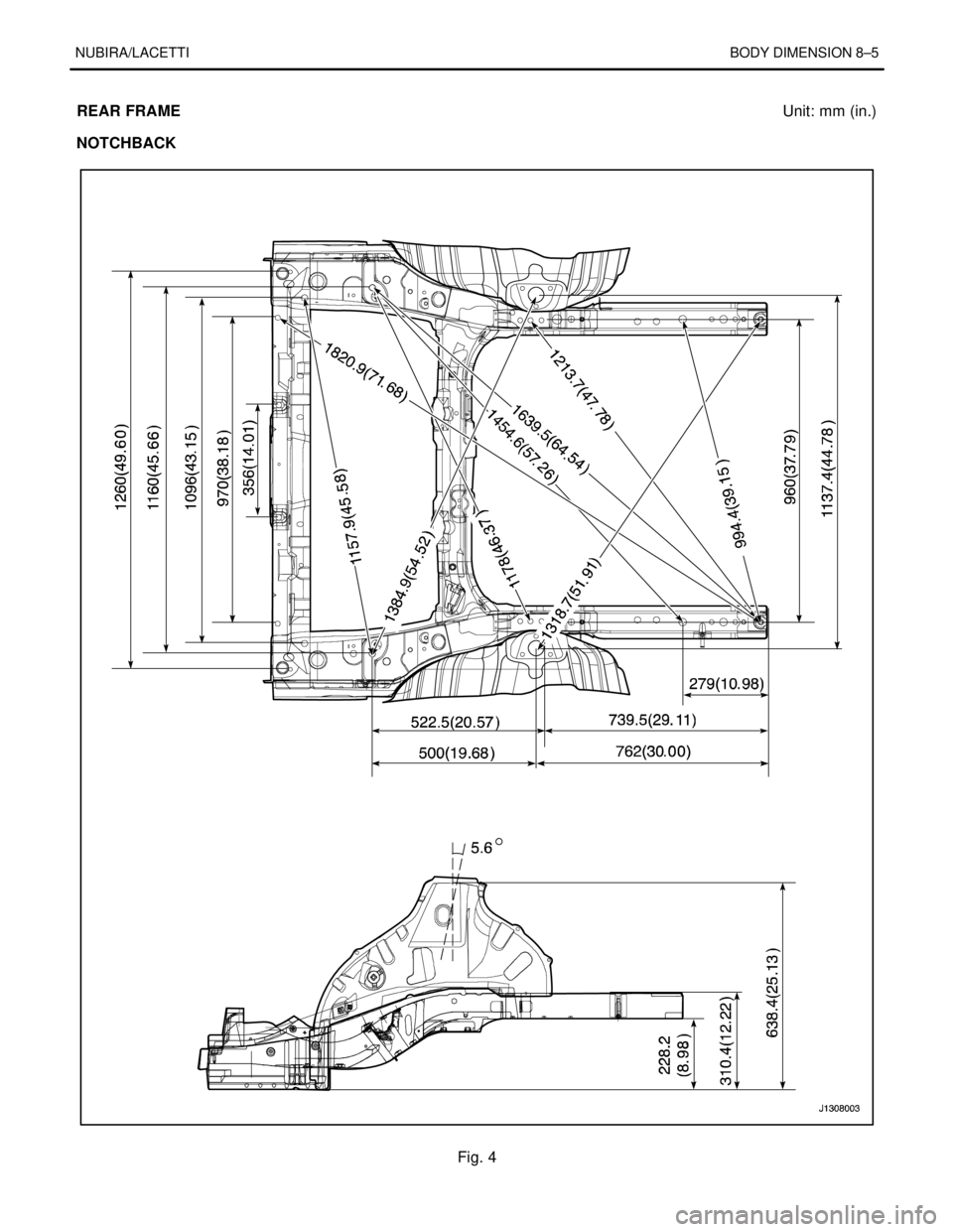

FRONT FRAMEUnit: mm (in.)
Fig. 3

NUBIRA/LACETTIBODY DIMENSION 8–5

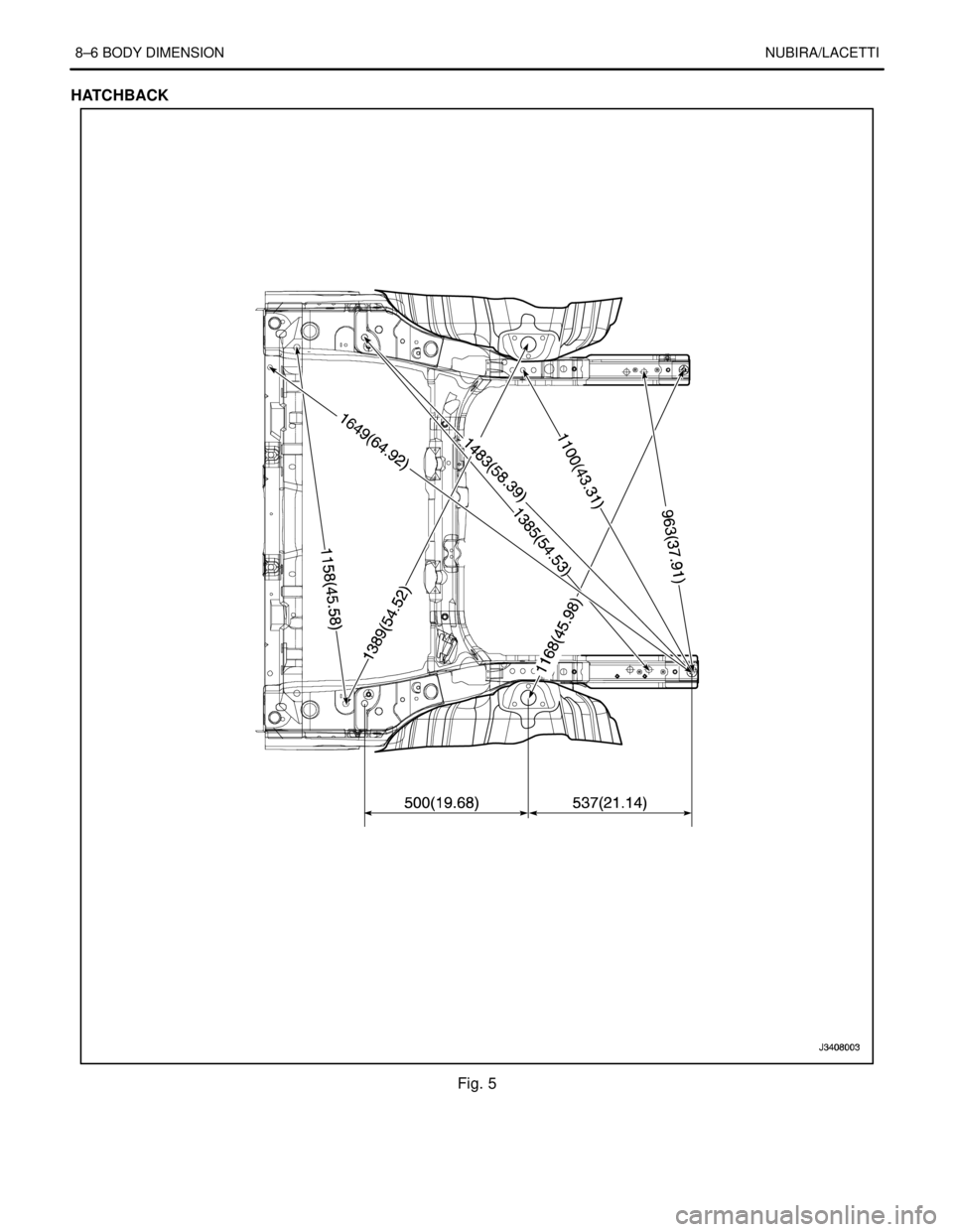

REAR FRAMEUnit: mm (in.)
NOTCHBACK
Fig. 4

8–6 BODY DIMENSIONNUBIRA/LACETTI
HATCHBACK
Fig. 5

NUBIRA/LACETTIBODY DIMENSION 8–7

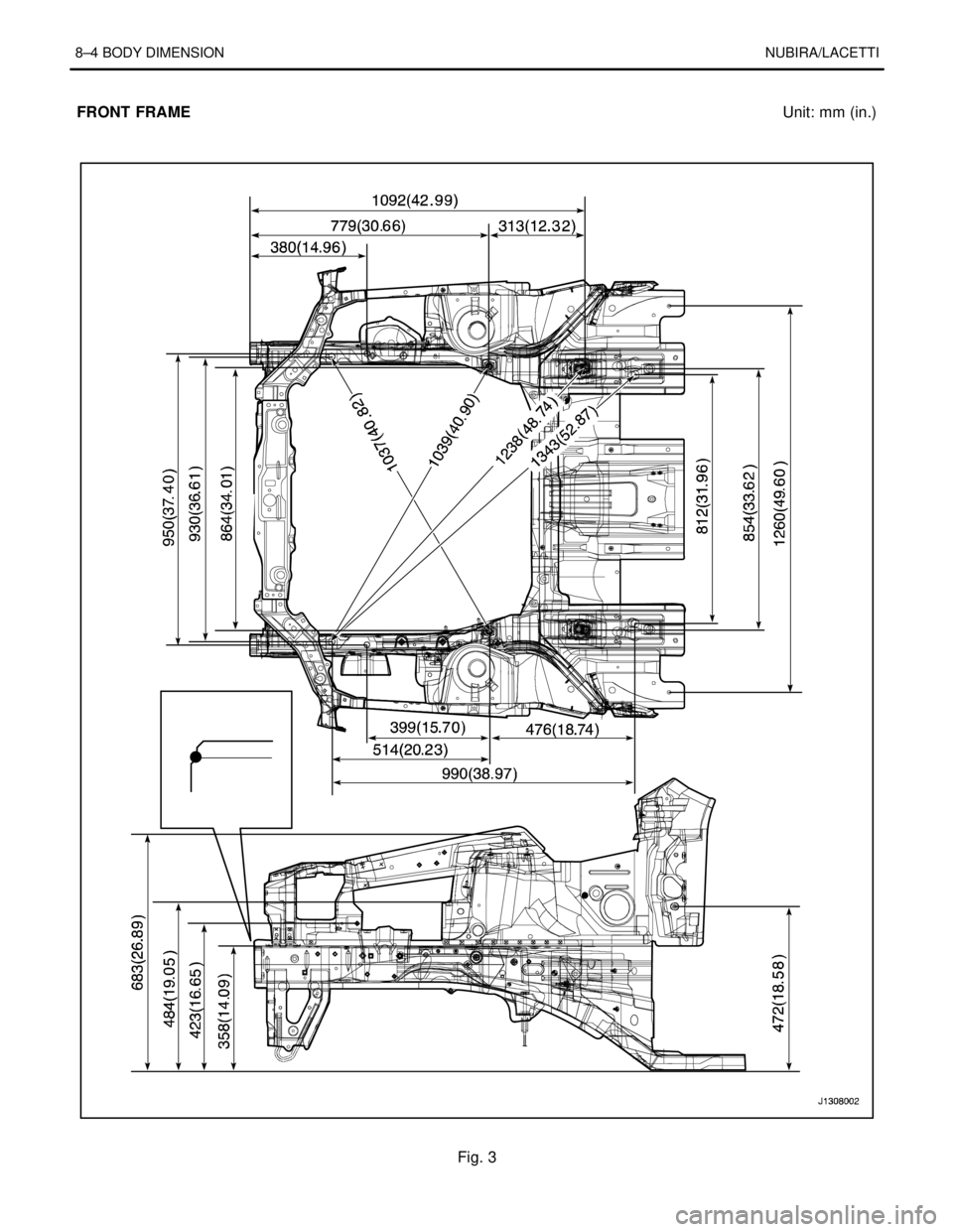

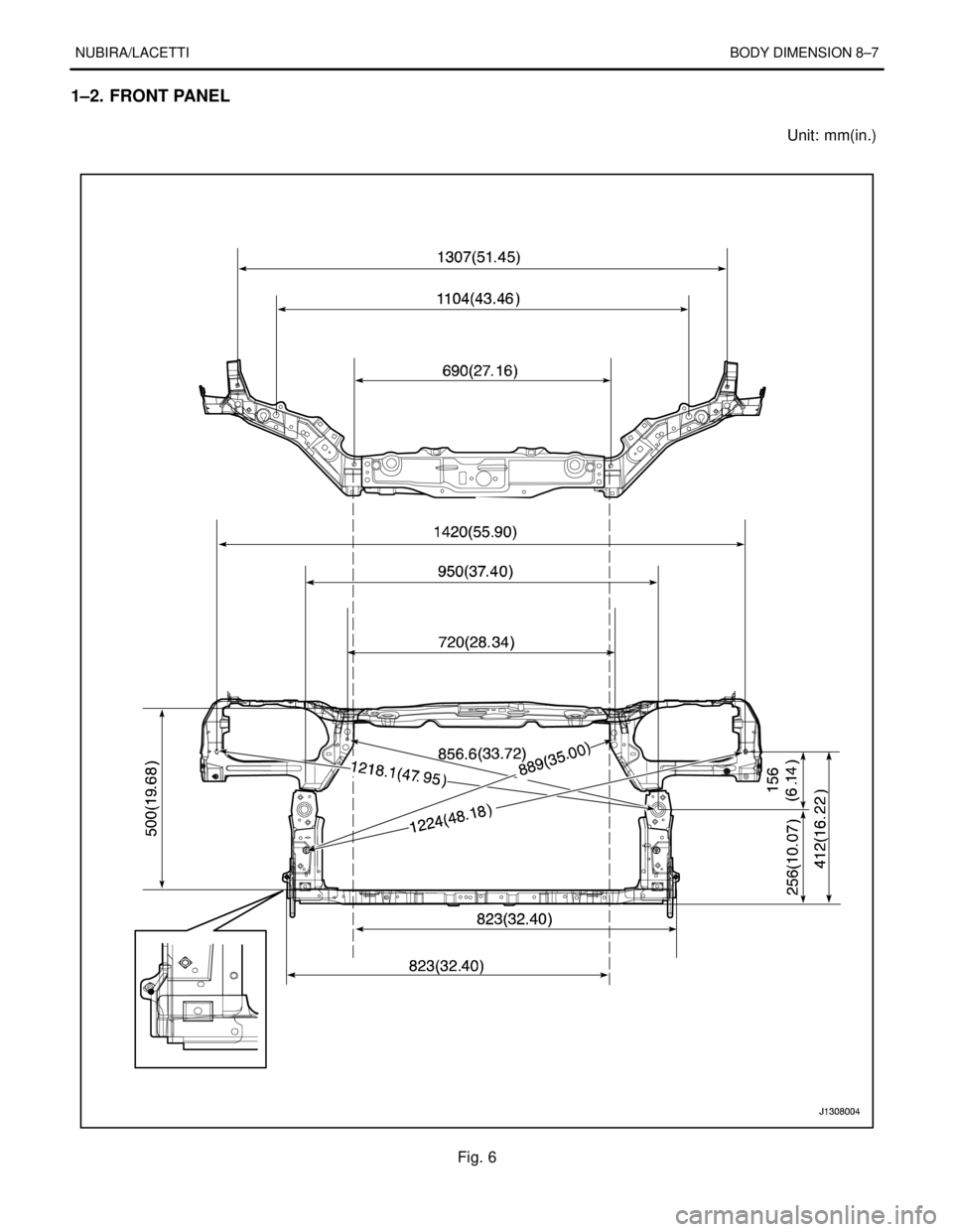

1–2. FRONT PANEL
Unit: mm(in.)
Fig. 6

8–8 BODY DIMENSIONNUBIRA/LACETTI

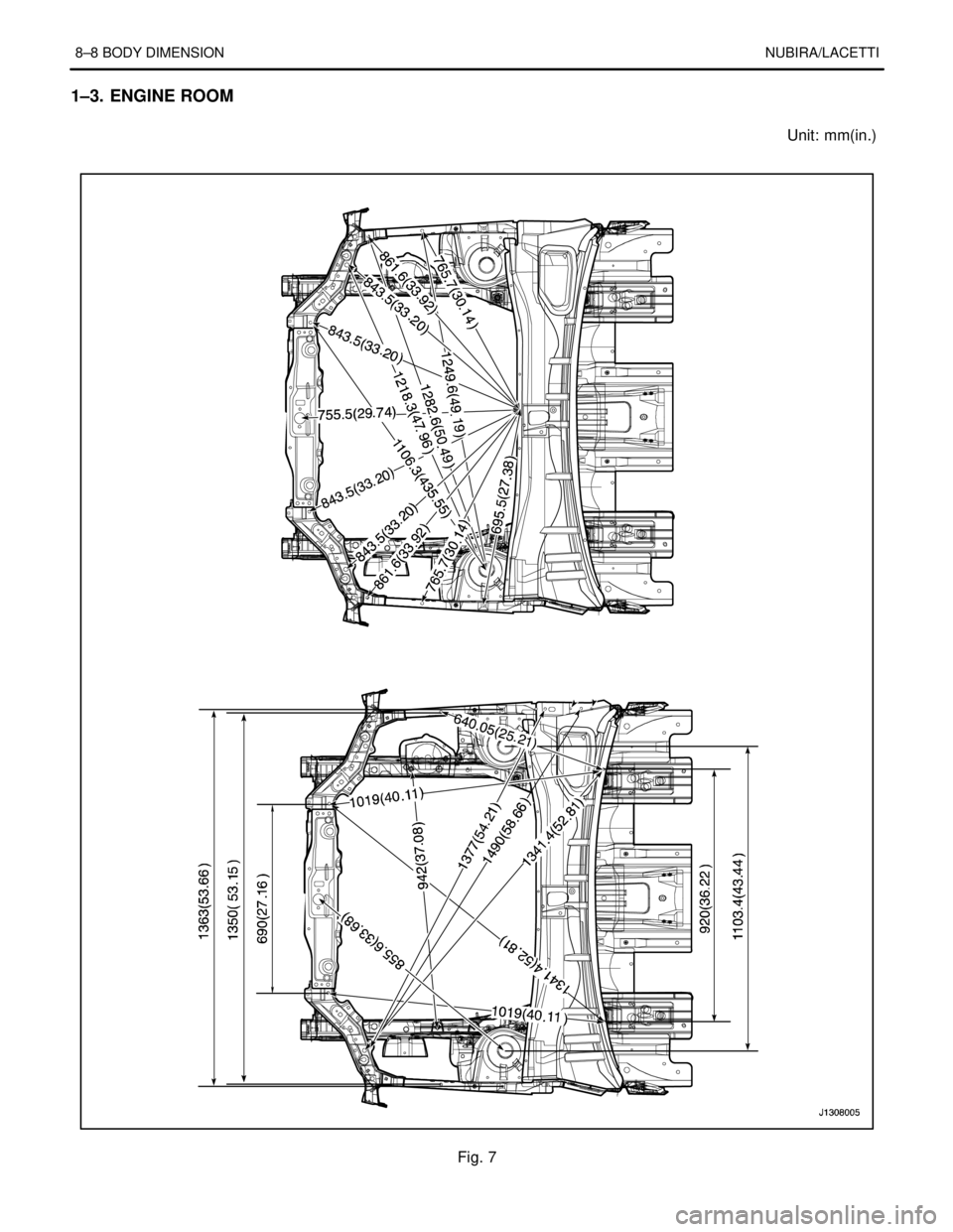

1–3. ENGINE ROOM
Unit: mm(in.)
Fig. 7

NUBIRA/LACETTIBODY DIMENSION 8–9

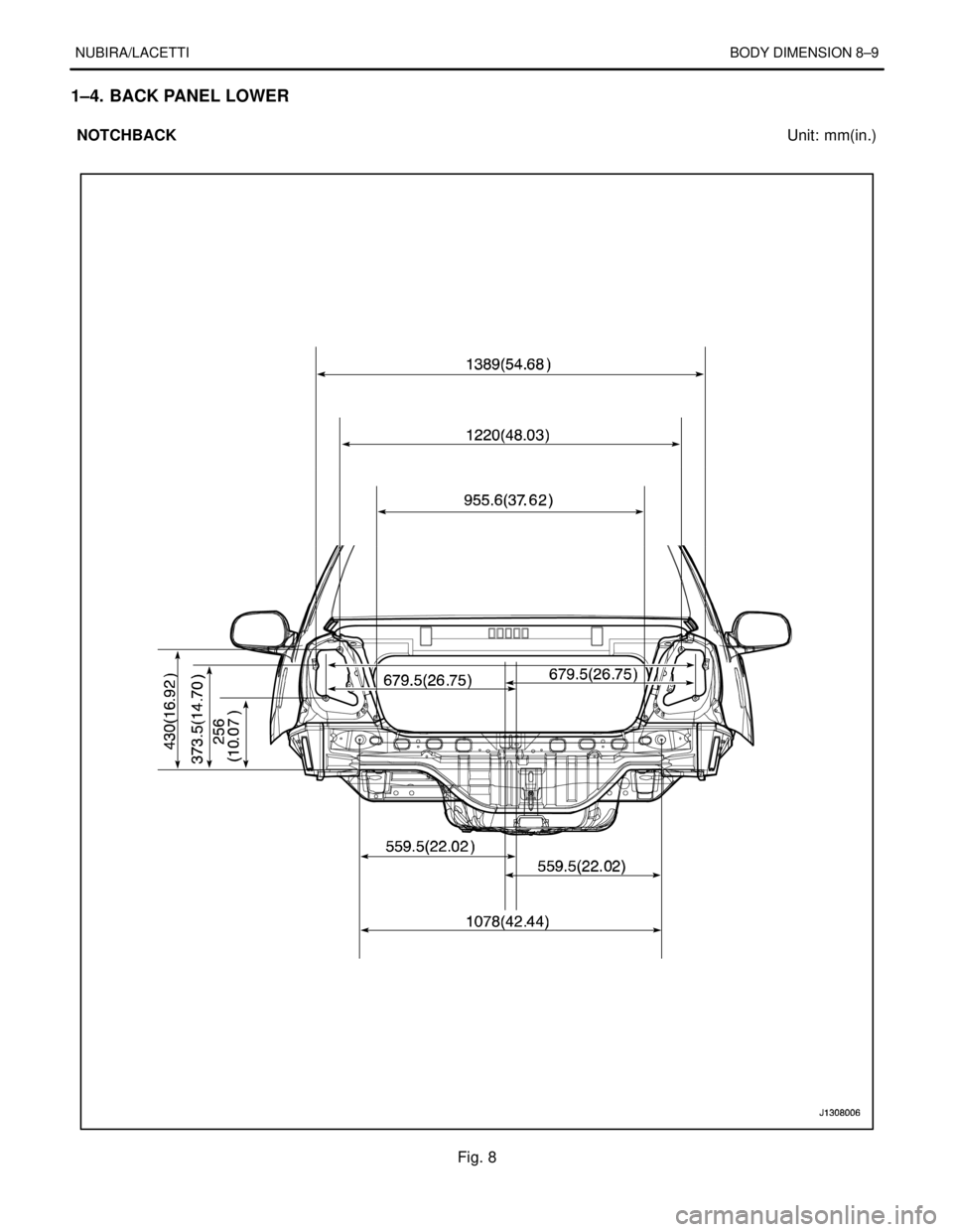

1–4. BACK PANEL LOWER
NOTCHBACKUnit: mm(in.)
Fig. 8
