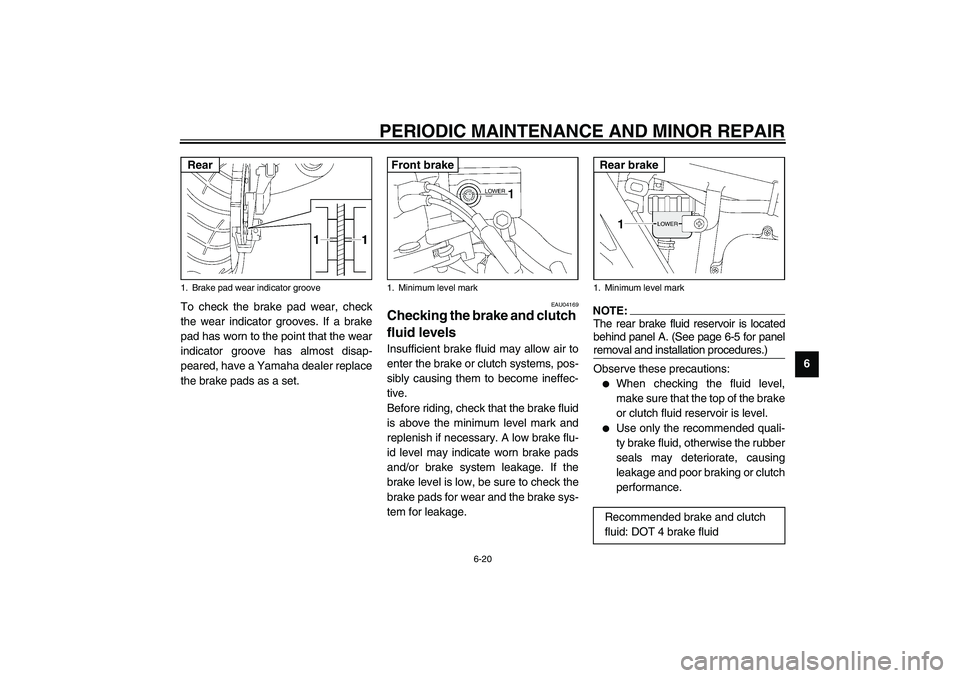

Page 65 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
6 To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that the wear
indicator groove has almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
EAU04169
Checking the brake and clutch
fluid levels Insufficient brake fluid may allow air to
enter the brake or clutch systems, pos-
sibly causing them to become ineffec-
tive.
Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake flu-
id level may indicate worn brake pads
and/or brake system leakage. If the
brake level is low, be sure to check the
brake pads for wear and the brake sys-
tem for leakage.
NOTE:_ The rear brake fluid reservoir is located
behind panel A. (See page 6-5 for panel
removal and installation procedures.) Observe these precautions:
When checking the fluid level,
make sure that the top of the brake
or clutch fluid reservoir is level.
Use only the recommended quali-
ty brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking or clutch
performance.
1. Brake pad wear indicator grooveRear
1. Minimum level markFront brake
1. Minimum level markRecommended brake and clutch
fluid: DOT 4 brake fluidRear brake
U5WME0.book Page 20 Monday, July 29, 2002 10:25 AM

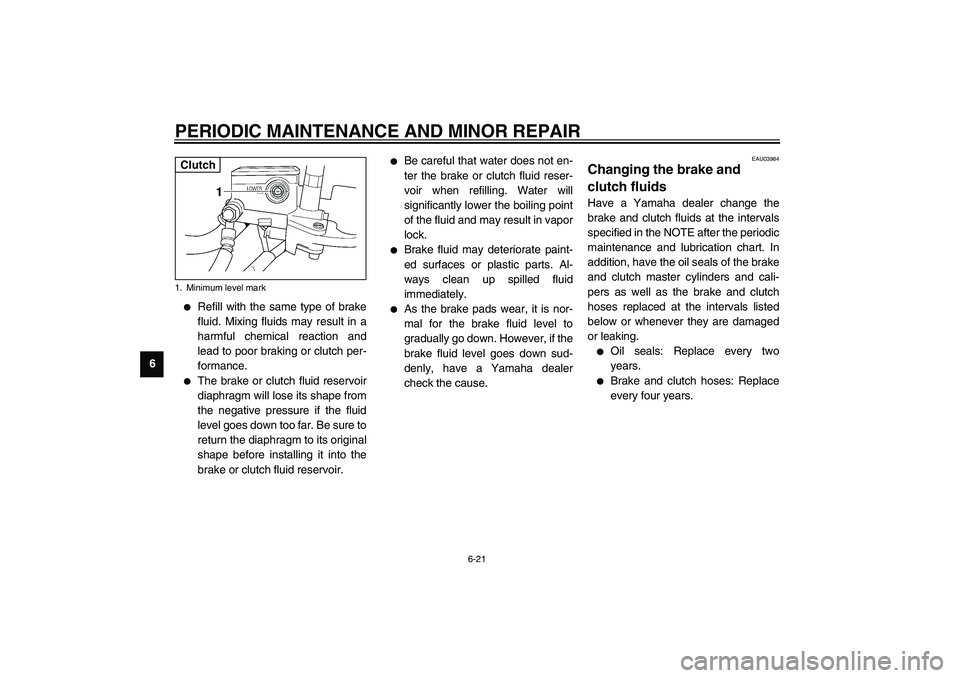

Page 66 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6
Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking or clutch per-
formance.
The brake or clutch fluid reservoir
diaphragm will lose its shape from
the negative pressure if the fluid
level goes down too far. Be sure to
return the diaphragm to its original
shape before installing it into the
brake or clutch fluid reservoir.
Be careful that water does not en-
ter the brake or clutch fluid reser-
voir when refilling. Water will
significantly lower the boiling point
of the fluid and may result in vapor
lock.
Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.
As the brake pads wear, it is nor-
mal for the brake fluid level to
gradually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
EAU03984
Changing the brake and
clutch fluids Have a Yamaha dealer change the
brake and clutch fluids at the intervals
specified in the NOTE after the periodic
maintenance and lubrication chart. In
addition, have the oil seals of the brake
and clutch master cylinders and cali-
pers as well as the brake and clutch
hoses replaced at the intervals listed
below or whenever they are damaged
or leaking.
Oil seals: Replace every two
years.
Brake and clutch hoses: Replace
every four years.
1. Minimum level markClutch
U5WME0.book Page 21 Monday, July 29, 2002 10:25 AM
Page 67 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
6
EAU00745
Drive chain slack The drive chain slack should be
checked before each ride and adjusted
if necessary.
To check the drive chain slack
1. Place the motorcycle on the cen-
terstand.
2. Shift the transmission into the neu-
tral position.
3. Spin the rear wheel several times
to locate the tightest portion of the
drive chain.
4. Measure the drive chain slack as
shown.
5. If the drive chain slack is incorrect,
adjust it as follows.
a. Drive chain slackDrive chain slack:
20–30 mm
U5WME0.book Page 22 Monday, July 29, 2002 10:25 AM
Page 68 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6
EAU03608
To adjust the drive chain slack
1. Loosen the axle nut and the lock-
nut on each side of the swingarm.
2. To tighten the drive chain, turn the
adjusting bolt on each side of the
swingarm in direction
a. To loos-
en the drive chain, turn the adjust-
ing bolt on each side of the
swingarm in direction
b, and then
push the rear wheel forward.
NOTE:_ Using the alignment marks on each
side of the swingarm, make sure that
both chain pullers are in the same posi-
tion for proper wheel alignment. _
EC000096
CAUTION:_ Improper drive chain slack will over-
load the engine as well as other vital
parts of the motorcycle and can lead
to chain slippage or breakage. To
prevent this from occurring, keep
the drive chain slack within the
specified limits. _3. Tighten the locknuts, and then
tighten the axle nut to the specified
torque.
EAU03006
Lubricating the drive chain The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.
EC000097
CAUTION:_ The drive chain must be lubricated
after washing the motorcycle or
riding in the rain. _1. Clean the drive chain with kero-
sene and a small soft brush.
ECA00053
CAUTION:_ To prevent damaging the O-rings,
do not clean the drive chain with
steam cleaners, high-pressure
washers or inappropriate solvents. _2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive
chain with a special O-ring chain
lubricant.
1. Locknut
2. Drive chain slack adjusting bolt
3. Axle nut
4. Alignment marks
Tightening torque:
Axle nut:
150 Nm (15.0 m·kgf)
U5WME0.book Page 23 Monday, July 29, 2002 10:25 AM
Page 69 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
6
ECA00052
CAUTION:_ Do not use engine oil or any other
lubricants for the drive chain, as
they may contain substances that
could damage the O-rings. _
EAU02962
Checking and lubricating the
cables The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
EW000112
WARNING
_ Damage to the outer sheath may in-
terfere with proper cable operation
and will cause the inner cable to
rust. Replace a damaged cable as
soon as possible to prevent unsafe
conditions. _
EAU04034
Checking and lubricating the
throttle grip and cable The operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated or
replaced at the intervals specified in
the periodic maintenance chart.
Recommended lubricant:
Engine oil
U5WME0.book Page 24 Monday, July 29, 2002 10:25 AM

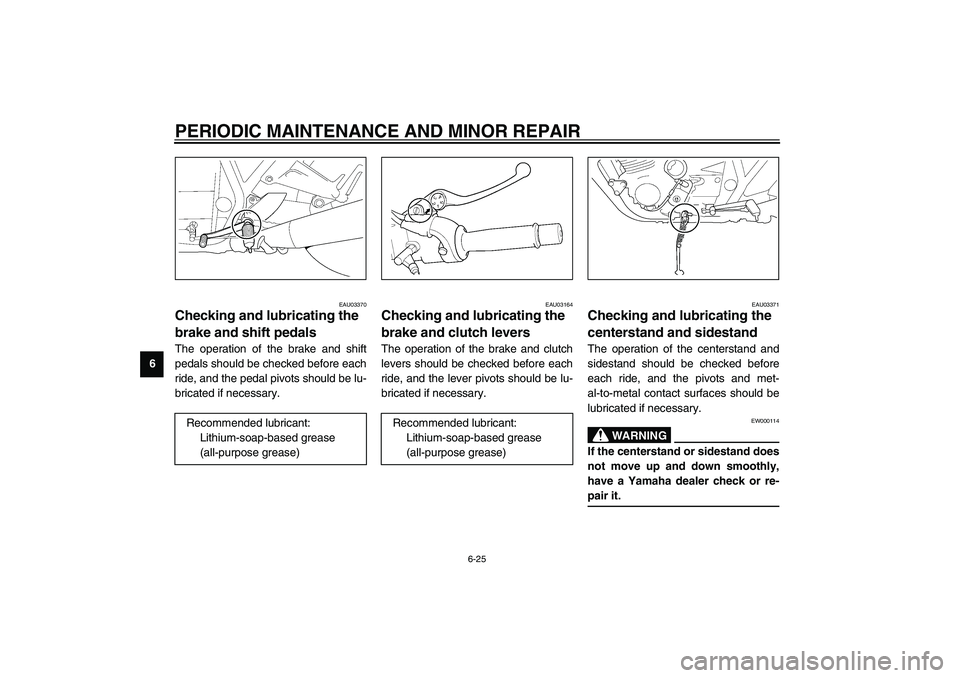

Page 70 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
6
EAU03370
Checking and lubricating the
brake and shift pedals The operation of the brake and shift
pedals should be checked before each
ride, and the pedal pivots should be lu-
bricated if necessary.
EAU03164
Checking and lubricating the
brake and clutch levers The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-
bricated if necessary.
EAU03371
Checking and lubricating the
centerstand and sidestand The operation of the centerstand and
sidestand should be checked before
each ride, and the pivots and met-
al-to-metal contact surfaces should be
lubricated if necessary.
EW000114
WARNING
_ If the centerstand or sidestand does
not move up and down smoothly,
have a Yamaha dealer check or re-
pair it. _
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
U5WME0.book Page 25 Monday, July 29, 2002 10:25 AM
Page 71 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
6
EAU02939
Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
EW000115
WARNING
_ Securely support the motorcycle so
that there is no danger of it falling
over. _Check the inner tubes for scratches,
damage and excessive oil leakage.To check the operation
1. Place the motorcycle on a level
surface and hold it in an upright
position.
2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and re-
bounds smoothly.
EC000098
CAUTION:_ If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it. _
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
U5WME0.book Page 26 Monday, July 29, 2002 10:25 AM
Page 72 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6
EAU00794
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
EW000115
WARNING
_ Securely support the motorcycle so
that there is no danger of it falling
over. _
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steer-
ing.
EAU01144
Checking the wheel bearings The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer
check the wheel bearings.
U5WME0.book Page 27 Monday, July 29, 2002 10:25 AM
