2003 YAMAHA XJR 1300 Owners Manual

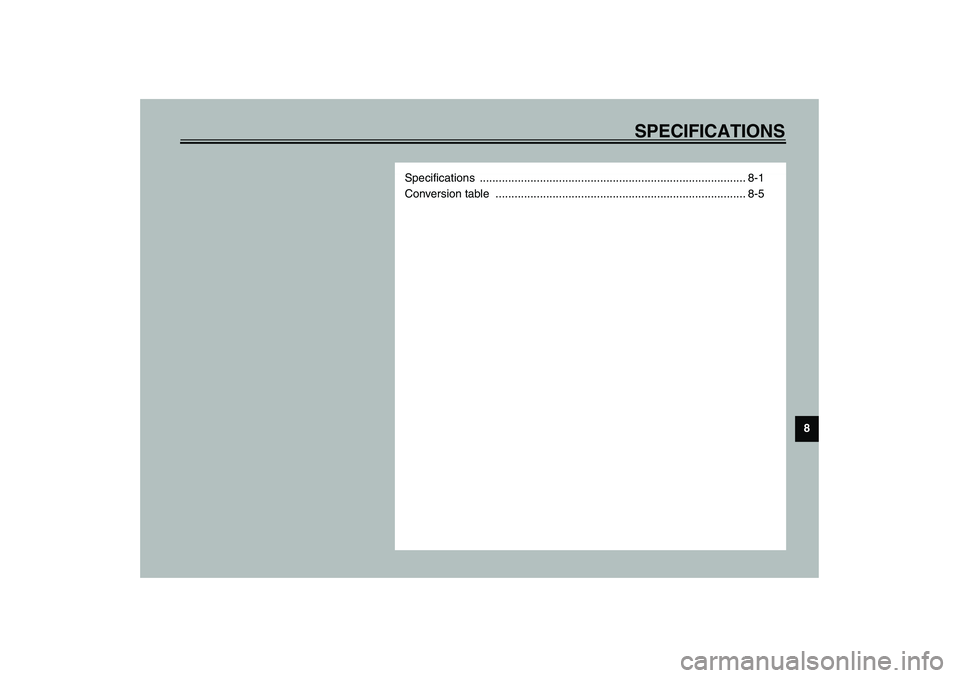

SPECIFICATIONS
8
Specifications .................................................................................... 8-1
Conversion table ............................................................................... 8-5
U5WME0.book Page 1 Monday, July 29, 2002 10:25 AM

8-1
8
EAU01038
8-SPECIFICATIONSSpecifications CS-01E
Model XJR1300
Dimensions
Overall length 2,175 mm (except for N, S)
2,250 mm (for N, S)
Overall width 775 mm
Overall height 1,115 mm
Seat height 790 mm
Wheelbase 1,510 mm
Ground clearance 120 mm
Minimum turning radius 2,800 mm
Basic weight (with oil and full
fuel tank)
247 kg
Engine
Engine type Air-cooled 4-stroke, DOHC
Cylinder arrangement Forward-inclined parallel
4-cylinder
Displacement 1,251 cm
3
Bore × stroke 79.0 × 63.8 mm
Compression ratio 9.7:1
Starting system Electric starter
Lubrication system Wet sumpEngine oil
Ty p e
Recommended engine oil
classification API Service SE, SF, SG or
higher
Quantity
Without oil filter element
replacement 3.0 L
With oil filter element
replacement 3.35 L
Total amount (dry engine) 4.2 L
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
CAUTION:In order to prevent clutch slippage (since the engine oil also
lubricates the clutch), do not mix any chemical additives. Do
not use oils with a diesel specification of “CD” or oils of a
higher quality than specified. In addition, do not use oils la-
beled “ENERGY CONSERVING II” or higher.
U5WME0.book Page 1 Monday, July 29, 2002 10:25 AM

SPECIFICATIONS
8-2
8
Air filterDry element
Fuel
Type REGULAR UNLEADED
GASOLINE ONLY
Fuel tank capacity 21 L
Fuel reserve amount 4.5 L
Carburetor
Manufacturer MIKUNI
Model × quantity BSR37 × 4
Spark plug
Manufacturer/model NGK / DPR8EA-9 or
DENSO / X24EPR-U9
Gap 0.8–0.9 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction ratio 1.750
Secondary reduction system Chain drive
Secondary reduction ratio 2.167
Number of drive chain
sprocket teeth (front/rear) 18/39
Transmission type Constant-mesh 5-speed
Operation Left footGear ratio
1st 2.857
2nd 2.000
3rd 1.571
4th 1.292
5th 1.115
Chassis
Frame type Double cradle
Caster angle 25.5 °
Trail 100 mm
Tires
Front
Type Tubeless tire
Size 120/70 ZR17 (58W)
120/70 ZR17 M/C (58W)
Manufacturer/model Dunlop / D220F ST M
Michelin / MACADAM90X E
Rear
Type Tubeless tire
Size 180/55 ZR17 (73W)
180/55 ZR17 M/C (73W)
Manufacturer/model Dunlop / D220 ST M
Michelin / MACADAM90X E
U5WME0.book Page 2 Monday, July 29, 2002 10:25 AM

SPECIFICATIONS
8-3
8
Maximum load* 203 kg
Tire air pressure
(measured on cold tires)
Up to 90 kg*
Front 250 kPa (2.50 kgf/cm
2, 2.50 bar)
Rear 250 kPa (2.50 kgf/cm2, 2.50 bar)
90 kg–maximum*
Front 250 kPa (2.50 kgf/cm2, 2.50 bar)
Rear 290 kPa (2.90 kgf/cm2, 2.90 bar)
High-speed riding
Front 250 kPa (2.50 kgf/cm2, 2.50 bar)
Rear 290 kPa (2.90 kgf/cm2, 2.90 bar)
* Total weight of rider, passenger, cargo and accessories
Wheels
Front
Type Cast wheel
Size 17 × MT 3.50
17 M/C × MT 3.50
Rear
Type Cast wheel
Size 17 × MT 5.50
17 M/C × MT 5.50Brakes
Front
Type Dual disc brake
Operation Right hand
Fluid DOT 4
Rear
Type Single disc brake
Operation Right foot
Fluid DOT 4
Suspension
Front Telescopic fork
Rear Swingarm
Springs/shock absorbers
Front Coil spring / oil damper
Rear Coil spring / gas-oil damper
Wheel travel
Front 130 mm
Rear 110 mm
Electrical system
Ignition system T.C.I. (digital)
Charging system
Type A.C. generator
Standard output 13.5 V, 28 A @ 5,000 r/min
U5WME0.book Page 3 Monday, July 29, 2002 10:25 AM

SPECIFICATIONS
8-4
8
Battery
Model GT14B-4
Voltage, capacity 12 V, 12 Ah
Headlight typeHalogen bulb
Bulb voltage, wattage × quantity
Headlight 12 V, 60/55 W × 1
Tail/brake light 12 V, 5/21 W × 2
Auxiliary light 12 V, 4 W × 1
Turn signal light 12 V, 21 W × 4
Meter lighting 12 V, 1.7 W × 4
Neutral indicator light 12 V, 1.7 W × 1
High beam indicator light 12 V, 3.4 W × 1
Oil level warning light 12 V, 1.7 W × 1
Turn signal indicator light 12 V, 1.7 W × 2
Fuses
Main fuse 40 A
Headlight fuse 15 A
Signaling system fuse 15 A
Ignition fuse 15 A
Turn signal light fuse 15 A
U5WME0.book Page 4 Monday, July 29, 2002 10:25 AM

SPECIFICATIONS
8-5
8
EAU04513
Conversion table CS-04EAll specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit values to IMPERIAL
unit values.
Example:METRIC VALUE CONVERSION
FACTORIMPERIAL VALUE
2 mm× 0.03937 = 0.08 in
Conversion table
METRIC SYSTEM TO IMPERIAL SYSTEM
Metric unit Conversion factor Imperial unit
Torquem·kgf
m·kgf
cm·kgf
cm·kgf
× 7.233× 86.794× 0.0723× 0.8679ft·lbf
in·lbf
ft·lbf
in·lbf
Weightkg
g× 2.205× 0.03527lb
oz
Speed km/h× 0.6214 mi/h
Distancekm
m
m
cm
mm× 0.6214× 3.281× 1.094× 0.3937× 0.03937mi
ft
yd
in
in
Volume,
Capacitycc (cm
3)
cc (cm3)
L (liter)
L (liter)
× 0.03527× 0.06102× 0.8799× 0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Miscellaneouskg/mm
kgf/cm
2
°
C
× 55.997× 14.2234× 1.8 + 32 lb/in
psi (lbf/in
2)
°
F
U5WME0.book Page 5 Monday, July 29, 2002 10:25 AM

CONSUMER INFORMATION
9
Identification numbers ....................................................................... 9-1
Key identification number .................................................................. 9-1
Vehicle identification number ............................................................. 9-1
Model label ........................................................................................ 9-2
U5WME0.book Page 1 Monday, July 29, 2002 10:25 AM

9-1
9
EAU01039
9-CONSUMER INFORMATION
EAU02944
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
1. KEY IDENTIFICATION NUMBER:CA-02E2. VEHICLE IDENTIFICATION
NUMBER:CA-02E3. MODEL LABEL INFORMATION:CA-01EEAU01041
Key identification number The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU01043
Vehicle identification number The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:_ The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in
your area. _
1. Key identification number
1. Vehicle identification number
