2003 TOYOTA LAND CRUISER Owners Manual

’03 L/C U (L/O 0301)
21

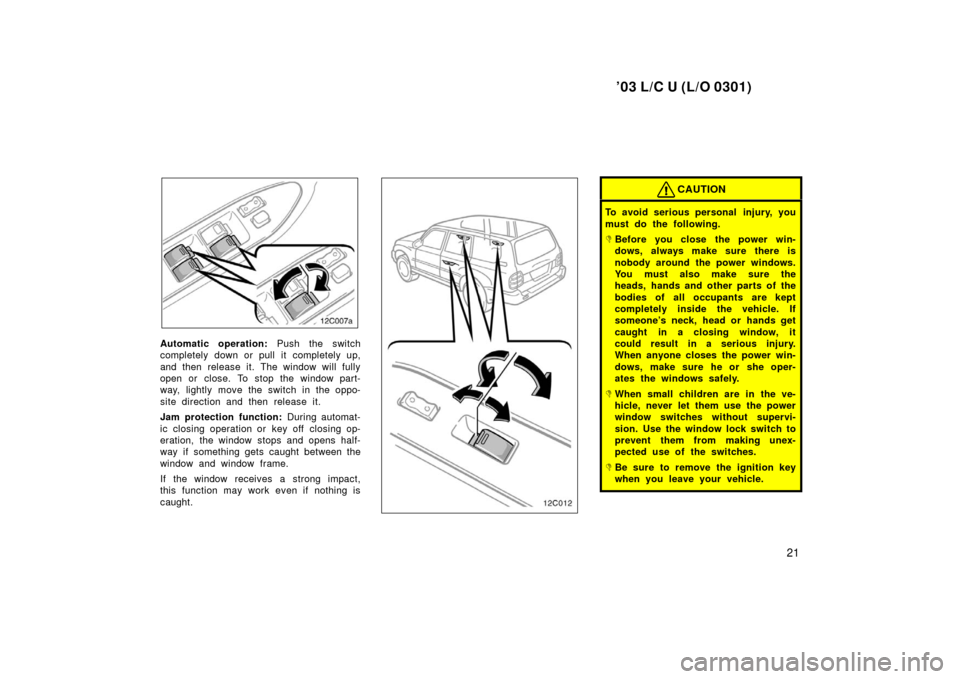

12C007a
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
Jam protection function: During automat-
ic closing operation or key off closing op-
eration, the window stops and opens half-
way if something gets caught between the
window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power win-
dows, make sure he or she oper-
ates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.

’03 L/C U (L/O 0301)
22
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he or she
could use the power window
switches and get trapped in a win-
dow. Unattended person (particular-
ly a small child) can be involved in
a serious accident.
Never try jamming any part of your
body in a window to activate the
jam protection function intention-
ally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.

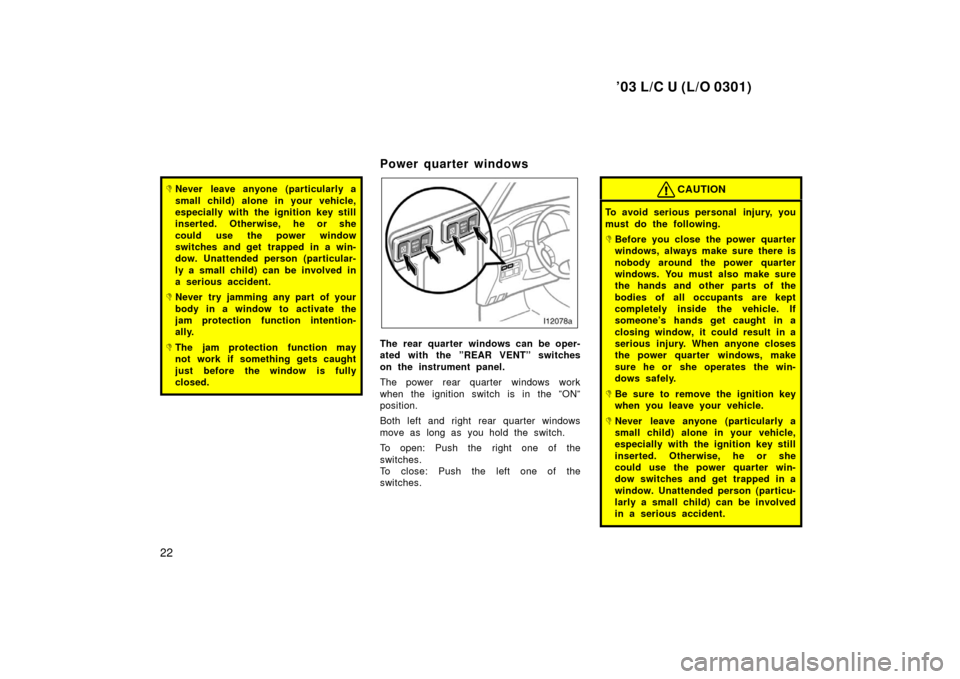

Power quarter windows
The rear quarter windows can be oper-
ated with the ”REAR VENT” switches
on the instrument panel.
The power rear quarter windows work
when the ignition switch is in the ”ON”
position.
Both left and right rear quarter windows
move as long as you hold the switch.
To open: Push the right one of the
switches.
To close: Push the left one of the
switches.
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power quarter
windows, always make sure there is
nobody around the power quarter
windows. You must also make sure
the hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s hands get caught in a
closing window, it could result in a
serious injury. When anyone closes
the power quarter windows, make
sure he or she operates the win-
dows safely.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he or she
could use the power quarter win-
dow switches and get trapped in a
window. Unattended person (particu-
larly a small child) can be involved
in a serious accident.

’03 L/C U (L/O 0301)
23

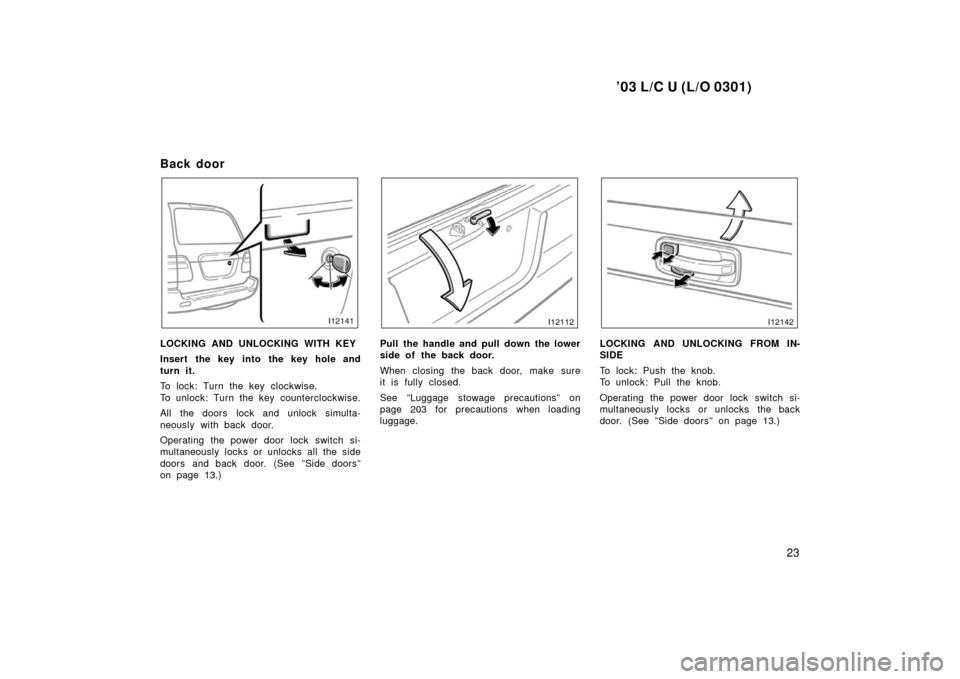

Back door
LOCKING AND UNLOCKING WITH KEY
Insert the key into the key hole and
turn it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
All the doors lock and unlock simulta-
neously with back door.
Operating the power door lock switch si-
multaneously locks or unlocks all the side
doors and back door. (See ”Side doors”
on page 13.)Pull the handle and pull down the lower
side of the back door.
When closing the back door, make sure
it is fully closed.
See ”Luggage stowage precautions” on
page 203 for precautions when loading
luggage.LOCKING AND UNLOCKING FROM IN-
SIDE
To lock: Push the knob.
To unlock: Pull the knob.
Operating the power door lock switch si-
multaneously locks or unlocks the back
door. (See ”Side doors” on page 13.)

’03 L/C U (L/O 0301)
24

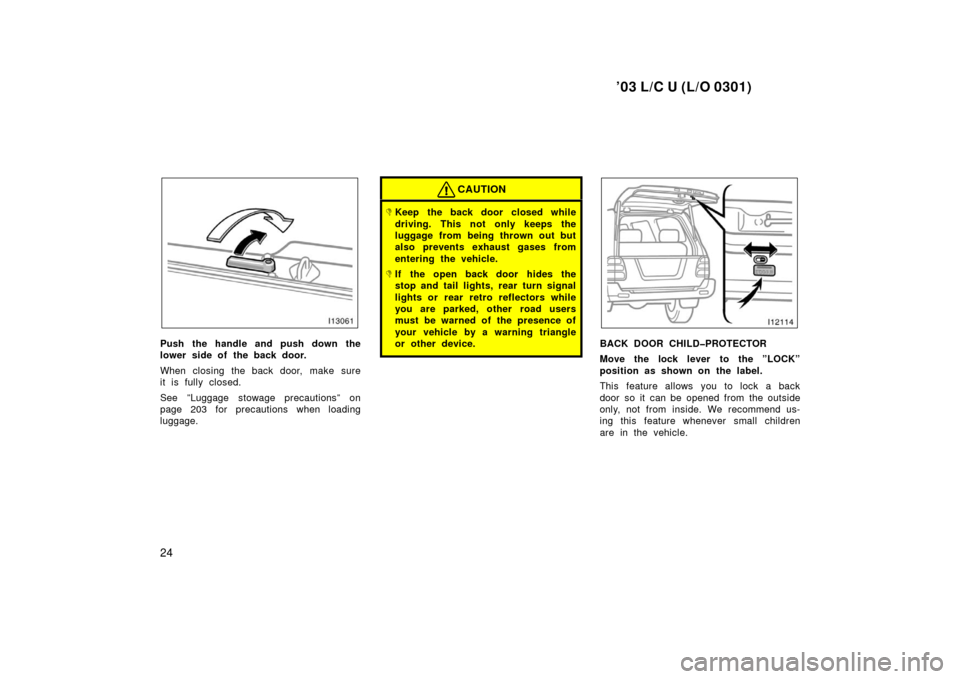

Push the handle and push down the
lower side of the back door.
When closing the back door, make sure
it is fully closed.
See ”Luggage stowage precautions” on
page 203 for precautions when loading
luggage.
CAUTION
Keep the back door closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
If the open back door hides the
stop and tail lights, rear turn signal
lights or rear retro reflectors while
you are parked, other road users
must be warned of the presence of
your vehicle by a warning triangle
or other device.
BACK DOOR CHILDPROTECTOR
Move the lock lever to the ”LOCK”
position as shown on the label.
This feature allows you to lock a back
door so it can be opened from the outside
only, not from inside. We recommend us-
ing this feature whenever small children
are in the vehicle.

’03 L/C U (L/O 0301)
25
CAUTION
Before driving, be sure that the back
door is closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
Hood
To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.

’03 L/C U (L/O 0301)
26

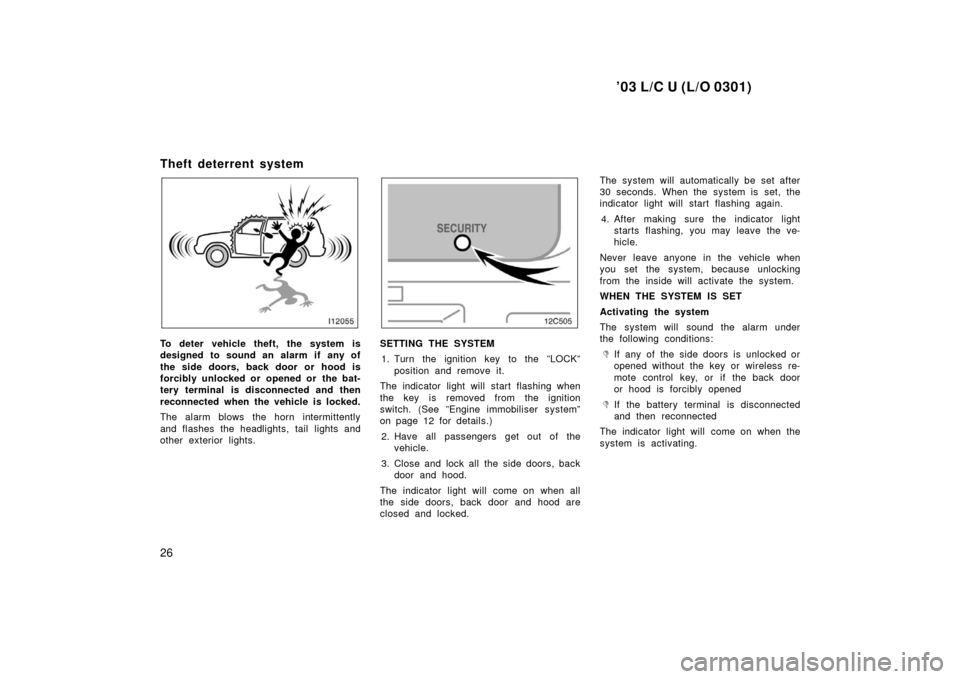

Theft deterrent system
To deter vehicle theft, the system is
designed to sound an alarm if any of
the side doors, back door or hood is
forcibly unlocked or opened or the bat-
tery terminal is disconnected and then
reconnected when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights, tail lights and
other exterior lights.SETTING THE SYSTEM1. Turn the ignition key to the ”LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See ”Engine immobiliser system”
on page 12 for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will come on when all
the side doors, back door and hood are
closed and locked. The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:If any of the side doors is unlocked or
opened without the key or wireless re-
mote control key, or if the back door
or hood is forcibly opened
If the battery terminal is disconnected
and then reconnected
The indicator light will come on when the
system is activating.

’03 L/C U (L/O 0301)
27
If any of the side door or back door is
unlocked without the key or wireless re-
mote control key and the key is not in the
ignition switch, all the side doors and
back door will be automatically locked
again.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
”Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
two ways:
Turn the ignition key from the ”LOCK”
to ”ON” position.
Unlock any of the side doors or back
door with the key or wireless remote
control key.
These ways cancel the system at the
same time. TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The side doors and back door should
be locked with the key or wireless re-
mote control key. Be sure to wait until
the indicator light goes off or starts
flashing.
3. Unlock any side door or back door from the inside. The system should ac-
tivate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other doors, back door and hood. When test-
ing the hood, also check that the sys-
tem is activated when the battery ter-
minal is disconnected and then
reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
Fuel tank cap

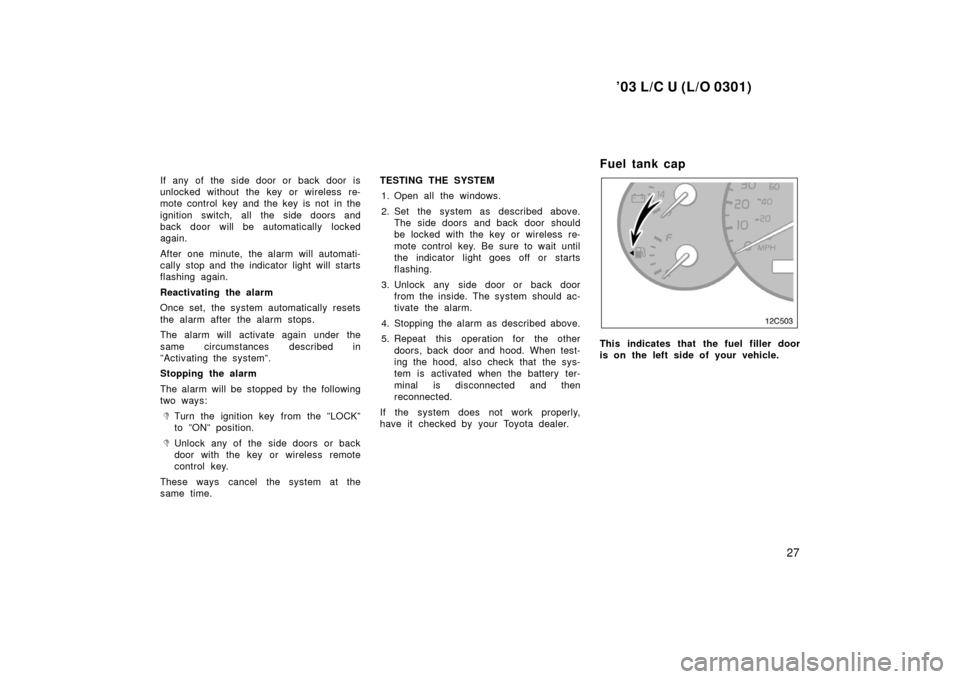

12C503
This indicates that the fuel filler door
is on the left side of your vehicle.

’03 L/C U (L/O 0301)
28

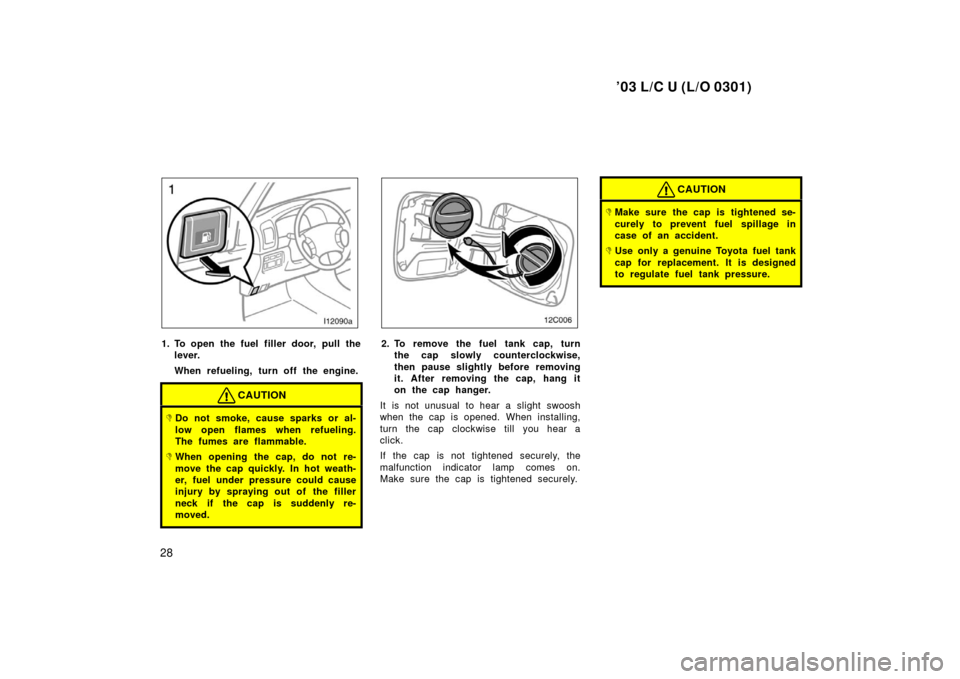

1. To open the fuel filler door, pull thelever.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
12C006
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When insta lling,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel sp illage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
